2004 MAZDA MODEL MX-5 MIATA warning light

3-15
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G

Operating the Passenger Power
Window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Right window
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 15 Thursday, August 21, 2003 10:04 AM

3-30
Knowing Your Mazda
Security System
Form No. 8S15-EA-03G

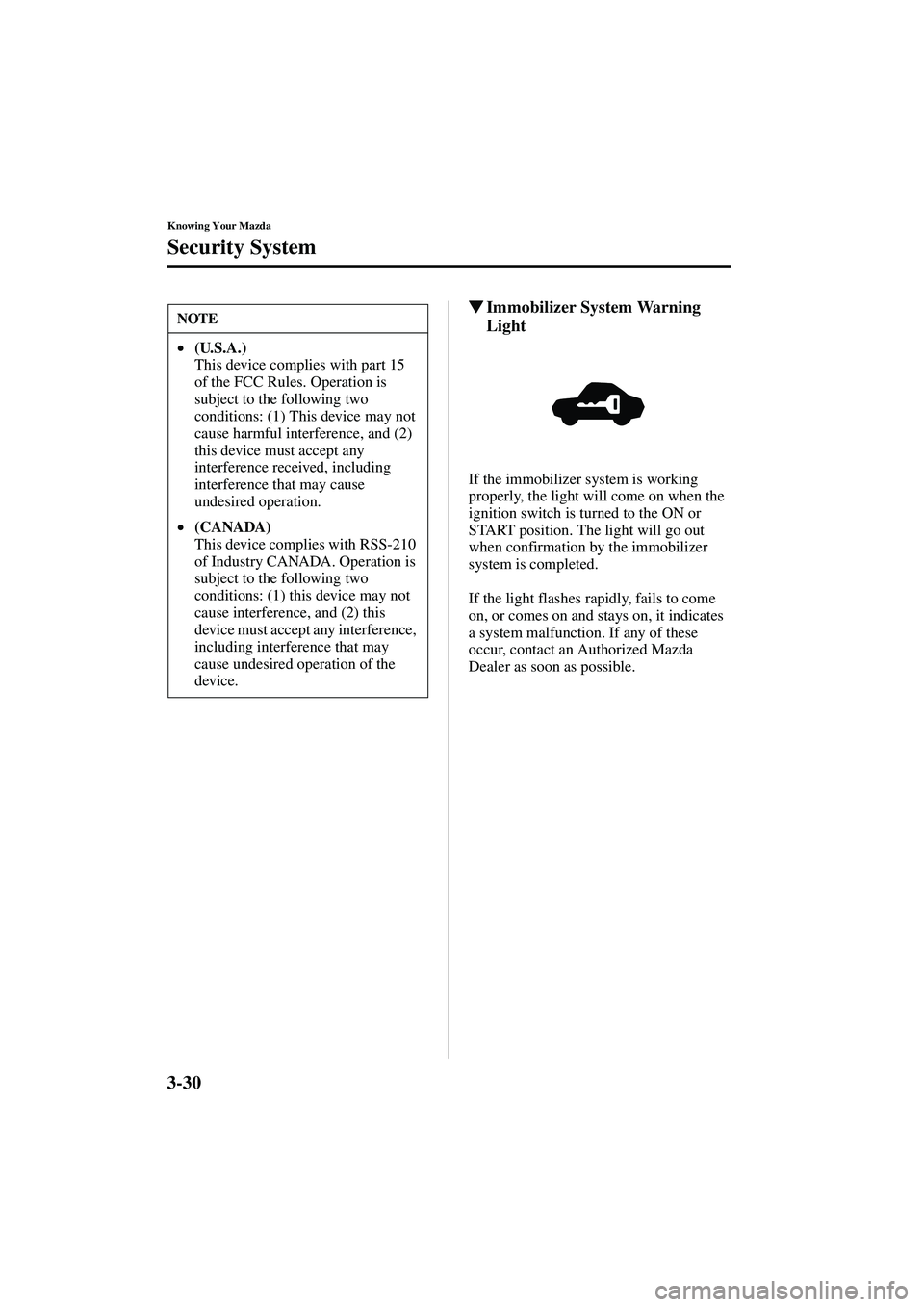

Immobilizer System Warning
Light
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
NOTE
• (U.S.A.)

This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operation.
• (CANADA)

This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may
cause undesired operation of the
device.
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM

3-31
Knowing Your Mazda
Security System
Form No. 8S15-EA-03G

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system
’s operation if the system has been
modified or if any add-on equipment has
been installed to it.
NOTE
• If the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the
engine will not start.
• Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are
using the proper key and your
engine fails to start, check the
warning light. If it is flashing,
remove the ignition key and wait 2
seconds or more, then reinsert it and
try starting the engine again. If it
doesn
’t start after 3 or more tries,
contact an Authorized Mazda
Dealer.
• If the warning light flashes
continuously while you are driving,
don’
t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won ’t be able to restart it.
NOTE
• The keys carry a unique electronic
code. For this reason, and to assure
your safety, replacement keys
require some waiting time to obtain.
They are only available through an
Authorized Mazda Dealer.
• Always keep a replacement key, in
case one is lost. If a key is lost,
contact an Authorized Mazda
Dealer as soon as possible.
• If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 31 Thursday, August 21, 2003 10:04 AM

3-33
Knowing Your Mazda
Mirrors
Form No. 8S15-EA-03G

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Day/Night lever
Day Night
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don ’t stack
things higher than the seatbacks.
Objects in the Storage Area:
Putting heavy or sharp objects in the
top storage area is dangerous.
During a sudden stop or collision,
they can become projectiles that
might hit and injure passengers.
Don ’t place heavy or sharp objects in
the top storage area.
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when it ’s moving is a
dangerous way to ride. During a
sudden maneuver or collision you
could be seriously injured or even
killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 33 Thursday, August 21, 2003 10:04 AM

4-5
Before Driving Your Mazda
Form No. 8S15-EA-03G
Before Starting the Engine
•Be sure the windows, outside mirrors,
and outside lights are clean.
• Inspect inflation pressures and
condition of tires.
• Look under the vehicle for any sign of
a leak.
• If you plan to back up, make sure
nothing will be in your way. •
Are all doors closed and locked?
• Is the seat adjusted properly?
• Are the inside and outside mirrors
adjusted?
• Is everyone
’s seat belt fastened?
• Do all the lights work?
• Check all gauges.
• Check all warning lights when the
ignition switch is turned to the ON
position.
• Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake/
clutch fluid, washer fluid, and other
fluid levels should be inspected daily,
weekly, or at refueling, depending on
the fluid. See Maintenance, Section 8.
After Getting In
J07S_8S15-EA-03G_Edition2.book Page 5 Thursday, August 21, 2003 10:04 AM

4-7
Before Driving Your Mazda
Driving Tips
Form No. 8S15-EA-03G
When driving on ice or in water, snow,
mud, sand, or similar hazard:
•Be cautious and allow extra distance
for braking.
• Avoid sudden braking and quick
steering.
• If your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don
’t hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don ’t pump the brakes. Continue to
press down on the brake pedal.
• If you get stuck, select a lower gear and
accelerate slowly. Don
’t spin the rear
wheels.
• For more traction in starting on
slippery surfaces such as ice or packed
snow, use sand, rock salt, chains,
carpeting, or other nonslip material
under the rear wheels. If you must rock the vehicle to free it from
snow, sand, or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.
Hazardous Driving
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
NOTE
Use snow chains only on the rear
wheels.
WARNING
Rocking the Vehicle
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don't spin the wheels at
more than 56 km/h (35 mph), and
don't allow anyone to stand behind a
wheel when pushing the vehicle.
Too much rocking may cause engine
overheating, transmission failure, and
tire damage.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 7 Thursday, August 21, 2003 10:04 AM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8S15-EA-03G

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the rear tires.
Don
’t use chains on the front tires.
Use only SAE Class "S" chains, and make
sure they fit.
Installing the chains
1. Remove the wheel covers, or the chain
bands will scratch them.
2. Secure the chains on the rear tires as tightly as possible. Always follow the
chain manufacturer ’s instructions.
3. Retighten the chains after driving 1/2—1 km (1/4 —1/2 mile).
•
Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
• Chains may affect handling.
• Don
’t go faster than 50 km/h (30
mph) or the chain manufacturer ’s
recommended limit, whichever is
lower.
• Drive carefully and avoid bumps,
holes, and sharp turns.
• Avoid locked-wheel braking.
• Don
’t use chains on a temporary
spare tire; it may result in damage to
the vehicle and to the tire.
• Don
’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
CAUTION
Driving In Flooded Area
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance
returns to normal.
Make sure water does not enter the
vehicle interior or the engine area. The
vehicle interior could become wet or
the engine could be damaged.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 9 Thursday, August 21, 2003 10:04 AM

5-1
Form No. 8S15-EA-03G
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................. 5-4
Manual Transmission Operation ............................................... 5-9
Automatic Transmission Controls ........................................... 5-10
Power Steering ......................................................................... 5-14
Cruise Control* ....................................................................... 5-15
Instrument Cluster and Indicators ............................................ 5-18
Meters and Gauges .................................................................. 5-18
Warning/Indicator Lights and Beeps ........................................ 5-23
Warning/Indicator Lights ......................................................... 5-23
Beeps ....................................................................................... 5-30
Switches and Controls ................................................................. 5-31
Lighting Control ...................................................................... 5-31
Turn and Lane-Change Signals ............................................... 5-32
Fog Lights* .............................................................................. 5-32
Daytime Running Lights (Canada) .......................................... 5-33
Windshield Wipers and Washer ............................................... 5-33
Rear Window Defroster ........................................................... 5-35
Horn ......................................................................................... 5-35
Hazard Warning Flasher .......................................................... 5-36
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 1 Thursday, August 21, 2003 10:04 AM
