2004 MAZDA MODEL 6 HATCHBACK light

Black plate (72,1)
NOTE
l(U.S.A.)
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
If the LOCK and UNLOCK buttons are
pressed sequentially, the hazard
warning lights may not flash correctly.
Lock button
To lock the doors and the hatch/liftgate,
press the LOCK button and the hazard
warning lights will flash once.
To confirm that all the doors and the
hatch/liftgate have been locked, press the
LOCK button again within 5 seconds. If
they are closed and locked, the horn will
sound and the hazard warning lights will
flash once.
NOTE
lAll doors and the hatch/liftgate
cannot be locked when any door is
open and the key is in the ignition
switch.
lConfirm that all the doors and the
hatch/liftgate are locked visually or
audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
UNLOCK button and the hazard warning
lights will flash twice.
To unlock all the doors and the hatch/
liftgate, press the UNLOCK button again
within 5 seconds and the hazard warning
lights will flash twice.
NOTE
After unlocking with the transmitter, all
doors and the hatch/liftgate will
automatically lock if one of the doors or
the hatch/liftgate is not opened within
about 30 seconds.
Trunk button
To open the trunk, press the
button.
NOTE
The trunk button is disabled when the
glove box-mounted trunk lid release
lock-out button is in the OFF position.
Refer to Remote Trunk Lid Release
Lock-Out on page 3-20.
3-4
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page72
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (73,1)
Panic button
You can use the
button to turn on the
alarm, which allows you to signal for
attention in an emergency.
NOTE
The alarm will work whether any door
is open or closed.
Turning on the alarm
Pressing the
button once will trigger the
alarm for about 2 minutes and 30 seconds,
and do the following:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could damage it.
lDanger of battery explosion if it is
incorrectly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Knowing Your Mazda
Doors and Locks
3-5
Mazda6_8T12-EA-03K_Edition1 Page73
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

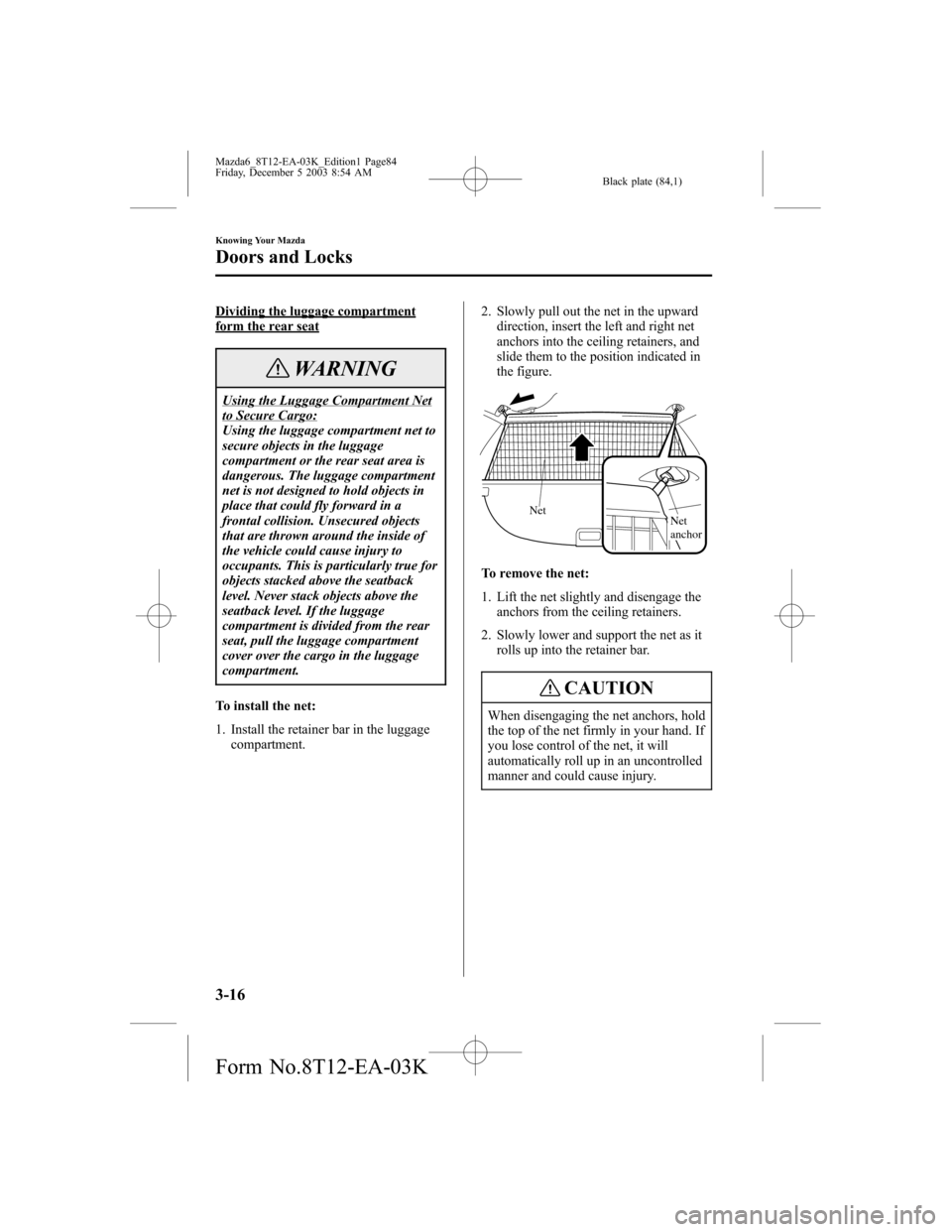

Black plate (84,1)
Dividing the luggage compartmentform the rear seat
WARNING
Using the Luggage Compartment Netto Secure Cargo:
Using the luggage compartment net to
secure objects in the luggage
compartment or the rear seat area is
dangerous. The luggage compartment
net is not designed to hold objects in
place that could fly forward in a
frontal collision. Unsecured objects
that are thrown around the inside of
the vehicle could cause injury to
occupants. This is particularly true for
objects stacked above the seatback
level. Never stack objects above the
seatback level. If the luggage
compartment is divided from the rear
seat, pull the luggage compartment
cover over the cargo in the luggage
compartment.
To install the net:
1. Install the retainer bar in the luggage
compartment.2. Slowly pull out the net in the upward
direction, insert the left and right net
anchors into the ceiling retainers, and
slide them to the position indicated in
the figure.
Net
anchor Net
To remove the net:
1. Lift the net slightly and disengage the
anchors from the ceiling retainers.
2. Slowly lower and support the net as it
rolls up into the retainer bar.
CAUTION
When disengaging the net anchors, hold
the top of the net firmly in your hand. If
you lose control of the net, it will
automatically roll up in an uncontrolled
manner and could cause injury.
3-16
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page84
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (86,1)
5. Slowly pull out the net in the upward
direction, insert the left and right net
anchors into the ceiling retainers, and
slide them to the position indicated in
the figure.
Net
anchor
Net
To remove the net:
1. Lift the net slightly and disengage the
net anchors from the ceiling retainers.
2. Slowly lower and support the net as it
rolls up into the retainer bar.
3. Remove the retainer bar in the reverse
order of installation.
CAUTION
When disengaging the net anchors, hold
the top of the net firmly in your hand. If
you lose control of the net, it will
automatically roll up in an uncontrolled
manner and could cause injury.
Trunk Lid (Sedan)
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
3-18
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page86
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (88,1)
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qRemote Trunk Lid Release Lock-
Out
As an added security feature, the remote
release may be canceled to prevent
anyone from opening the trunk without
the master key.
With the switch in the OFF position, the
remote trunk lid release cannot be
operated.
ON position OFF position
With the switch in the ON position, the
remote trunk lid release can be operated.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
3-20
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page88
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (90,1)
qOpening the Trunk Lid from the
Inside
Slide the illuminated inside trunk release
slide lever in the direction of the arrow.
The lever is made of material that will
glow for hours in the darkness of the
trunk following a brief exposure to
ambient light.
The inside trunk release slide lever is
located on the inside of the trunk lid.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window. Always lock all passenger
power windows with the power
window lock switch on the driver's
side while children are in the vehicle,
and never allow children to play with
power window switches.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
don't open or close more than three
windows at once.
3-22
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page90
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (91,1)
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Left front windowClose
Open
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC,
LOCK position or key out of ignition with
all doors closed. If any front door is
opened, the power window will be
inoperable.
qOperating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver's door.
Right rear window Left rear window
Right front window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
OpenClose
Knowing Your Mazda
Doors and Locks
3-23
Mazda6_8T12-EA-03K_Edition1 Page91
Friday, December 5 2003 8:55 AM
Form No.8T12-EA-03K

Black plate (92,1)
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC,
LOCK position or key out of ignition with
all doors closed. If any front door is
opened, the power window will be
inoperable.
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unintentional Window Operation:
Unintentional window operation is
dangerous. A person's hands, head, or
neck could be caught by the window
and result in serious injury. Unless a
passenger needs to operate a window,
keep the power window lock switch in
the locked position.
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel tank
and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda Dealers.
The wrong cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause the
check engine light in the instrument
cluster to illuminate.
3-24
Knowing Your Mazda
Doors and Locks
Mazda6_8T12-EA-03K_Edition1 Page92
Friday, December 5 2003 8:55 AM
Form No.8T12-EA-03K
