2004 MAZDA MODEL 6 HATCHBACK engine

Black plate (283,1)
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
23IG
KEY230AReverse lights, Heater control
unit
24 BLOWER40A Blower motor
25BTN 40AOverhead light, Power door
lock
26—— —
27DEFOG 40A Rear window defroster
28ABS 60A ABSí
29AD
FA N*130A Cooling fan
FAN2*2
30FA N*130A Cooling fan
FAN1*2
31TAIL 10ABrake/Taillights, License plate
lights, Parking lights
32 ILLUMI10A Dashboard illumination
33MAG 10A Magnet clutch
34AUDIO 15A Audio system
35P.SEAT 30A Power seatí
36 OPENER7.5A Fuel lid opener
37—— —
38—— —
39FOG 15A Fog lightsí
40MAIN100A*1For protection of all circuits
120A*2
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-41íSome models. Mazda6_8T12-EA-03K_Edition1 Page283
Friday, December 5 2003 8:59 AM
Form No.8T12-EA-03K

Black plate (284,1)

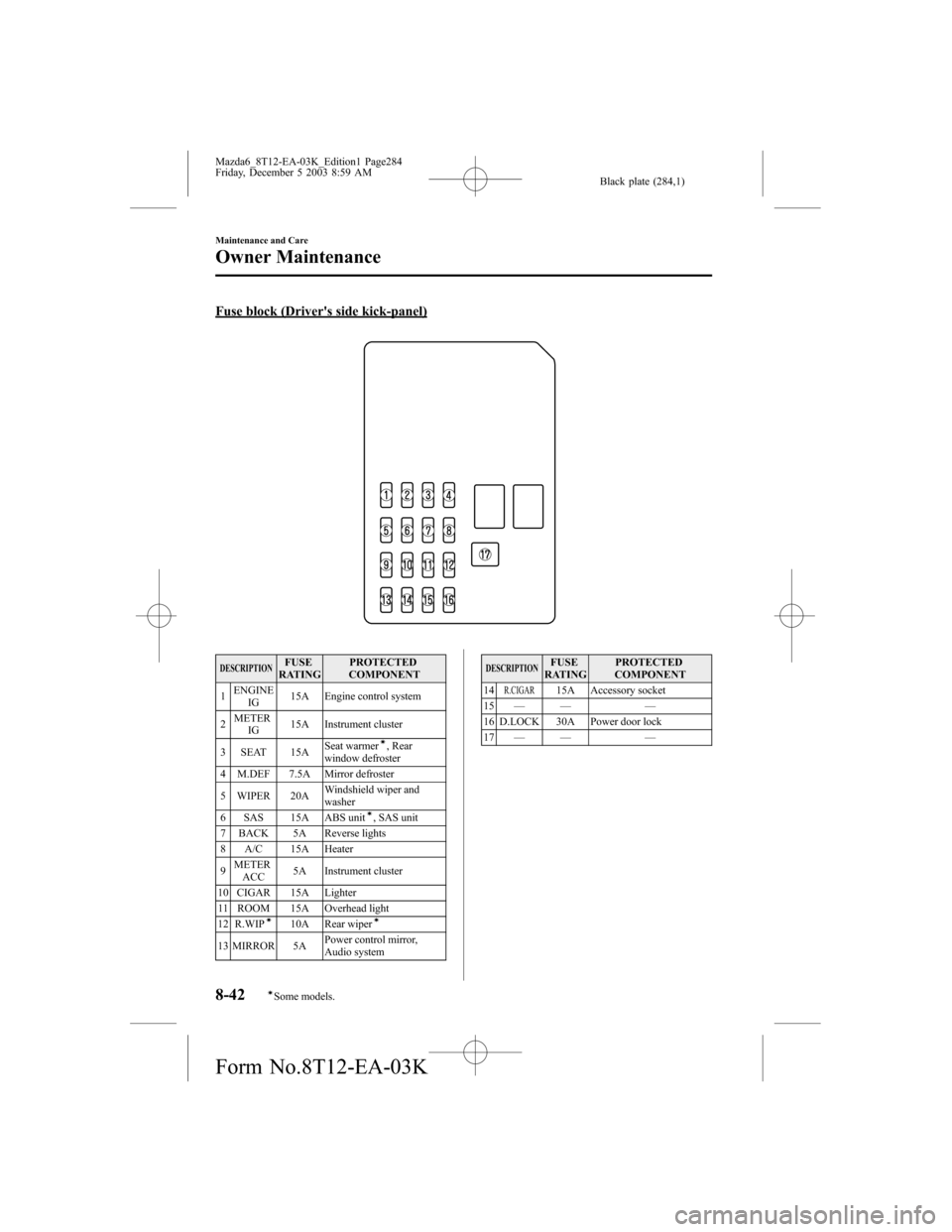

Fuse block (Driver's side kick-panel)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1ENGINE
IG15A Engine control system
2METER
IG15A Instrument cluster
3 SEAT 15ASeat warmer
í, Rear
window defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20AWindshield wiper and
washer
6 SAS 15A ABS unit
í, SAS unit
7 BACK 5A Reverse lights
8 A/C 15A Heater
9METER
ACC5A Instrument cluster
10 CIGAR 15A Lighter
11 ROOM 15A Overhead light
12 R.WIP
í10A Rear wiperí
13 MIRROR 5APower control mirror,
Audio system
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
14
R.CIGAR15A Accessory socket
15—— —
16 D.LOCK 30A Power door lock
17—— —
8-42
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8T12-EA-03K_Edition1 Page284
Friday, December 5 2003 8:59 AM
Form No.8T12-EA-03K

Black plate (302,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-10
Customer Information and Reporting Safety Defects
Warranty
Mazda6_8T12-EA-03K_Edition1 Page302
Friday, December 5 2003 8:59 AM
Form No.8T12-EA-03K

Black plate (303,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of Canada:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-11
Mazda6_8T12-EA-03K_Edition1 Page303
Friday, December 5 2003 8:59 AM
Form No.8T12-EA-03K

Black plate (305,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety system; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety system.
This could cause you to have an accident or increase your chances of injuries in an
accident. Always consult an Authorized Mazda Dealer before you install non-genuine
parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
9-13
Mazda6_8T12-EA-03K_Edition1 Page305
Friday, December 5 2003 9:0 AM
Form No.8T12-EA-03K

Black plate (314,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard
Label
qVehicle Emission Control
Information Label
qTire Pressure Label
qEngine Number (3.0-liter engine
only)
Front
10-2
Identification Numbers
Mazda6_8T12-EA-03K_Edition1 Page314
Friday, December 5 2003 9:0 AM
Form No.8T12-EA-03K

Black plate (315,1)
Specifications
qEngine
ItemSpecification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
qElectrical System
Item Classification
Battery 12V-50AH/5HR
Alternator2.3-liter engine 12 V - 90 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number2.3-liter engine NGK ITR6F 13
3.0-liter engine Motorcraft AGSF 22FSCM
Spark-plug gap2.3-liter engine 1.25—1.35 mm (0.049—0.053 in)
3.0-liter engine 1.29—1.45 mm (0.051—0.057 in)
qLubricant Quality
LubricantClassification
API Service ILSAC
Engine oil
*SL GF-III
* Refer to the recommended SAE viscosity numbers on page 8-10.
Lubricant Classification
Manual transmission
oil2.3-liter engineAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F)API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engineAPI Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluidATF M-III, M-V, or equivalent
(e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
Specifications
10-3
Mazda6_8T12-EA-03K_Edition1 Page315
Friday, December 5 2003 9:0 AM
Form No.8T12-EA-03K

Black plate (316,1)
qCapacities
(Approximate Quantities)
ItemUnit
L US qt Imp qt
Engine oil2.3-liter
engineWith oil filter replacement 4.3 4.5 3.8
Without oil filter
replacement3.9 4.1 3.4
3.0-liter
engineWith oil filter replacement 5.7 6.0 5.0
Without oil filter
replacement5.2 5.5 4.6
Coolant2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid2.3-liter engine 7.2 7.6 6.3
3.0-liter engine 9.2 9.7 8.1
Fuel tank 68 18.0 (US gal)15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Specification
Overall lengthSedan 4,745 mm (186.8 in)
Hatchback 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall heightSedan/Hatchback 1,440 mm (56.7 in)
Wagon 1,455 mm (57.3 in)
Front tread 1,540mm
*1(60.6in), 1,530mm*2(60.2in)
Rear tread 1,540mm*1(60.6in), 1,530mm*2(60.2in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
10-4
Specifications
Mazda6_8T12-EA-03K_Edition1 Page316
Friday, December 5 2003 9:0 AM
Form No.8T12-EA-03K
