2004 MAZDA MODEL 3 HATCHBACK charging

5-31
Driving Your Mazda
Form No. 8S18-EA-03I
Warning/Indicator Lights and Beep Sounds
Warning/Indicator Lights
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-33
Charging System Warning Light 5-34
Engine Oil Pressure Warning Light 5-34
Check Engine Light 5-35
ABS Warning Light 5-35
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-36
Low Fuel Warning Light 5-36
Warning/Indicator lights will appear in any of the highlighted areas
J48C_8S18-EA-03I_Edition1.book Page 31 Wednesday, August 6, 2003 8:51 AM

5-34
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S18-EA-03I

Charging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.

Engine Oil Pressure Warning
Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine oil level (page 8-13). If it’s low,
add oil.
3. Check the light.
If the light remains illuminated even after
you add oil, have your vehicle towed to an
Authorized Mazda Dealer.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
Don’t continue driving when the
charging system warning light is
illuminated.
WARNING
CAUTION
Don’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 34 Wednesday, August 6, 2003 8:51 AM

5-44
Driving Your Mazda
Form No. 8S18-EA-03I
Switches and Controls

Headlights
Type A (Without AUTO position)
Turn the headlight switch to turn the
headlights and other exterior lights on or
off.Type B (With AUTO position,
CANADA)*
Turn the headlight switch to turn the
headlights and other exterior lights on or
off.
AUTO (Auto-light control)

When the headlight switch is in the
AUTO position and the ignition switch is
in the ON position, the light sensor senses
the surrounding lightness or darkness and
automatically turns on or off the
headlights and other exterior lights (see
chart above).
Lighting Control
Switch Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
Headlight switch
Switch position OFF AUTO
Headlights Off Off On
Auto Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
Headlight switch
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 44 Wednesday, August 6, 2003 8:51 AM

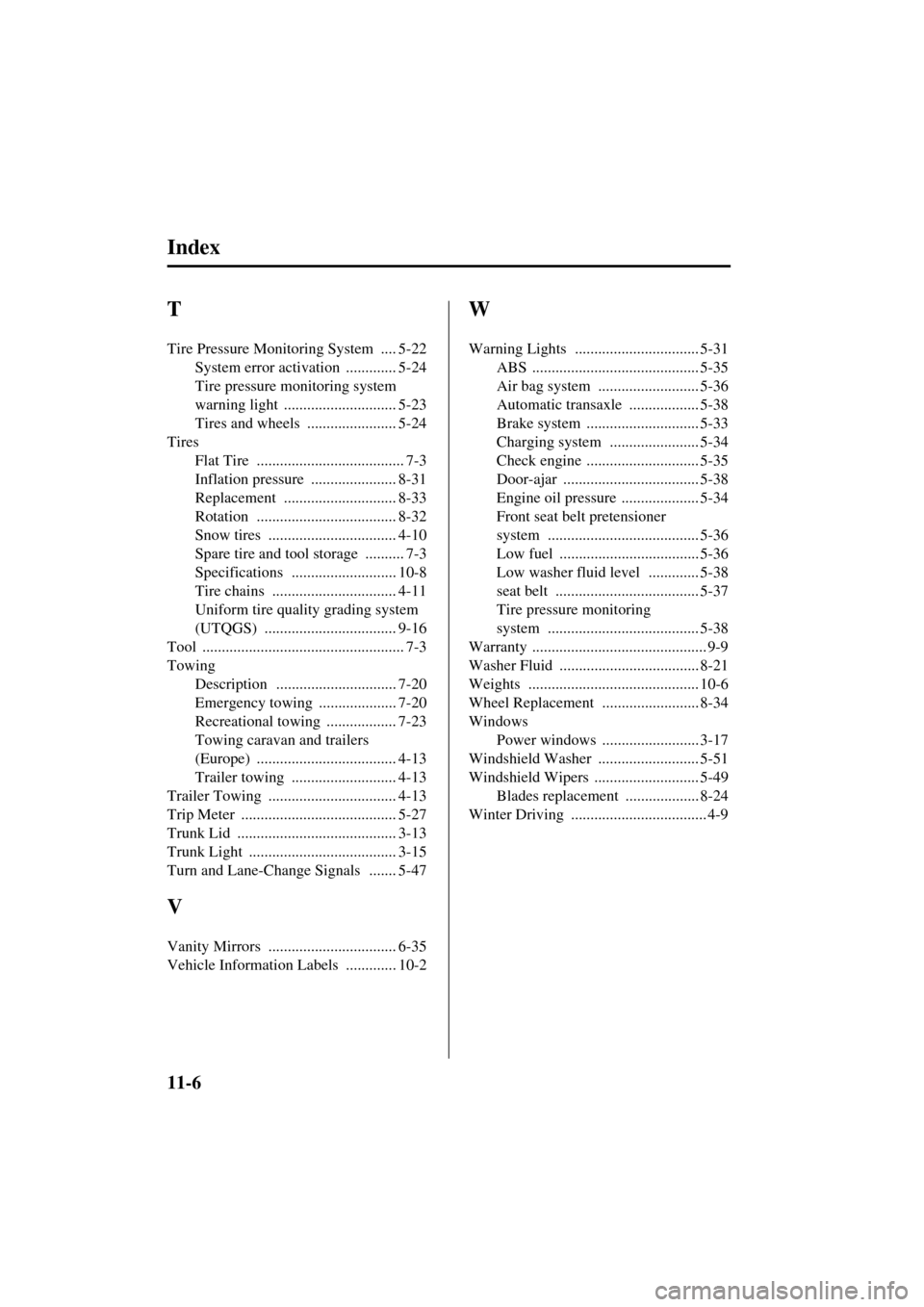

11-6
Index
Form No. 8S18-EA-03I
T
Tire Pressure Monitoring System .... 5-22
System error activation
............. 5-24
Tire pressure monitoring system
warning light
............................. 5-23
Tires and wheels
....................... 5-24
Tires
Flat Tire
...................................... 7-3
Inflation pressure
...................... 8-31
Replacement
............................. 8-33
Rotation
.................................... 8-32
Snow tires
................................. 4-10
Spare tire and tool storage
.......... 7-3
Specifications
........................... 10-8
Tire chains
................................ 4-11
Uniform tire quality grading system
(UTQGS)
.................................. 9-16
Tool
.................................................... 7-3
Towing
Description
............................... 7-20
Emergency towing
.................... 7-20
Recreational towing
.................. 7-23
Towing caravan and trailers
(Europe)
.................................... 4-13
Trailer towing
........................... 4-13
Trailer Towing
................................. 4-13
Trip Meter
........................................ 5-27
Trunk Lid
......................................... 3-13
Trunk Light
...................................... 3-15
Turn and Lane-Change Signals
....... 5-47
V
Vanity Mirrors ................................. 6-35
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-31
ABS
........................................... 5-35
Air bag system
.......................... 5-36
Automatic transaxle
.................. 5-38
Brake system
............................. 5-33
Charging system
....................... 5-34
Check engine
............................. 5-35
Door-ajar
................................... 5-38
Engine oil pressure
.................... 5-34
Front seat belt pretensioner
system
....................................... 5-36
Low fuel
.................................... 5-36
Low washer fluid level
............. 5-38
seat belt
..................................... 5-37
Tire pressure monitoring
system
....................................... 5-38
Warranty
............................................. 9-9
Washer Fluid
.................................... 8-21
Weights
............................................ 10-6
Wheel Replacement
......................... 8-34
Windows
Power windows
......................... 3-17
Windshield Washer
.......................... 5-51
Windshield Wipers
........................... 5-49
Blades replacement
................... 8-24
Winter Driving
................................... 4-9
J48C_8S18-EA-03I_Edition1.book Page 6 Wednesday, August 6, 2003 8:51 AM
