2004 MAZDA MODEL 3 5-DOOR headlight bulb

5-45
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I
Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver
’s door is
opened.
•
Do not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
• The light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage
the wipers (page 5-49).NOTE
•When the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights and
other exterior lights will turn off.
• The timing for turning on the
headlights and other exterior lights
can be delayed by adjusting the
sensitivity of the light sensor.
Consult an Authorized Mazda
Dealer regarding sensor adjustment.
CAUTION
Light sensor
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 45 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-47
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Daytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

Tu r n S i g n a l
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
—until the
indicator flashes — and hold it there. It
will return to the off position when
released.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn OFF
Right lane
change
Left lane
change
J48C_8S18-EA-03I_Edition3.book Page 47 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-36
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
Light Bulbs
Side turn signal lightsFront turn signal lights/
Side-marker lights
Rear turn signal lightsLicense plate light
Overhead light/Map lights (Front)*
Headlights (Low beam)
Headlights
(High beam)
Fog lights* Brake lights/Taillights
Reverse light
High-mount brake light
Trunk light
4 Door
5 Door Overhead light (Rear)
Overhead light/Map lights (Front)*
Headlights (Low beam)
Headlights
(High beam)
Side turn signal lights Fog lights*
License plate light
High-mount brake light
Luggage compartment
lightOverhead light (Rear)
Rear turn signal lights
Brake lights/Taillights
Reverse light
Front turn signal lights/
Side-marker lights
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 36 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-37
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
Your Mazda’s headlights and fog lights
have replaceable halogen bulbs.
Replacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood.
3. Do the following procedure when replacing the left headlight bulb.
Turn the screws counterclockwise and
remove them and the cover.
4. Find the high and low beam bulbs in the rear of the headlight unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
(page 8-36)
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Screw
Cover
J48C_8S18-EA-03I_Edition3.book Page 37 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-38
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
High-beam bulb
1. Turn the socket and bulb assembly counterclockwise and remove it.
Carefully remove the headlight bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
2. Disconnect the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
3. Install the new bulb in the reverse order of removal. Low-beam bulb
(Xenon fusion bulb)

You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Detach the electrical connector from the bulb by pulling it to the rear.
2. Pull off the sealing cover.
3. Unhook the bulb retaining spring.
4. Swing the retaining spring out and away to free the headlight bulb.
5. Carefully remove the headlight bulb from the socket by pulling it straight
back.
NOTE
•To replace the bulb, contact an
Authorized Mazda Dealer.
• Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Ta b
Socket
Sealing
cover
J48C_8S18-EA-03I_Edition3.book Page 38 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

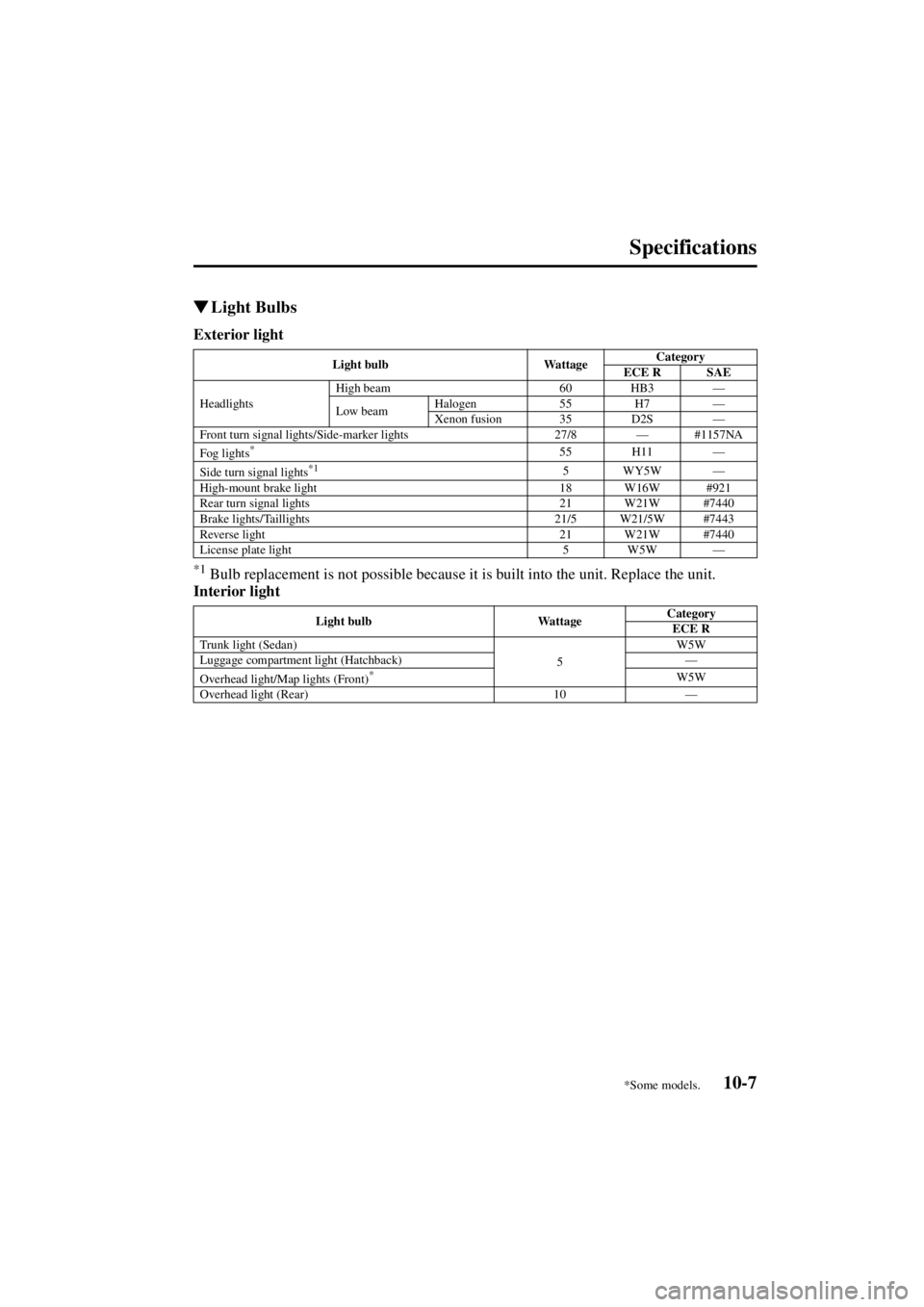

10-7
Specifications
Form No. 8S18-EA-03I

Light Bulbs
Exterior light

*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulb WattageCategory
ECE R SAE
Headlights High beam
60 HB3—
Low beam Halogen
55H7 —
Xenon fusion 35 D2S —
Front turn signal lights/Side-marker lights 27/8—#1157NA
Fog lights
*55 H11 —
Side turn signal lights*15WY5W —
High-mount brake light 18 W16W #921
Rear turn signal lights 21 W21W #7440
Brake lights/Taillights 21/5 W21/5W #7443
Reverse light 21 W21W #7440
License plate light 5 W5W—
Light bulb WattageCategory
ECE R
Trunk light (Sedan)
5W5W
Luggage compartment light (Hatchback) —
Overhead light/Map lights (Front)
*W5W
Overhead light (Rear) 10—
*Some models.
