2004 MAZDA MODEL 3 5-DOOR engine

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I

Schedule 1
I
: Inspect and repair, clean, adjust, or replace if necessary.
R : Replace
L : Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
CHASSIS and BODY
*1:According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
Maintenance Interval
(Number of months or
kilometers (miles), whichever comes first)Months 6 12182430364248
× 1000 km 12 24 36 48 60 72 84 96
× 1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine valve clearance A u d i b l e i n s p e c t e v e r y 1 2 0 , 0 0 0 k m ( 7 5 , 0 0 0 m i l e s ) ,
if noisy, adjust
Drive belts (tension) I
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
Cooling system II
Engine coolant Replace at first 96,000 km (60,000 miles) or 4 years ;
after that, every 2 years
Air filter R
Fuel lines and hoses
*1II
Hoses and tubes for emission*1I
Spark plugs Replace every 120,000km (75,000miles)
Brake lines, hoses and connections II
Disc brakes IIII
Tire (Rotation) Rotate every 12,000km (7,500miles)
Steering operation and linkages II
Front and rear suspension and ball joints II
Driveshaft dust boots II
Exhaust system and heat shields Inspect every 72,000km (45,000miles) or 60 months
All locks and hinges LLLLLLLL
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
R : Replace
L :Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
ELECTRICAL SYSTEM
*1:According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
Maintenance Interval
(Number of months or kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
× 1000 km 8 1624324048566472808896
× 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine valve clearance Audible inspect every 120,000km (75,000miles), if noisy, adjust
Drive belts (tension) I
Engine oil Puerto Rico
Replace every 5,000 km (3,000 miles) or 3 months
Others RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Cooling system II
Engine coolant R e p l a c e a t f i r s t 9 6 , 0 0 0 k m ( 6 0 , 0 0 0 m i l e s ) o r 4 y e a r s ;
after that, every 2 years
Engine coolant level IIIIIIIIIIII
Air filter Puerto Rico
RR
Others R
Fuel lines and hoses
*1II
Hoses and tubes for emission
*1I
Spark plugs Replace every 120,000km (75,000miles)
Function of all lights IIIIIIIIIIII
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-7
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I
Emission control and related systems
The ignition and fuel systems are highly important to the emission control system and to
efficient engine operation. Don ’t tamper with them.
All inspections and adjustments must be made by an Authorized Mazda Dealer.
Scheduled Maintenance (Except North America)
NOTE
• After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
• As the result of visual examination or functional measurement of a system
’s
operation (performance), correct, clean, or replace as required. (Inspect, and if
necessary replace the air filter)
J48C_8S18-EA-03I_Edition3.book Page 7 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-8
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I
I: Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R : Replace
C : Clean
*1:Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2: If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*3:If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often than the recommended intervals.
*4:If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, change the brake fluid annually.
Maintenance
Interval
(Number of months or
kilometers
(miles), whichever comes first)Months 6 121824303642485460667278849096
× 1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles6.25 12.518.752531.2537.543.755056.2562.568.757581.2587.593.75100
Engine valve clearance Audible inspect every 120,000km (75,000miles), if noisy, adjust
Drive belts
*1IIIIIIIIIIIIIIII
Engine oil*2RRRRRRRRRRRRRRRR
Engine oil filter*2RRRRRRRRRRRRRRRR
Cooling system IIIIIIII
Engine coolant Replace every 2 years
Air filter
*3CCRCCRCC
Spark plugs Replace every 120,000km (75,000miles)
Fuel filter RRRR
Fuel lines and hoses IIIIIIII
Evaporative system
(if installed) IIIIIIII
Battery electrolyte level and
specific gravity IIIIIIII
Brake lines, hoses and
connections IIIIIIII
Brake fluid
*4IIIRIIIRIIIRIIIR
Parking brake IIIIIIIIIIIIIIII
Power brake unit
(Brake booster) and hoses IIIIIIII
Disc brakes IIIIIIIIIIIIIIII
J48C_8S18-EA-03I_Edition3.book Page 8 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-10
Maintenance and Care
Form No. 8S18-EA-03I
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
• Brake and clutch fluid level (page 8-18)
• Engine coolant level (page 8-15)
• Engine oil level (page 8-13)
• Washer fluid level (page 8-21)


At Least Monthly
• Tire inflation pressures (page 8-31)


At Least Twice a Year (For Example, Every Spring and Fall)
• Automatic transaxle fluid level (page 8-20)
• Power steering fluid level (page 8-19)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
• Air filter (page 8-23)
• Engine coolant (page 8-15)
• Engine oil (page 8-14)
Owner Maintenance Schedule
J48C_8S18-EA-03I_Edition3.book Page 10 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-11
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’ t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 11 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-12
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I

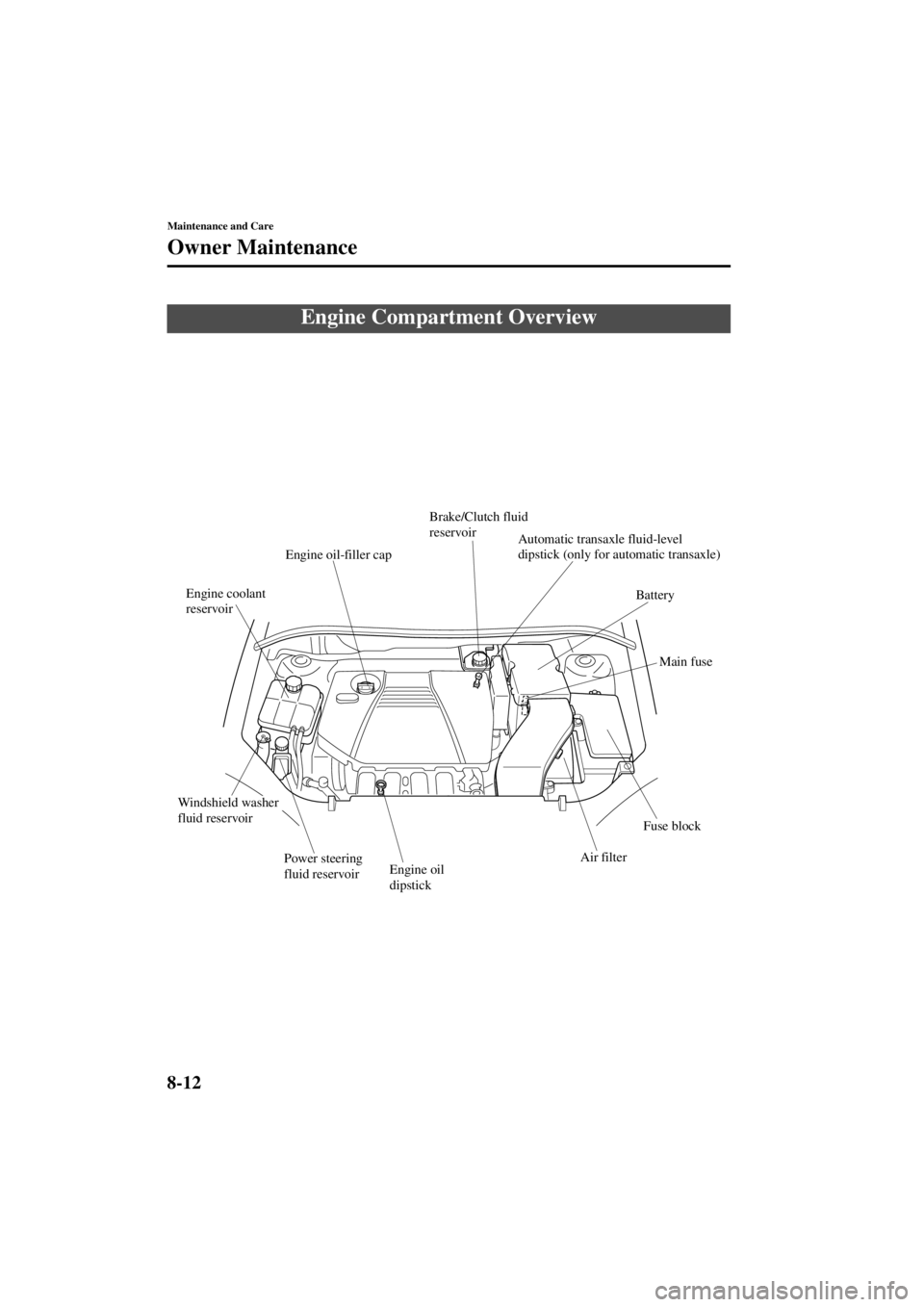

Engine Compartment Overview
Engine oil
dipstick
Fuse block
Air filter
Battery
Brake/Clutch fluid
reservoir
Engine oil-filler cap
Engine coolant
reservoir
Windshield washer
fluid reservoir
Power steering
fluid reservoir
Main fuse
Automatic transaxle fluid-level
dipstick (only for automatic transaxle)
J48C_8S18-EA-03I_Edition3.book Page 12 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-13
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I

Recommended Oil
Oil container labels provide important
information.
The quality designation SL
or ILSAC

must be on the label.
Energy conserving oils are recommended.
A chief contribution they make to fuel
economy is reducing the amount of fuel
necessary to overcome engine friction.

Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and reinsert it fully.
5. Pull it out again and examine the level. It’s OK between MIN and MAX.
But if it ’s near or below MIN, add
enough oil to bring the level to MAX.
6. Make sure the O-ring on the dipstick is positioned properly before reinserting
the dipstick.
The distance between MIN and MAX on
the dipstick represents the following:
Engine Oil
FORGASOLINEENGINES
(ILSAC)
–30 –20–100 1020304050
–20 0 20 40 60 80 100 120
5W-20Don’t add engine oil over MAX. This
may cause engine damage.
L (US qt, Imp qt) 0.75 (0.79, 0.66)
OK
Full
Low
OK
Full
Low
Type A
Type B
CAUTION
