2004 MAZDA MODEL 3 5-DOOR key

5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S18-EA-03I

Security Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn
’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

Headlight High-Beam Indicator
Light
This light indicates one of two things:
• The high-beam headlights are on.
• The turn signal lever is in the flash-to-
pass position.


Shift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
illuminates.
Gear position indicator
J48C_8S18-EA-03I_Edition3.book Page 40 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-43
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S18-EA-03I

Seat Belt Warning Beep
If the driver
’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
The beep sound will be heard again for
about 6 seconds every 30 seconds, for a
period of about 5 minutes if the driver ’s
seat belt is not fastened afterwards.
Refer to Seat Belt Warning Light/Beep
(page 5-37).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver
’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver’
s door is
opened.

Tire Inflation Pressure Warning
Beep*
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 5-22).
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 43 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-45
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I
Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver
’s door is
opened.
•
Do not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
• The light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage
the wipers (page 5-49).NOTE
•When the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights and
other exterior lights will turn off.
• The timing for turning on the
headlights and other exterior lights
can be delayed by adjusting the
sensitivity of the light sensor.
Consult an Authorized Mazda
Dealer regarding sensor adjustment.
CAUTION
Light sensor
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 45 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

6-35
Interior Comfort
Form No. 8S18-EA-03I
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor.

Illuminated Entry System*
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
• About 30 seconds after the driver
’s
door is unlocked and the ignition key is
removed.
• About 15 seconds after all doors are
closed.
• About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
• The ignition switch is turned to the ON
position and all doors are closed.
• The driver
’s door is locked.
Sunvisors
Sunvisor
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 35 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

6-42
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
Bottle holders are on the inside of the
doors.

Glove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Bottle Holder
Don
’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Bottle holder
CAUTION
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don ’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTION
Unlock
Lock
J48C_8S18-EA-03I_Edition3.book Page 42 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-9
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
4. Insert the jack handle into the jack.
5. Turn the jack handle clockwise and raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts*
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’
s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don ’t use a power
impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
Jack handleSpecial key
Antitheft lug nut
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 9 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

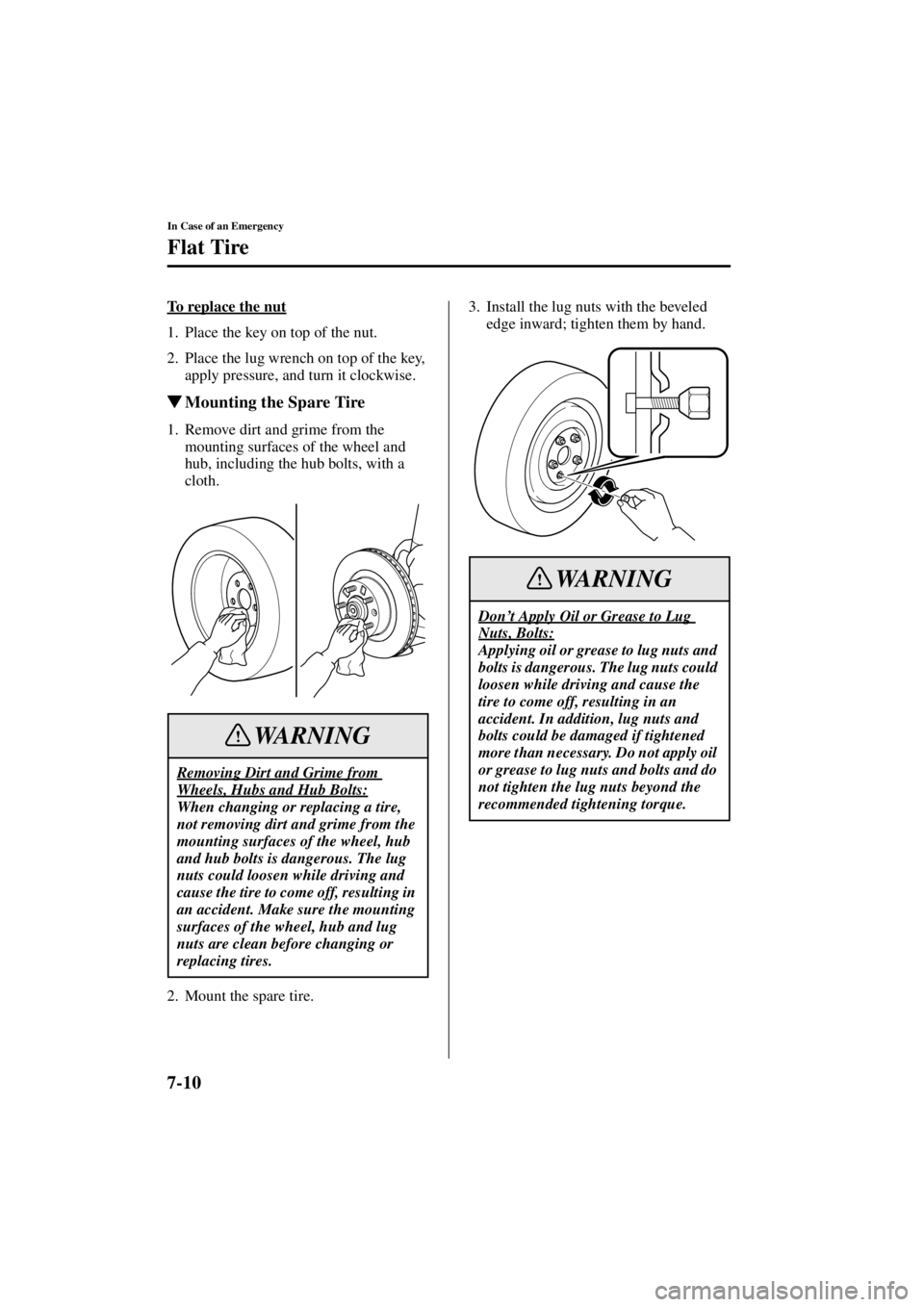

7-10
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire. 3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Don ’t Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 10 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-13
In Case of an Emergency
Form No. 8S18-EA-03I
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic transaxle in park (P), a manual
transaxle in neutral.
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don ’t go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
5. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
Overheating
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn ’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don ’t remove the
cooling system cap when the engine
and radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 13 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
