2004 MAZDA MODEL 3 5-DOOR tow

5-46
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.

Headlight Leveling*
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the
following chart.
×
: Yes —: No
High beam
Low beam
Front seat Rear
seat Load
Switch
Position
Driver Passenger
×— —— 0
×× —— 0
×× ×— 1
×× ×× 2
×— —× 3
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 46 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-47
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Daytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

Tu r n S i g n a l
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
—until the
indicator flashes — and hold it there. It
will return to the off position when
released.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn OFF
Right lane
change
Left lane
change
J48C_8S18-EA-03I_Edition3.book Page 47 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-49
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Windshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1 — Low speed
2 — High speed
Type B (With AUTO position,
CANADA)*
Turn the wipers on by pulling the lever
down.
AU TO — Auto control
1 — Low speed
2 — High speed AUTO (Auto-wiper control)

When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off—intermittent —low speed—high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (-) for less sensitivity
(slower response).
OFF
INT1
2
OFF
AUTO 1
2
Switch
Higher sensitivity
Less sensitivity
Center
position
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 49 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-51
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn
’t work, inspect the
fluid level (page 8-21). If it ’s OK, consult
an Authorized Mazda Dealer. The ignition switch must be in the ON
position.


Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON
— Normal
INT — Intermittent

Rear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the position. After the
switch is released, the washer will stop.
If the washer doesn
’t work, inspect the
fluid level (page 8-21). If it ’s OK and the
washer still doesn ’t work, consult an
Authorized Mazda Dealer.
NOTE
With the wiper lever in the OFF or INT
(Type A)/AUTO (Type B) position, the
wipers will operate continuously until
the lever is released.
OFF
Washer
Rear Window Wiper and
Washer (5 Door)
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
Washer OFF
INT
ON
Washer
J48C_8S18-EA-03I_Edition3.book Page 51 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

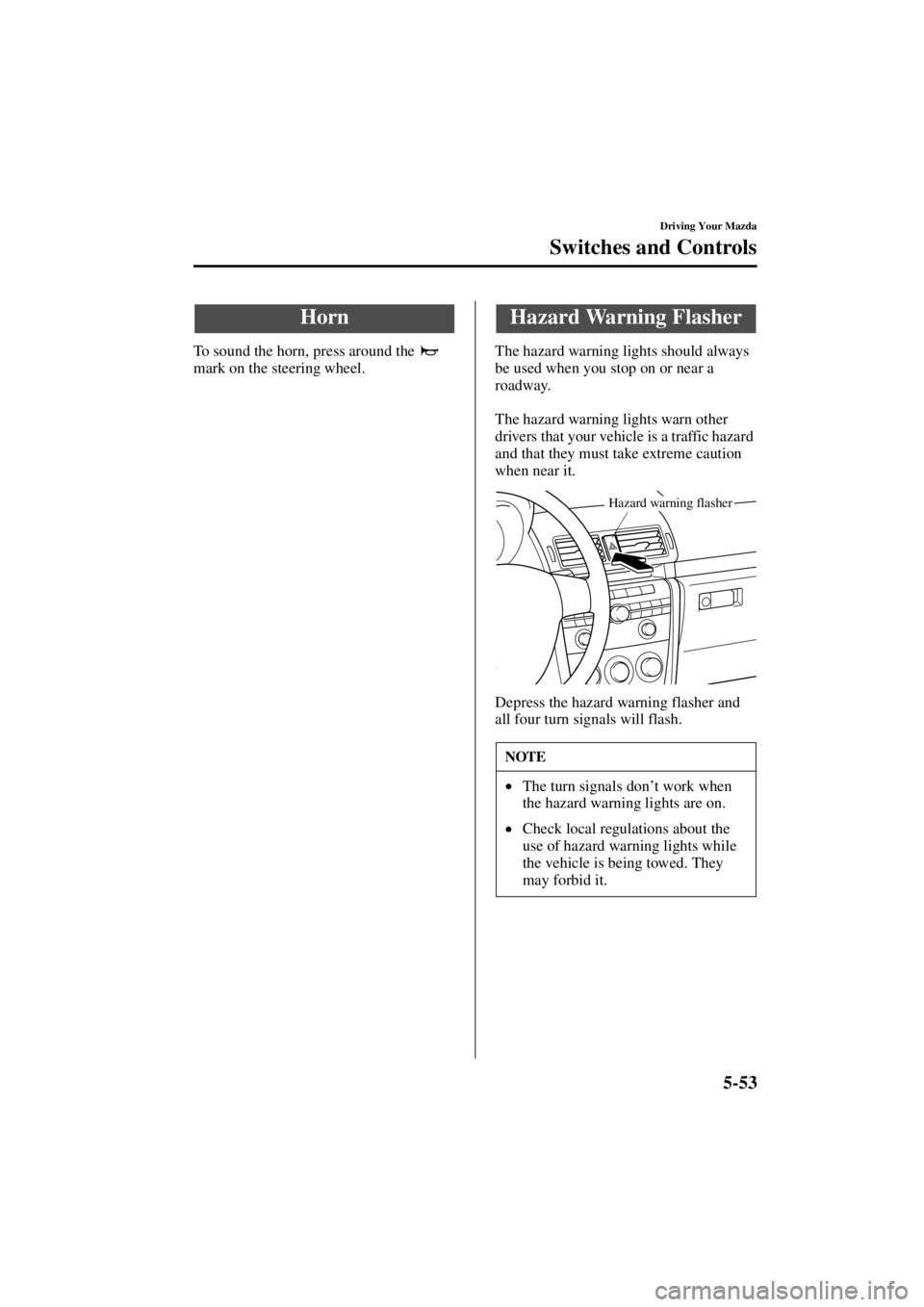

5-53
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I
To sound the horn, press around the
mark on the steering wheel.The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash.
HornHazard Warning Flasher
NOTE
•
The turn signals don
’t work when
the hazard warning lights are on.
• Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
J48C_8S18-EA-03I_Edition3.book Page 53 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

6-12
Interior Comfort
Au di o S ys t em
Form No. 8S18-EA-03I
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly,
resulting in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 1
88.1 MHz
Station 2
88.3 MHz
J48C_8S18-EA-03I_Edition3.book Page 12 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

6-42
Interior Comfort
Interior Equipment
Form No. 8S18-EA-03I
Bottle holders are on the inside of the
doors.

Glove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Bottle Holder
Don
’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Bottle holder
CAUTION
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don ’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTION
Unlock
Lock
J48C_8S18-EA-03I_Edition3.book Page 42 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-1
Form No. 8S18-EA-03I
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency ........................................................... 7-2
Flat Tire .......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire .................................................................. 7-6
Overheating ................................................................................. 7-13
Overheating ............................................................................. 7-13
Emergency Starting .................................................................... 7-15
Starting a Flooded Engine ....................................................... 7-15
Jump-Starting .......................................................................... 7-16
Push-Starting ........................................................................... 7-19
Emergency Towing ...................................................................... 7-20
Towing Description ................................................................. 7-20
Tiedown Hook ......................................................................... 7-21
Recreational Towing ................................................................ 7-23
