2004 MAZDA MODEL 3 4-DOOR sensor

5-45
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I
Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver
’s door is
opened.
•
Do not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
• The light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage
the wipers (page 5-49).NOTE
•When the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights and
other exterior lights will turn off.
• The timing for turning on the
headlights and other exterior lights
can be delayed by adjusting the
sensitivity of the light sensor.
Consult an Authorized Mazda
Dealer regarding sensor adjustment.
CAUTION
Light sensor
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 45 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-49
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Windshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1 — Low speed
2 — High speed
Type B (With AUTO position,
CANADA)*
Turn the wipers on by pulling the lever
down.
AU TO — Auto control
1 — Low speed
2 — High speed AUTO (Auto-wiper control)

When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off—intermittent —low speed—high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (-) for less sensitivity
(slower response).
OFF
INT1
2
OFF
AUTO 1
2
Switch
Higher sensitivity
Less sensitivity
Center
position
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 49 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

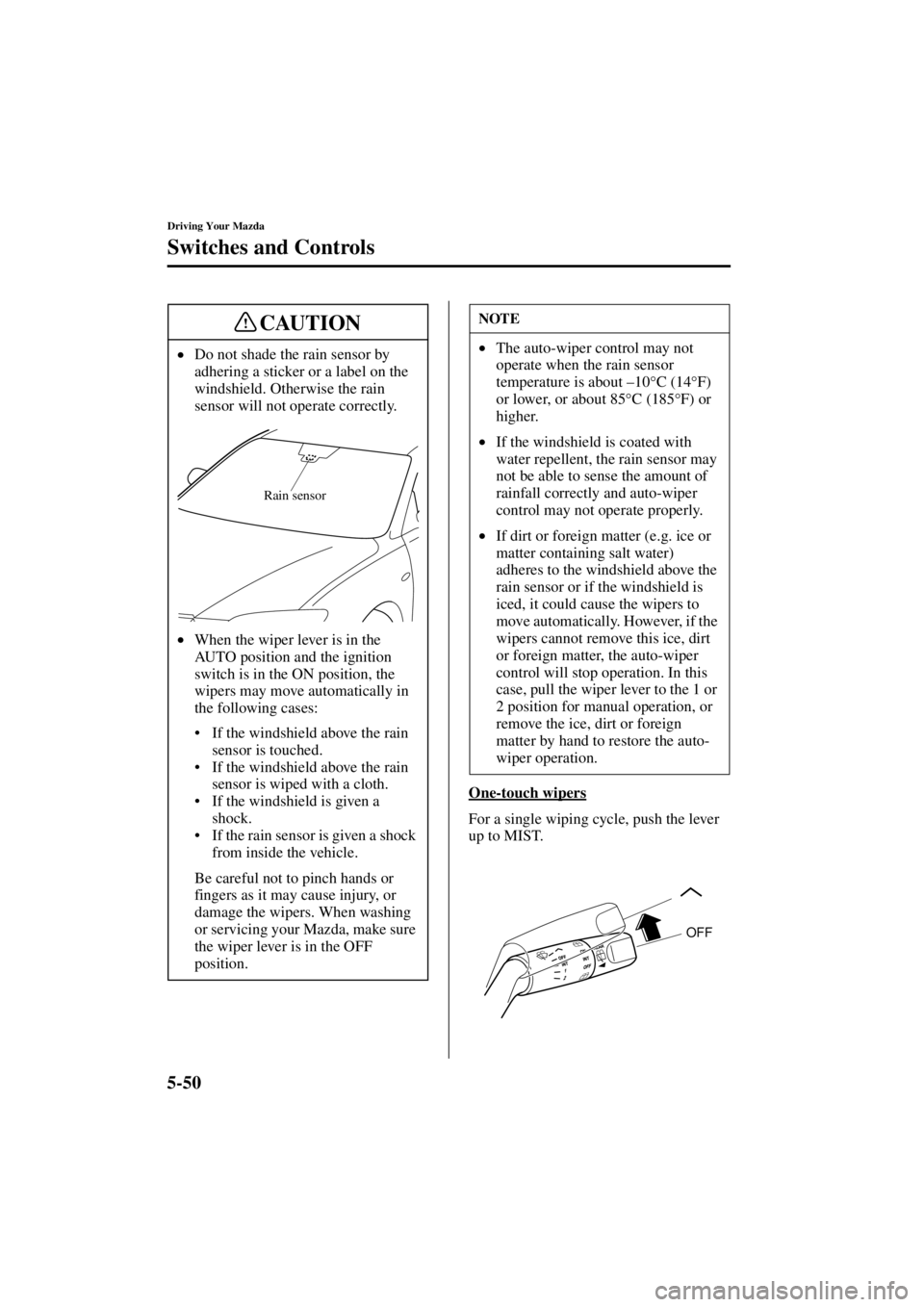

5-50
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I
One-touch wipers
For a single wiping cycle, push the lever
up to MIST.
•
Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain
sensor will not operate correctly.
• When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:

If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is given a
shock.
 If the rain sensor is given a shock
from inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF
position.
CAUTION
Rain sensor
NOTE
• The auto-wiper control may not
operate when the rain sensor
temperature is about
–10
°C (14
°F)
or lower, or about 85 °C (185
°F) or
higher.
• If the windshield is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
• If dirt or foreign matter (e.g. ice or
matter containing salt water)
adheres to the windshield above the
rain sensor or if the windshield is
iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt
or foreign matter, the auto-wiper
control will stop operation. In this
case, pull the wiper lever to the 1 or
2 position for manual operation, or
remove the ice, dirt or foreign
matter by hand to restore the auto-
wiper operation.
OFF
J48C_8S18-EA-03I_Edition3.book Page 50 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-5
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
To remove the spare tire
(4 Door)
1. Remove the trunk mat and trunk board.
2. Turn the tire hold-down bolt counterclockwise with the lug wrench.
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•
Don
’t exceed 80 km/h (50 mph).
• Avoid driving over obstacles.
Also, don
’t drive through an
automatic car wash. This tire ’s
diameter is smaller than a
conventional tire ’s, so the ground
clearance is reduced about 25 mm
(1 in).
• Don
’t use a tire chain on this tire
because it won ’t fit properly.
• Don
’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
• Use only one temporary spare tire
on your vehicle at the same time.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-23).
CAUTION
Trunk board
Lug wrench
Tire clamp
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-7
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
1. Park on a level surface off the right-of-way and firmly set the parking brake.
2. Put a vehicle with an automatic transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3). 6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.

Removing a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the lug wrench.
(With Tire Pressure Monitoring
System)

The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire
pressure sensors.
NOTE
• Make sure the jack is well
lubricated before using it.
(With Tire Pressure Monitoring
System)
•Be sure to register the tire pressure
sensor ID signal code whenever
tires or wheels are changed (page
5-24).
CAUTION
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
Wheel cover
Lug wrench
J48C_8S18-EA-03I_Edition3.book Page 7 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-12
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
5. Store the damaged tire, using the tire hold-down bolt to hold it in place.
Have the damaged tire repaired as soon
as possible.
NOTE
(With Tire Pressure Monitoring
System)
A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-23).
NOTE
To prevent the jack and tool from
rattling, store them properly.
Tire clamp Tire hold-down bolt
J48C_8S18-EA-03I_Edition3.book Page 12 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-23
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.

Replacing the Air Filter
1. Make sure the ignition switch is turned
off.
2. Remove the battery cover and battery duct. 3. Unfasten the clamps.
4. Lift off the air filter cover and remove
the filter.
5. Wipe inside the air cleaner housing with a damp cloth.
6. Clean or replace the filter.
7. Install in the reverse order of removal.
Replace the filter according to the
Scheduled Maintenance (page 8-3).
Air Filter
Don ’t drive without an air filter. This
could result in excessive engine wear.
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than the recommended intervals.
Use a Mazda genuine air filter. Use of
other filters could damage the airflow
sensor.
CAUTION
CAUTION
Battery duct
Battery cover
Clamp
Air filter cover
Air filter
J48C_8S18-EA-03I_Edition3.book Page 23 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-24
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Slide the assembly downward; then lift
it off the arm.
Wiper Blades
•Hot waxes applied by automatic car
washers have been known to affect
the wiper ’s ability to clean windows.
• To prevent damage to the wiper
blades, don
’t use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
• When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:

If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is given a
shock.
 If the rain sensor is given a shock
from inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing or
servicing your Mazda, make sure the
wiper lever is in the OFF position.
CAUTION
To prevent damage to the wiper arms
and other components, don ’t move the
wipers by hand.
To prevent damage to the windshield,
don’ t let the wiper arm fall on it.
CAUTION
Push
Plastic locking clip
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 24 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
