2004 MAZDA MODEL 3 4-DOOR clock

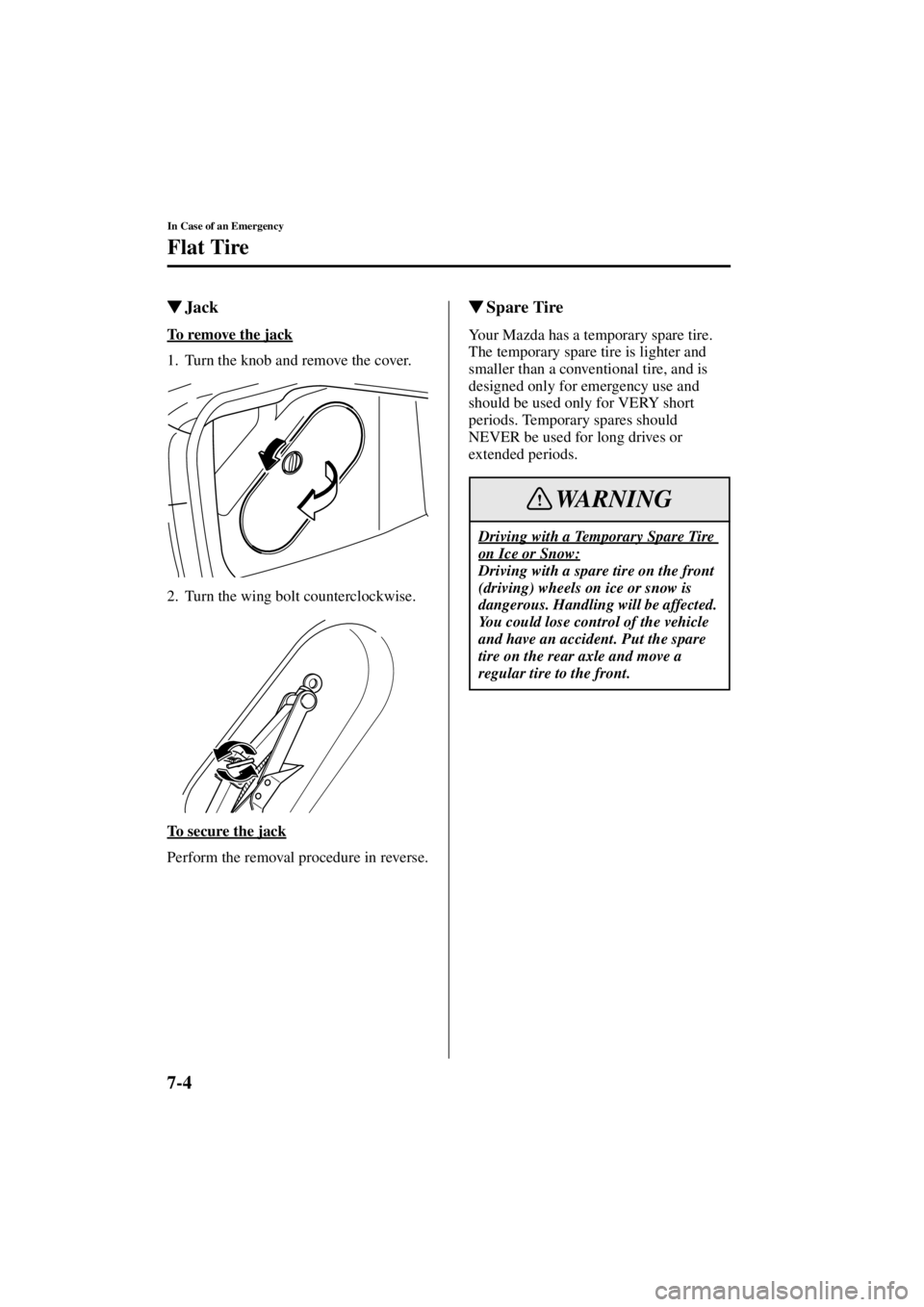

7-4
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I

Jack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-5
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
To remove the spare tire
(4 Door)
1. Remove the trunk mat and trunk board.
2. Turn the tire hold-down bolt counterclockwise with the lug wrench.
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•
Don
’t exceed 80 km/h (50 mph).
• Avoid driving over obstacles.
Also, don
’t drive through an
automatic car wash. This tire ’s
diameter is smaller than a
conventional tire ’s, so the ground
clearance is reduced about 25 mm
(1 in).
• Don
’t use a tire chain on this tire
because it won ’t fit properly.
• Don
’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
• Use only one temporary spare tire
on your vehicle at the same time.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-23).
CAUTION
Trunk board
Lug wrench
Tire clamp
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-6
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
(5 Door)
1. Remove the trunk mat, trunk board and cargo sub-compartment.
2. Turn the tire hold-down bolt counterclockwise with the lug wrench. If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
Trunk board
Cargo sub-
compartment
Lug wrench
Tire clamp
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•Steering becomes difficult.
• The vehicle begins to vibrate
excessively.
• The vehicle pulls in one direction.
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 6 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-8
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
2. Loosen the lug nuts by turning them counterclockwise one turn each, but
don ’t remove any lug nuts until the tire
has been raised off the ground. 3. Place the jack under the jacking
position closest to the tire being
changed.
NOTE
Force the end of the lug wrench firmly
between wheel and cover, or removal
will be difficult.
There is a valve-stem mark inside the
wheel cap. When installing the wheel
cap, align this mark with the tire ’s
valve stem.
Damage could occur during
installation if the wheel cover is not
properly aligned.
CAUTION
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn ’t designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
Jacking position
WARNING
J48C_8S18-EA-03I_Edition3.book Page 8 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-9
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
4. Insert the jack handle into the jack.
5. Turn the jack handle clockwise and raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts*
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’
s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don ’t use a power
impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
Jack handleSpecial key
Antitheft lug nut
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 9 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

7-10
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire. 3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Don ’t Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 10 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

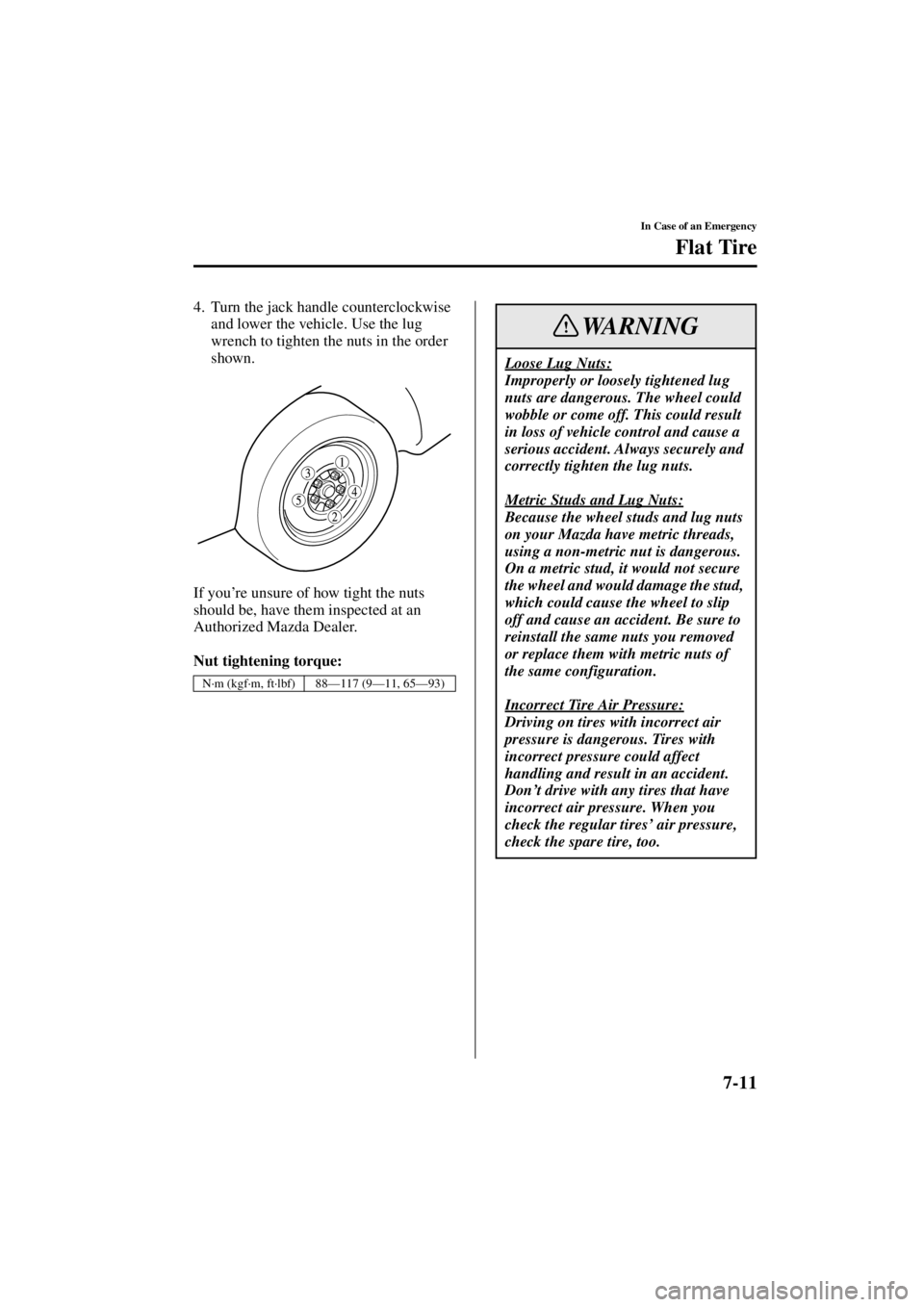

7-11
In Case of an Emergency
Flat Tire
Form No. 8S18-EA-03I
4. Turn the jack handle counterclockwise and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you ’re unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque:
N·m (kgf ·m, ft ·lbf) 88 —117 (9—11, 65 —93)
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip
off and cause an accident. Be sure to
reinstall the same nuts you removed
or replace them with metric nuts of
the same configuration.
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don ’t drive with any tires that have
incorrect air pressure. When you
check the regular tires ’ air pressure,
check the spare tire, too.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 11 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-17
Maintenance and Care
Owner Maintenance
Form No. 8S18-EA-03I
To change coolant1. Remove the cooling system cap.
2. Only when the engine is cool, remove the radiator drain plug and drain the
coolant into a suitable container.
Properly dispose of the used coolant.
3. Flush out the system with running water.
4. Drain the system completely. Insert and tighten the plug. Add as much
ethylene-glycol-based coolant mixture
and water as necessary to provide
freezing and corrosion protection.
5. In extremely cold climates, add the mixture percentage recommended in
the coolant mixture percentage table.
6. Run the engine at idle with the cooling system cap off. Slowly add additional
coolant if necessary.
7. At this point, wait until the engine reaches normal operating temperature;
then depress the accelerator two or
three times. Add more coolant, if
necessary, until the system is full.
8. Install the cooling system cap. Inspect all connections for leaks. Inspect the
level in the coolant reservoir one more
time.
Removing the Cooling System Cap:
Removing the cooling system cap
while the engine is running or hot is
dangerous. This might lead to cooling
system and engine damage and could
result in serious injury from escaping
hot coolant or steam. Turn off the
engine and wait until it ’s cool. Even
then, be very careful when removing
the cap.
Wrap a thick cloth around the cap
and slowly turn it counterclockwise
about two and a half rotations.
Step back while the pressure escapes.
When you ’re sure all the pressure has
escaped, turn the cap
counterclockwise — still using a cloth
— and remove the cap.
WARNINGLoosen
Loosen
Tighten
Tighten
