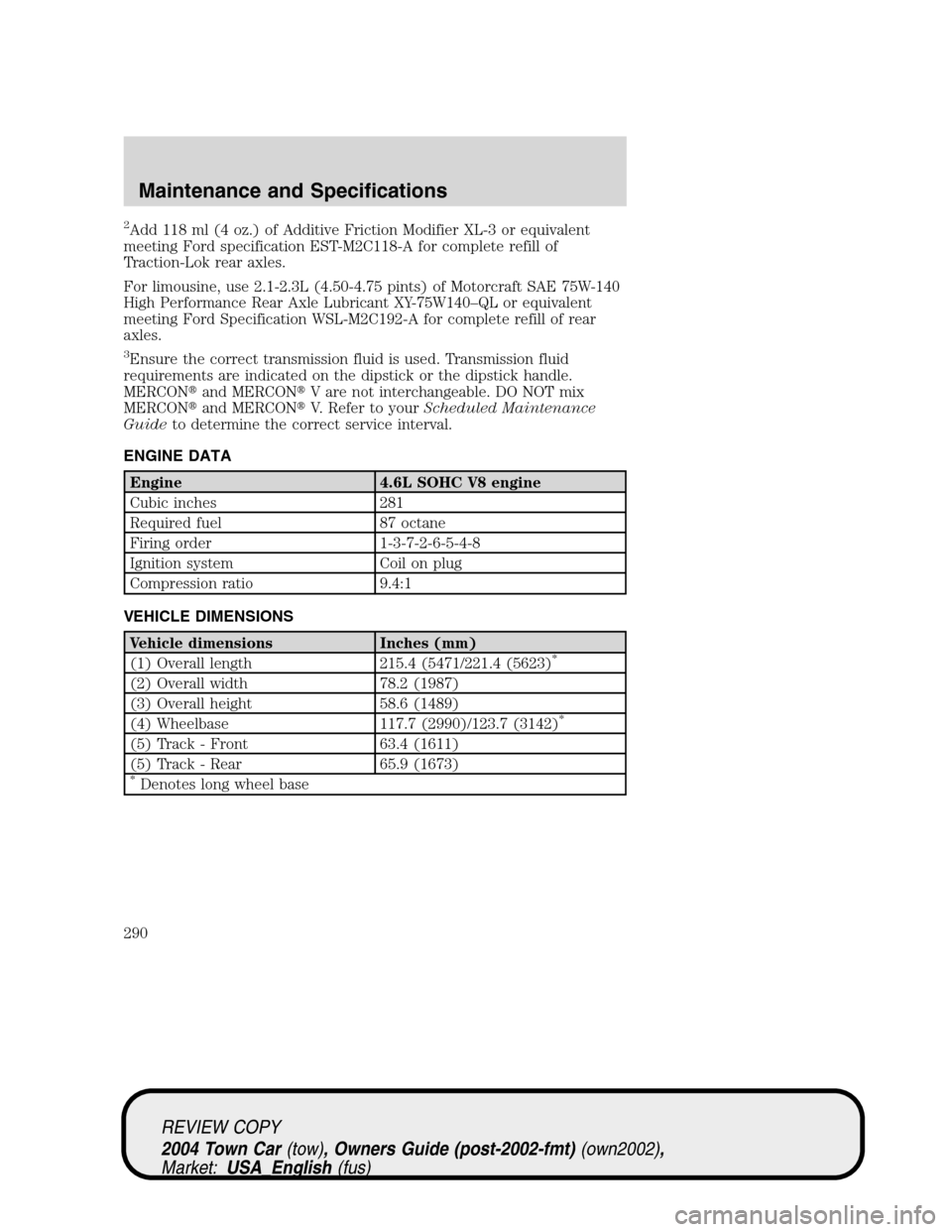

2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
For limousine, use 2.1-2.3L (4.50-4.75 pints) of Motorcraft SAE 75W-140
High Performance Rear Axle Lubricant XY-75W140–QL or equivalent
meeting Ford Specification WSL-M2C192-A for complete refill of rear
axles.
3Ensure the correct transmission fluid is used. Transmission fluid
requirements are indicated on the dipstick or the dipstick handle.
MERCONand MERCONV are not interchangeable. DO NOT mix
MERCONand MERCONV. Refer to yourScheduled Maintenance
Guideto determine the correct service interval.
ENGINE DATA
Engine 4.6L SOHC V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Compression ratio 9.4:1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 215.4 (5471/221.4 (5623)*
(2) Overall width 78.2 (1987)
(3) Overall height 58.6 (1489)
(4) Wheelbase 117.7 (2990)/123.7 (3142)
*
(5) Track - Front 63.4 (1611)
(5) Track - Rear 65.9 (1673)
*Denotes long wheel base
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
290

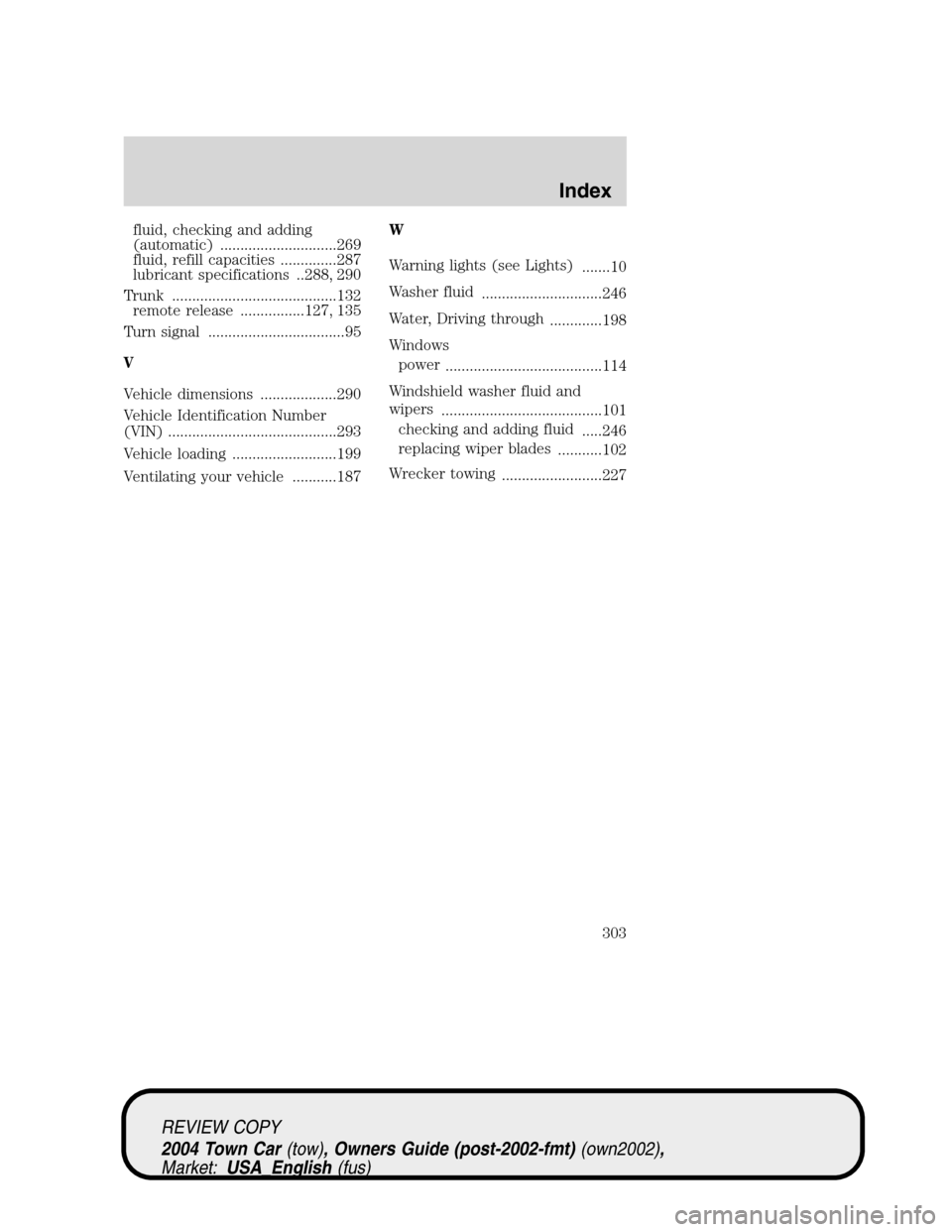

fluid, checking and adding
(automatic) .............................269
fluid, refill capacities ..............287
lubricant specifications ..288, 290
Trunk .........................................132
remote release ................127, 135
Turn signal ..................................95
V
Vehicle dimensions ...................290
Vehicle Identification Number
(VIN) ..........................................293
Vehicle loading ..........................199
Ventilating your vehicle ...........187W
Warning lights (see Lights)
.......10
Washer fluid
..............................246
Water, Driving through
.............198
Windows
power
.......................................114
Windshield washer fluid and
wipers
........................................101
checking and adding fluid
.....246
replacing wiper blades
...........102
Wrecker towing
.........................227
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
303
