OCCUPANT RESTRAINT SYSTEMS
141
CAUTION
Do not use the third center seat belt with either buckle
release. Fastening only the shoulder belt or lap belt may
cause severe personal injury in case of sudden braking
or a collision.
STOWING THE THIRD CENTER SEAT BELT
Stow the seat belt tabs into the cover of the roof as shown
above.
Make sure the tabs are securely locked in the cover.
PULLING OUT THE THIRD CENTER SEAT BELT
Pull the belt out a little and pull the tabs out from the cover.

OCCUPANT RESTRAINT SYSTEMS
142

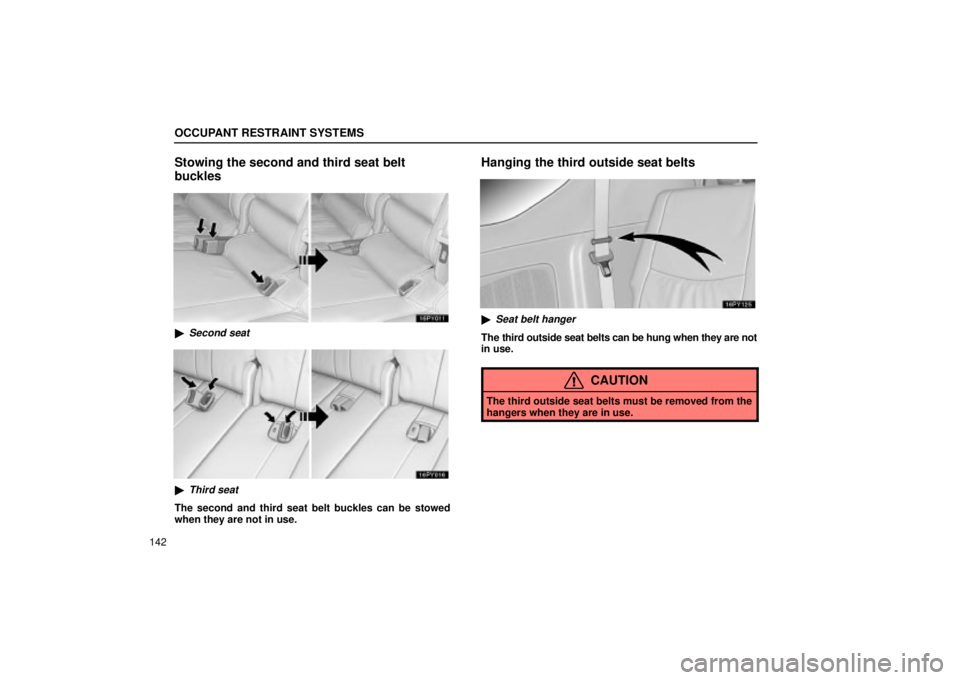

Stowing the second and third seat belt
buckles

Second seat

Third seat
The second and third seat belt buckles can be stowed
when they are not in use.
Hanging the third outside seat belts

Seat belt hanger
The third outside seat belts can be hung when they are not
in use.
CAUTION
The third outside seat belts must be removed from the
hangers when they are in use.

OCCUPANT RESTRAINT SYSTEMS
143
Seat belt extender
If your seat belts cannot be fastened securely because they are
not long enough, a personalized seat belt extender is available
from your Lexus dealer free of charge.
Please contact your local Lexus dealer to order the proper
required length for the extender. Bring the heaviest coat you
expect to wear for proper measurement and selection of
length. Additional ordering information is available at your
Lexus dealer.
CAUTION
When using the seat belt extender, observe the
following precautions. Failure to follow these
instructions could reduce the effectiveness of the seat
belt restraint system in case of an accident, increasing
the chance of personal injury.
Remember that the extender provided for you may
not be safe when used on a different vehicle, for
another person, or at a different seating position than
the one originally intended.If the seat belt extender has been connected to the
driver's seat belt buckle without wearing the seat belt
when using the extender in the driver's seat, the SRS
driver's airbag system will judge that the driver wears
the seat belt even if not wearing it. In this case, the
driver's airbag may not activate correctly, causing
death or serious injury in the event of collision. Be
sure to wear the seat belt with the seat belt extender.

OCCUPANT RESTRAINT SYSTEMS
144
Be sure to wear the seat belt without the seat belt
extender if you can fasten the seat belt without the
extender.
Do not use the seat belt extender when installing a
child restraint system on the front or rear passenger
seat. If installing a child restraint system with the
seat belt extender connected to the seat belt, the seat
belt will not securely hold the child restraint system,
which could cause death or serious injury to the child
or other passengers in the event of collision.
To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the PRESSº signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle
for future use.

OCCUPANT RESTRAINT SYSTEMS
145
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt and the seat belt extender are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from injury.
Seat belt pretensioners
The driver and front passenger's seat belt pretensioners
are designed to be activated in response to a severe
frontal impact.
When the sensor detects a severe frontal impact, the front seat
belts are quickly drawn back by the retractors so that the belts
snugly restrain the front seat occupants.
The front seat belt pretensioners are activated even if there is
no passenger sitting in the front seat.
The seat belt pretensioners and SRS airbags may not operate
together in case of collisions at a certain speeds and angles.

OCCUPANT RESTRAINT SYSTEMS
146

1Front airbag sensors
2Seat belt pretensioner assemblies
3SRS warning light
4Airbag sensor assembly
The front seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating noise may be heard and a small amount of non-toxic
gas may be released. This does not indicate that a fire is
occurring. This gas is normally harmless.
Once the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open the front seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Failure to follow these instruction may
prevent the seat belt pretensioners from activating
correctly, cause sudden operation of the system or
disable the system, which could result in death or
serious injury. Consult your Lexus dealer about any
repairs and modifications.

OCCUPANT RESTRAINT SYSTEMS
147
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the front seat belt
pretensioners in some cases.
Installation of electronic devices such as a mobile
two-way radio, cassette tape player or compact disc
player.
Repairs on or near the front seat belt retractor
assemblies.
Modification of the suspension system.
Modification of the front end structure.
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
Repairs made on or near the front fenders, the front
end structure and console.

OCCUPANT RESTRAINT SYSTEMS
148
This indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the front seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition switch is turned to the ONº position, the
light does not come on, remains on or flashes.
The light comes on or starts flashing while driving.
If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
seat belt pretensioner.
