STEERING WHEEL AND MIRRORS
231
Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth's magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.
To adjust this deviation, stop the vehicle, then push and hold
the COMPº switch until the zone number appears on the
display. Then push the COMPº switch, referring to the
following map to select the number of the zone where the
vehicle is.
16Z001
Samoa: 5 Guam: 8 Saipan: 8


Zone numbers

STEERING WHEEL AND MIRRORS
232Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
COMPº switch until Cº appears on the display.
There is also a case that Cº appears on the display in case of
the drastic change of the magnetic field.
Drive the vehicle slowly (at 8 km/h [5
mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display.

STEERING WHEEL AND MIRRORS
233
Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.

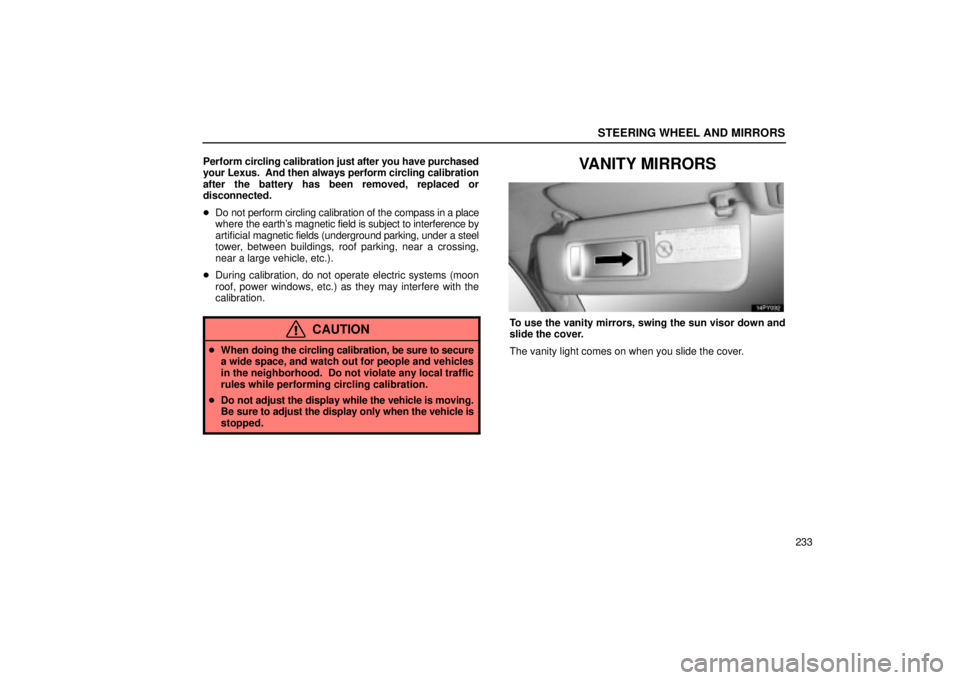

CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
VANITY MIRRORS
To use the vanity mirrors, swing the sun visor down and
slide the cover.
The vanity light comes on when you slide the cover.

AIR CONDITIONING
236
AUTOMATIC AIR CONDITIONING CONTROLS
21PY023

You can adjust the brightness of the display. See Instrument panel light controlº on page 86 for details.

AIR CONDITIONING
238
1AUTOº button
2OFFº button
3Driver side temperature display (in degreesFahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degreesFahrenheit or Centigrade)
7Windshield air flow button
8PASSENGER TEMPº (passenger side temperaturecontrol) button
9DUALº (temperature setting mode change) button
10A/Cº button
11MODEº(air flow control) button
12Fan speed control button
13Air intake control button
14TEMPº (driver side temperature control) button

AIR CONDITIONING
242If quick heating or cooling is desired Ð
Push the TEMPº or PASSENGER TEMPº button on either
side
and hold it until MAX. HOTº or MAX. COLDº appears on
the display.
If manual fan speed control is desired Ð

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the OFFº button
turns off the fan.
To remove exterior windshield frost, use the high speed setting. If manual switching of air intake is desired Ð
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now selected.
1RECIRCULATED AIR mode Ð
If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode Ð The system will take fresh
outside air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AUDIO
258
AUDIO SYSTEM
Quick reference for your audio system
22PY029

You can adjust the brightness of the display. See Instrument panel light controlº on page 86 for details.If a Mark Levinson brand audio system is installed, the Mark Levinsonº\
logo is shown on the panel.

AUDIO
259
1Ejecting a compact disc
(See page 276 for details.)
2Compact disc slot
(See page 274 for details.)
3Display of functions in TAPE or CD mode
RPT: Automatic repeat
(See page 272 or 278 for details.)
:DOLBY NR
(See page 271 for details.)
Side change (See page 272 for details.)
 : Rewinding or reversing
(See page 272 or 278 for details.)


: Fast forwarding
(See page 272 or 278 for details.)
RAND: Random access
(See page 279 for details.)
:Disc selection
(See page 277 for details.)
4Station selector and function buttons
(See page 267 for details.)
5Radio mode: Scan tuning
(See page 268 for details.)
CD mode: Scan selection
(See page 277 for details.)
6Radio mode:Radio text message
(See page 270 for details.)
CD mode: Compact disc text
(See page 279 for details.)
7Compact disc load button
(See page 274 for details.)
8AUDIO´TUNE knob
(See page 262 for details.)
9Traffic announcement
(See page 269 for details.)
10Radio data system/program type
(See page 268 for details.)
11Mode selectors
(See page 261 for details.)
12Radio mode:Seek tuning
(See page 267 for details.)
TAPE mode: Direct access to a desired program
(See page 273 for details.)
CD mode: Direct access to a desired program
(See page 278 for details.)
13Cassette tape slot
(See page 271 for details.)
14Stopping and ejecting a cassette tape
(See page 271 for details.)
15Turning the system on and adjusting the volume
(See page 261 for details.)


:
