STARTING AND DRIVING
385

If the engine becomes difficult to start or stalls
frequently, take your vehicle in for a check-up assoon as possible. Remember, your Lexus dealerknows your vehicle and its three-way catalyticconverter system best.
To ensure that the three-way catalytic converter andthe entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule. For
scheduled maintenance information, refer to theOwner's Manual Supplement/ScheduledMaintenanceº.

STARTING AND DRIVING
386
ENGINE EXHAUST CAUTIONCAUTION
Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the back door closed while driving. An open or
unsealed back door may cause exhaust gases to be
drawn into the vehicle.

STARTING AND DRIVING
388
BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ONº, and check the fuel
gauge to see that you have sufficient fuel.
IGNITION SWITCH WITH STEERINGLOCK
STARTº Ð Starter motor on. The key will return to the
ONº position when released.
For starting tips, see page 391.
It is not a malfunction even if the needle of the tachometer, fuel
gauge or engine coolant temperature gauge returns to the
bottom position when the ignition switch is turned to the
STARTº position.
ONº Ð Engine on and all accessories on.
This is the normal driving position.
It is not malfunction even if the needle on the speedometer may
move when the ignition switch is turned to the ONº position.

STARTING AND DRIVING
391
HOW TO START THE ENGINE
Cranking hold function
Once you turn the ignition key to STARTº position and release
it, the cranking hold function continues to crank the engine in
ONº position until it starts.
The function stops cranking the engine after about 25 seconds
maximum if the engine has not started yet. When you crank
the engine again, wait a few seconds and restart it.
If you hold the key in STARTº position, the function will keep
cranking for about 30 seconds maximum.
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3. Put the selector lever in Pº. If you need to restart the engine
while the vehicle is moving, put the selector lever in Nº. A
starter safety device will prevent the starter from operating if
the selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving
off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
Before crankingº.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air-fuel mixture for starting. You can start a cold or hot
engine as follows:
With your foot off the accelerator pedal, turn the ignition key to
STARTº position, then release it.
Engine should be warmed up by driving, not in idle. For
warming up, drive with smoothly turning engine until engine
coolant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct procedure given in normal
starting.
If the engine will not start...
See If your vehicle will not startº on page 480.
NOTICE
Do not race a cold engine.
If the engine becomes difficult to start or stalls frequently, have the engine checked immediately.

STARTING AND DRIVING
418
(f) Parking and stopping tips
If you immediately stop the engine to park the vehicle after
off-road driving, the vehicle height is lowered slightly as the
vehicle becomes cool. When parking, make sure there is
nothing that will be in contact with the underbody of the vehicle.
When you start the engine, the vehicle returns to the previous
height.
If you park the vehicle for a long time, the vehicle height may
be gradually lowered. When parking for a long time, make sure
there is nothing that will be in contact with the underbody of the
vehicle. When you start the engine, the vehicle returns to the
previous height.
If you stop the engine, the vehicle height may change in
accordance with the change in the temperature. When you
start the engine, the vehicle returns to the previous height.
(g) Rear height control failure warning
If there is a problem somewhere in the rear height control air
suspension, the Nº mode is automatically selected. If this
occurs, the height control OFFº indicator light blinks and the
vehicle height control cannot be activated until the malfunction
is corrected. If this is the case, bring your vehicle to your Lexus
dealer as soon as possible and have it checked.
ELECTRONIC MODULATED SUSPENSION
This electronic modulated suspension adjusts the
damping effect on the shock absorbers with the control
switch. Select one of the 4 modes which is suited to the
driving conditions with the control switch to provide good
riding comfort and stability.
1For driving on a bumpy road
2For ordinary driving such as in the city traffic
3For moderate high speed driving
4For sporty type driving such as on winding mountain
roads and high speed driving
5Soft
6Firm

STARTING AND DRIVING
420

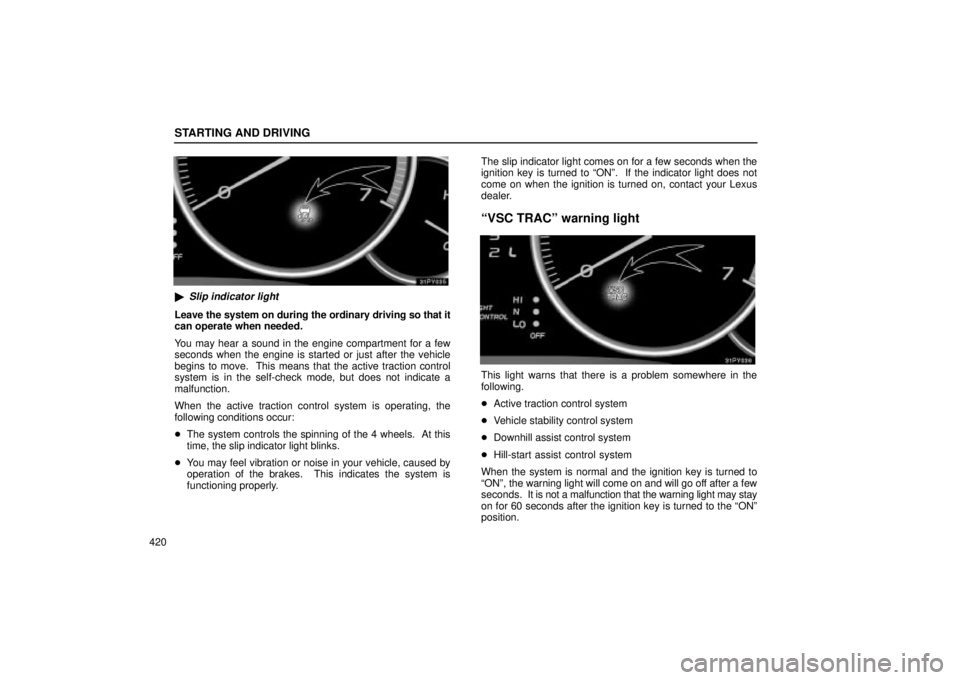

Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle
begins to move. This means that the active traction control
system is in the self-check mode, but does not indicate a
malfunction.
When the active traction control system is operating, the
following conditions occur:
 The system controls the spinning of the 4 wheels. At this
time, the slip indicator light blinks.
 You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is
functioning properly. The slip indicator light comes on for a few seconds when the
ignition key is turned to ONº. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
VSC TRACº warning light
This light warns that there is a problem somewhere in the
following.

Active traction control system
 Vehicle stability control system
 Downhill assist control system
 Hill-start assist control system
When the system is normal and the ignition key is turned to
ONº, the warning light will come on and will go off after a few
seconds. It is not a malfunction that the warning light may stay
on for 60 seconds after the ignition key is turned to the ONº
position.

STARTING AND DRIVING
421
Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of the above mentioned systems such as on slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the active traction control
system can no longer operate. In this case, immediately stop
your vehicle at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At the time, the VSC TRACº
warning light will come on and the active traction control
system temporarily stops operating in order to protect the
brake actuator. (Although the active traction control system
does
not operate, there is no problem to continue your driving.)
The system will be automatically restored after a short time and
the VSC TRACº warning light goes out.
If the light comes on while driving, the active traction control
system does not work. However, as normal braking operates
when being applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to ONº.
 The warning light remains on after the ignition key is turned
to ONº.
 The warning light comes on while driving.
VEHICLE STABILITY CONTROL
SYSTEM
The vehicle stability control system helps provide
integrated control of the systems such as anti-lock brake
system, traction control, engine control, etc. This system
automatically controls the output of the brakes or engine
to help prevent the vehicle from skidding when cornering
on a slippery road surface or operating steering wheel
abruptly.
This system activates when the vehicle speed about more than
15 km/h (9mph).
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle
begins to move. This means that the system is in the
self-check mode, but does not indicate a malfunction.
CAUTION
 Do not rely excessively on the vehicle stability
control system. Even if the vehicle stability control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an unexpected accident. If the
slip indicator light blinks and an alarm sounds,
special care should be taken while driving.

STARTING AND DRIVING
430You may hear a small sound in the engine compartment after
the engine is started or the brake pedal is depressed
repeatedly. This is a pump pulsating sound of the brake
system, and it is not a malfunction.
CAUTION

Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your brake fluid
pressure reserve.
 Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will increase.
Anti-lock brake system
The anti-lock brake system is designed to automatically
help prevent lock-up of the wheels during a sudden brake
or braking on slippery road surfaces. This assists in
providing directional stability and steering performance
of the vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti-lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti-lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti-lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the br ake pedal on slippery road surfaces such as
on a manhole cover, a steel plate at a construction site, joints
in a bridge, etc. on a rainy day tends to activate the anti-lock
brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle begins to move. This means that the
anti-lock brake system is in the self-check mode, and does not
indicate a malfunction.
When the anti-lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
 You may hear the anti-lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti-lock brake system activation, the
brake pedal may move a little to the forward.
