2004 Lexus GX470 display

AIR CONDITIONING
226
1AUTOº button
2OFFº button
3Driver side temperature display (in degrees
Fahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7Windshield air flow button
8PASSENGER TEMPº (passenger side temperature
control) button
9DUALº (temperature setting mode change) button
10A/Cº button
11MODEº(air flow control) button
12Fan speed control button
13Air intake control button
14TEMPº (driver side temperature control) button

AIR CONDITIONING
230If quick heating or cooling is desired Ð
Push the TEMPº or PASSENGER TEMPº button on either
side and hold it until MAX. HOTº or MAX. COLDº appears on
the display.
If manual fan speed control is desired Ð

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the OFFº button
turns off the fan.
To remove exterior windshield frost, use the high speed setting.If manual switching of air intake is desired Ð
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now selected.
1RECIRCULATED AIR mode Ð If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode Ð The system will take fresh
outside air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AUDIO
244
AUDIO SYSTEM
Quick reference for your audio system
22PY029

You can adjust the brightness of the display. See Instrument panel light controlº on page 76 for details.
If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo is shown on the panel.

AUDIO
245
1Ejecting a compact disc
(See page 261 for details.)
2Compact disc slot
(See page 259 for details.)
3Display of functions in TAPE or CD mode
RPT:Automatic repeat
(See page 257 or 263 for details.)
:DOLBY NR
(See page 256 for details.)


:
Side change
(See page 257 for details.)
:Rewinding or reversing
(See page 257 or 263 for details.)


:Fast forwarding
(See page 257 or 263 for details.)
RAND:Random access
(See page 264 for details.)
:Disc selection
(See page 262 for details.)
4Station selector and function buttons
(See page 252 for details.)
5Radio mode:Scan tuning
(See page 253 for details.)
CD mode:Scan selection
(See page 262 for details.)
6Radio mode:Radio text message
(See page 255 for details.)
CD mode:Compact disc text
(See page 264 for details.)
7Compact disc load button
(See page 259 for details.)
8AUDIO´TUNE knob
(See page 248 for details.)
9Traffic announcement
(See page 254 for details.)
10Radio data system/program type
(See page 253 for details.)
11Mode selectors
(See page 247 for details.)
12Radio mode:Seek tuning
(See page 252 for details.)
TAPE mode:Direct access to a desired program
(See page 258 for details.)
CD mode:Direct access to a desired program
(See page 263 for details.)
13Cassette tape slot
(See page 256 for details.)
14Stopping and ejecting a cassette tape
(See page 256 for details.)
15Turning the system on and adjusting the volume
(See page 247 for details.)

AUDIO
247 (a) Turning the system on and off
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.
Push the AMº, FMº, TAPEº or DISCº button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off each player by ejecting the cassette tape or
compact disc. If the audio system was previously off, then the
entire audio system will be turned off when you eject the
cassette tape or compact disc. If the another function was
previously playing, it will come on again.
Vehicles with rear seat entertainment system Ð
The DISCº button may also be used to operate a DVD player.
Pressing the DISCº button changes between the CD player
and DVD player. When the DVD player is in operation, AUXº
appears on the display.

AUDIO
248

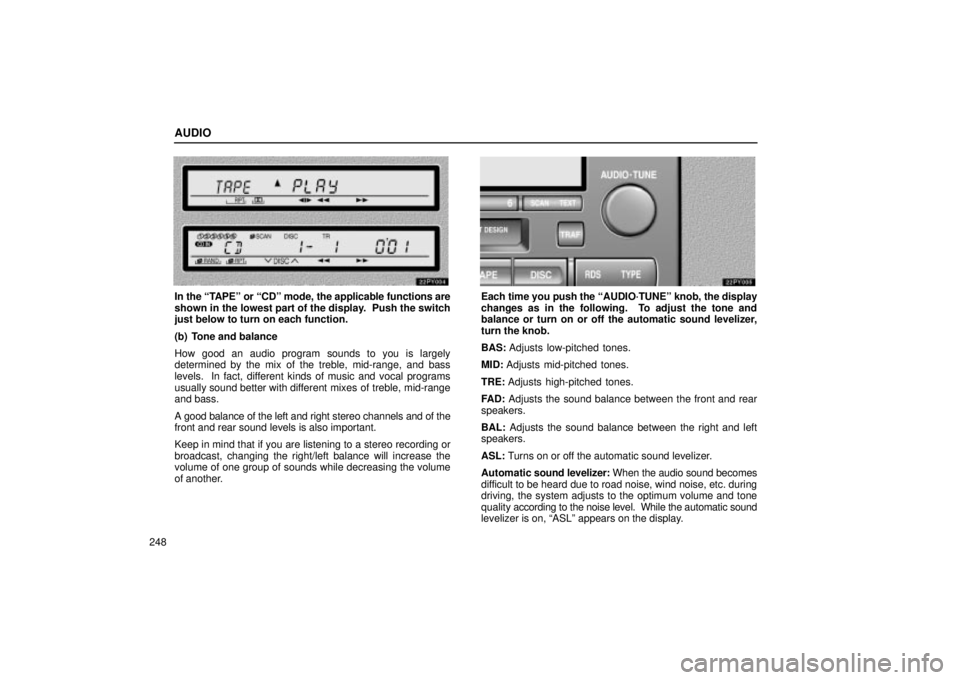

In the TAPEº or CDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid-range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid-range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.Each time you push the AUDIO´TUNEº knob, the display
changes as in the following. To adjust the tone and
balance or turn on or off the automatic sound levelizer,
turn the knob.
BAS: Adjusts low-pitched tones.
MID: Adjusts mid-pitched tones.
TRE: Adjusts high-pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.
ASL: Turns on or off the automatic sound levelizer.
Automatic sound levelizer: When the audio sound becomes
difficult to be heard due to road noise, wind noise, etc. during
driving, the system adjusts to the optimum volume and tone
quality according to the noise level. While the automatic sound
levelizer is on, ASLº appears on the display.

AUDIO
250(e) Your compact disc player with changer
Your compact disc player with changer can store up to 6 discs
and play selected discs or continuously play all the discs set in
the player.
When you set discs into the player, make sure their labels face
up. If not, the player will display ERROR 1º and the disc
number.
NOTICE
Do not stack up two discs for insertion, or it will cause
damage to the compact disc auto changer. Insert
only one compact disc into slot at a time.
Never try to disassemble or oil any part of the
compact disc player. Do not insert anything other
than compact discs into the slot.
The player is intended for use with 12 cm (4.7 in.) discs only.Radio operation
(a) Listening to the radio

AUDIO
251
Push these buttons to choose either an AM or FM station.
AMº, FM1º, FM2º or FM TYPEº appears on the display.Turn this knob to the right to step up the frequency or to
the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. STº appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, STº
disappears from the display.
