2004 Lexus GX470 ESP

GAUGES, METERS AND SERVICE REMINDER INDICATORS
62
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
ONº position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
Empty fuel tank
If the fuel tank is empty, refuel immediately.
Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp will not go off even after the several trips, contact
your Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If the engine speed does not increase with the accelerator
pedal depressed down, there may be a problem somewhere
in your electronic throttle control system.At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions inspection and maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle's emission control system and
OBD (On-Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see Emissions inspection and maintenance (I/M)
programsº on page 519.

This device complies with FCC Rules part 15.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference that
may be received, including interference that may
cause undesired operation. WARNING: This
transmitter has been tested and complies with
FCC and DOC/MDC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate the device.
INTERIOR EQUIPMENT
92
CUP HOLDERS
Front
In front of the rear console box
To use the cup holder, push the cup holder lid.
The cup holder is designed for holding cups or drink-cans
securely.
The cup holder can be adjusted to the size of the cups by
changing the separator position or moving the separator arms.
You can use it as an accessory box by removing the separator
inside.

EXTERIOR EQUIPMENT
109 Make sure that the moon roof opens and closes automatically.
If the moon roof cannot be operated properly, have it checked
by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone's neck, head or hands get caught in the
closing roof, it could result in a serious injury. When
anyone closes the moon roof, first make sure it is safe
to do so.
Be sure to remove the ignition key when you leave
your vehicle.
Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switch and get trapped in the roof opening.
Unattended person (particularly a small child) can be
involved in a serious accident.
Never sit on top of the vehicle around the roof
opening.
Never try jamming any part of your body to activate
the jam protection function intentionally.
The jam protection function may not work if
something gets caught just before the moon roof
fully closed.

OCCUPANT RESTRAINT SYSTEMS
11 6
SEATS
While the vehicle is being driven, all vehicle occupants should
have the seatback upright, sit well back in the seat and properly
wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the occupants are
properly seated. Do not allow any passengers to sit
in the luggage compartment or cargo area. Persons
not properly seated and/or not properly restrained by
seat belts can be severely injured in the event of
emergency braking or a collision.
During driving, do not allow any passengers to stand
up or move around between seats. Otherwise, severe
injuries can occur in the event of emergency braking
or a collision.
FRONT SEATS
Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with considerable force,
and can cause death or serious injury especially if the
driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSAº) advises:
Since the risk zone for driver airbag is the first 50 Ð 75
mm (2 Ð 3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the
center of the steering wheel to your breastbone. If you
sit less than 250 mm (10 in.) away now, you can change
your driving position in several ways:
Move your seat to the rear as far as you can while still
reaching the pedals comfortably.
Slightly recline the back of the seat. Although vehicle
designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way
forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes
it hard to see the road, raise yourself by using a firm,
non-slippery cushion, or raise the seat if your vehicle
has that feature.

OCCUPANT RESTRAINT SYSTEMS
11 7

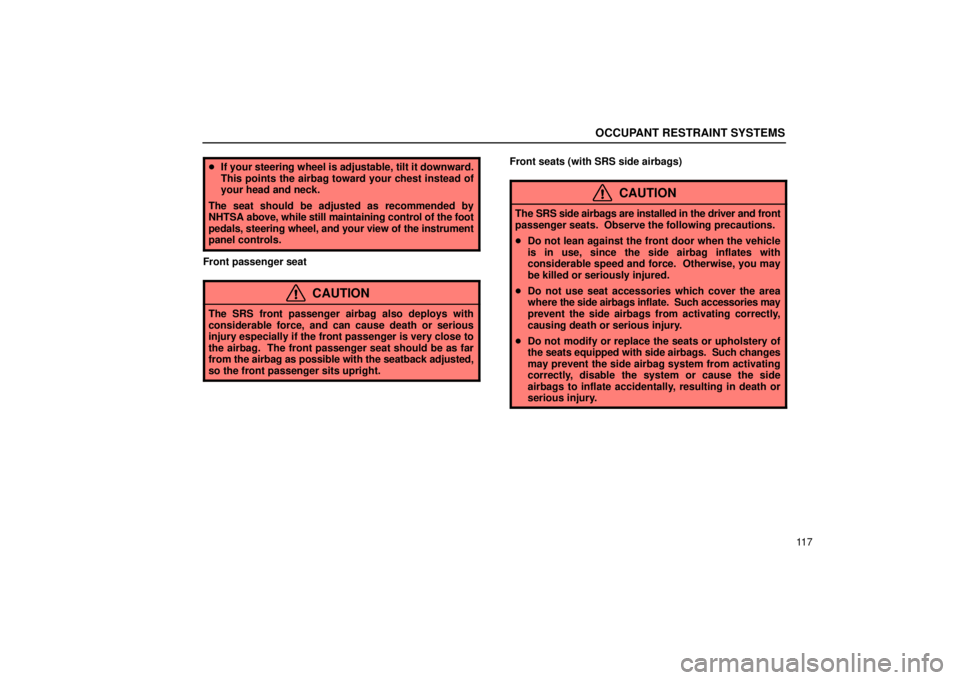

If your steering wheel is adjustable, tilt it downward.
This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by
NHTSA above, while still maintaining control of the foot
pedals, steering wheel, and your view of the instrument
panel controls.
Front passenger seat
CAUTION
The SRS front passenger airbag also deploys with
considerable force, and can cause death or serious
injury especially if the front passenger is very close to
the airbag. The front passenger seat should be as far
from the airbag as possible with the seatback adjusted,
so the front passenger sits upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
Do not lean against the front door when the vehicle
is in use, since the side airbag inflates with
considerable speed and force. Otherwise, you may
be killed or seriously injured.
Do not use seat accessories which cover the area
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
Do not modify or replace the seats or upholstery of
the seats equipped with side airbags. Such changes
may prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
149
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt and the seat belt extender are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from injury.
Seat belt pretensioners
The driver and front passenger's seat belt pretensioners
are designed to be activated in response to a severe
frontal impact or a vehicle rollover.
When the sensor detects a severe frontal impact or a vehicle
rollover, the front seat belts are quickly drawn back by the
retractors so that the belts snugly restrain the front seat
occupants.
The seat belt pretensioners are activated even if there is no
passenger sitting in the front seat.
The seat belt pretensioners and SRS airbags may not operate
together in case of collisions at a certain speeds and angles.

OCCUPANT RESTRAINT SYSTEMS
154
In the following cases, contact your Lexus dealer as soon as
possible:
The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the front seat belt pretensioners to operate.
The front seat belt pretensioner assembly is scratched,
cracked, or otherwise damaged.
SRS DRIVER AIRBAG AND FRONT
PASSENGER AIRBAG
The SRS (Supplemental Restraint System) front airbags
are designed to provide further protection for the driver
and front passenger in addition to the primary safety
protection provided by the seat belts.
In response to a severe frontal impact, the SRS front airbags
work together with the seat belts to help reduce injury by
inflating. The SRS front airbags help to reduce injuries mainly
to the driver's or front passenger's head or chest caused hitting
the vehicle interior.
The front passenger airbag is activated even with no
passenger in the front seat.

OCCUPANT RESTRAINT SYSTEMS
159 Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the
head and chest, it may also cause other, less severe injuries
to the face, chest, arms and hands. These are usually in the
nature of minor burns or abrasions and swelling, but the force
of a deploying airbag can cause more serious injuries,
especially if an occupant's hands, arms, chest or head are in
close proximity to the airbag module at the time of deployment.
This is why it is important for the occupant to: avoid placing any
object or part of the body between the occupant and the airbag
module; sit straight and well back into the seat; wear the
available seat belt properly; and sit as far as possible from the
airbag module, while still maintaining control of the vehicle.
Parts of the airbag module (steering wheel hub, airbag cover
and inflator) may be hot for several minutes after deployment,
so do not touch! The airbags inflate only once. The windshield
may be damaged by absorbing some of the force of the
inflating airbag.
CAUTION
The driver or front passenger who is too close to the
steering wheel or dashboard during airbag deployment
can be killed or seriously injured. Lexus strongly
recommends that:
The driver sit as far back as possible from the
steering wheel while still maintaining control of the
vehicle.
The front passenger sit as far back as possible from
the dashboard.
All vehicle occupants be properly restrained using
the available seat belts.
If the seat belt extender has been connected to the
driver's seat belt buckle without wearing the seat belt
when using the extender in the driver's seat, the SRS
driver's airbag system will judge that the driver wears
the seat belt even if not wearing it. In this case, the
driver's airbag may not activate correctly, causing
death or serious injury in the event of collision. Be
sure to wear the seat belt with the seat belt extender.
For instructions and precautions concerning the
seating position, see Front seat precautionsº on page
11 6 .
