OCCUPANT RESTRAINT SYSTEM
123
This indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the front seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition switch is turned to the ONº position, the
light does not come on or remains on.
The light comes on while driving.
If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
seat belt pretensioner.
The seat belt pretensioner assembly or surrounding area
has bees damaged.

OCCUPANT RESTRAINT SYSTEM
134
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition key is turned to the ONº position, the light
does not come on or remains on.
The light comes on while driving.

OCCUPANT RESTRAINT SYSTEM
149
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS side airbags and curtain shield airbags are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition key is turned to the ONº position, the light
does not come on or remains on.
The light comes on while driving.

OCCUPANT RESTRAINT SYSTEM
156

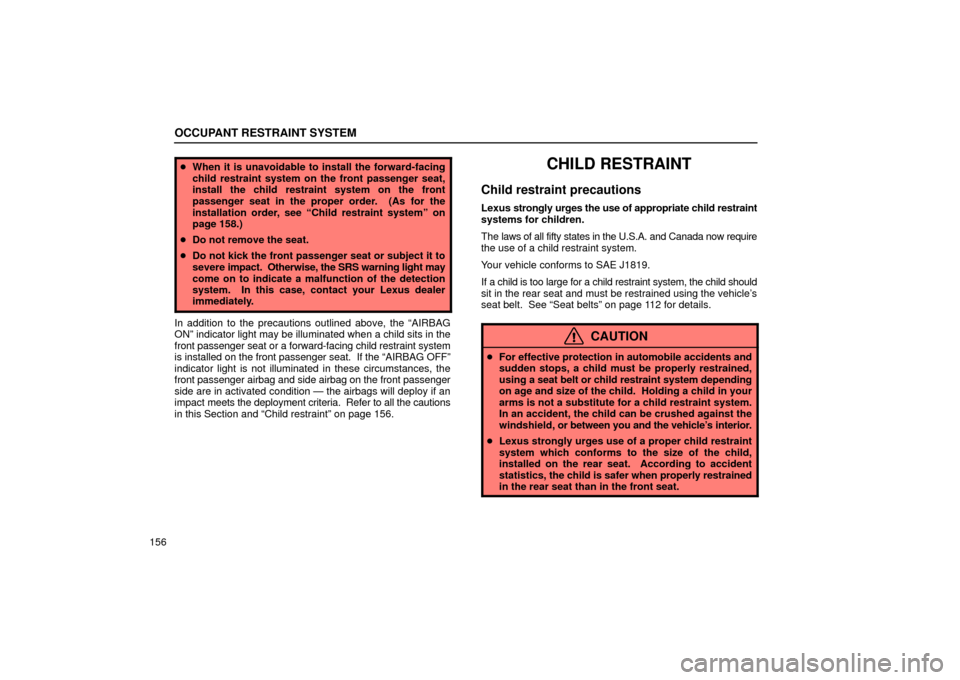

When it is unavoidable to install the forward-facing
child restraint system on the front passenger seat,
install the child restraint system on the front
passenger seat in the proper order. (As for the
installation order, see Child restraint systemº on
page 158.)
Do not remove the seat.
Do not kick the front passenger seat or subject it to
severe impact. Otherwise, the SRS warning light may
come on to indicate a malfunction of the detection
system. In this case, contact your Lexus dealer
immediately.
In addition to the precautions outlined above, the AIRBAG
ONº indicator light may be illuminated when a child sits in the
front passenger seat or a forward-facing child restraint system
is installed on the front passenger seat. If the AIRBAG OFFº
indicator light is not illuminated in these circumstances, the
front passenger airbag and side airbag on the front passenger
side are in activated condition Ð the airbags will deploy if an
impact meets the deployment criteria. Refer to all the cautions
in this Section and Child restraintº on page 156.
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of appropriate child restraint
systems for children.
The laws of all fifty states in the U.S.A. and Canada now require
the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. See Seat beltsº on page 112 for details.
CAUTION
For effective protection in automobile accidents and
sudden stops, a child must be properly restrained,
using a seat belt or child restraint system depending
on age and size of the child. Holding a child in your
arms is not a substitute for a child restraint system.
In an accident, the child can be crushed against the
windshield, or between you and the vehicle's interior.
Lexus strongly urges use of a proper child restraint
system which conforms to the size of the child,
installed on the rear seat. According to accident
statistics, the child is safer when properly restrained
in the rear seat than in the front seat.

STEERING WHEEL AND MIRRORS
182When you set your driving position:
1. Set the parking brake firmly.
2. Move the accelerator and brake pedals to the front most
position.
3. Adjust the seat position and steering wheel angle properly.
(See pages 108 and 181.)
4. Move the pedals toward you until you can fully depress the
brake pedal.
5. After adjusting, depress the pedals a few times to get used
to the feel.
CAUTION
Never put your foot on the accelerator pedal while the
pedals are moving. It may cause racing of the engine
or sudden acceleration.
Make sure that you can fully depress the brake pedal
before driving. Otherwise, you may not be able to
hold down the brake pedal firmly in an emergency
stop.
OUTSIDE REAR VIEW MIRRORS
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When the inside rear view mirror darkens in AUTO mode, the
outside rear view mirrors also darken to reduce the reflection
of the headlights of the following vehicle. For details, see
Inside rear view mirrorº on page 184.

AUDIO
211
AUDIO SYSTEM (type A)
Quick reference for your audio system
20E426

You can adjust the brightness of the display. See Instrument panel light controlº on page 68 for details.

AUDIO
235
AUDIO SYSTEM (type B)
Quick reference for your audio system
20E444

You can adjust the brightness of the display. See Instrument panel light controlº on page 68 for details.
If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo is shown on the panel.

MAINTENANCE
346Battery
Check the battery condition by the indicator color. See page
421 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 385 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 370 for additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the HOTº or COLDº range depending on the fluid
temperature. See page 387 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See Engine exhaust cautionº on page 266.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.
Service reminder indicators and warning buzzers
Check that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified freeplay. Be alert for changes
in steering condition, such as hard steering, excessive freeplay
or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
