8. Reinstall all the wheel nuts finger tight.
Align the holes in the wheel with the bolts. Then lift
up the wheel and get at least the top bolt started
through its hole. Wiggle the tire and press it back
over the other bolts.
Reinstall the wheel nuts and tighten them as much
as you can by hand. Press the tire back and see
if you can tighten them more.
CAUTION
Never use oil or grease on the bolts or nuts.
Doing so may lead to overtightening the nuts
and damaging the bolts. The nuts may loose
and the wheels may fall off, which could cause
a serious accident. If there is oil or grease on
any bolt or nut, clean it.
9. Lower the vehicle completely and tighten the
wheel nuts.
Turn the jack handle counterclockwise to lower the
vehicle.
Use only the wheel nut wrench to tighten the nuts.
Do not use other tools or any additional leverage other
than your hands, such as a hammer, pipe or your foot.
Make sure the wrench is securely engaged over the
nut.
Tighten each nut a little at a time in the order shown.
Repeat the process until all the nuts are tight.

IN CASE OF AN EMERGENCY
329
CAUTION
When lowering the vehicle, make sure all
portions of your body and all other persons
around will not be injured as the vehicle is
lowered to the ground.
Have the wheel nuts tightened with torque
wrench to 103 N´m (10.5 kgf´m, 76 ft´lbf), as
soon as possible after changing wheels.
Otherwise, the nuts may loosen and the
wheels may fall off, which could cause a
serious accident.
10. After changing the wheel, check the air
pressure of the replaced tire. Stow all the tools,
jack and flat tire securely.
If the pressure of the replaced tire is low, drive slowly
to the nearest service station and fill to the correct
pressure.
Do not forget to reinstall the tire valve cap as dirt and
moisture could get into the valve core and possibly
cause air leakage. If the cap is missing, put a new
one on as soon as possible.
This is the same procedure for changing or rotating
your tires.
CAUTION
Before driving, make sure all the tools, jack and
flat tire are securely in place in their storage
location to reduce the possibility of personal
injury during a collision or sudden braking.

MAINTENANCE
347 Accelerator pedal
Check the pedal for smooth operation and uneven pedal effort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and freeplay. Check the brake booster function.
Brakes
At a safe place, check that the brakes do not pull to one side
when applied.
Parking brake
Check that the pedal has the proper travel and that, on a safe
incline, your vehicle is held securely with only the parking brake
applied.
Automatic transmission Parkº mechanism
On a safe incline, check that your vehicle is held securely with
the selector lever in Pº position and all brakes released.
Vehicle exterior
Items listed below should be performed from time to time,
unless otherwise specified.
Wheel nuts
When checking the tires, make sure to check the nuts for
looseness. Tighten them if necessary.Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all doors, including trunk lid, operate smoothly and
all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary latch is
released.
Tire inflation pressure
Check the tire inflation pressure with a gauge every
two weeks, or at least once a month and adjust as
shown on the tire and loading information label. See
page 389 for additional information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 402 for additional
information.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the Owner's Manual
Supplement/Scheduled Maintenanceº.) See page 401
for additional information.

SECTION 6 ± 3
380
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications381 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid385 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking power steering fluid387 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure389 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information392 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains404 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels406 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions407 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis408 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS
384
Ð TIRES AND WHEELS
Tire size
P215/60R16 94V
Tire inflation pressure
Recommended cold tire inflation
pressure
Front 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Rear 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
For sustained high speeds above 160 km/h (99 mph), in
countries where such speeds are permitted by law, add 40
kPa (0.4 kgf/cm
2 or bar, 6 psi) to the front tires and rear
tires, but never exceed the maximum cold tire inflation
pressure molded on the tire sidewall.
Wheel size16
6 1/2 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf)
NOTE:
For a complete information on tires (e.g. replacing tires or replacing wheels), see Checking tire inflation pressureº
through Aluminum wheel precautionsº on pages 389 through 407.

CHASSIS
391

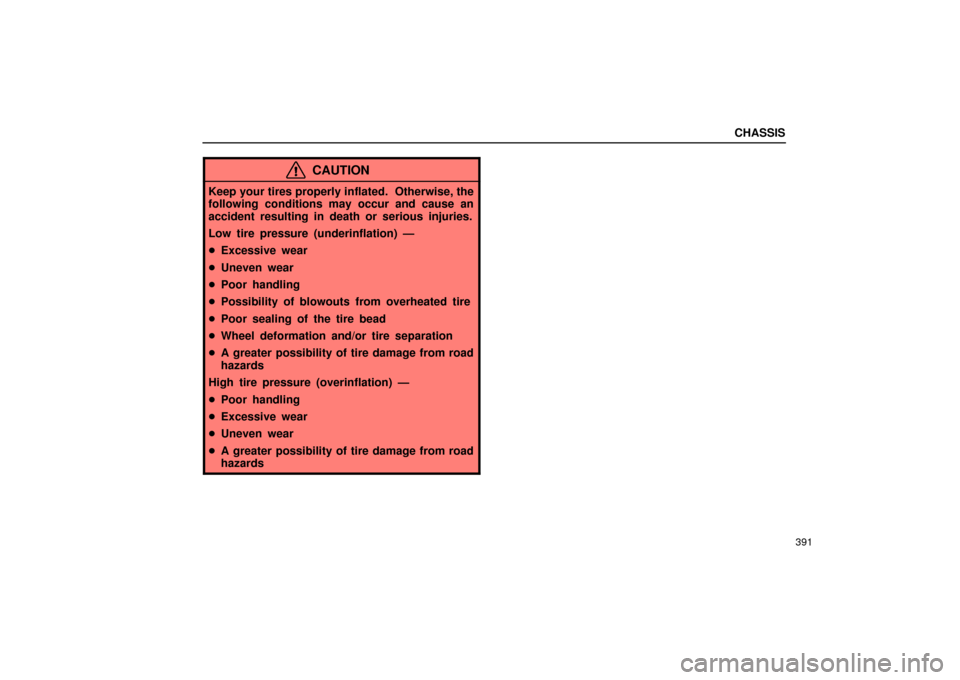

CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation) Ð
Excessive wear
Uneven wear
Poor handling
Possibility of blowouts from overheated tire
Poor sealing of the tire bead
Wheel deformation and/or tire separation
A greater possibility of tire damage from road
hazards
High tire pressure (overinflation) Ð
Poor handling
Excessive wear
Uneven wear
A greater possibility of tire damage from road
hazards

CHASSIS
394
DOT and Tire Identification Number (TIN)

The illustration indicates typical DOT and Tire
Identification Number (TIN).
1DOTº symbol
2Tire Identification Number (TIN)
3Tire manufacturer's identification mark
4Tire size code
5Manufacturer's optional tire type code
6Manufacturing week
7Manufacturing year
The DOTº symbol certifies that the tire conforms to
applicable Federal Motor Vehicle Safety Standards.
Tire size

The illustration indicates typical tire size.
1Tire use (P=Passenger car, T=Temporary
use)
2Section width (in millimeters)
3Aspect ratio (tire height to section width)
4Tire construction code
(R=Radial, D=Diagonal)
5Wheel diameter (in inch)
6Load index (2 digits or 3 digits)
7Speed symbol (alphabet with one letter)

CHASSIS
396
Uniform tire quality grading
This information has been prepared in accordance
with regulations issued by the National Highway
Traffic Safety Administration of the U.S.
Department of Transportation. It provides the
purchasers and/or prospective purchasers of
Lexus vehicles with information on uniform tire
quality grading.
Your Lexus dealer will help answer any questions
you may have as you read this information.
DOT quality grades Ð All passenger car tires must
conform to Federal Safety Requirements in
addition to these grades. Quality grades can be
found where applicable on the tire sidewall
between tread shoulder and maximum section
width. For example: Treadwear 200 Traction AA
Temperature A
Treadwear Ð The treadwear grade is a comparative
rating based on the wear rate of the tire when tested
under controlled conditions on a specified government
test course. For example, a tire graded 150 would
wear one and a half (1 - 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices and differences in road
characteristics and climate.Traction AA, A, B, C Ð The traction grades, from
highest to lowest, are AA, A, B and C, and they
represent the tire's ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is
based on braking (straight ahead) traction tests and
does not include cornering (turning) traction.
Temperature A, B, C Ð The temperature grades are
A (the highest), B, and C, representing the tire's
resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109. Grades B
and A represent higher levels of performance on the
laboratory test wheel than the minimum required by
law.
Warning: The temperature grade for this tire
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.
