OCCUPANT RESTRAINT SYSTEM
140
16E557

1Front passenger occupant classification system
(ECU and sensors)
2Side and curtain shield airbag sensor assemblies
3Side airbag modules (airbag and inflator)
4Curtain shield airbag modules (airbag and inflater)
5Curtain shield airbag sensor assemblies
6SRS warning light
7Front passenger's seat belt buckle switch
8AIRBAG OFFº and AIRBAG ONº indicator lights
9Airbag sensor assembly
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are shown
in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the lateral motion
of the occupants.

OCCUPANT RESTRAINT SYSTEM
149
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS side airbags and curtain shield airbags are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition key is turned to the ONº position, the light
does not come on or remains on.
The light comes on while driving.

OCCUPANT RESTRAINT SYSTEM
153 To ensure the system correctly detects an adult sitting in the
front passenger seat, make sure the above do not occur.
Make sure the AIRBAG ONº indicator light is illuminated when
an adult is seated in the front passenger seat. If the AIRBAG
OFFº indicator light is illuminated, ask the passenger to sit up
straight, well back in the seat, and with the seat belt worn
correctly. If the AIRBAG OFFº indicator light still remains
illuminated, either ask the passenger to move to the rear seat,
or if that is not possible, move the front passenger seat fully
rearward.
The AIRBAG OFFº and AIRBAG ONº indicator lights will
be initially illuminated when the ignition switch is turned
to the ONº position. It will remain for about four seconds
and then go off. After the two seconds, the front
passenger occupant classification system operates and
judges which indicator light to turn on.
The SRS warning light and AIRBAG OFFº indicator light
will be illuminated if there is a malfunction in the front
passenger occupant classification system.

OCCUPANT RESTRAINT SYSTEM
154
Condition and operation in the front passenger occupant classification system
Indicator/warning lightDevices
Condition detected
by the front
passenger occupant
classification systemAIRBAG
OFFº and
AIRBAG
ONº
indicator
lights
SRS
warning light
Front
passenger's
seat belt
reminder
light
Front
passenger
airbagSide airbag
on the front
passenger
seatCurtain
shield airbag
in the front
passenger
sideFront
passenger's
seat belt
pretensioner
1Adult*1AIRBAG
ONºOFFFlashing*4Activated
2Child *2 or child
restraint system*3AIRBAG
OFFºOFFFlashing*4DeactivatedActivated
3UnoccupiedNot
illuminatedOFFOFFDeactivatedActivatedDeactivated
4There is a
malfunction in the
systemAIRBAG
OFFºONOFFDeactivatedActivated
*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
*
2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her
as an adult depending on his/her physique or posture.
*
3: Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should
only be installed on the front passenger seat when it is unavoidable. (See Child restraint systemº on page 158 as for installing
the child restraint system.)
*
4: In the event the front passenger does not wear a seat belt.

OCCUPANT RESTRAINT SYSTEM
156
When it is unavoidable to install the forward-facing
child restraint system on the front passenger seat,
install the child restraint system on the front
passenger seat in the proper order. (As for the
installation order, see Child restraint systemº on
page 158.)
Do not remove the seat.
Do not kick the front passenger seat or subject it to
severe impact. Otherwise, the SRS warning light may
come on to indicate a malfunction of the detection
system. In this case, contact your Lexus dealer
immediately.
In addition to the precautions outlined above, the AIRBAG
ONº indicator light may be illuminated when a child sits in the
front passenger seat or a forward-facing child restraint system
is installed on the front passenger seat. If the AIRBAG OFFº
indicator light is not illuminated in these circumstances, the
front passenger airbag and side airbag on the front passenger
side are in activated condition Ð the airbags will deploy if an
impact meets the deployment criteria. Refer to all the cautions
in this Section and Child restraintº on page 156.
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of appropriate child restraint
systems for children.
The laws of all fifty states in the U.S.A. and Canada now require
the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. See Seat beltsº on page 112 for details.
CAUTION
For effective protection in automobile accidents and
sudden stops, a child must be properly restrained,
using a seat belt or child restraint system depending
on age and size of the child. Holding a child in your
arms is not a substitute for a child restraint system.
In an accident, the child can be crushed against the
windshield, or between you and the vehicle's interior.
Lexus strongly urges use of a proper child restraint
system which conforms to the size of the child,
installed on the rear seat. According to accident
statistics, the child is safer when properly restrained
in the rear seat than in the front seat.

STARTING AND DRIVING
282
Cruise control failure warning
If the CRUISEº indicator light in the instrument cluster flashes
when using the cruise control, push the main switch to turn the
system off and then push it again to turn it on.
If any of the following conditions then occurs, there is some
trouble in the cruise control system. Contact your Lexus dealer
and have your Lexus inspected.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it comes on.
ELECTRONIC MODULATED
SUSPENSION
This electronic modulated suspension adjusts the
damping effect on the shock absorbers with the control
switch. Select one of the 4 modes which is suited to the
driving conditions with the control switch to provide good
riding comfort and stability.
1For sporty type driving such as on winding mountain
roads and high speed driving
2For moderate high speed driving
3For ordinary driving such as in the city traffic
4For driving on a bumpy road
5Soft
6Firm

STARTING AND DRIVING
285

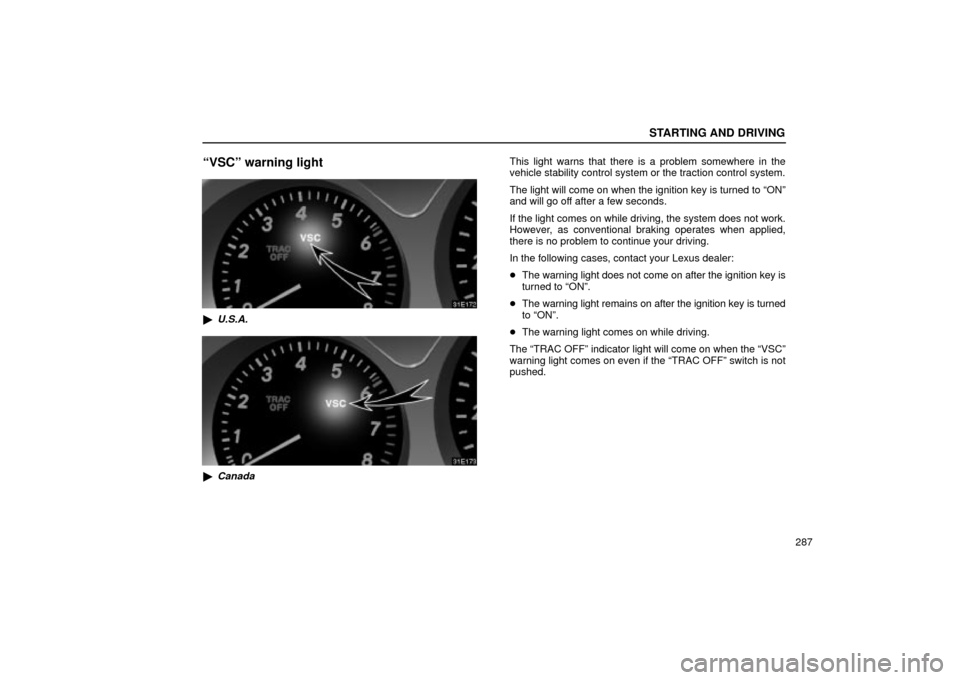

VSCº warning light

U.S.A.

Canada
This light warns that there is a problem somewhere in the
traction control system or the vehicle stability control system.
The light will come on when the ignition key is turned to ONº
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to ONº.
The warning light remains on after the ignition key is turned
to ONº.
The warning light comes on while driving.
The TRAC OFFº indicator light will come on when the VSCº
warning light comes on even if the TRAC OFFº switch is not
pushed.

STARTING AND DRIVING
287
VSCº warning light

U.S.A.

Canada
This light warns that there is a problem somewhere in the
vehicle stability control system or the traction control system.
The light will come on when the ignition key is turned to ONº
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to ONº.
The warning light remains on after the ignition key is turned
to ONº.
The warning light comes on while driving.
The TRAC OFFº indicator light will come on when the VSCº
warning light comes on even if the TRAC OFFº switch is not
pushed.
