2004 JAGUAR XJ direction indicator

Contents
Section Contents
Owner Information . . . . . . . . . . . . . . . . . . . . . . . . . 1
Security and Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Before Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
On the Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Roadside Emergency . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
A comprehensive index is located at the back of this handbook.
Quick Overview
Fascia Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Warning Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Overhead Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Seats and Headrest Adjustment . . . . . . . . . . . . . . . . . . . . . . . iv
Steering Column Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . iv
Entry/Exit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Pedal Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Door Mirror Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Window Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Gearshift Interlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Parkbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Exterior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Direction Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Trip Computer Reset Button. . . . . . . . . . . . . . . . . . . . . . . . . . vi
Wipers and Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Audio System (CD Player model) . . . . . . . . . . . . . . . . . . . . . vii
Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Filling Station Information
Fuel Filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Hood Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Underhood Top Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Tyre Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

2 - 8 Security and Locks
Door Locks and Handles
All doors can be centrally locked and
unlocked remotely, using the key
transmitter buttons.
Only the driver’s door is equipped with
an external key lock, which activates the
central locking and the two-stage
unlocking.
Vehicle Locking and
Unlocking
Lock the vehicle and set the alarm
• Ensure windows and sunroof (if fitted) are fully closed. • Press the lock button on the key
transmitter, or;
• Put the key in the driver’s door lock, turn the key toward s the rear of the
vehicle and release.
The direction indicators will flash once,
a chirp will be heard (if enabled) and the
security light (located on the top surface
of the fascia) will start flashing.
After 20 seconds, the alarm will be set.
If a door, the hood or the luggage
compartment are open and an attempt is
made to lock the vehicle, the direction
indicators will flash five times (if enabled)
and/or an audible warning will sound
twice as a warning that the vehicle is not
secure.
Note: The security system will not arm if
a key is in the ignition switch. If a key is
used in the drivers door lock and turned
towards the front of the vehicle then
released when an aperture is ajar,
the security will arm (2 error tones
(if enabled), or five flashes of the direction
indicators (if enabled) will be emitted). The security system will arm, but will not
monitor the aperture th
at is ajar until it
has been fully closed.
Drive-away door locking
With the ignition key at position ‘II’ and
all the doors closed, all doors will lock
when the gear selector is moved from
position ‘P’ or ‘N’. The gear selector has
to be moved from ‘P’ or ‘N’, and into a
different gear, for longer than one
second.
If the vehicle is stopped and a door is
opened and subsequently closed,
the doors will lock again when the gear
selector is moved from position ‘P’ or ‘N’,
and into a different gear.
If the vehicle is stopped and a door is
opened and subsequently closed, but the
gear selector is not moved from
position ‘P’ or ‘N’, or the current gear
position the doors will remain unlocked.
All vehicles have the drive-away door
locking feature installed during
manufacture. This feature can be
disabled, or reinstated, by a Jaguar
Retailer, if required.

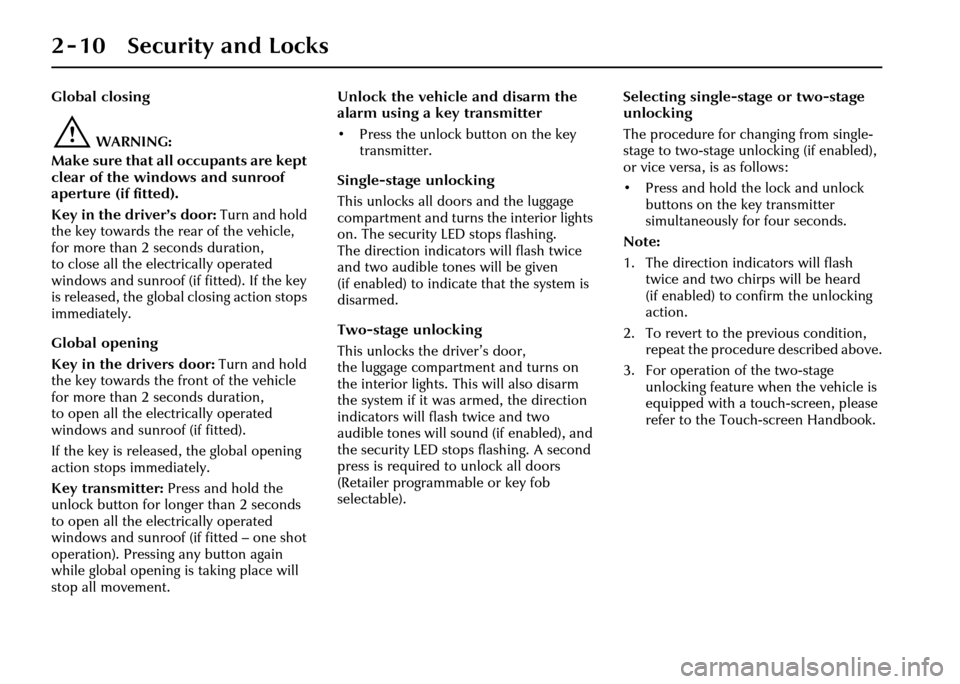

2 - 10 Security and Locks
Global closing
!WARNING:
Make sure that all occupants are kept
clear of the windows and sunroof
aperture (if fitted).
Key in the driver’s door: Turn and hold
the key towards the rear of the vehicle,
for more than 2 seconds duration,
to close all the electrically operated
windows and sunroof (if fitted). If the key
is released, the global closing action stops
immediately.
Global opening
Key in the drivers door: Turn and hold
the key towards the front of the vehicle
for more than 2 seconds duration,
to open all the electrically operated
windows and sunroof (if fitted).
If the key is released, the global opening
action stops immediately.
Key transmitter: Press and hold the
unlock button for longer than 2 seconds
to open all the electrically operated
windows and sunroof (if fitted – one shot
operation). Pressing any button again
while global opening is taking place will
stop all movement. Unlock the vehicle and disarm the
alarm using a key transmitter
• Press the unlock button on the key
transmitter.
Single-stage unlocking
This unlocks all doors and the luggage
compartment and turns the interior lights
on. The security LED stops flashing.
The direction indicators will flash twice
and two audible tones will be given
(if enabled) to indicate that the system is
disarmed.
Two-stage unlocking
This unlocks the driver’s door,
the luggage compartm ent and turns on
the interior lights. T his will also disarm
the system if it was armed, the direction
indicators will flash twice and two
audible tones will sound (if enabled), and
the security LED stops flashing. A second
press is required to unlock all doors
(Retailer programmable or key fob
selectable). Selecting single-stage or two-stage
unlocking
The procedure for changing from single-
stage to two-stage unlocking (if enabled),
or vice versa, is as follows:
• Press and hold the lock and unlock
buttons on the key transmitter
simultaneously for four seconds.
Note:
1. The direction indi cators will flash
twice and two chirps will be heard
(if enabled) to confirm the unlocking
action.
2. To revert to the previous condition, repeat the procedure described above.
3. For operation of the two-stage unlocking feature when the vehicle is
equipped with a touch-screen, please
refer to the Touch-screen Handbook.

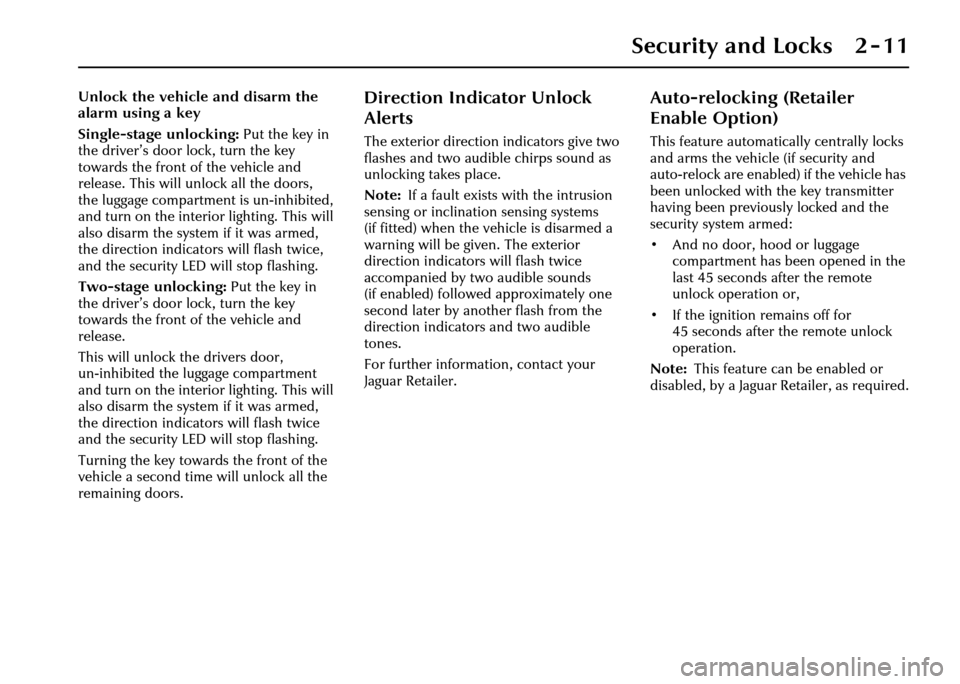

Security and Locks 2 - 11
Unlock the vehicle and disarm the
alarm using a key
Single-stage unlocking: Put the key in
the driver’s door lock, turn the key
towards the front of the vehicle and
release. This will unlock all the doors,
the luggage compartmen t is un-inhibited,
and turn on the interior lighting. This will
also disarm the system if it was armed,
the direction indicators will flash twice,
and the security LED will stop flashing.
Two-stage unlocking: Put the key in
the driver’s door lock, turn the key
towards the front of the vehicle and
release.
This will unlock the drivers door,
un-inhibited the luggage compartment
and turn on the interior lighting. This will
also disarm the system if it was armed,
the direction indicators will flash twice
and the security LED will stop flashing.
Turning the key towards the front of the
vehicle a second time will unlock all the
remaining doors.Direction Indicator Unlock
Alerts
The exterior direction indicators give two
flashes and two audible chirps sound as
unlocking takes place.
Note: If a fault exists with the intrusion
sensing or inclination sensing systems
(if fitted) when the vehicle is disarmed a
warning will be given. The exterior
direction indicators will flash twice
accompanied by tw o audible sounds
(if enabled) followed approximately one
second later by another flash from the
direction indicators and two audible
tones.
For further information, contact your
Jaguar Retailer.
Auto-relocking (Retailer
Enable Option)
This feature automatically centrally locks
and arms the vehicle (if security and
auto-relock are enabled) if the vehicle has
been unlocked with the key transmitter
having been previously locked and the
security system armed:
• And no door, hood or luggage compartment has been opened in the
last 45 seconds after the remote
unlock operation or,
• If the ignition remains off for 45 seconds after the remote unlock
operation.
Note: This feature can be enabled or
disabled, by a Jaguar Retailer, as required.

Security and Locks 2 - 15
2. If the vehicle alarm system is armed and the luggage compartment is
opened using the key transmitter,
the alarm will not sound. The system
will be rearmed when the lid is closed,
provided the vehicle has not been
disarmed.
3. Neither the luggage compartment lid release switch on the fascia
switchpack nor the lid release button
will operate when the vehicle is
armed, or in valet mode. An attempt
to operate these switches whilst in
valet mode will result in an audible
warning chime.
4. Operating the inte rnal, external or
remote luggage compartment switches
more than 15 times within
20 seconds, or opening and closing
the luggage compartment will cause
opening to be inhibited for
20 seconds. Should this happen wait
20 seconds for normal operation to
resume. If required, the luggage
compartment may be opened by using
the key during the 20 second waiting
period.Alarms and Audible
Signals
Note: In certain markets, legislation
prohibits the use of audible confirmation
signals. In such cases, the sound source
has been removed from the system.
Audible Signals
Two audible signals will be heard
(if enabled) if an atte mpt is made to lock
the vehicle with a key in the drivers door
lock or the lock button is pressed on the
key transmitter if a door, the hood or the
luggage compartment is not fully closed
or, a key is in the ignition switch.
If the vehicle is unlocked with a key when
it is armed, the vehicle will disarm,
the direction indicators will flash twice
and two audible tones will be heard
(if enabled).
The full alarm will activate, as previously
described, unless the security system is
disarmed, either by pressing the unlock
button on the key tr ansmitter, or by
placing a key into the ignition switch and
turning the key to position ‘II’.
Full Alarm
Once armed, any of the following
circumstances will create a full alarm
state, sound the horns, sound the siren,
or a combination of both (as regional
legislation dictates) and flash the
direction indicators:
• Opening a door, luggage compartment lid (except with
transmitter) or hood.
• Movement in the passenger area (if intrusion sensors are fitted).
• Using a key in the ignition switch which is not programmed to the
vehicle.
• One press of the headlamp convenience button will switch on the
headlamps for 25 seconds or until the
button is pressed again, or until a key
is inserted in the ignition switch.
See Headlight convenience on
page 4 - 24 for more details.
• An attempt to lift, or tow the vehicle (when inclination sensor fitted).
• The vehicle battery is disconnected and the vehicle is fitted with a Battery
Backed Sounder (onl y Battery Backed
Sounder will be audible).

2 - 16 Security and Locks
• If, after 15 seconds (passively armed), from opening the driv er’s door with a
key (as regional legislation dictates),
the key is not inserted into the
ignition switch and turned to
position ‘II’, or a passenger door is
opened before the drivers door.
• Any attempt is made to remove the radio or the front navigation system
(if fitted).
• Pressing the headlamp convenience button on the remo te transmitter
3 times within 3 seconds activates the
panic alarm (if enabled).
Error Audible Signal
Two audible signals will be heard
whenever one of the following conditions
are present:
• I f a n y d o o r i s o p e n w h e n a n a t t e m p t i s made to lock the vehicle.
• The luggage compartment or the hood is not properly closed when an
attempt is made to lock the vehicle.
• A key is present in the ignition switch and a button on the key transmitter is
pressed. See
Direction Indicator Unlock Alerts
on page 2 - 11 for the Notes regarding
error signals during failure of intrusion
sensor (if fitted), and inclination sensor
(if fitted).
Note: The error audible signal can be
disabled and the direction indicator flash
option can be enabled (and vice versa) by
a Jaguar Retailer.
Error Flash Signal (Retailer
Enable Option)
The direction indicators will flash seven
times whenever one of the following
conditions are present.
• If any door is open when an attempt is made to lock the vehicle.
• The luggage compar tment or hood are
not fully closed when an attempt is
made to lock the vehicle.
• A key is present in the ignition switch and a button on the key transm itter is
pressed.
See Direction Indicator Unlock Alerts
on page 2 - 11 for the Notes regarding
error signals during failure of intrusion
sensor (if fitted), and inclination sensor
(if fitted).
Audible Signals
An audible signal will sound when:
• The valet switch is pressed with the luggage compartment closed.
• The vehicle is in valet mode and the interior/luggage compartment release
button, or glove compartment valet
switch is pressed.
• The vehicle is locked (if enabled).
• The vehicle is unlocked (if enabled).
• A door is opened if the vehicle has been passively armed. This mode can
be cancelled by disa rming the security
system using the key transmitter,
or by switching the ignition to
position ‘II’, or by turning a key in the
driver’s door lock towards the front of
the vehicle.
• The lock button is pressed twice within three seconds (if enabled).

Security and Locks 2 - 17
Security Features
The security system has been designed
for:
• Prevention of theft of the vehicle.
• Prevention of theft of items from the vehicle.
• Personal security.
The security system is integrated with the
vehicle electronics and engine
management systems making it far more
difficult for a thief to penetrate and steal
the vehicle.
Panic Alarm (if enabled)
When in or near the vehicle, the alarm
can be set off to dete r a possible offender.
For this feature to operate, the key must
not be in the ignition switch.
Pressing the headlamp convenience/panic
button on the key transmitter three times
within three seconds will activate the
‘Panic Alarm’.
The alarm is stopped by:
• Putting the key into the ignition switch and turning to position ‘II’.
Note:
1. The key transmitter cannot be used to cancel the Panic alarm. This prevents
unauthorised cancellation in an
emergency.
2. The panic alarm is normally enabled. If required, this feature can be
disabled or enabled by a Jaguar
Retailer.
3. The vehicle locking status will not change when the panic alarm is
activated.
Passive Arming (Retailer
Option)
Passive arming wi ll not lock the
doors, it only arms the security alarm
system.
Passive arming, if enabled by a Jaguar
Retailer, will automatically arm the
vehicle alarm system 30 seconds after the
last protected entry (door, luggage
compartment) is closed following the key
being removed from th e ignition switch.
When passive arming occurs the direction
indicators will flash once and a single
tone will be heard (if enabled). The red
security light on the fascia will start to
flash and will continue for as long as the
alarm is armed.
Opening the drivers door causes a
warning sound which continues for
15 seconds before the system goes into
the full alarm state. If any other door is
opened before the drivers door,
the system goes into the full alarm state
immediately.
When the system is pa ssively armed and a
key is used to open the trunk, a seven
second warning audible ticking will
sound before the full alarm is activated.

On the Road 4 - 5
Warning Lights
Warning lights are arranged within the
instrument cluster.
There are two warning lights, one red,
the other amber, located above the
message centre for primary and
secondary status of the warnings
displayed by the message centre.
‘RED’ warning lights are for primary
warnings. A primary warning must be
investigated immediately by the driver or
a Jaguar Retailer.
‘AMBER’ warning lights are for secondary
warnings when the driver must take
action and then report the fault to a
Retailer at the earliest opportunity.
Other lights within the instrument cluster
indicate system status, such as blue for
main beam and green for direction
indicators, when in operation. Lamp check
A lamp check is initiated when the
ignition is switched ON and lasts for
three seconds (excepting the air bag
warning light which will remain on for
6seconds). Ifany wa
rning light remains
on after this period, investigate the cause
before driving.
Note: Not all lamps are included in the
lamp check, for example main beam
headlights or direction indicators.
Low Oil Pressure (RED)
This lights up with the ignition
switched ON and should go
out once the engine is running.
If the light remains ON once the engine
has started or comes ON whilst driving,
loss of oil pressure is indicated.
STOP the engine immediately and
investigate the cause.
Caution: Do not restart the engine
until the cause of loss of oil pressure
has been identified and rectified.
First check the engine oil level,
seepage7-6.
