2004 ISUZU TF SERIES key

ELECTRICAL-BODY AND CHASSIS 8A-397

RTW38DSH001701
Turn Signal Test
Check the turn signal lamp lights up by operation of
Tech-2.
1. Turn the key “OFF”.
2. Turn the key “ON”.
3. Check the display and test menu.
4. Operate the Tech-2.


060R200289
Programming
Erase Remove Key
To erase remove control key code in the control unit.
1. Check the display of Tech-2 and press “Confirm”
key.
RTW38DSH001001

2. Enter security code.
3. Press “Not Okay” or “Okay” key.

8A-398 ELECTRICAL-BODY AND CHASSIS
RTW38DSH001101

4. Check the display of Tech-2 and press “Confirm”
key.
RTW38DSH001201

5. Check the display of Tech-2 and press “Confirm”
key.
060R200289
Program Remote Key
To program remote control key code in the control
unit.
1. Check the display of Tech-2 and press “Confirm”
key.

ELECTRICAL-BODY AND CHASSIS 8A-399
RTW38DSH001301

2. Check the following table in the display of Tech-2.
3. Operate the remote key.
RTW38DSH001401

4. Check the display of Tech-2 and press “Confirm”
key.
RTW38DSH001501

5. Check the display of Tech-2 and press “No”or
“Yes” key.

ELECTRICAL-BODY AND CHASSIS 8A-411
ANTITHEFT AND KEYLESSENTRY CONTROL UNIT


Removal and Installation

Refer to Antitheft And Keylessentry Control Unit in this
section.

ELECTRICAL-BODY AND CHASSIS 8A-419


No. Connector face No. Connector face
B-32
NOT USED B-44

Keyless Entry (B)
B-33

Illumination control B-45
WhiteAlarmer control unit
B-34
NOT USED B-46
Gray
Rear defogger timer
B-35
Yellow
Infrator; passenger side B-47
WhiteGlove box illumination
B-36
Yellow
Infrator; Driver side B-48
BlackG/sensor
B-37
~
B-39 NOT USED B-49
White
A/T Lever
B-40
Black
Acc socket relay B-50
WhitePower/3rd start switch
B-41
Natural
Acc socket B-51
~
B-52 NOT USED
B-42
White
Acc socket B-53
WhiteJ/B I1
B-43

Keyless Entry (A) B-54
WhiteJ/B I2

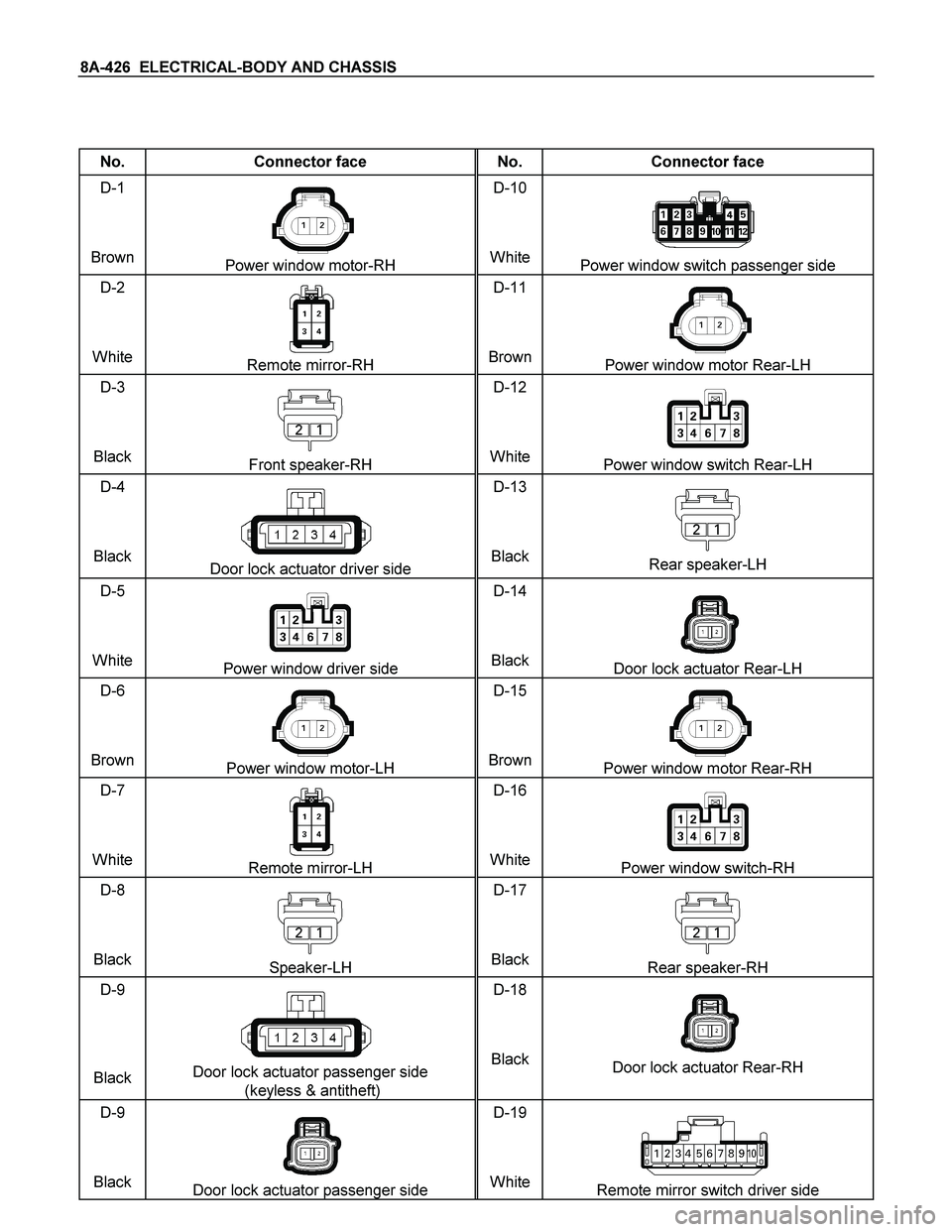

8A-426 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
D-1
Brown
Power window motor-RH D-10
WhitePower window switch passenger side
D-2
White
Remote mirror-RH D-11
BrownPower window motor Rear-LH
D-3
Black
Front speaker-RH D-12
WhitePower window switch Rear-LH
D-4
Black
Door lock actuator driver side D-13
BlackRear speaker-LH
D-5
White
Power window driver side D-14
BlackDoor lock actuator Rear-LH
D-6
Brown
Power window motor-LH D-15
BrownPower window motor Rear-RH
D-7
White
Remote mirror-LH D-16
WhitePower window switch-RH
D-8
Black
Speaker-LH D-17
BlackRear speaker-RH
D-9
Black
Door lock actuator passenger side
(keyless & antitheft) D-18
BlackDoor lock actuator Rear-RH
D-9
Black
Door lock actuator passenger side D-19
WhiteRemote mirror switch driver side

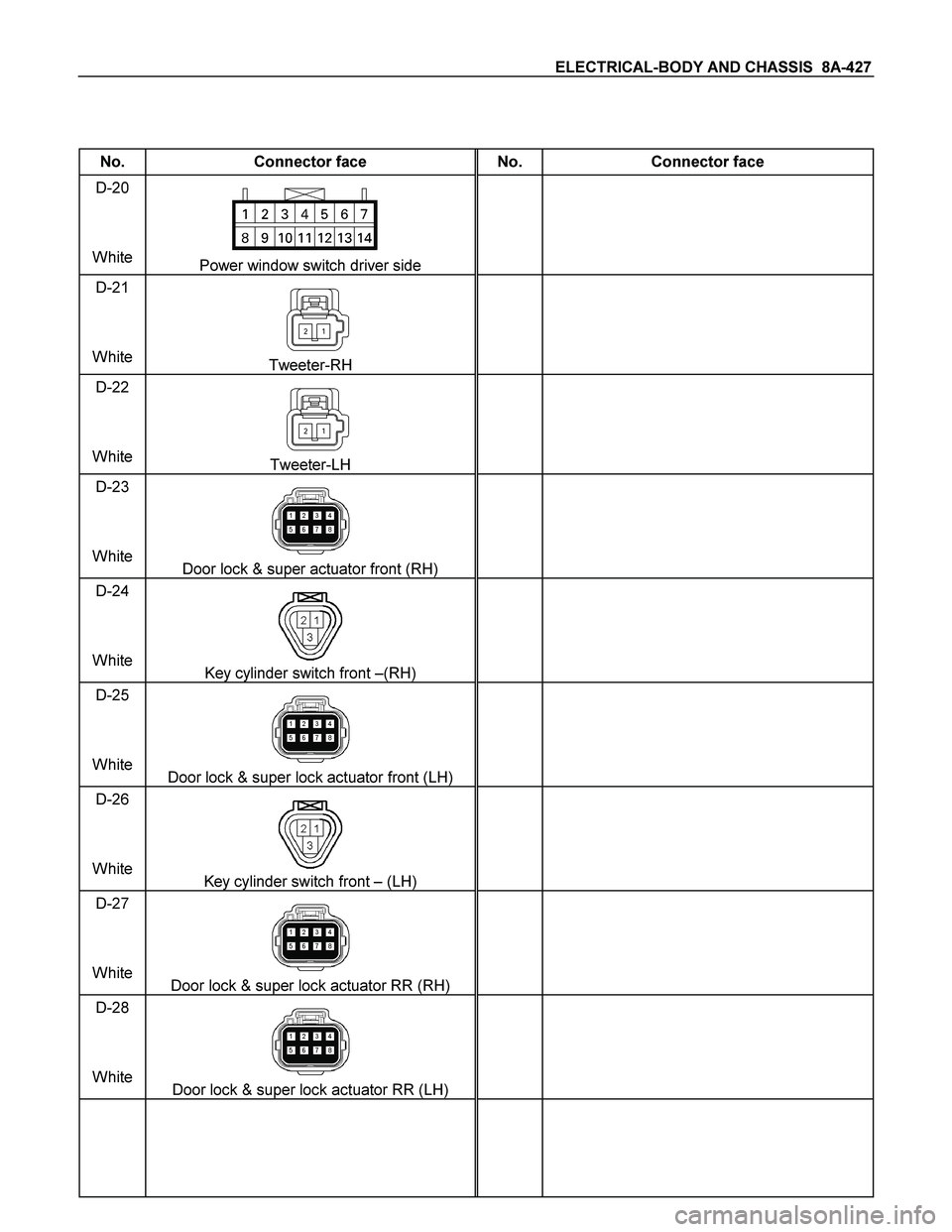

ELECTRICAL-BODY AND CHASSIS 8A-427


No. Connector face No. Connector face
D-20
White
Power window switch driver side


D-21
White
Tweeter-RH


D-22
White
Tweeter-LH


D-23
White
Door lock & super actuator front (RH)


D-24
White
Key cylinder switch front –(RH)


D-25
White
Door lock & super lock actuator front (LH)


D-26
White
Key cylinder switch front – (LH)


D-27
White
Door lock & super lock actuator RR (RH)


D-28
White
Door lock & super lock actuator RR (LH)

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–7
Temperature ............................................ 6E-302
Diagnostic Trouble Code (DTC) P1173
(Symptom Code 7) (Flash Code 22) Fuel
Reduction Caused By High Fuel
Temperature ............................................ 6E-305
Diagnostic Trouble Code (DTC) P1173
(Symptom Code A) (Flash Code 22) Fuel
Reduction Caused By Low Fuel
Temperature ............................................ 6E-305
DIAGNOSTIC TROUBLE CODE (DTC) P1335
(SYMPTOM CODE A)
(FLASH CODE 43) ENGINE SPEED OUTPUT
CIRCUIT MALFUNCTION ....................... 6E-306
Circuit Description ..................................... 6E-306
Diagnostic Aids .......................................... 6E-306
Diagnostic Trouble Code (DTC) P1335
(Symptom Code A) (Flash Code 43)
Engine Speed Output Circuit Malfunction 6E-307
DIAGNOSTIC TROUBLE CODE (DTC) P1345
(SYMPTOM CODE A) (FLASH CODE 45)
CAMSHAFT SPEED MALFUNCTION ..... 6E-311
Circuit Description ..................................... 6E-311
Diagnostic Aids .......................................... 6E-311
Diagnostic Trouble Code (DTC) P1345
(Symptom Code A) (Flash Code 45)
Camshaft Speed Malfunction .................. 6E-312
DIAGNOSTIC TROUBLE CODE (DTC) P1520
(SYMPTOM CODE A) (FLASH CODE 47)
NEUTRAL SWITCH ON ERROR ............ 6E-313
DIAGNOSTIC TROUBLE CODE (DTC) P1520
(SYMPTOM CODE B) (FLASH CODE 47)
NEUTRAL SWITCH OFF ERROR .......... 6E-313
Circuit Description ..................................... 6E-313
Diagnostic Aids .......................................... 6E-313
Diagnostic Trouble Code (DTC) P1520
(Symptom Code A) (Flash Code 47)
Neutral Switch ON Error .......................... 6E-314
Diagnostic Trouble Code (DTC) P1520
(Symptom Code B) (Flash Code 47)
Neutral Switch OFF Error ........................ 6E-314
DIAGNOSTIC TROUBLE CODE (DTC) P1605
(SYMPTOM CODE C) (FLASH CODE 55)
SEED AND KEY FILE DESTROYED ...... 6E-318
DIAGNOSTIC TROUBLE CODE (DTC) P1605
(SYMPTOM CODE D) (FLASH CODE 55)
EEPROM DEFECT .................................. 6E-318
DIAGNOSTIC TROUBLE CODE (DTC) P1605
(SYMPTOM CODE E) (FLASH CODE 55)
EEPROM DEFECT .................................. 6E-318
Circuit Description & Diagnostic Aids ........ 6E-318
Diagnostic Trouble Code (DTC) P1605
(Symptom Code C) (Flash Code 55)
Seed and Key File Destroyed .................. 6E-318Diagnostic Trouble Code (DTC) P1605
(Symptom Code D) (Flash Code 55)
EEPROM Defect ...................................... 6E-318
Diagnostic Trouble Code (DTC) P1605
(Symptom Code E) (Flash Code 55)
EEPROM Defect ...................................... 6E-318
DIAGNOSTIC TROUBLE CODE (DTC) P1610
(SYMPTOM CODE A) (FLASH CODE 56)
SECURITY KEY AND SECURITY CODE NOT
PROGRAMMED ...................................... 6E-320
Circuit Description ...................................... 6E-320
Diagnostic Aids .......................................... 6E-320
Diagnostic Trouble Code (DTC) P1610
(Symptom Code A) (Flash Code 56) Security
Key and Security Code Not Programmed 6E-320
DIAGNOSTIC TROUBLE CODE (DTC) P1611
(SYMPTOM CODE A) (FLASH CODE 56)
WRONG SECURITY CODE ENTERED .. 6E-322
Circuit Description ...................................... 6E-322
Diagnostic Aids .......................................... 6E-322
Diagnostic Trouble Code (DTC) P1611
(Symptom Code A) (Flash Code 56)
Wrong Security Code Entered ................. 6E-323
DIAGNOSTIC TROUBLE CODE (DTC) P1612
(SYMPTOM CODE A) (FLASH CODE 56)
IMMOBILIZER NO OR WRONG SIGNAL 6E-324
Circuit Description ...................................... 6E-324
Diagnostic Aids .......................................... 6E-324
Diagnostic Trouble Code (DTC) P1612
(Symptom Code A) (Flash Code 56)
Immobilizer No or Wrong Signal .............. 6E-325
DIAGNOSTIC TROUBLE CODE (DTC) P1613
(SYMPTOM CODE A) (FLASH CODE 56)
IMMOBILIZER NO OR WRONG SIGNAL 6E-330
Circuit Description ...................................... 6E-330
Diagnostic Aids .......................................... 6E-330
Diagnostic Trouble Code (DTC) P1613
(Symptom Code A) (Flash Code 56)
Immobilizer No or Wrong Signal .............. 6E-331
DIAGNOSTIC TROUBLE CODE (DTC) P1614
(SYMPTOM CODE A) (FLASH CODE 56)
WRONG TRANSPONDER KEY .............. 6E-335
Circuit Description ...................................... 6E-335
Diagnostic Aids .......................................... 6E-335
Diagnostic Trouble Code (DTC) P1614
(Symptom Code A) (Flash Code 56)
Wrong Transponder Key .......................... 6E-336
DIAGNOSTIC TROUBLE CODE (DTC) P1625
(SYMPTOM CODE A) (FLASH CODE 76) ECM
MAIN RELAY SWITCHED OFF
TOO EARLY ............................................ 6E-337
DIAGNOSTIC TROUBLE CODE (DTC) P1625
