2004 INFINITI FX35 Engine

EC-740
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 5 5 5 5 5 5EM-188
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Air Air duct
55555 5EM-172
Air cleanerEM-172
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-172
Electric throttle control actuatorEM-174
Air leakage from intake manifold/
Collector/GasketEM-174
Cranking Battery
111111
11SC-4
Generator circuitSC-23
Starter circuit 3SC-10
Signal plate 6EM-240
PNP switch 4AT- 11 2
Engine Cylinder head
55555 55 5EM-224
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-240
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-196
CamshaftEM-208
Intake valve timing controlEM-196
Intake valve
3EM-196
Exhaust valve

TROUBLE DIAGNOSIS
EC-741
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
1 - 6: The numbers refer to the order of inspection.Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-178
,
EX-3
Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 5EM-181
,
LU-31
, LU-
28 , LU-29
Oil level (Low)/Filthy oilLU-25
Cooling
Radiator/Hose/Radiator filler cap
55555 55 45CO-39,
CO-43
Thermostat 5CO-51
Water pumpCO-49
Water galleryCO-34
Cooling fan
5CO-47
Coolant level (Low)/Contami-
nated coolantCO-36
IVIS (INFINITI Vehicle Immobilizer System —
NATS)11EC-717 or
BL-206
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-742
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45

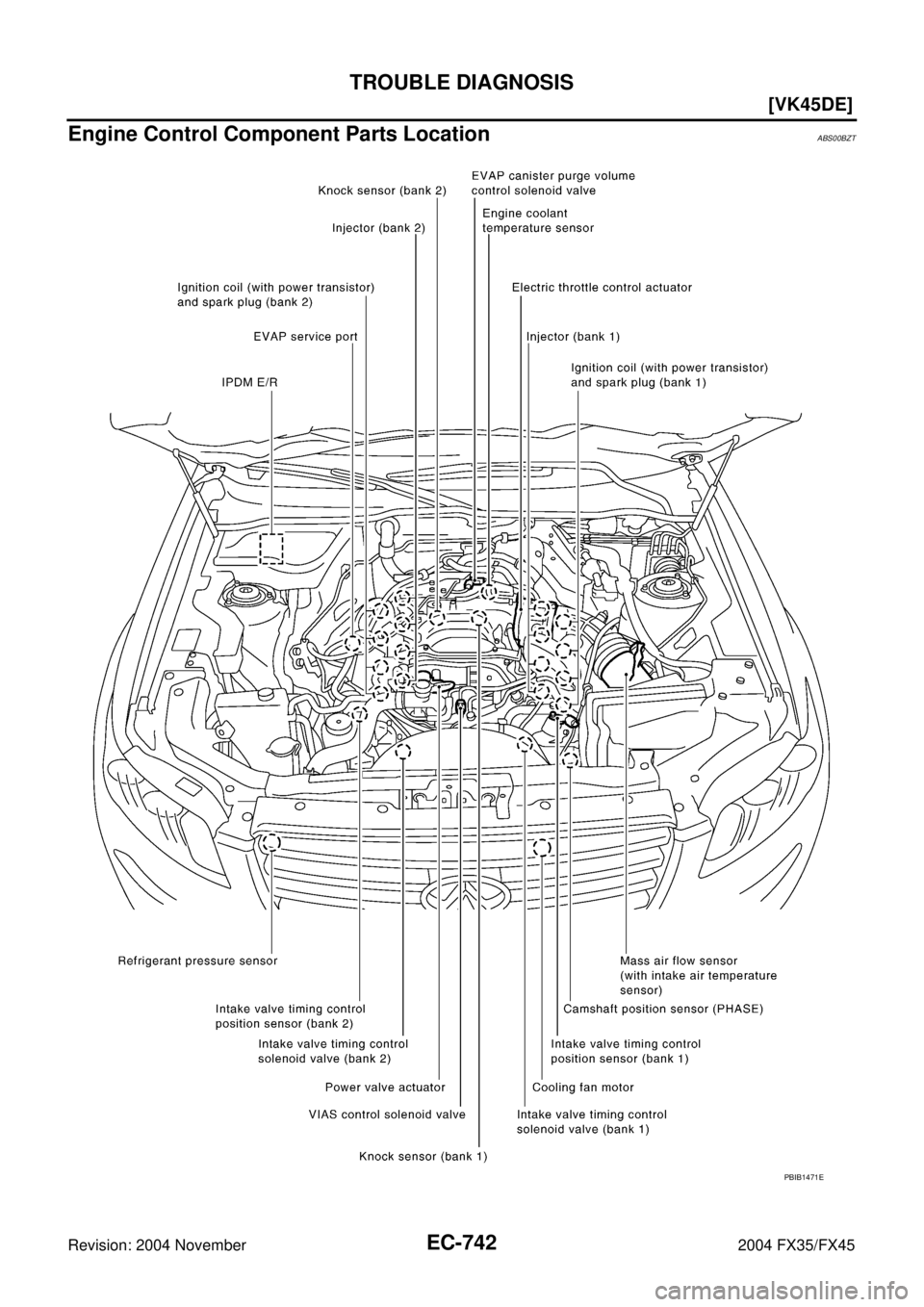

Engine Control Component Parts LocationABS00BZT
PBIB1471E

EC-750
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
ECM Harness Connector Terminal LayoutABS00BZV
ECM Terminals and Reference ValueABS00BZW
PREPARATION
1. ECM is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument
lower panel.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown at right.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1192E
PBIB1505E
PBIB1512E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground

TROUBLE DIAGNOSIS
EC-751
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2LHeated oxygen sensor 1
heater (bank 1)[Engine is running]

Warm-up condition

Engine speed is below 3,000 rpmApproximately 7V
[Engine is running]

Engine speed is above 3,000 rpmBATTERY VOLTAGE
(11 - 14V)
3PThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4L/WThrottle control motor
(Close)[Ignition switch: ON]

Engine stopped

Shift lever position is D

Accelerator pedal is released0 - 14V
5L/BThrottle control motor
(Open)[Ignition switch: ON]

Engine stopped

Shift lever position is D

Accelerator pedal is fully depressed0 - 14V
6RHeated oxygen sensor 2
heater (bank 1)[Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
10 ORIntake valve timing control
solenoid valve (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000rpm7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0519E
PBIB1104E
PBIB1105E
PBIB1790E

EC-752
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
2LHeated oxygen sensor 1
heater (bank 1)[Engine is running]

Warm-up condition

Engine speed is below 3,000 rpmApproximately 7V
[Engine is running]

Engine speed is above 3,000 rpmBATTERY VOLTAGE
(11 - 14V)
3PThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4L/WThrottle control motor
(Close)[Ignition switch: ON]

Engine stopped

Shift lever position is D

Accelerator pedal is released0 - 14V
5L/BThrottle control motor
(Open)[Ignition switch: ON]

Engine stopped

Shift lever position is D

Accelerator pedal is fully depressed0 - 14V
6RHeated oxygen sensor 2
heater (bank 1)[Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
10 ORIntake valve timing control
solenoid valve (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000rpm7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0519E
PBIB1104E
PBIB1105E
PBIB1790E

TROUBLE DIAGNOSIS
EC-753
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
11 B RIntake valve timing control
solenoid valve (bank 2)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000rpm7 - 12V
12 R/GPower steering pressure
sensor[Engine is running]

Steering wheel is being turned0.5 - 4.5V
[Engine is running]

Steering wheel is not being turned0.4 - 0.8V
13 YCrankshaft position sensor
(POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 2.0V
[Engine is running]

Engine speed is 2,000 rpm1.0 - 2.0V
14 WCamshaft position sensor
(PHASE)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]

Engine speed is 2,000 rpm1.0 - 4.0V
15 W Knock sensor 1[Engine is running]

Idle speedApproximately 2.5V
16 R/LHeated oxygen sensor 1
(bank 1)[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - Approximately 1.0V
(Periodically change) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1790E
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E

EC-754
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
21
22
23
40
41
42
44
63W
R
P
PU
BR
B
OR
GInjector No. 5
Injector No. 3
Injector No. 1
Injector No. 6
Injector No. 4
Injector No. 2
Injector No. 7
Injector No. 8[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
24 BRHeated oxygen sensor 1
heater (bank 2)[Engine is running]

Warm-up condition

Engine speed is below 3,000 rpmApproximately 7V
[Engine is running]

Engine speed is above 3,000 rpmBATTERY VOLTAGE
(11 - 14V)
25 PHeated oxygen sensor 2
heater (bank 2)[Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
29 GY VIAS control solenoid valve[Engine is running]

Shift lever position is P or N0 - 1.0V
[Engine is running]

Shift lever position is DBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed is above 5,000 rpm0 - 1.0V
32 OREVAP control system pres-
sure sensor[Ignition switch: ON]Approximately 1.8 - 4.8V
34 YIntake air temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature. TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0042E
PBIB0043E
PBIB0519E
