DTC P0420, P0430 THREE WAY CATALYST FUNCTION
EC-971
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0420, P0430 THREE WAY CATALYST FUNCTIONPFP:20905
On Board Diagnosis LogicABS00C5D

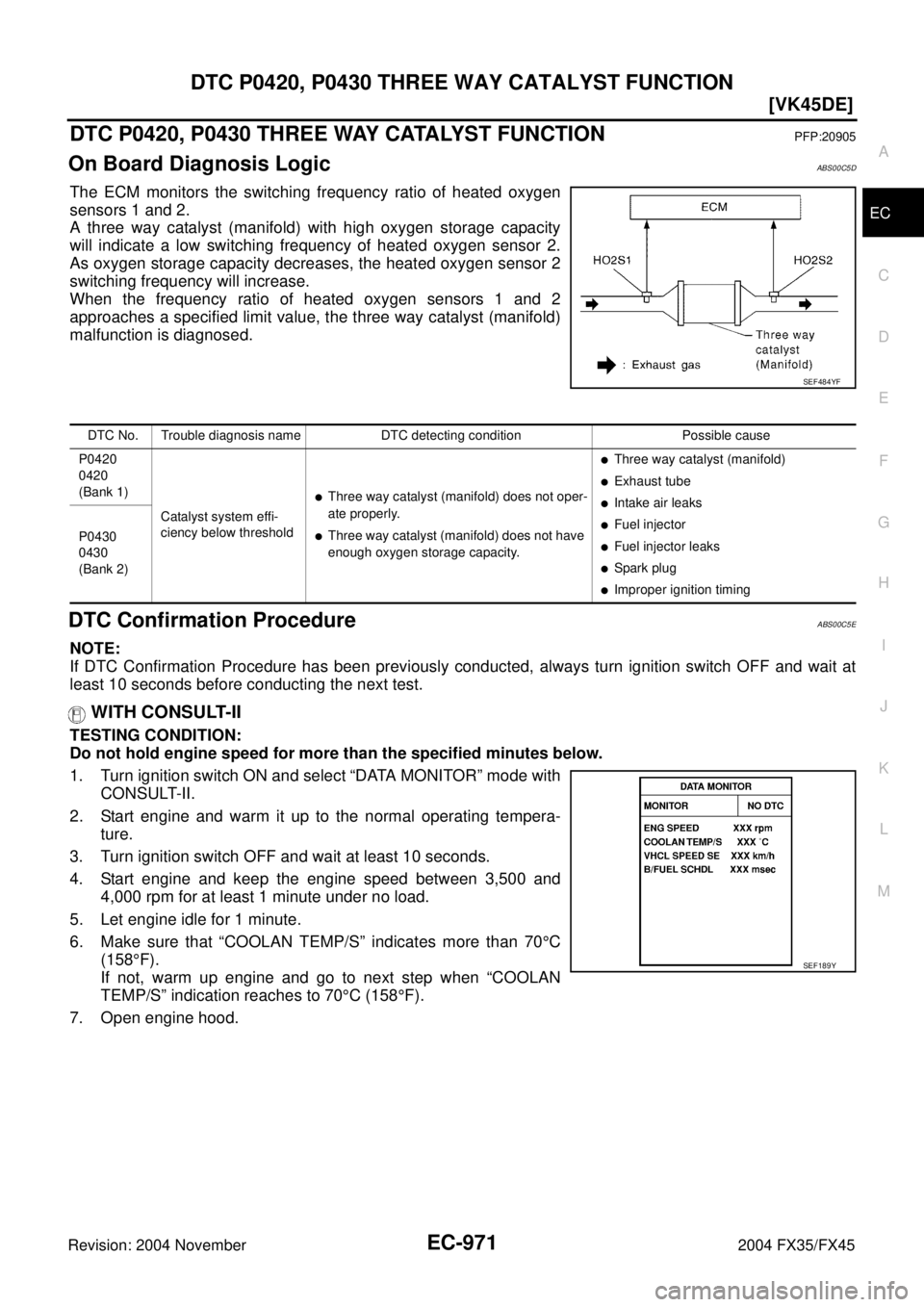

The ECM monitors the switching frequency ratio of heated oxygen
sensors 1 and 2.
A three way catalyst (manifold) with high oxygen storage capacity
will indicate a low switching frequency of heated oxygen sensor 2.
As oxygen storage capacity decreases, the heated oxygen sensor 2
switching frequency will increase.
When the frequency ratio of heated oxygen sensors 1 and 2
approaches a specified limit value, the three way catalyst (manifold)
malfunction is diagnosed.
DTC Confirmation ProcedureABS00C5E
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
TESTING CONDITION:
Do not hold engine speed for more than the specified minutes below.
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. Make sure that “COOLAN TEMP/S” indicates more than 70°C
(158°F).
If not, warm up engine and go to next step when “COOLAN
TEMP/S” indication reaches to 70°C (158°F).
7. Open engine hood.
SEF484YF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0420
0420
(Bank 1)
Catalyst system effi-
ciency below threshold

Three way catalyst (manifold) does not oper-
ate properly.

Three way catalyst (manifold) does not have
enough oxygen storage capacity.

Three way catalyst (manifold)

Exhaust tube

Intake air leaks

Fuel injector

Fuel injector leaks

Spark plug

Improper ignition timing P0430
0430
(Bank 2)
SEF189Y

EC-974
[VK45DE]
DTC P0420, P0430 THREE WAY CATALYST FUNCTION
Revision: 2004 November 2004 FX35/FX45
4. CHECK IGNITION TIMING
Check the following items. Refer to EC-733, "
Basic Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Follow the EC-733, "
Basic Inspection" .
5. CHECK INJECTORS
1. Stop engine and then turn ignition switch ON.

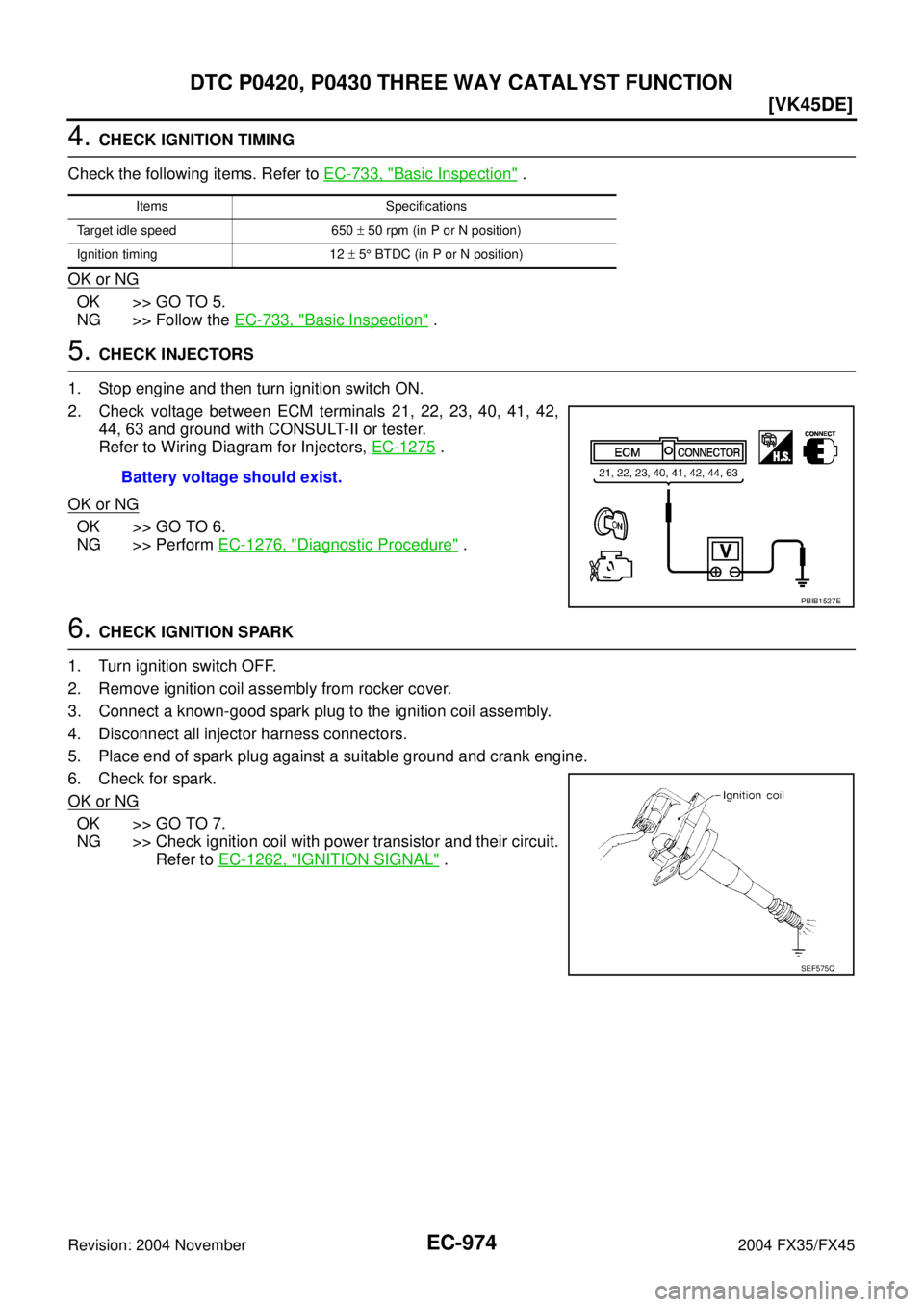

2. Check voltage between ECM terminals 21, 22, 23, 40, 41, 42,
44, 63 and ground with CONSULT-II or tester.
Refer to Wiring Diagram for Injectors, EC-1275
.
OK or NG
OK >> GO TO 6.
NG >> Perform EC-1276, "
Diagnostic Procedure" .
6. CHECK IGNITION SPARK
1. Turn ignition switch OFF.
2. Remove ignition coil assembly from rocker cover.
3. Connect a known-good spark plug to the ignition coil assembly.
4. Disconnect all injector harness connectors.
5. Place end of spark plug against a suitable ground and crank engine.
6. Check for spark.
OK or NG
OK >> GO TO 7.
NG >> Check ignition coil with power transistor and their circuit.
Refer to EC-1262, "
IGNITION SIGNAL" .
Items Specifications
Target idle speed 650 ± 50 rpm (in P or N position)
Ignition timing 12 ± 5° BTDC (in P or N position)
Battery voltage should exist.
PBIB1527E
SEF575Q

EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: 2004 November 2004 FX35/FX45
ENGINE MECHANICAL
VQ35DE
PRECAUTIONS .......................................................... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 5
OPERATION PROCEDURE ................................. 5
Precautions for Drain Engine Coolant ...................... 5
Precautions for Disconnecting Fuel Piping .............. 5
Precautions for Removal and Disassembly ............. 5
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 5
Precautions for Assembly and Installation ............... 5
Parts Requiring Angle Tightening ............................. 6
Precautions for Liquid Gasket .................................. 6
REMOVAL OF LIQUID GASKET SEALING .......... 6
LIQUID GASKET APPLICATION PROCEDURE ..... 6
PREPARATION ........................................................... 8
Special Service Tools ............................................... 8
Commercial Service Tools ...................................... 10
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING .............................................. 13
NVH Troubleshooting —Engine Noise ................... 13
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 14
DRIVE BELTS ........................................................... 15
Checking Drive Belts .............................................. 15
Tension Adjustment ................................................ 15
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ........................................................ 16
AIR CONDITIONER COMPRESSOR BELT ....... 16
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
AIR CLEANER AND AIR DUCT ............................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Changing Air Cleaner Filter .................................... 18
INSPECTION ...................................................... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18INTAKE MANIFOLD COLLECTOR .......................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................... 22
INTAKE MANIFOLD ................................................. 24
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSPECTION AFTER REMOVAL ....................... 24
INSTALLATION ................................................... 25
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST .......................................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSPECTION AFTER REMOVAL ....................... 28
INSTALLATION ................................................... 28
OIL PAN AND OIL STRAINER ................................. 30
Removal and Installation ........................................ 30
2WD MODEL ....................................................... 30
REMOVAL ........................................................... 30
INSPECTION AFTER REMOVAL ....................... 32
INSTALLATION ................................................... 32
INSPECTION AFTER INSTALLATION ................ 35
AWD MODEL ...................................................... 36
REMOVAL ........................................................... 36
INSPECTION AFTER REMOVAL ....................... 38
INSTALLATION ................................................... 39
INSPECTION AFTER INSTALLATION ................ 41
IGNITION COIL ......................................................... 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 42
SPARK PLUG (PLATINUM-TIPPED TYPE) ............. 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ....................... 43
INSTALLATION ................................................... 44

EM-3
C
D
E
F
G
H
I
J
K
L
M
EMA
Revision: 2004 November 2004 FX35/FX45MANIFOLD AND EXHAUST MANIFOLD ......... 147
SPARK PLUG ................................................... 147
CAMSHAFT AND CAMSHAFT BEARING ........ 148
CYLINDER HEAD ............................................. 150
CYLINDER BLOCK ........................................... 153
PISTON, PISTON RING AND PISTON PIN ...... 154
CONNECTING ROD ......................................... 155
CRANKSHAFT .................................................. 156
MAIN BEARING ................................................ 157
CONNECTING ROD BEARING ........................ 158
VK45DE
PRECAUTIONS ...................................................... 159
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ...................................... 159
OPERATION PROCEDURE ............................. 159
Precautions for Drain Engine Coolant .................. 159
Precautions for Disconnecting Fuel Piping .......... 159
Precautions for Removal and Disassembly ......... 159
Precautions for Inspection, Repair and Replace-
ment ..................................................................... 159
Precautions for Assembly and Installation ........... 159
Parts Requiring Angle Tightening ......................... 160
Precautions for Liquid Gasket .............................. 160
REMOVAL OF LIQUID GASKET SEALING ...... 160
LIQUID GASKET APPLICATION PROCEDURE . 160
PREPARATION ....................................................... 162
Special Service Tools ........................................... 162
Commercial Service Tools .................................... 164
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ............................................ 166
NVH Troubleshooting —Engine Noise ................. 166
Use the Chart Below to Help You Find the Cause
of the Symptom. ................................................... 167
ENGINE ROOM COVER ........................................ 168
Removal and Installation ...................................... 168
REMOVAL ......................................................... 168
INSTALLATION ................................................. 168
DRIVE BELTS ......................................................... 169
Checking Drive Belts ............................................ 169
Tension Adjustment .............................................. 169
Removal and Installation ...................................... 169
REMOVAL ......................................................... 169
INSTALLATION ................................................. 170
Drive Belt Auto Tensioner and Idler Pulley ........... 171
REMOVAL ......................................................... 171
INSTALLATION ................................................. 171
AIR CLEANER AND AIR DUCT ............................. 172
Removal and Installation ...................................... 172
REMOVAL ......................................................... 172
INSTALLATION ................................................. 172
Changing Air Cleaner Filter .................................. 173
REMOVAL ......................................................... 173
INSTALLATION ................................................. 173INTAKE MANIFOLD ...............................................174
Removal and Installation ......................................174
REMOVAL .........................................................174
INSPECTION AFTER REMOVAL .....................176
INSTALLATION .................................................176
INSPECTION AFTER INSTALLATION ..............177
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST ........................................................................178
Removal and Installation ......................................178
REMOVAL .........................................................178
INSPECTION AFTER REMOVAL .....................180
INSTALLATION .................................................180
OIL PAN AND OIL STRAINER ...............................181
Removal and Installation ......................................181
REMOVAL .........................................................181
INSPECTION AFTER REMOVAL .....................183
INSTALLATION .................................................183
INSPECTION AFTER INSTALLATION ..............183
IGNITION COIL .......................................................185
Removal and Installation ......................................185
REMOVAL .........................................................185
INSTALLATION .................................................185
SPARK PLUG (PLATINUM-TIPPED TYPE) ...........186
Removal and Installation ......................................186
REMOVAL .........................................................186
INSPECTION AFTER REMOVAL .....................186
INSTALLATION .................................................187
FUEL INJECTOR AND FUEL TUBE ......................188
Removal and Installation ......................................188
REMOVAL .........................................................188
INSTALLATION .................................................190
INSPECTION AFTER INSTALLATION ..............192
ROCKER COVER ...................................................193
Removal and Installation ......................................193
REMOVAL .........................................................193
INSTALLATION .................................................195
TIMING CHAIN ........................................................196
Removal and Installation ......................................196
REMOVAL .........................................................197
INSPECTION AFTER REMOVAL .....................201
INSTALLATION .................................................201
INSPECTION AFTER INSTALLATION ..............207
CAMSHAFT ............................................................208
Removal and Installation ......................................208
REMOVAL .........................................................208
INSPECTION AFTER REMOVAL .....................209
INSTALLATION .................................................212
Valve Clearance ...................................................214
INSPECTION ....................................................214
ADJUSTMENT ..................................................217
OIL SEAL ................................................................221
Removal and Installation of Valve Oil Seal ...........221
REMOVAL .........................................................221
INSTALLATION .................................................221
Removal and Installation of Front Oil Seal ...........222
REMOVAL .........................................................222

EM-4Revision: 2004 November 2004 FX35/FX45INSTALLATION ..................................................222
Removal and Installation of Rear Oil Seal ............223
REMOVAL .........................................................223
INSTALLATION ..................................................223
CYLINDER HEAD ...................................................224
On-Vehicle Service ...............................................224
CHECKING COMPRESSION PRESSURE .......224
Removal and Installation ......................................225
REMOVAL .........................................................225
INSPECTION AFTER REMOVAL ......................226
INSTALLATION ..................................................226
Disassembly and Assembly ..................................228
DISASSEMBLY .................................................228
ASSEMBLY .......................................................229
Inspection After Disassembly ...............................230
VALVE DIMENSIONS ........................................230
VALVE GUIDE CLEARANCE ............................231
VALVE GUIDE REPLACEMENT .......................231
VALVE SEAT CONTACT ...................................232
VALVE SEAT REPLACEMENT .........................233
VALVE SPRING SQUARENESS .......................234
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD .............................235
ENGINE ASSEMBLY ..............................................236
Removal and Installation ......................................236
REMOVAL .........................................................236
INSTALLATION ..................................................239
INSPECTION AFTER INSTALLATION ..............239
CYLINDER BLOCK .................................................240
Disassembly and Assembly ..................................240
DISASSEMBLY .................................................241
ASSEMBLY .......................................................244
How to Select Piston and Bearing ........................250
DESCRIPTION ..................................................250
HOW TO SELECT PISTON ...............................250
HOW TO SELECT CONNECTING ROD BEAR-
ING ....................................................................251HOW TO SELECT MAIN BEARING ..................252
Inspection After Disassembly ................................256
CRANKSHAFT END PLAY ................................256
CONNECTING ROD SIDE CLEARANCE .........256
PISTON TO PISTON PIN OIL CLEARANCE .....256
PISTON RING SIDE CLEARANCE ...................257
PISTON RING END GAP ..................................257
CONNECTING ROD BEND AND TORSION .....258
CONNECTING ROD BIG END DIAMETER ......258
CONNECTING ROD BUSHING OIL CLEAR-
ANCE .................................................................258
CYLINDER BLOCK DISTORTION ....................259
MAIN BEARING HOUSING INNER DIAMETER .260
PISTON TO CYLINDER BORE CLEARANCE ..260
CRANKSHAFT MAIN JOURNAL DIAMETER ...261
CRANKSHAFT PIN JOURNAL DIAMETER ......262
CRANKSHAFT OUT-OF-ROUND AND TAPER .262
CRANKSHAFT RUNOUT ..................................262
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................263
MAIN BEARING OIL CLEARANCE ...................264
CRUSH HEIGHT OF MAIN BEARING ..............265
CRUSH HEIGHT OF CONNECTING ROD
BEARING ...........................................................265
DRIVE PLATE ....................................................265
SERVICE DATA AND SPECIFICATIONS (SDS) ....266
Standard and Limit ................................................266
GENERAL SPECIFICATIONS ...........................266
DRIVE BELTS ....................................................266
INTAKE MANIFOLD AND EXHAUST MANI-
FOLD .................................................................266
SPARK PLUG ....................................................267
CAMSHAFT AND CAMSHAFT BEARING .........267
CYLINDER HEAD ..............................................269
CYLINDER BLOCK ............................................272
PISTON, PISTON RING AND PISTON PIN ......273
CONNECTING ROD ..........................................274
CRANKSHAFT ...................................................275
MAIN BEARING .................................................277
CONNECTING ROD BEARING .........................278

PRECAUTIONS
EM-5
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectABS00B3I
NOTE:

This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantABS005ZK
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingABS005ZL

Before starting work, make sure no fire or spark producing items are in the work area.

Release fuel pressure before disconnecting and disassembly.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyABS005ZM

When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementABS005ZN
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationABS005ZO

Use torque wrench to tighten bolts or nuts to specification.

PREPARATION
EM-11
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
(BT3373-F)

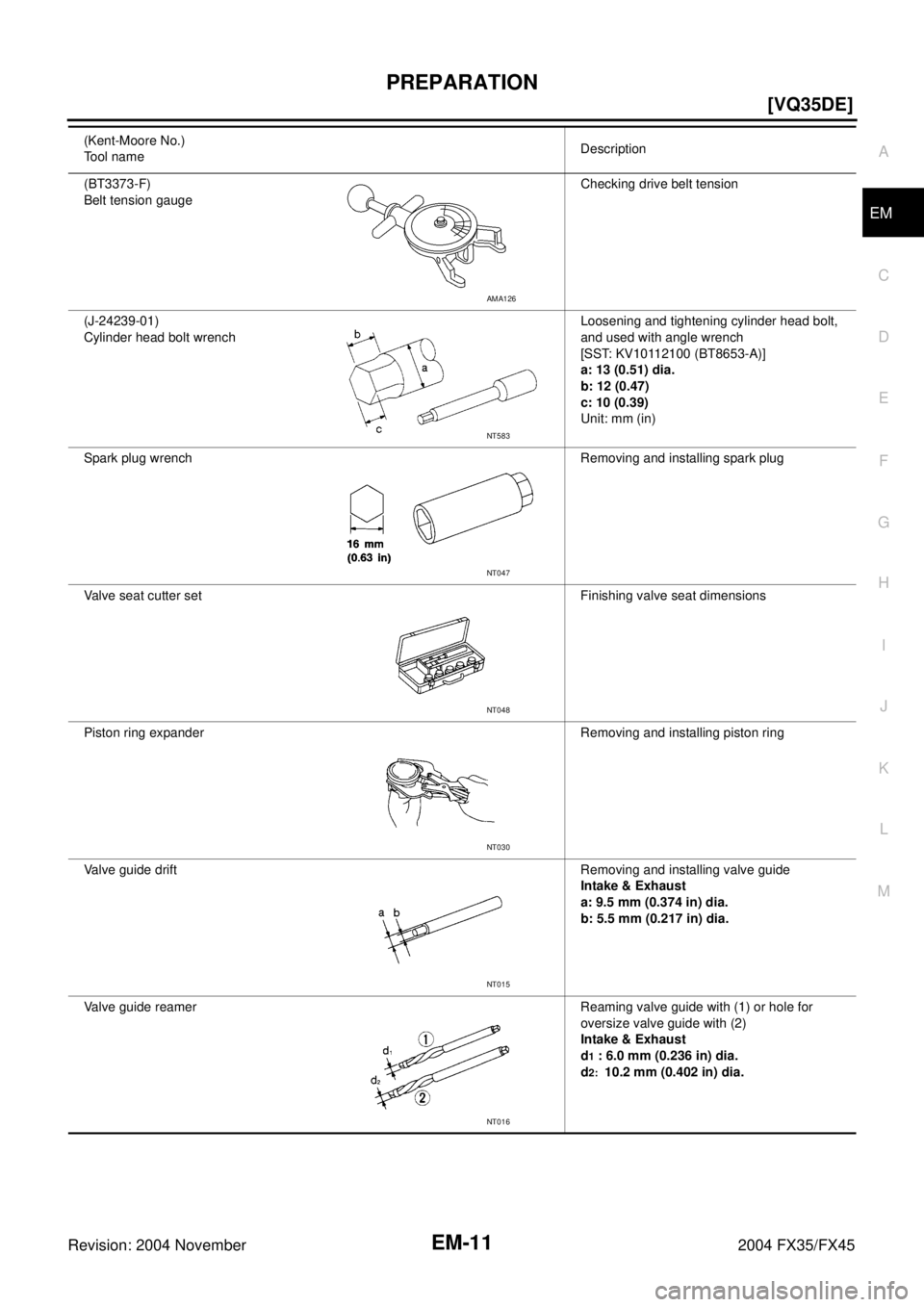

Belt tension gaugeChecking drive belt tension
(J-24239-01)
Cylinder head bolt wrenchLoosening and tightening cylinder head bolt,
and used with angle wrench
[SST: KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer Reaming valve guide with (1) or hole for
oversize valve guide with (2)
Intake & Exhaust
d
1 : 6.0 mm (0.236 in) dia.
d
2: 10.2 mm (0.402 in) dia. (Kent-Moore No.)
Tool nameDescription
AMA126
NT583
NT047
NT048
NT030
NT015
NT016

EM-42
[VQ35DE]
IGNITION COIL
Revision: 2004 November 2004 FX35/FX45
IGNITION COILPFP:22448
Removal and InstallationABS004U6
REMOVAL
1. Remove engine cover with power tool. Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .
2. Remove air duct (for ignition coil of left bank side). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
3. Move aside harness, harness bracket, and hoses located above ignition coil.
4. Disconnect harness connector from ignition coil.
5. Remove ignition coil.
CAUTION:
Do not shock it.
INSTALLATION
Install in the reverse order of removal.

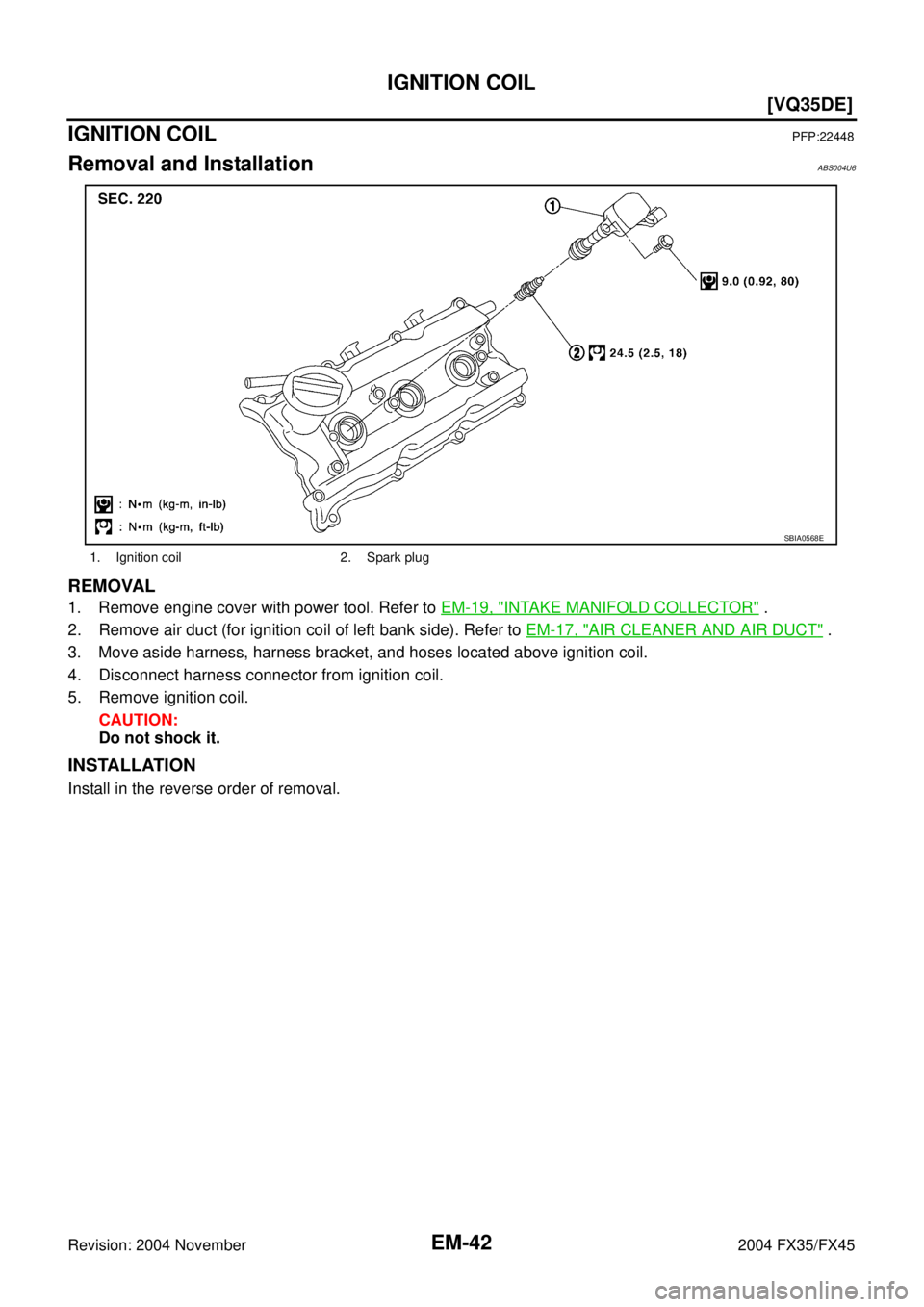

1. Ignition coil 2. Spark plug
SBIA0568E
