2004 INFINITI FX35 fuse box

REAR WINDOW DEFOGGER
GW-97
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnoses Symptom ChartAIS004R8

Make sure other systems using the signal of the following systems operate normally.
BCM Power Supply and Ground Circuit CheckAIS004R9
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, when perform the each trouble
diagnosis. Refer to BCS-14, "
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK FUSE

Check 15A fuse [No.1, located in fuse block (J/B)]

Check 15A fuse [No.22, located in fuse block (J/B)]

Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .

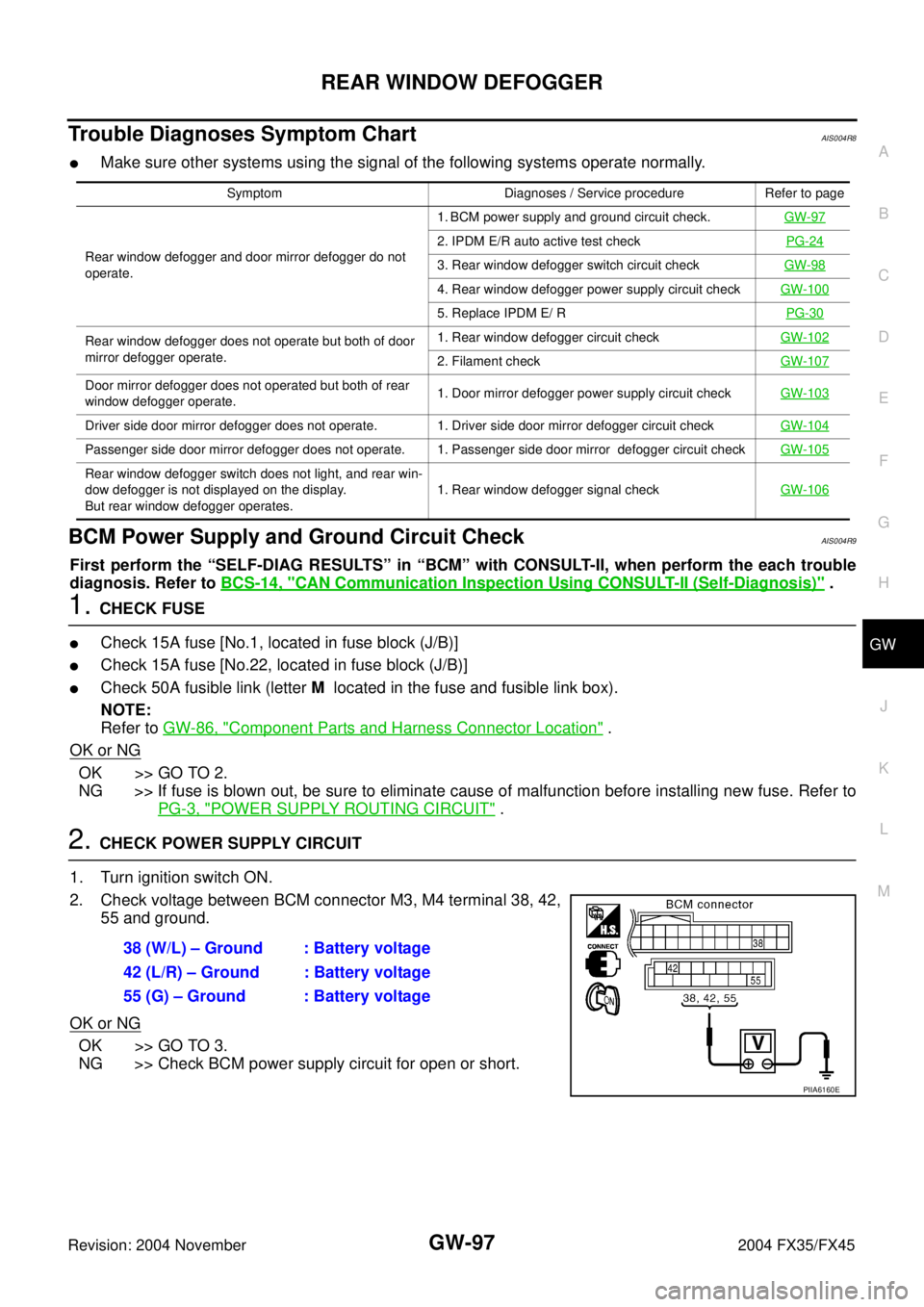

2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42,
55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Symptom Diagnoses / Service procedure Refer to page
Rear window defogger and door mirror defogger do not
operate. 1. BCM power supply and ground circuit check.GW-97
2. IPDM E/R auto active test checkPG-24
3. Rear window defogger switch circuit checkGW-98
4. Rear window defogger power supply circuit checkGW-100
5. Replace IPDM E/ RPG-30
Rear window defogger does not operate but both of door
mirror defogger operate.1. Rear window defogger circuit checkGW-102
2. Filament checkGW-107
Door mirror defogger does not operated but both of rear
window defogger operate. 1. Door mirror defogger power supply circuit checkGW-103
Driver side door mirror defogger does not operate. 1. Driver side door mirror defogger circuit checkGW-104
Passenger side door mirror defogger does not operate. 1. Passenger side door mirror defogger circuit checkGW-105
Rear window defogger switch does not light, and rear win-
dow defogger is not displayed on the display.
But rear window defogger operates. 1. Rear window defogger signal checkGW-106
38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E

IDX-4
ALPHABETICAL INDEX
Electric throttle control actuator ........ EC-415, EC-417,
EC-1077
, EC-1079
Electric throttle control actuator (VK45DE) ..... EM-174
Electric throttle control actuator (VQ35DE) ....... EM-19
Electrical load signal circuit .............. EC-614, EC-1292
Electrical unit ..................................................... PG-77
Electrical units location ...................................... PG-70
Electronic ignition (EI) system ............. EC-34, EC-681
Engine control module (ECM) .......... EC-401, EC-1057
Engine control system diagram and chart ........ EC-29,
EC-676
Engine coolant temperature sensor (ECTS) ... EC-185,
EC-197
, EC-842, EC-855
Engine coolant(VK45DE) .................................. CO-36
Engine coolant(VQ35DE) ................................. CO-11
Engine oil filter replacement ............................. MA-25
Engine oil filter replacement(VQ35DE) ............. MA-18
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-17
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-236
Engine removal(VQ35DE) .............................. EM-110
Engine room cover(VK45DE) ......................... EM-168
ETC1 - Wiring diagram .................... EC-418, EC-1080
ETC2 - Wiring diagram .................... EC-425, EC-1087
ETC3 - Wiring diagram .................... EC-429, EC-1091
EVAP canister .................................. EC-646, EC-1323
EVAP canister purge volume control solenoid valve ....
EC-335
, EC-990, EC-1160
EVAP canister vent control valve ...... EC-342, EC-502,
EC-997
, EC-1168
EVAP control system (small leak) diagnosis .. EC-326,
EC-366
, EC-981, EC-1022
EVAP control system pressure sensor ........... EC-349,
EC-352
, EC-358, EC-1004, EC-1007, EC-1014
EVAP control system purge flow monitoring diagnosis
EC-321
, EC-976
EVAP vapor lines inspection ................. MA-20, MA-27
Evaporative emission (EVAP) system ............ EC-643,
EC-1320
Evaporator ..................................................... ATC-155
Exhaust manifold(VK45DE) ............................ EM-178
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-28
Expansion valve ............................................. ATC-156
F
F/FOG - Wiring diagram ..................................... LT-79
F/PUMP - Wiring diagram ................ EC-604, EC-1281
Final drive removal and installation .. FFD-10, RFD-11
Floor trim ............................................................. EI-40
Flow charts ......................................................... GI-27
Fluid temperature sensor (A/T) ........................ AT-139
Fluorescent leak detector .............................. ATC-157
Fog lamp, front .................................................... LT-77
Front axle ............................................. FAX-4, FAX-10
Front brake solenoid valve ................. AT-156, AT-158
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-76
Front fog lamp .................................................... LT-77
Front passenger air bag .................................. SRS-40
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-47
Front side air bag ............................................ SRS-41
Front suspension .............................................. FSU-6
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTTS - Wiring diagram ...... EC-275, EC-280, EC-933,
EC-938
Fuel cut control (at no load high engine speed) EC-35,
EC-683
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-4
Fuel injector and fuel tube(VK45DE) .............. EM-188
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-384, EC-386, EC-388, EC-1040,
EC-1042
, EC-1044
Fuel line inspection .................................. FL-3, MA-24
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-51, EC-700
Fuel pressure release ......................... EC-51, EC-700
Fuel pump ....................................... EC-603, EC-1280
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-273, EC-279,
EC-931
, EC-937
Fuel tank vacuum relief valve ......... EC-646, EC-1323
FUELB1 - Wiring diagram .. EC-258, EC-267, EC-916,
EC-925
FUELB2 - Wiring diagram .. EC-259, EC-268, EC-917,
EC-926

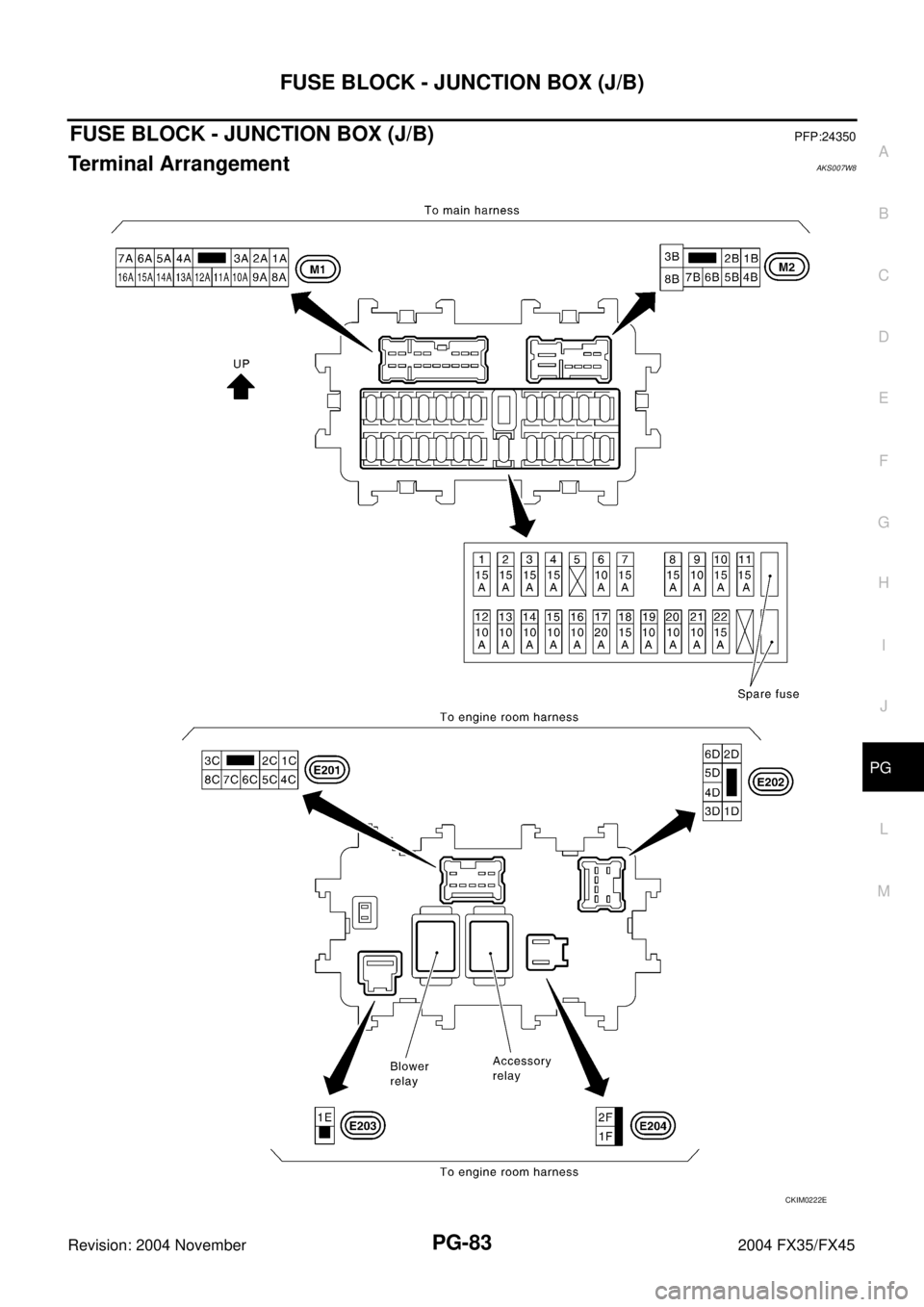

Fuse .................................................................. PG-17
Fuse and fusible link box .................................. PG-84
Fusible link ........................................................ PG-17
G
Gauges ................................................................. DI-4
Glass ...................................... GW-11, GW-76, GW-80
Glove box lamp ................................... LT-154, LT-197
GPS antenna ..................................................... AV-89
Grille - See Exterior ............................................ EI-23
Ground distribution ........................................... PG-31
H
H/AIM - Wiring diagram ..................................... LT-73
H/LAMP - Wiring diagram .................................. LT-11
Harness connector ............................................ PG-74
Harness layout .................................................. PG-46
Hazard warning lamp ......................................... LT-89
Headlamp aiming control ................................... LT-73
Headlamp leveler - See Headlamp aiming control ........

ILLUMINATION
LT-185
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
ILLUMINATIONPFP:27545
System DescriptionAKS007EI
Control of the illumination lamps operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 1ST or 2ND position (or if the auto light system is activated)
the BCM (body control module) receives input signal requesting the illumination lamps to illuminate. This input
signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN
communication lines. The CPU (central processing unit) of IPDM E/R (intelligent power distribution module
engine room) controls the tail lamp relay coil. This relay, when energized, directs power to the illumination
lamps, which then illuminate.
Power is supplied at all times

to tail lamp relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)].
Power is also supplied at all times

to BCM (body control module) terminal 55

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM (body control module) terminal 42

through 15A fuse [No. 22, located in fuse block (J/B)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to unified meter and A/C amp. terminal 21 and

to combination meter terminal 8

through 10A fuse [No. 19, located in fuse block (J/B)].
With the ignition switch in the ON or START position, power is supplied

to BCM (body control module) terminal 38

through 15A fuse [No. 1, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 22

through 10A fuse [No. 12, located in fuse block (J/B)]

to ignition relay in the IPDM E/R (intelligent power distribution module engine room)

from ignition switch

to combination meter terminal 7

through 10A fuse [No. 14, located in fuse block (J/B)].
With the ignition switch in the ACC or ON position, power is supplied

to BCM (body control module) terminal 11

through 10A fuse [No. 6, located in fuse block (J/B)].
Ground is supplied

to BCM (body control module) terminals 49 and 52

to unified meter and A/C amp. terminals 29 and 30, and

to combination meter terminals 5, 6, and 15

through grounds M35, M45, and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50, and E51.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The central processing unit of the IPDM E/R controls the tail lamp relay
coil, which, when energized, directs power

through IPDM E/R terminal 22

to glove box lamp terminal 1

to A/T device (illumination) terminal 11

to snow mode switch (illumination) terminal 4

PG-2Revision: 2004 November 2004 FX35/FX45TYPE) .................................................................. 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 75
JOINT CONNECTOR (J/C) ....................................... 76
Terminal Arrangement ............................................ 76
ELECTRICAL UNITS ................................................ 77
Terminal Arrangement ............................................ 77
SMJ (SUPER MULTIPLE JUNCTION) ..................... 79
Terminal Arrangement ............................................ 79STANDARDIZED RELAY .......................................... 81
Description .............................................................. 81
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 81
TYPE OF STANDARDIZED RELAYS .................. 81
FUSE BLOCK - JUNCTION BOX (J/B) .................... 83
Terminal Arrangement ............................................. 83
FUSE, FUSIBLE LINK AND RELAY BOX ................ 84
Terminal Arrangement ............................................. 84

PG-18
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2004 November 2004 FX35/FX45
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PFP:284B7
System DescriptionAKS005S9

IPDM E/R (Intelligent Power Distribution Module Engine Room) integrates the relay box and fuse block
which were originally placed in engine room. It controls integrated relay via IPDM E/R control circuit.

IPDM E/R-integrated control circuit performs ON-OFF operation of relay, CAN communication control, oil
pressure switch signal, hood switch signal reception, etc.

It controls operation of each electrical part via ECM, BCM and CAN communication lines.
CAUTION:
None of the IPDM E/R-integrated relays can be removed.
SYSTEMS CONTROLLED BY IPDM E/R
1. Lamp control
Using CAN communication line, it receives signal from BCM and controls the following lamps:

Headlamps (Hi, Lo)

Parking lamps

Tail lamps

Front fog lamps
2. Wiper control
Using CAN communication line, it receives signals from BCM and controls the front wipers.
3. Rear window defogger relay control
Using CAN communication line, it receives signals from BCM and controls the rear window defogger
relay.
4. A/C compressor control
Using CAN communication line, it receives signals from ECM and controls the A/C relay.
5. Cooling fan control
Using CAN communication line, it receives signals from ECM and controls cooling fan relay.
6. Horn control
Using CAN communication line, it receives signals from BCM and controls horn relay.
CAN COMMUNICATION LINE CONTROL
With CAN communication, by connecting each control unit using two communication lines (CAN L line, CAN H
line), it is possible to transmit maximum amount of information with minimum wiring. Each control unit can
transmit and receive data, and reads necessary information only.
1. Fail-safe control

When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control.
After CAN communication recovers normally, it also returns to normal control.

Operation of control parts by IPDM E/R during fail-safe mode is as follows:
Controlled system Fail-safe mode
Headlamp

With the ignition switch ON, the headlamp (low) is ON.

With the ignition switch OFF, the headlamp (low) is OFF.
Tail and parking lamps

With the ignition switch ON, the tail and parking lamps is ON.

With the ignition switch OFF, the tail and parking lamps is OFF.
Cooling fan

With the ignition switch ON, the cooling fan HI operates.

With the ignition switch OFF, the cooling fan stops.
Front wiperUntil the ignition switch is turned off, the front wiper LO and HI remains in the same status it
was in just before fail−safe control was initiated.
Rear window defogger Rear window defogger relay OFF
A/C compressor A/C compressor OFF
Front fog lamps Front fog lamp relay OFF

FUSE BLOCK - JUNCTION BOX (J/B)
PG-83
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementAKS007W8
CKIM0222E

PG-84
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2004 November 2004 FX35/FX45
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementAKS007W9
CKIM0223E

SUNROOF
RF-11
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
System DescriptionAIS003AZ
Power supplied at all time

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.

through 15A fuse [No.22, located in the fuse block (J/B)]

to BCM terminal 42.

through BCM terminal 54

to sunroof motor assembly terminal 7.
When ignition switch ON or START position,
Power is supplied

through 15A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.

through BCM terminal 53

to sunroof motor assembly terminal 9.
Ground is supplied

to BCM terminal 49 and 52

through body grounds M35, M45, M85 and R6.
TILT UP / SLIDE CLOSE OPERATION
When tilt up / slide close switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 1

through sunroof switch terminal 3

through sunroof switch terminal 2

through body grounds M35, M45, M85 and R6.
Then, the sunroof tilt up / slide close.
TILT DOWN / SLIDE OPEN OPERATION
When tilt down / slide open switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 5

through sunroof switch terminal 1

through sunroof switch terminal 2

through body grounds M35, M45, M85 and R6.
Then, the sunroof tilt down / slide open.
AUTO OPERATION
The power sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the
sunroof without holding the sunroof switch in the down or up / tilt up or tilt down position.
RETAINED POWER OPERATION
When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds.

through BCM terminal 53.

to sunroof motor assembly terminal 9.
When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II. Refer to RF-16, "
CONSULT-II Inspection Procedure" .
