2004 INFINITI FX35 engine

MA-14
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2004 November 2004 FX35/FX45
ENGINE MAINTENANCE (VQ35DE ENGINE)PFP:10001
Checking Drive BeltsALS000H0
WARNING:
Be sure to perform when engine is stopped.
1. Inspect belts for cracks, fraying, wear and oil. If necessary,
replace.
2. Inspect drive belt deflection or tension at a point on the belt mid-
way between pulleys.

Inspection should be done only when engine is cold, or over
30 minutes after engine is stopped.

Measure belt tension with belt tension gauge (Commercial
Service Tool: BT3373-F or equivalent) at points marked
shown in the figure.

When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point.

Adjust if belt deflection exceeds the limit or if belt tension is not within specifications.
CAUTION:

When checking belt deflection or tension immediately after installation, first adjust it to the
specified value. Then, after turning crankshaft two turns or more, re-adjust to the specified
value to avoid variation in deflection between pulleys.

Tighten idler pulley lock nut by hand and measure deflection or tension without looseness.
Belt Deflection and Tension
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on the belt.
Tension AdjustmentALS000H1
CAUTION:

When belt is replaced with a new one, adjust it to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.

When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment of used belt”.

When checking belt deflection or tension immediately after installation, first adjust it to the speci-
fied value. Then, after turning crankshaft two turns or more, re-adjust to the specified value to
avoid variation in deflection between pulleys.

When installing belt, make sure that it is correctly engaged with pulley grooves.

Keep engine oil, working fluid and engine coolant away from belt and pulley grooves.

Do not twist or bend belt excessively.
KBIA1731J
ItemsDeflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)294 (30, 66)730 - 818
(74.5 - 83.5,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208)
Air conditioner
compressor belt12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31 - 0.35)196 (20, 44)348 - 436
(35.5 - 44.5,
78 - 98)470 - 559
( 4 8 - 5 7 ,
106 - 126)
Applied pushing
force98 N (10 kg, 22 lb) —
PortionBelt tightening method for adjustment
Alternator and power steering oil pump belt Adjusting bolt on idler pulley
Air conditioner compressor belt Adjusting bolt on idler pulley

ENGINE MAINTENANCE (VQ35DE ENGINE)
MA-15
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
ALTERNATOR AND POWER STEERING OIL PUMP BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (A) and adjust tension by turning
adjusting bolt (B).

For specified belt tension, refer to MA-14, "Checking Drive
Belts" .
3. Tighten nut (A).
AIR CONDITIONER COMPRESSOR BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (C) and adjust tension by turning adjusting bolt (D).

For specified belt tension, refer to MA-14, "Checking Drive Belts" .
3. Tighten nut (C).
Changing Engine CoolantALS000H2
WARNING:

To avoid being scalded, never change engine coolant when engine is hot.

Wrap a thick cloth around cap and carefully remove cap. First, turn cap a quarter of a turn to
release built-up pressure. Then turn cap all the way.
DRAINING ENGINE COOLANT
1. Remove front engine undercover with power tools.
2. Open radiator drain plug at the bottom of radiator, and remove
radiator cap.
CAUTION:
Be careful not to allow engine coolant to contact drive belts.
When drain all of engine coolant in the system, open water drain plugs on engine cylinder block.
Refer to EM-121, "
DISASSEMBLY" .
3. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to MA-17, "
FLUSHING COOLING SYSTEM" . : 34.8 N·m (3.5 kg-m, 26 ft-lb)
SBIA0532E
: 34.8 N·m (3.5 kg-m, 26 ft-lb)
SBIA0444E

MA-16
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2004 November 2004 FX35/FX45
4. Remove reservoir tank, drain engine coolant and clean reservoir tank before installing.
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If water drain plugs are removed, close and tighten them. Refer to EM-126, "
ASSEMBLY" .
2. Remove air relief plug on heater hose.
3. Fill radiator and reservoir tank to specified level.

Use Genuine NISSAN Long Life Antifreeze/ Coolant or
equivalent mixed with water (distilled or demineralized).
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS".

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (2-1/8 US qt,1-3/4 lmp qt) a minute
to allow air in system to escape.

When engine coolant overflows air relief hole on heater hose,
install air relief plug with new O-ring.
4. Warm up engine to normal operating temperature with radiator cap installed.
5. Run engine at 3,000 rpm for 10 seconds and return to idle speed.

Repeat two or three times.
Watch engine coolant temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C (122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.Radiator drain plug:
: 1.18 N·m (0.12 kg-m, 10 in-lb)
SBIA0445E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approximately 8.6 (9-1/8 US qt, 7-5/8 lmp qt)
SMA182B
Reservoir tank engine coolant capacity (at “MAX” level)
: 0.8 (7/8 US qt, 3/4 lmp qt)
Air relief plug:
: 1.19 N·m (0.12 kg-m, 10 ft-lb)
SMA412B

ENGINE MAINTENANCE (VQ35DE ENGINE)
MA-17
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
10. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating step 3 through 6 until engine coolant level no
longer drops.

Clean excess engine coolant from engine.

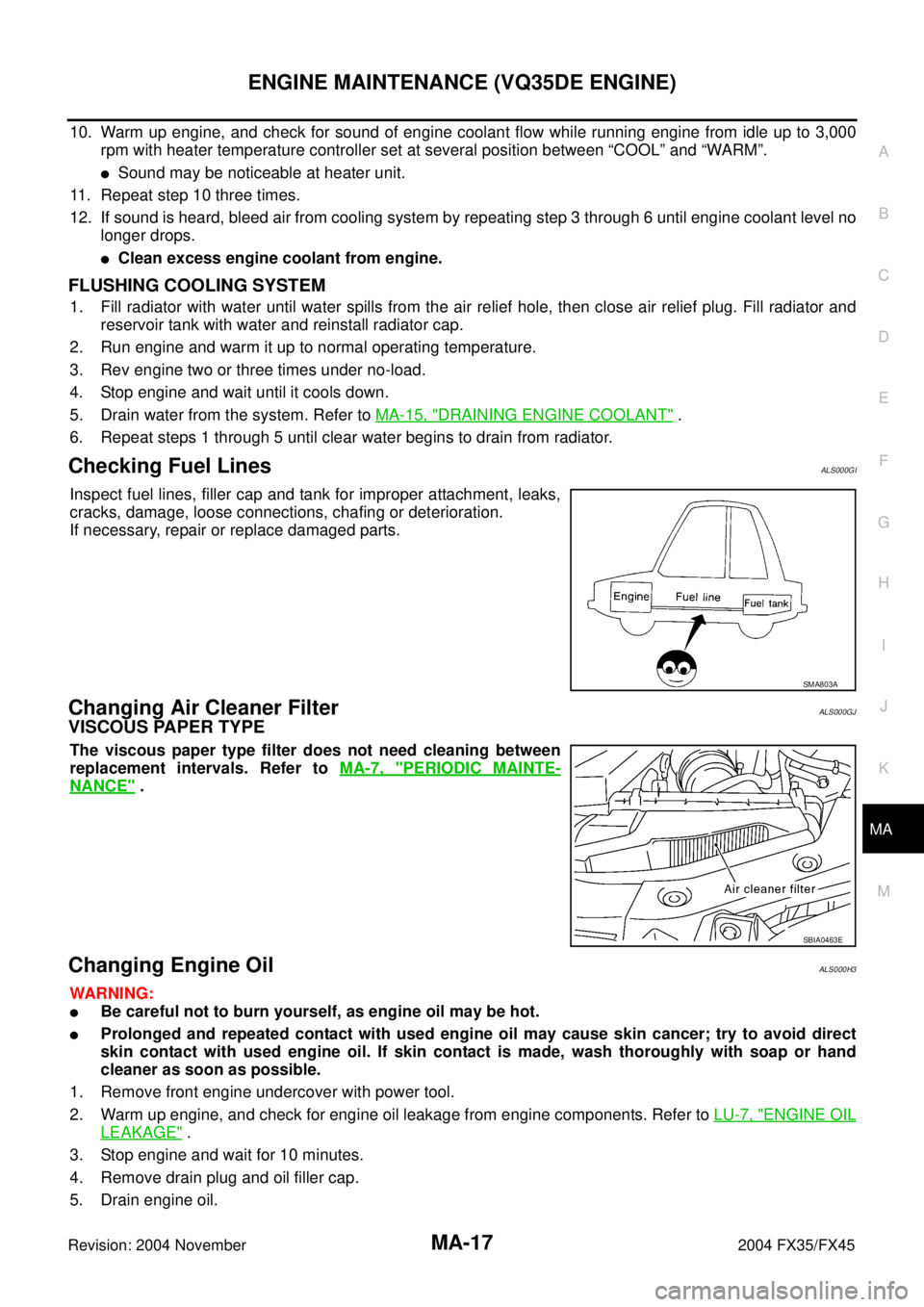

FLUSHING COOLING SYSTEM
1. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap.
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water from the system. Refer to MA-15, "
DRAINING ENGINE COOLANT" .
6. Repeat steps 1 through 5 until clear water begins to drain from radiator.
Checking Fuel LinesALS000GI
Inspect fuel lines, filler cap and tank for improper attachment, leaks,
cracks, damage, loose connections, chafing or deterioration.
If necessary, repair or replace damaged parts.
Changing Air Cleaner FilterALS000GJ
VISCOUS PAPER TYPE
The viscous paper type filter does not need cleaning between
replacement intervals. Refer to MA-7, "
PERIODIC MAINTE-
NANCE" .
Changing Engine OilALS000H3
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE OIL
LEAKAGE" .
3. Stop engine and wait for 10 minutes.
4. Remove drain plug and oil filler cap.
5. Drain engine oil.
SMA803A
SBIA0463E

MA-18
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2004 November 2004 FX35/FX45

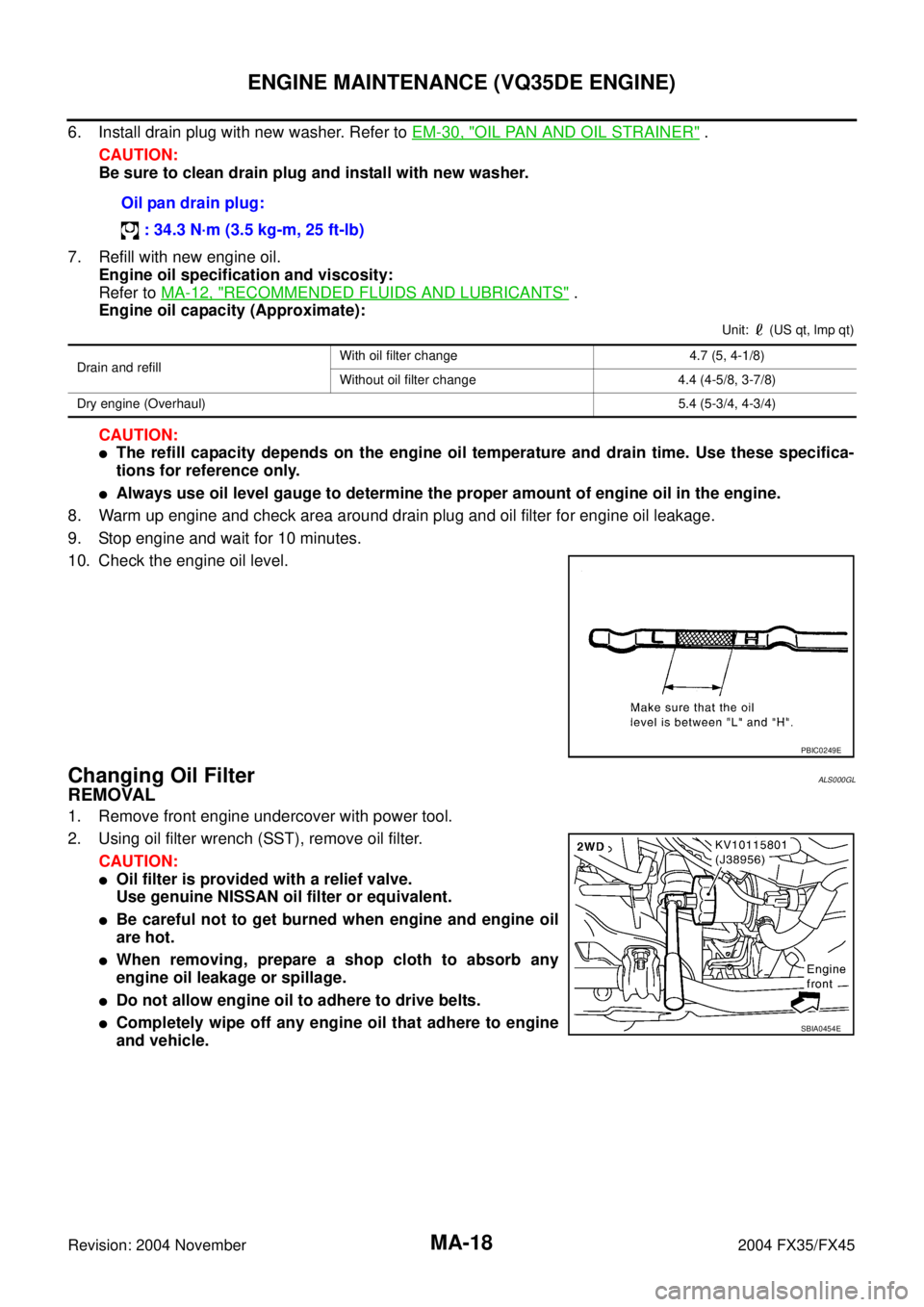

6. Install drain plug with new washer. Refer to EM-30, "OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in the engine.
8. Warm up engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop engine and wait for 10 minutes.
10. Check the engine oil level.
Changing Oil FilterALS000GL
REMOVAL
1. Remove front engine undercover with power tool.
2. Using oil filter wrench (SST), remove oil filter.
CAUTION:

Oil filter is provided with a relief valve.
Use genuine NISSAN oil filter or equivalent.

Be careful not to get burned when engine and engine oil
are hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.Oil pan drain plug:
: 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)
PBIC0249E
SBIA0454E

ENGINE MAINTENANCE (VQ35DE ENGINE)
MA-19
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
1. Remove foreign materials adhering to oil filter installation surface.
2. Apply engine oil to the oil seal contact surface of new oil filter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Start engine, and check there is no leak of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check engine oil level and add engine oil. Refer to MA-17, "
Changing Engine Oil" .
Changing Spark Plugs (Platinum-Tipped Type)ALS000GN
REMOVAL
1. Remove engine cover with power tool. Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .
2. Remove ignition coil. Refer to EM-42, "
IGNITION COIL" .
3. Remove spark plug with spark plug wrench (commercial service
tool).
SBIA0455E
SMA010
Oil filter:
: 17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B
SEM294A

MA-20
ENGINE MAINTENANCE (VQ35DE ENGINE)
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER REMOVAL
Use standard type spark plug for normal condition.
The hot type spark plug is suitable when fouling occurs with the standard type spark plug under conditions
such as:

Frequent engine starts

Low ambient temperatures
The cold type spark plug is suitable when spark knock occurs with the standard type spark plug under condi-
tions such as:

Extended highway driving

Frequent high engine revolution
CAUTION:

Do not drop or shock spark plug.

Do not use a wire brush for cleaning.

If plug tip is covered with carbon, spark plug cleaner may
be used.

Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Install in the reverse order of removal.
Checking EVAP Vapor LinesALS000GO
1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.
2. Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.
Refer to EC-643, "
EVAPORATIVE EMISSION SYSTEM" .
MakeNGK
Standard typePLFR5A-11
Hot typePLFR4A-11
Cold typePLFR6A-11
Gap (Nominal) : 1.1 mm (0.043 in)
Cleaner air pressure:
Less than 588 kPa (6 kg/cm
2 , 85 psi)
Cleaning time:
Less than 20 seconds
SMA773C
SMA806CA
: 24.5 N·m (2.5 kg-m, 18 ft-lb)

ENGINE MAINTENANCE (VK45DE ENGINE)
MA-21
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2004 November 2004 FX35/FX45
ENGINE MAINTENANCE (VK45DE ENGINE)PFP:10001

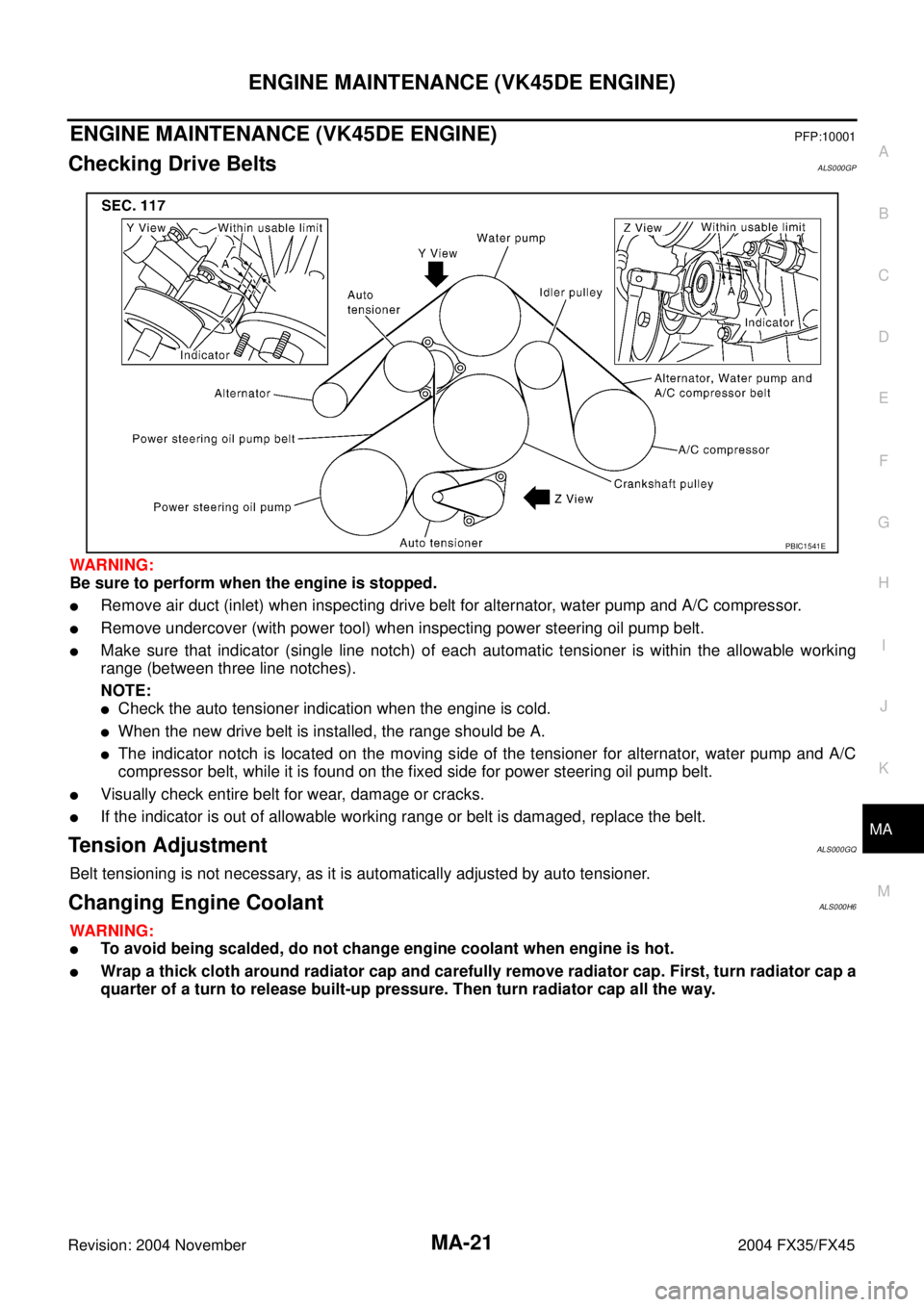

Checking Drive BeltsALS000GP
WARNING:
Be sure to perform when the engine is stopped.

Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.

Remove undercover (with power tool) when inspecting power steering oil pump belt.

Make sure that indicator (single line notch) of each automatic tensioner is within the allowable working
range (between three line notches).
NOTE:

Check the auto tensioner indication when the engine is cold.

When the new drive belt is installed, the range should be A.

The indicator notch is located on the moving side of the tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.

Visually check entire belt for wear, damage or cracks.

If the indicator is out of allowable working range or belt is damaged, replace the belt.
Tension AdjustmentALS000GQ
Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.
Changing Engine CoolantALS000H6
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a
quarter of a turn to release built-up pressure. Then turn radiator cap all the way.
PBIC1541E
