6DO-IT-YOURSELF MAINTENANCE
31
G270G01O-AAT

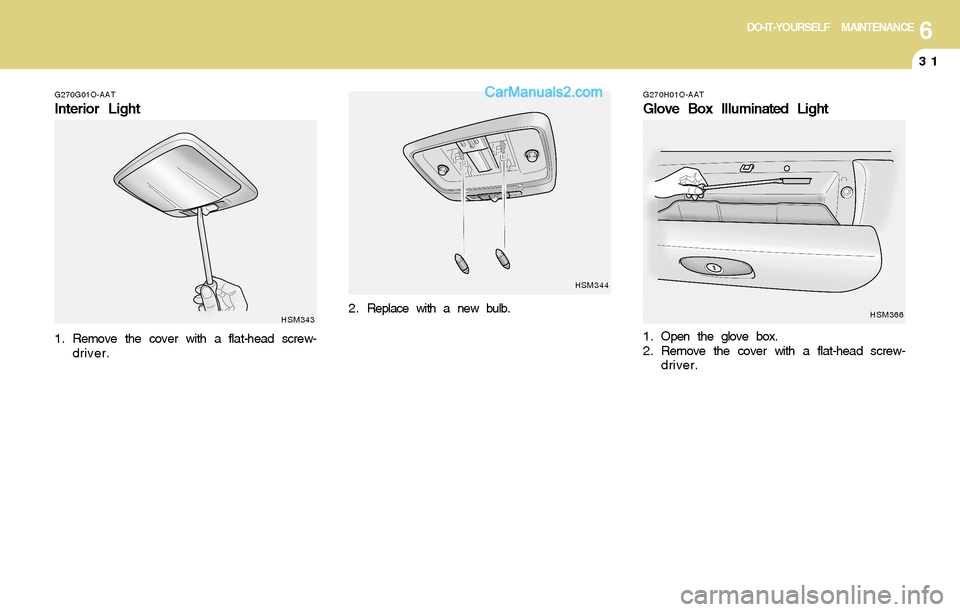

Interior Light
HSM343
1. Remove the cover with a flat-head screw-
driver.
HSM344
2 . Replace with a new bulb.
G270H01O-AAT
Glove Box Illuminated Light
1 . Open the glove box.
2. Remove the cover with a flat-head screw-
driver.
HSM366

6DO-IT-YOURSELF MAINTENANCE
32
G270E02L
HTB284

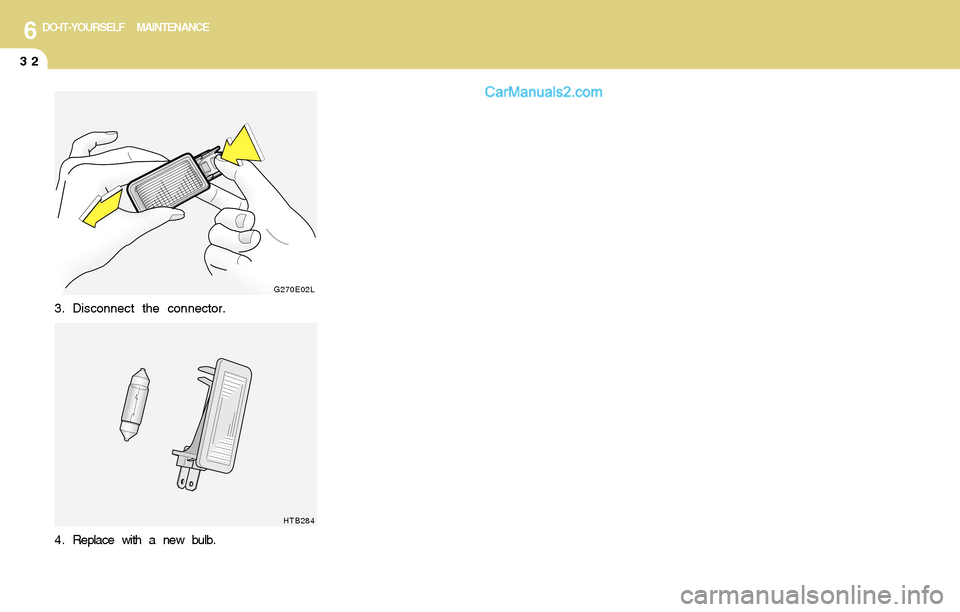

3. Disconnect the connector.
4 . Replace with a new bulb.

6DO-IT-YOURSELF MAINTENANCE
33BULB WATTAGE
G280A02O-AAT
No.
1
2
3
4
5
6
7
8Part Name
Head Light (Low/High)
Front Fog Light (If installed)
Turn Signal Light
Side Mark Light
Front Door Edge Warning Light (If installed)
Glove Box Illuminated Light
Map Light
Interior LightWattage
55/60
27
28
5
5
10
15
10No.
9
10
11
12Wattage
17
10
5
27/8
27
27
5 Part Name
High Mounted Rear Stop Light
Luggage Compartment Light
License Plate Light
Rear Combination Light
Stop/Tail Light
Turn Signal Light
Back-up Light
Rear Side Mark Light
12
34 67
8
910
12G280A01O
11
5

10INDEX
