6- 6 DO-IT-YOURSELF MAINTENANCE
SG020B1-E
DAILY OPERATING CHECKS
The following items should be checked
on a daily basis or whenever the vehicle
is refuelled, whichever occurs sooner.
o Engine oil level.
o Engine coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light-
ing equipment.
o Windscreen wiper and washer opera- tion.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and operation.
o Fluid leakage.
The vehicle must not be driven if the
daily operating checks indicate that
any item of equipment related to the
safety or roadworthiness of the vehicle
is not functioning correctly. G030B02A-EAT
Recommended Oil
1. Petrol engine
A multi grade oil having a specification
which meets A.P.I. specification of SG
or above is recommended. The oil vis-
cosity should be selected according to
the operating environment of the engine
by means of the table shown in the
illustration. The engine oil recommen-
dations are complete in themselves
and the use of additives is neither
required nor recommended. The use of
engine oil additives may result in invali-
dation of the vehicle warranty.
G030A01FC-EAT
ENGINE OIL
The correct engine oil level is of para-
mount importance. An excessively high
or low oil level may result in irreparable
damage being sustained by the engine.
The engine oil level must be checked
on a daily basis, whenever the vehicle
is refuelled or before starting a long trip,
whichever occurs sooner.
In addition, it is imperative that only an
approved grade and specification of oil
is used to avoid the possibility of seri-
ous engine damage and premature wear.
The use of "budget price" oil is a false
economy that must be avoided if the
maximum reliability and useful life is to
be obtained from the vehicle.
G030B01L
tbuk-6.p65
3/23/04, 4:26 PM
6

DO-IT-YOURSELF MAINTENANCE 6- 19
!WARNING:
Brake fluid is hygroscopic and
should never be stored in an un-
sealed container. The presence of
water in the braking system will cause
vapour locks and increase the possi-
bility of brake fade along with pro-
moting corrosion within the braking
system. The brake fluid must be
changed at the specified time or mile-
age interval to ensure continued safe
operation of the system. Brake fluid
will cause rapid and serious damage
to paintwork. If accidental spillage
occurs, the affected area must be
rinsed with water immediately. Do
not allow brake fluid to come into SG140A1-E
AIR CONDITIONING SYSTEM
MAINTENANCE
Condenser
Ensure that the condenser is periodi-
cally inspected and that accumulations
of dirt, dead insects and leaves etc, are
removed to ensure that the efficiency of
the system is not impaired. Care must
be exercised to ensure that the con-
denser fins are not damaged during
cleaning.
G140D01TB-EAT
Compressor Drive BeltG140D01TB
Power steering
Crank pully
A/C pully
0.19 ~ 0.21 in. (5 ~ 5.5 mm)
1.1L
To add brake fluid;
1) If it is necessary, remove the air
cleaner cover.
2) Wipe away any dirt then unscrew the
fluid reservoir cap.
3) Slowly pour the recommended fluid into the reservoir using by a funnel.
Do not overfill.
4) Carefully replace the cap on the res- ervoir and tighten. contact with the eyes or to be in-
gested and ensure that fluid is safely
stored away form the reach of chil-
dren.
CRANK PULLEY
HTB219
A/C
TENSION PULLEY 0.315 in.
(8mm)
1.3/1.6L
tbuk-6.p65
3/23/04, 4:26 PM
19

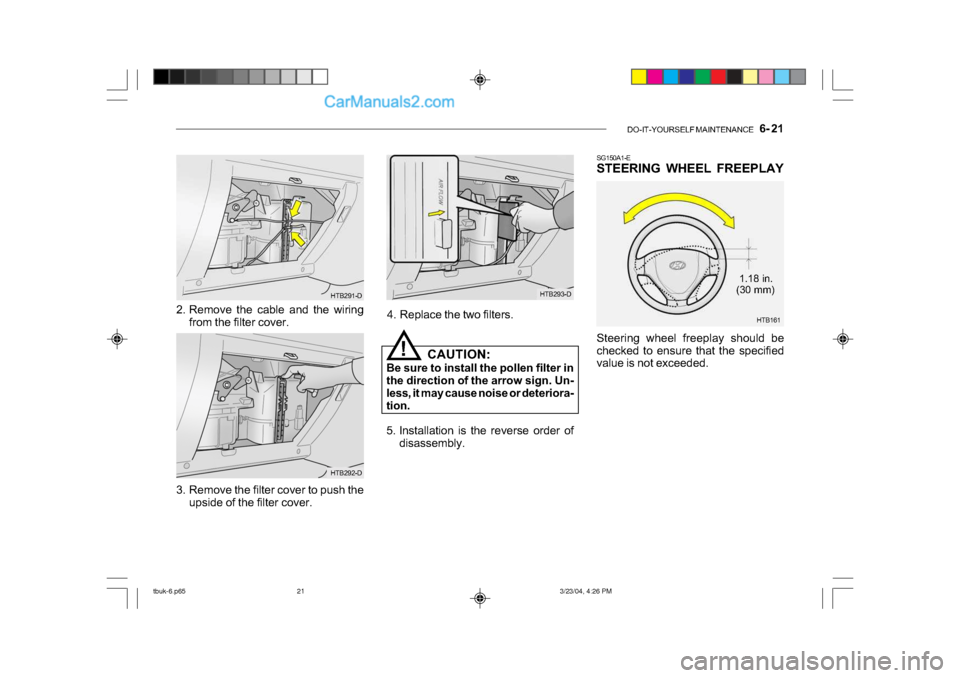

DO-IT-YOURSELF MAINTENANCE 6- 21
SG150A1-E
STEERING WHEEL FREEPLAY
Steering wheel freeplay should be
checked to ensure that the specified
value is not exceeded.
HTB293-D
4. Replace the two filters.
CAUTION:
Be sure to install the pollen filter in
the direction of the arrow sign. Un-
less, it may cause noise or deteriora-
tion.
5. Installation is the reverse order of disassembly.
!
3. Remove the filter cover to push the upside of the filter cover.
HTB291-D
2. Remove the cable and the wiring from the filter cover.
HTB292-D HTB161
1.18 in.
(30 mm)
tbuk-6.p65
3/23/04, 4:26 PM
21

DO-IT-YOURSELF MAINTENANCE 6- 23
The various engine drive belts must be
checked for condition, tension and free-
dom from damage and excessive wear.
The tension of a new belt must be
checked after thirty minutes running
following fitment of the new belt to allow
for the initial belt stretch. G190B01TB-GAT
CHECKING DRIVE BELTS
(Diesel)
A/C comp.
Auto tensioner
Pulley
G190B01TB
AlternatorPower
steering
pump
At the scheduled maintenance inspec-
tion, belts should be examined for
cracks, wear, fraying or other evidence
of deterioration and replaced if neces-
sary.
Belt routing should also be checked to
be sure there is no interference be-
tween the belts and other parts of the
engine.
Crankshaft Pulley
SG190A1-E
DRIVE BELTS (Gasoline)
1.1L
1.3L/1.6L Alternator
0.37 ~ 0.43 in.
(9.5 ~11.0 mm)
Water Pump Pulley
Alternator
Pulley
0.2~0.24 in.
(5.1~6 mm)
HTB186
Crankshaft pulley
HTB220
Water Pump Pulley
tbuk-6.p65 3/23/04, 4:27 PM
23

6- 26 DO-IT-YOURSELF MAINTENANCE
HTB287
SG230B1-E
POWER STEERING HOSES
Power steering hoses should be
checked for damage, deterioration and
leakage at each service.
steering fluid level is between the "MAX"
and "MIN" level markings on the fluid
reservoir.
NOTE:
Grinding noise from power steering
pump may be heard immediately
after the engine is started in extremely
cold condition (below -4

6- 34 DO-IT-YOURSELF MAINTENANCE
G200C01TB-GAT
FUSE PANEL DESCRIPTION
Engine Compartment
HTB261-EPROTECTED COMPONENTS
Ignition Switch
Ignition Switch, Start Relay
Fuel pump, Alternator, ECM
Auto Fuel Cut Switch
Radiator Fan
Headlight, Defogger Relay
ABS
ECM
A/CON, Fuel Pump
Injector
A/Conditioner
Horn
ABS
ABS
Blower, Blower Motor
Power Window
Electronic power steering
Alternator
Spare Fuse
Spare Fuse
Spare Fuse
FUSE RATING
30A
30A
30A
20A
30A
50A
10A
10A
10A
15A
10A
10A
20A
40A
30A
30A
50A
15A
10A
10A
DESCRIPTION
IGN 2
IGN 1ECU
F/PUMP RAD
BATT ABS
ECU
SNSR INJ
A/CON HORN ABS1
ABS2 BLW
P/WDW EPS
BATT( ) SPARE
SPARE
SPARE
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
When you inspect the fuse box on your vehicle, refe r to the fuse box label.
1.1L
1.3/1.6L100A
120A
tbuk-6.p65
3/23/04, 4:27 PM
34

CONSUMER INFORMATION 8- 3
4.5Jx13
5.0Jx13
5.0Jx14
5.5Jx14
5.5Jx15
4.0Tx14 TYRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
15/80R13
165/65R14
175/65R14
185/55R15
T105/70D14 REAR
210(30)
420(60) FRONT
230(33)
420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
230(33)
420(60)
FRONT
210(30)
420(60)
The engine number is stamped on the
engine block as shown in the drawing. I030A02TB-EAT
TYRE PRESSURES
In modern high-speed motoring, correct
tyre pressures are vitally important.
I010B01B
HTB263
Diesel EngineIncorrect tyre pressures can affect ve-
hicle safety by causing reduced adhe-
sion, steering response and tyre failure
through overheating. The tyre pressure
must only be checked when the tyres
are cold. The correct tyre pressures are
indicated on the label affixed in the
glove box and below.
Tyre pressures should be increased by
3 psi when the vehicle is driven fully
laden or under conditions of sustained
high speed motoring.
tbuk-8.p65 3/23/04, 4:27 PM
3

CONSUMER INFORMATION 8- 5
!
SI060B1-E
TYRE REPLACEMENT
Tyres must be replaced when the wear
indicators appear as a solid bar across
the tyre tread. At this point, the remain-
ing tread depth will be approximately
0.06 in.(1.6 mm). In addition to this, the
tyre must be replaced if any portion of
the tread has become bald or if there are
any lumps, bulges or deep cuts in the
sidewalls or tread.
Replacement tyres must be of the rec-
ommended size and rating and should
be of the same manufacture and tread
pattern on each axle.
SI060D2-E
WHEEL REPLACEMENT
Wear indicator
1.6 mm (0.06 in.)
HGK248
NOTE:
o Do not use the temporary spare
tyre for tyre rotation.
o Aluminium wheels which are not
supplied as Original Equipment
should not be mixed on the same
vehicle with the original steel
wheels. However, it is acceptable
that the steel spare wheel be used
in conjunction with Original Equip-
ment aluminium wheels since the
offset of both wheels is compat-
ible. Radial and cross ply tyres
should not be mixed on the same
vehicle.
SI060A1-E
TYRE BALANCING
Incorrect tyre balance will cause steer-
ing vibration and uneven tyre wear. The
vehicle tyres are balanced during pro-
duction but may need further balancing
throughout the life of the tyres.
It is recommended that the tyres be
balanced on the car for best results and
that the tyres are balanced whenever
they have been removed from the wheel
for repair. The original wheels may only be re-
placed with Hyundai Approved wheels.
WARNING:
Driving on worn or defective tyres is
dangerous. Worn tyres may cause
loss of steering control and a seri-
ous deterioration of braking effi-
ciency. Defective tyres may cause
vibration and loss of control through
blow outs.
Tyres of different size, construction or
tread pattern should not be intermixed
on the same axle. Radial and cross ply
tyres should not be used on the same
vehicle.
The use of tyres and wheels of non
approved sizes can be dangerous.
tbuk-8.p65 3/23/04, 4:27 PM
