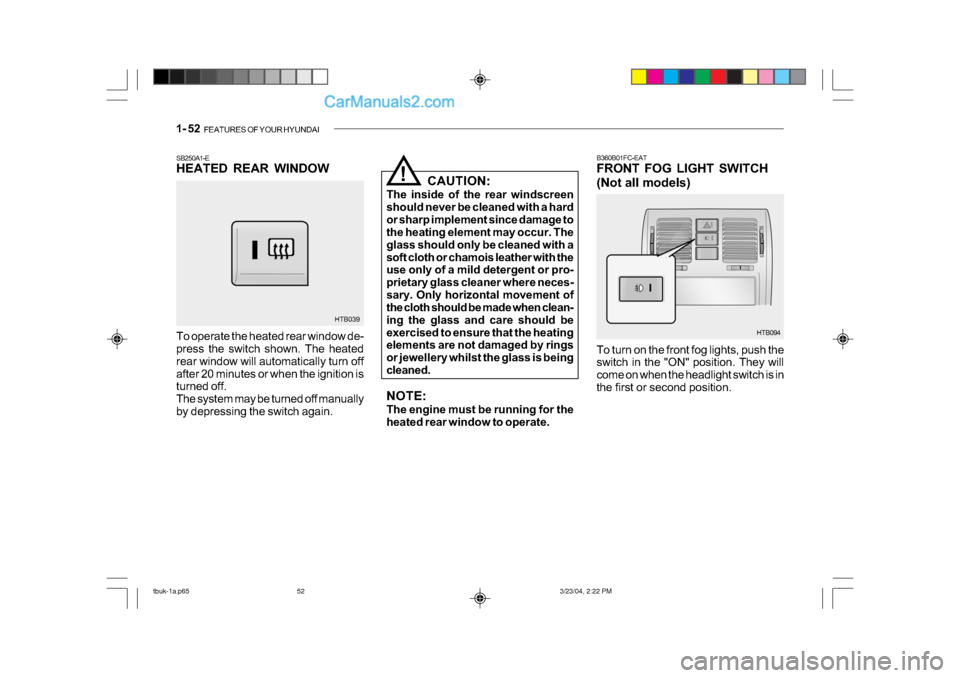

1- 52 FEATURES OF YOUR HYUNDAI
SB250A1-E
HEATED REAR WINDOW
To operate the heated rear window de-
press the switch shown. The heated
rear window will automatically turn off
after 20 minutes or when the ignition is
turned off.
The system may be turned off manually
by depressing the switch again. HTB039CAUTION:
The inside of the rear windscreen
should never be cleaned with a hard
or sharp implement since damage to
the heating element may occur. The
glass should only be cleaned with a
soft cloth or chamois leather with the
use only of a mild detergent or pro-
prietary glass cleaner where neces-
sary. Only horizontal movement of
the cloth should be made when clean-
ing the glass and care should be
exercised to ensure that the heating
elements are not damaged by rings
or jewellery whilst the glass is being
cleaned.
NOTE:
The engine must be running for the
heated rear window to operate.
! B360B01FC-EAT
FRONT FOG LIGHT SWITCH
(Not all models)
HTB094
To turn on the front fog lights, push the
switch in the "ON" position. They will
come on when the headlight switch is in
the first or second position.
tbuk-1a.p65 3/23/04, 2:22 PM
52

FEATURES OF YOUR HYUNDAI 1- 59
!!WARNING:
To avoid the possibility of injury, the
glove box lid must be kept closed
whilst the vehicle is in motion.
o To open the glove box, pull the glove box release lever.
YB270A2-A
OUTSIDE REAR VIEW MIRROR
Manual Type (Not all models) The outside rear view mirrors are
equipped with a remote control for your
convenience. It is operated by the con-
trol lever in the bottom front corner of
the window.
Before driving away, always check that
your mirrors are positioned so you can
see directly behind you. When using
the mirror, always exercise caution when
attempting to judge the distance of
vehicles behind you.
HTB306
B500A01A-EAT
GLOVE BOX
HTB101-D
WARNING:
Do not keep objects such as sharp
or unsuitable things inside the spec-
tacle case. Such objects can be
thrown out in the event of a sudden
stop or an accident, possibly injur-
ing the passengers in the vehicle.
CAUTION:
If the mirror control is jammed with
ice, do not attempt to break it free
using the control handle or by ma-
nipulating the face of the mirror. Use
an approved spray de-icer (not radia-
tor antifreeze) to release the frozen
mechanism or move the vehicle to a
warm place and allow the ice to melt.
!
tbuk-1a.p65 3/23/04, 2:22 PM
59

FEATURES OF YOUR HYUNDAI 1- 61
!
SB370A1-E
INTERIOR REAR VIEW MIRROR
The interior mirror is of the day/night
type to enable the glare of headlights
from following vehicles to be eliminated
during night time driving.
The tab located at the bottom of the
mirror should be set to the position
nearest the windscreen for normal day
time driving, and flipped towards the
rear of the vehicle to eliminate glare
during night time driving. To adjust the
field of vision, the mirror may be moved
by hand upon the mounting.
NOTE:
The mirror should always be ad-
justed prior to setting the vehicle in
motion. HTB103B510D01HP-EAT
OUTSIDE REARVIEW MIRROR
HEATER (Not all models)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push in the switch
for the rear window defroster. The rear-
view mirror glass will be heated for
defrosting or defogging and will give
you improved rear vision in inclement
weather conditions. Push the switch
again to turn the heater off. The outside
rearview mirror heater automatically
turns itself off after 20 minutes. SB360C1-F
FOLDING THE OUTSIDE REAR
VIEW MIRRORS
To fold the outside rear view mirrors,
push them towards the rear.
The outside rear view mirrors can be
folded rearward for parking in restricted
areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outside rear
view mirrors while the vehicle is
moving. This could result in loss of
control, and an accident causing
death, serious injury or property
damage.
tbuk-1a.p65 3/23/04, 2:22 PM
61

1- 62 FEATURES OF YOUR HYUNDAI
The parking brake must always be set
when the vehicle is to be left unat-
tended. When the parking brake is ap-
plied, and the ignition key is at the "ON"
position, the parking brake warning light
will be illuminated. Before driving the
vehicle, the parking brake must be fully
released and the warning light extin-
guished.
o To set the parking brake, apply the
foot brake and pull the parking brake
lever up with the button depressed.
Release the button when the brake is
fully applied.
SB380A1-E
PARKING BRAKE
B550A01S-DAT
HIGH-MOUNTED REAR STOP
LIGHT
In addition to the lower-mounted rear
stoplights on either side of the car, the
high mounted rear stoplight in the cen-
tre of the rear window or inserted in the
rear spoiler also lights when the brakes
are applied.
HTB251
HTB255
o To release the parking brake, apply
the foot brake and pull up the parking
brake lever slightly. Depress the
button and lower the lever.
B750A01TB-DAT
BONNET RELEASE
HTB070-D
1. Pull the release knob to unlatch the bonnet.
HTB069
2. Push the safety catch lever sidewards and lift the bonnet.
tbuk-1a.p65 3/23/04, 2:22 PM
62

1- 72 FEATURES OF YOUR HYUNDAI
HTB033A-D
1
23
4 HTB034
B670A01TB-GAT
HEATING AND VENTILATION
1. Temperature control switch
2. Fan speed control switch
3. Air flow control switch
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch B670B01A-AAT
Fan Speed Control
(Blower Control)
This is used to turn the blower fan on
or off and to select the fan speed.
This blower fan speed, and therefore
the volume of air delivered from the
system, may be controlled manually
by setting the blower control between
the "1" and "4" positions.
B710C01Y-AAT
Side Ventilator
The side vent knobs control the amount
of outside air entering the vehicle
through the side vents. These vents
can also be closed, so no air enters
through the side vents. To change the
direction of the air flow, turn the control
knobs as desired.
56
tbuk-1b.p65
3/23/04, 2:24 PM
72

FEATURES OF YOUR HYUNDAI 1- 73
B670C02A-EAT
Air Intake Control
This is used to select fresh outside air
or recirculation inside air. Fresh
Recirculation
With the " " mode selected, air
enters the vehicle from outside and is
heated or cooled according to the other
functions selected.
With the " " mode selected, air from
within the passenger compartment is
drawn through the heating system and
heated or cooled according to the other
functions selected. HTB036-D
NOTE:
It should be noted that prolonged
operation of the heating system in
" " mode will give rise to misting
of the windscreen and side windows
and the air within the passenger com-
partment will become stale. In addi-
tion prolonged use of the air condi-
tioning with the " " mode selected
may result in the air within the pas-
senger compartment becoming ex-
cessively dry.B670D01TB-EAT
Air Flow Control
This is used to direct the flow of air. Air
can be directed to the floor, dashboard
outlets, or windscreen. Five symbols
are used to represent Face, Bi-Level,
Floor, Floor-Defrost and Defrost air po-
sition. HTB038
tbuk-1b.p65
3/23/04, 2:24 PM
73

1- 76 FEATURES OF YOUR HYUNDAI
B670B01A-AAT
BI-LEVEL HEATING
Your Hyundai is equipped with bi-level
heating controls. This makes it pos-
sible to have cooler air from the dash-
board vents and warmer air from the
floor outlets at the same time. To use
this feature:
o Set the air intake control to the fresh
air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Set the temperature control between "Cool" and "Warm".
B690A01A-AAT
HEATING CONTROLS
For normal heating operation, set the
air intake control to the fresh air ( )
position and the air flow control to the
floor ( ) position.
For faster heating, the air intake con-
trol should be set in the recirculate
( ) position.
If the windows fog up, set the air flow
control to the defrost ( ) position and
the air intake control to the fresh air
( ) position.
For maximum heat, move the tem-
perature control to "Warm". B720A01TB-EAT
DEFROSTING/DEFOGGING
HTB045-D
Use the heating/ventilation system to
defrost or defog the windscreen:
To remove interior fog on the
windscreen:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the defrost
( ) position.
o For more rapid action, turn on the air conditioning.
o Set the temperature control to the
desired position.
o Set the fan speed control between
"1" and "4" position.
tbuk-1b.p65 3/23/04, 2:24 PM
76

FEATURES OF YOUR HYUNDAI 1- 79
!
B760A01Y
The pollen filter is located in front of the
evaporator unit behind the glove box.
It operates to decrease the amount of
pollutants entering the car.
To replace the pollen filter, refer to the
page 6-20.
B760A02TB-EAT
POLLEN FILTER (In Front of
evaporator unit) (Not all models)
B740D01A-AAT
Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for
a few minutes to expel the hot air.
o When you are using the air condi-
tioning system, keep all windows
closed to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. This
increases engine speed, which in
turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility of
the engine over-heating.
o During winter months or in periods when the air conditioning is not used
regularly, run the air conditioning
once every month for a few min-
utes. This will help circulate the
lubricants and keep your system in
peak operating condition. Inside of
a vehicle
Evaporator core
Filter
BlowerOutside air
Inside air CAUTION:
o Replace the filter every 12,000 miles (20,000 km) or once a year. If
the car is being driven in severe
conditions such as dusty, rough
roads, more frequent pollen filter
inspections and changes are re-
quired.
o When the air flow rate is suddenly decreased, it must be checked at
an authorized dealer.
tbuk-1b.p65 3/23/04, 2:24 PM
