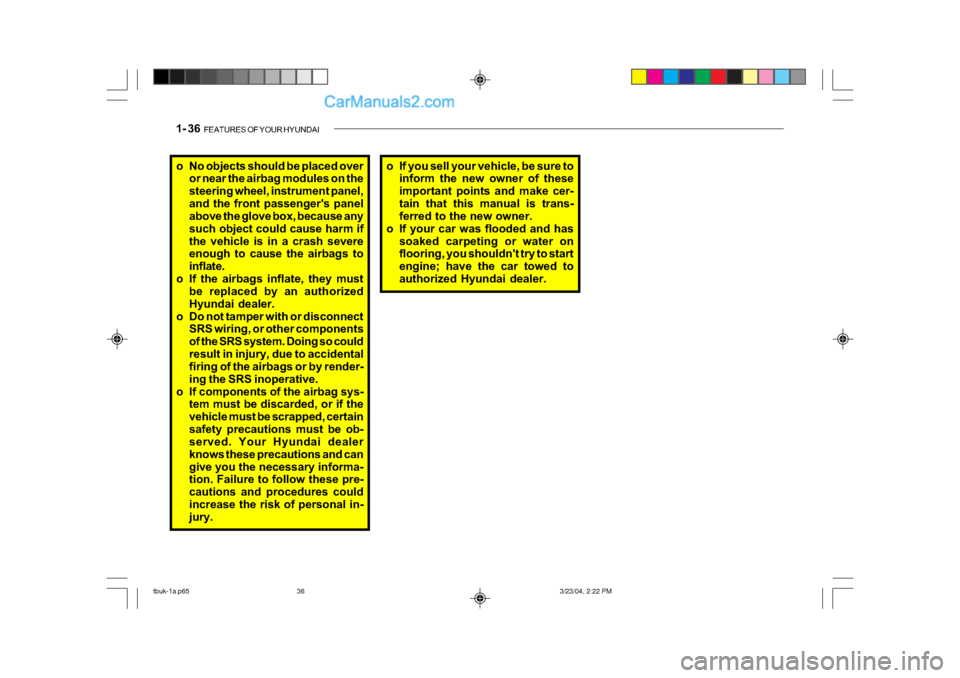

1- 36 FEATURES OF YOUR HYUNDAI
o No objects should be placed over
or near the airbag modules on the
steering wheel, instrument panel,
and the front passenger's panel
above the glove box, because any
such object could cause harm if
the vehicle is in a crash severe
enough to cause the airbags to
inflate.
o If the airbags inflate, they must be replaced by an authorized
Hyundai dealer.
o Do not tamper with or disconnect SRS wiring, or other components
of the SRS system. Doing so could
result in injury, due to accidental
firing of the airbags or by render-
ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if the
vehicle must be scrapped, certain
safety precautions must be ob-
served. Your Hyundai dealer
knows these precautions and can
give you the necessary informa-
tion. Failure to follow these pre-
cautions and procedures could
increase the risk of personal in-
jury. o If you sell your vehicle, be sure to
inform the new owner of these
important points and make cer-
tain that this manual is trans-
ferred to the new owner.
o If your car was flooded and has
soaked carpeting or water on
flooring, you shouldn't try to start
engine; have the car towed to
authorized Hyundai dealer.
tbuk-1a.p65 3/23/04, 2:22 PM
36

1- 42 FEATURES OF YOUR HYUNDAI
B260S01B-GAT
DIESEL PRE-HEAT
INDICATOR
LIGHT-AMBER
(Diesel Engine)
The indicator light illuminates amber
when the ignition switch is placed at
the "ON" position. The engine can be
started after the pre-heat indicator light
goes off. The illuminating time varies
with the water temperature, air tem-
perature and battery condition.
NOTE:
If the engine were not started 10
seconds after the preheating is com-
pleted, turn the ignition key once
more to the "LOCK" position, and
then to the "ON" position, in order
to preheat again.
B260T01TB-GAT
ELECTRIC POWER
STEERING SYSTEM
(EPS) WARNING LIGHT
(Not all models)
This indicator light comes on about 4
seconds after the ignition key is turned
to the "ON" position or after the engine
is started, it will go out.
This light also comes on when the EPS
has some troubles. If it comes on while
driving, have your vehicle inspected by
an authorized Hyundai Dealer. B260E01HP-GAT
SEAT BELT WARNING
LIGHT
The seat belt warning light blinks for
about 6 seconds when the ignition key
is turned from the "OFF" position to
"ON" or "START".
CAUTION:
When you move the electric power
steering back-end and forth-end
continuously in stop position, steer-
ing wheel plays heavily to operate
anti-overload system. It is normal
condition. It returns to be nomal
getting time.!
B260U01TB-EAT IMMOBILIZER
INDICATOR LIGHT
(Not all models)
This indicator light comes on for some
seconds after the ignition key is turned
to the "ON" position. At this time, you
can start the engine. The light goes out
after the engine is running. In case this
light goes out before you start the en-
gine, you must turn to the "LOCK"
position and restart the engine. In case
this light blinks for five seconds when
the ignition key is turned to "ON" posi-
tion, this indicates that the immobilizer
system is out of order. At this time,
consult to the Hyundai dealer.
nearest authorized Hyundai dealer and
have the system checked.
tbuk-1a.p65
3/23/04, 2:22 PM
42

1- 48 FEATURES OF YOUR HYUNDAI
HTB014B
MPG = Total Cruise Distance(Miles)
Total Fuel Consumption (G)
4. Average Fuel Consumption
o This mode indicates the average fuel
consumption since the data reset.
o It displays per 10 seconds after you
drive over 0.03 miles and 10 sec-
onds.
o Calculation Method SB220A1-E
MULTI FUNCTION SWITCH
Turn Signal Operation
To signal an intention to turn right, the
switch lever should be pressed down.
To signal an intention to turn left, the
switch lever should be pushed upwards.
In both instances, the turn signal lights
on one side of the car will flash and the
warning light located in the instrument
cluster will flash in sympathy. Upon
completion of the manoeuvre, the lever
will, under normal circumstances, re-
turn to the "Off" position. However, if
the manoeuvre involved only a small
movement of the steering wheel, the
signal may need to be cancelled manu-
ally. If either turn signal indicator flashes
more rapidly than normal or refuses to
flash at all, a malfunction of the turn
signal system may exist. SB220B1-E
Lane Change Signal
To indicate an intention to change lanes,
moving the lever slightly towards the
direction of the relevant turn signal will
cause the turn signal lights to flash.
When the lever is released, it will return
to the "off" position.
HTB018-D
NOTE:
The average fuel consumption is
calculated by the US gallon.
A US gallon is equal to 3.875
litres. And an imperial gallon,
used in Britain, is equal to 4.546
litres.
tbuk-1a.p65 3/23/04, 2:22 PM
48

FEATURES OF YOUR HYUNDAI 1- 49
HTB017-DHTB015-D
B340C03FC-EAT
LIGHTING SWITCH
The vehicle side lights and headlights
are operated by rotating the end of the
turn signal switch barrel. To operate the
side lights, rotating the switch to the
first detent with ignition switch at the
"OFF" position will cause the lights to
illuminate. To operate the headlights,
the turn signal switch barrel should be
rotated to the second detent. The head-
lights will only operate when the ignition
switch is at the "On" position. If the
ignition switch is turned to the "Off"
position, only the side lights will func-
tion.
NOTE:
The ignition must be in the "ON"
position to turn on the headlights. Side light auto cut
(Not all models)
If you do not turn the side lights "OFF"
after driving, the side light will automati-
cally shut "OFF" when the driver's door
is opened.
To turn them "ON" again you must
simply turn the ignition key to the "ON"
position.
SB220D1-E
HIGH AND LOW BEAM
To turn on the headlight high beams,
push the lever forward (away from you).
For low beams, pull the lever back
(toward you). The appropriate headlight
beam indicator light will come on at the
same time.
SB220E1-E
HEADLIGHT FLASH
The headlights may be flashed by pull-
ing the turn signal switch lever towards
the steering wheel. The headlights will
be extinguished when the switch is
released.
tbuk-1a.p65
3/23/04, 2:22 PM
49

1- 50 FEATURES OF YOUR HYUNDAI
HTB019-D
SB230A1-E
WINDSCREEN WIPER/
WASHER SWITCH
The windscreen wiper switch, depen-
dent upon model, has three operating
positions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation.
NOTE:
To prevent damage to the wiper sys-
tem, do not attempt to wipe away
heavy accumulations of snow or ice.
Accumulated snow and ice should be removed manually. If there is only
a light layer of snow or ice, operate
the heater in the defrost mode to melt
the snow or ice before using the
wiper.
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when
the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to
the glass prior to operating the
wipers.
o In areas where water freezes in
winter, use windscreen washer
antifreeze.
Mist Wiper Operation
HTB022-D
To use the windscreen washer, pull the
wiper/washer lever toward the steering
wheel. When the washer lever is oper-
ated, the wipers automatically make
two passes across the windscreen.
The washer continues to operate until
the lever is released.
B350B01O-EAT
Windscreen Washer Operation
HTB021-DIf a single wipe is desired in mist, push
the windscreen wiper and washer con-
trol lever upwards.
tbuk-1a.p65 3/23/04, 2:22 PM
50

FEATURES OF YOUR HYUNDAI 1- 69
!
!
SB520A1-F
STEERING WHEEL TILT LEVER
To adjust the steering wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, securely tighten the lever by pulling it upward
WARNING:
Do not attempt to adjust the steering
wheel while driving as this may re-
sult in loss of control of the vehicle
and result in death or serious injury.
Your Hyundai is equipped with sun
visors to give the driver and front pas-
senger either frontal or side ward shade.
The sun visors are fitted on both sides
on all models. To reduce glare or to
shut out direct rays of the sun, turn the
sun visor down to block the annoy-
ance. A ticket holder is provided on the
back of the sun visor for the driver.
Vanity mirrors are provided on the
back of the sunvisor for the driver and
the front passenger (If installed).
NOTE:
The Supplemental Restraint Sys-
tem (SRS) label containing useful
information can be found on the
front of each sun visor.
WARNING:
Do not place the sun visor in such
a manner that it obscures visibility
of the roadway, traffic or other ob-
jects.
HTB098-D
B580A01TB-GAT
SUN VISOR
HTB148-D
A Type
B Type
HTB085
tbuk-1a.p653/23/04, 2:23 PM
69

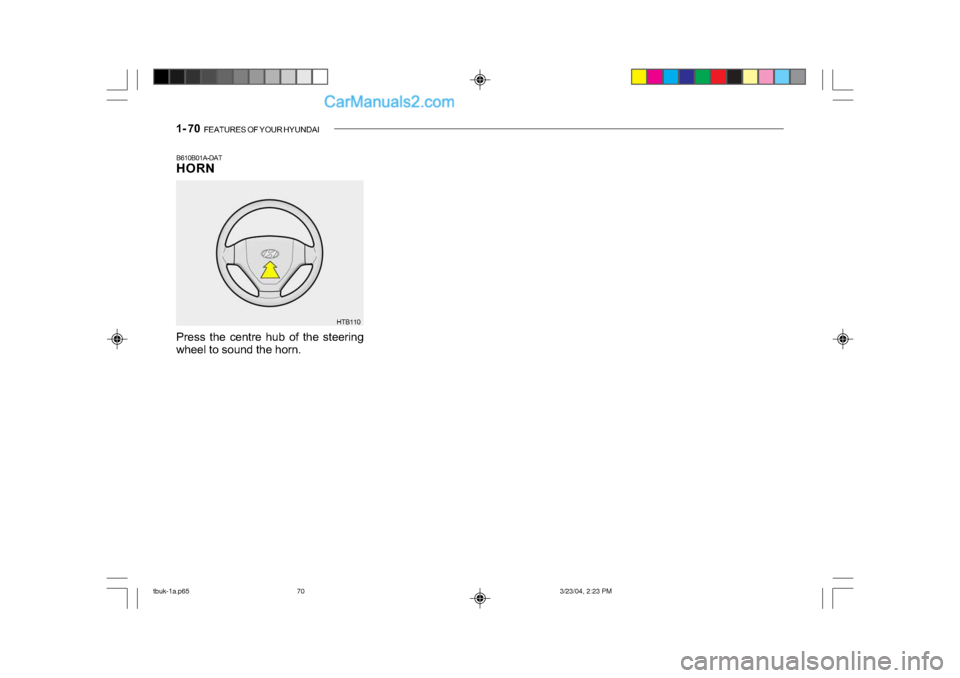

1- 70 FEATURES OF YOUR HYUNDAI
B610B01A-DAT
HORN
Press the centre hub of the steering
wheel to sound the horn. HTB110
tbuk-1a.p65
3/23/04, 2:23 PM
70

2- 4 DRIVING YOUR HYUNDAI
!
"START" The engine is started in this position. It will crank until you release the key. NOTE: Do not hold the key in the "START" position for more than 15 seconds. "ON" When the key is at the "ON" position, the ignition and all accessories are available for use. If the engine is notrunning, the key should not be left atthis position since the battery will be-come discharged and damage to theignition system may also result. For information regarding engine starting, refer to "STARTING THE ENGINE". "ACC" When the ignition key is at the "ACC" position, the radio and other accesso-ries may be used. "LOCK" The ignition key may only be inserted or removed at this position.SC050A2-E KEY POSITIONS
C040A01E
LOCK
ACC
ON
START
WARNING:
The engine must never be turned off and the key removed from the ignition key cylinder whilst the ve- hicle is in motion since the steeringlock will operate and control of thevehicle will be lost. SB050B1-E STEERING WHEEL LOCK When the key is removed, the steering column lock will be activated and willengage when the steering wheel isturned to the appropriate position. It isnot necessary to turn the wheel until locked each time the key is removed since in the event of any unauthorizedattempt at removal, the lock will be-come effective as soon as the steeringwheel is turned. To unlock the steer-ing, insert the key and turn to the "ACC" position. If the steering is locked, it may be necessary to rock the steer-ing wheel slightly to facilitate turningthe key. Under no circumstancesshould the key be forced since break-age of the key will occur.
