1- 38 FEATURES OF YOUR HYUNDAI
B260C02TB-EAT
B Type (With Trip Computer)
1. Electric Power Steering Warning
Light (Not all models)
2. Tail Gate Open Warning Light
3. Door Ajar Warning Light
4. Tachometer
5. Turn Signal Indicator Light
6. Temperature Gauge
7. Speedometer
8. Parking Brake/Brake Fluid Level
Warning Light
9. Oil Pressure Warning Light HTB002B
10. Charging System Warning Light
11. Overdrive Off Indcator Light (Auto T/A only)
12. Fuel Filter Warning Light (Diesel only)
13. Diesel Pre-heat Indicator Light
(Diesel only)
14. Immobilizer Warning Indicator Light
15. High Beam Indicator Light
16. Low Fuel Warning Light
17. Trip Computer (Not all models) 18. Odometer/Trip Odometer
19. Fuel Gauge
20. Trip Computer Mode Convert Switch
21. Clock Reset Switch
22. ABS Warning Light
23. SRS (Airbag) Warning Light
(Not all models)
24. Malfunction Indicator Light (MIL)
25. Seat Belt Warning Light
12 3 4
5
5
6
78
910
11 12 13 14 15 16 17 18 19 20 22 23
24 2521
tbuk-1a.p65 3/23/04, 2:22 PM
38

FEATURES OF YOUR HYUNDAI 1- 45
B310B01TB-EAT
ODOMETER/TRIP ODOMETER
A TYPE
(WITH TRIP COMPUTER)
1. Odometer
The odometer records the total driving
distance in miles and is useful for keep-
ing a record for maintenance intervals.
NOTE:
Any alteration of the odometer may
void your warranty coverage. HTB008B
A Type
B Type 2. Trip odometer
o This mode indicates the drive dis-
tance travelled since the last drive
time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1
second, when the drive distance is
being displayed, clears the drive
distance to zero.
o Refer to the explanation of the trip computer (see page 1-45, Drive Dis-
tance).
B TYPE
(WITHOUT TRIP COMPUTER)
Function of digital odometer/trip
odometer
Pushing in the reset switch when the
ignition switch is turned "ON" will dis-
play the following sequence:
The tachometer registers the speed of
the engine in revolutions per minute
(R.P.M.).
SB215F1-E
TACHOMETER
A Type
!
CAUTION:
The maximum safe engine operating
speed is indicated by the red zone of
the tachometer scale. The engine
should not be operated beyond the
beginning of this zone or serious
engine damage may result. HTB005A
B Type
tbuk-1a.p65
3/23/04, 2:22 PM
45

1- 46 FEATURES OF YOUR HYUNDAI
1. Odometer
HTB010
1
2
3
The odometer records the total driving
distance in miles and is useful for keep-
ing a record for maintenance intervals.
NOTE:
Any alteration of the odometer may
void your warranty coverage.
2,3 Trip odometer
Records the distance of 2 trips in kilo-
meters or miles.
HTB009B The trip computer is the microcom-
puter-controlled driver information gauge
that displays information related to driv-
ing, such as outside temperature dis-
tance to empty, drive distance and
average consumption on the LCD.
Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch built in
left side of speedmeter changes the
display as follows;
B400B02TB-EAT
TRIP COMPUTER
(Not all models)
OUTSIDE TEMPERATUREDISTANCE TO EMPTYDRIVE DISTANCE
AVERAGE CONSUMPTION
TRIP A: First distance you have trav-
eled from your origination point to a first
destination.
TRIP B: Second distance from the first
destination to the final destination.
To shift from TRIP A to TRIP B, press
the reset switch. When pressed for 1
second, it will reset to 0.
tbuk-1a.p65 3/23/04, 2:22 PM
46

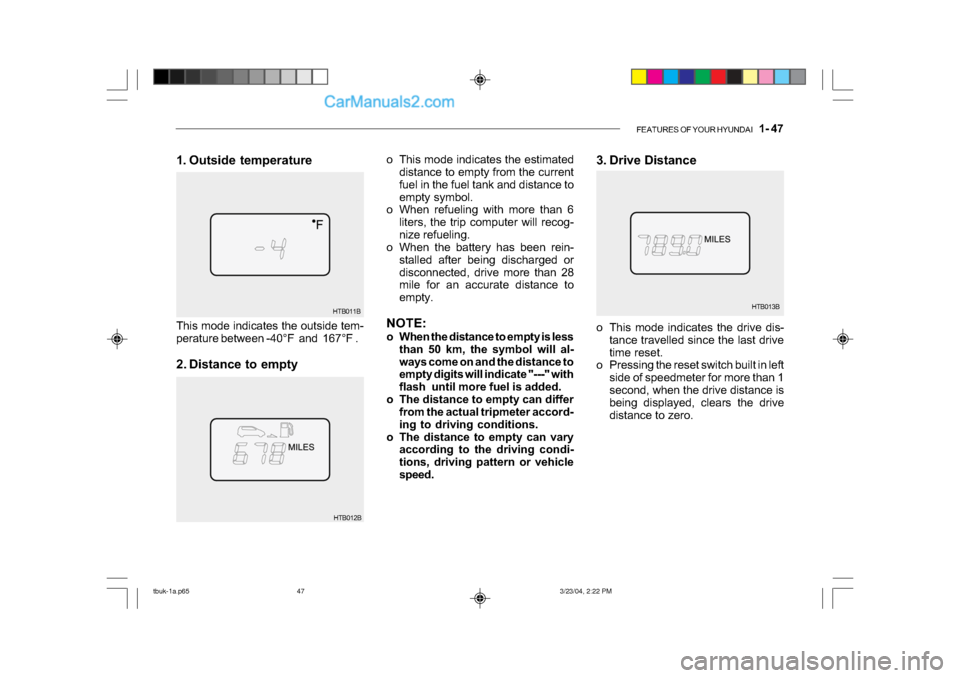

FEATURES OF YOUR HYUNDAI 1- 47
3. Drive Distance
HTB013B
o This mode indicates the estimated
distance to empty from the current
fuel in the fuel tank and distance to
empty symbol.
o When refueling with more than 6
liters, the trip computer will recog-
nize refueling.
o When the battery has been rein-
stalled after being discharged or
disconnected, drive more than 28
mile for an accurate distance to
empty.
NOTE:
o When the distance to empty is less than 50 km, the symbol will al-
ways come on and the distance to
empty digits will indicate "---" with
flash until more fuel is added.
o The distance to empty can differ from the actual tripmeter accord-
ing to driving conditions.
o The distance to empty can vary according to the driving condi-
tions, driving pattern or vehicle
speed. o This mode indicates the drive dis-
tance travelled since the last drive
time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1
second, when the drive distance is
being displayed, clears the drive
distance to zero.
HTB012B
1. Outside temperature
This mode indicates the outside tem-
perature between -40°F and 167°F .
2. Distance to empty
HTB011B
tbuk-1a.p65
3/23/04, 2:22 PM
47

1- 48 FEATURES OF YOUR HYUNDAI
HTB014B
MPG = Total Cruise Distance(Miles)
Total Fuel Consumption (G)
4. Average Fuel Consumption
o This mode indicates the average fuel
consumption since the data reset.
o It displays per 10 seconds after you
drive over 0.03 miles and 10 sec-
onds.
o Calculation Method SB220A1-E
MULTI FUNCTION SWITCH
Turn Signal Operation
To signal an intention to turn right, the
switch lever should be pressed down.
To signal an intention to turn left, the
switch lever should be pushed upwards.
In both instances, the turn signal lights
on one side of the car will flash and the
warning light located in the instrument
cluster will flash in sympathy. Upon
completion of the manoeuvre, the lever
will, under normal circumstances, re-
turn to the "Off" position. However, if
the manoeuvre involved only a small
movement of the steering wheel, the
signal may need to be cancelled manu-
ally. If either turn signal indicator flashes
more rapidly than normal or refuses to
flash at all, a malfunction of the turn
signal system may exist. SB220B1-E
Lane Change Signal
To indicate an intention to change lanes,
moving the lever slightly towards the
direction of the relevant turn signal will
cause the turn signal lights to flash.
When the lever is released, it will return
to the "off" position.
HTB018-D
NOTE:
The average fuel consumption is
calculated by the US gallon.
A US gallon is equal to 3.875
litres. And an imperial gallon,
used in Britain, is equal to 4.546
litres.
tbuk-1a.p65 3/23/04, 2:22 PM
48

FEATURES OF YOUR HYUNDAI 1- 53
SB290A02-F
CIGAR LIGHTER
For the cigar lighter to work, the key
must be in the "ACC" or the "ON"
position.
To use the cigar lighter, push the lighter
all the way into its socket. When the
element is heated, the lighter will pop
out into the "ready" position.
Do not hold the cigar lighter at the
depressed position which may result in
damage to the vehicle wiring or an
electrical fire.
HTB097
B400A01TB-AAT
DIGITAL CLOCK HTB095
There is a digital clock control button
built-in right side of the speedometer.
Its functions are:
o Reset : Push the button for more than
1 second.
o Min/Hour Adjustment: Turn to "H"
for 0.5 second to advance the hour
indicated. Turn to "M" for 0.5 sec-
ond to advance the minute indi-
cated.
o Auto mode: Turn to the right or left
side for more than 1 second to ad-
vance fastly. CAUTION:
Don't turn the switch excessively to
prevent switch damage.
!
B360A01Y-GAT
REAR FOG LIGHT SWITCH
To turn on the rear fog lights, push the
switch. They will come on when the
headlight switch is in the second posi-
tion and the key is in the "ON" position. HTB096
tbuk-1a.p65
3/23/04, 2:22 PM
53

FEATURES OF YOUR HYUNDAI 1- 57
2. Insert the hexagonal head wrench
provided with the vehicle into the
socket. This wrench can be found in
the vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close the
sunroof. HGK033B460E01TB-GAT
Resetting the Sunroof System
If the battery has been recharged,
disconnected, if the sunroof is oper-
ated with the hexagonal head wrench
manually, or if the sunroof operation is
stopped by that ignition key is turned to
the "OFF" position while it is moving,
you may need to reset the sunroof.
To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition
switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/down
automatically once for all.
! CAUTION:
If the sunroof is not reset, it may not
be operated properly.
B460D01TB-AAT
Manual Operation of Sunroof
If the sunroof does not electrically op-
erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screw
driver.
tbuk-1a.p65 3/23/04, 2:22 PM
57

1- 68 FEATURES OF YOUR HYUNDAI
!
B560B01O-EAT
AUTO FUEL CUT SWITCH
(Petrol Engine)
The auto fuel cut switch is located on the
driver's side of the engine compartment.
In the event of a collision or sudden
impact, the auto fuel cut device cuts off
the fuel supply. If this device is acti-
vated, it must be reset by pressing in
on the top of the switch before the
engine can be restarted. HTB304
WARNING:
Before resetting the auto fuel cut
switch, the fuel line should be
checked for fuel leaks.
o To use the luggage board with
unfolding, fix it in the luggage
board supporter. There will be an
audible "Click" when the luggage
board fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stop
or an accident. Unfold the lug-
gage board stablely to prevent
cargo damage.
HTB302
CAUTION:
o When you want to enlarge the cargo space, remove the luggage
board from the luggage board
supporter after folding the rear
seat.
o Do not load cargo beyond 66 Lbs
(30kg). It may cause damage to the
luggage board.
HTB301!
