FEATURES OF YOUR HYUNDAI
77
B670C01FC-AAT Air Intake Control This is used to select fresh outside air or recirculating inside air. To change the air intake control mode,(Fresh mode, Recirculation mode) push the control button. FRESH MODE ( ) : The indicator light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ): The indicator light on the button is illumi-nated when the air intake control is recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating in "Recir- culation" mode will give rise to fogging of the windshield and sidewindows and the air within the passenger compartment will be- come stale. In addition, prolongeduse of the air conditioning with the "Recirculation" mode selected may result in the air within thepassenger compartment becom- ing excessively dry.
o When the ignition switch is turned "ON" the air intake control willchange to " " mode (regardless of switch position). This is normaloperation. B670D01GK-EAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air po- sition.
HGK2100
HGK2094

1
FEATURES OF YOUR HYUNDAI
79HEATING CONTROLS

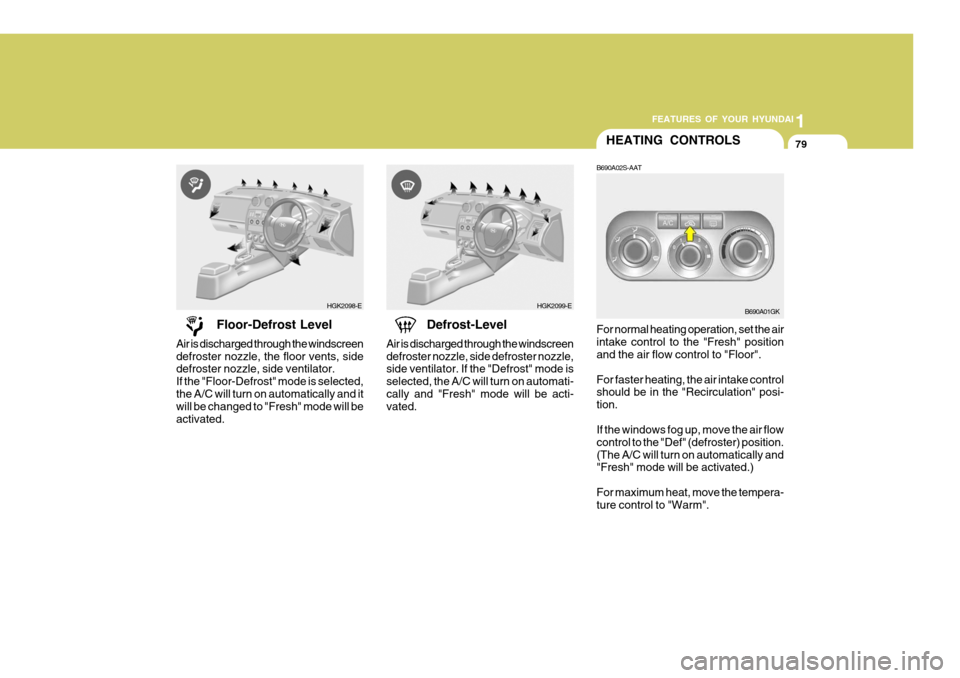

Floor-Defrost Level
Air is discharged through the windscreen defroster nozzle, the floor vents, side defroster nozzle, side ventilator. If the "Floor-Defrost" mode is selected,the A/C will turn on automatically and it will be changed to "Fresh" mode will be activated. Defrost-Level
Air is discharged through the windscreendefroster nozzle, side defroster nozzle, side ventilator. If the "Defrost" mode is selected, the A/C will turn on automati-cally and "Fresh" mode will be acti- vated. B690A02S-AAT For normal heating operation, set the air intake control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" posi- tion. If the windows fog up, move the air flow control to the "Def" (defroster) position.(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tempera- ture control to "Warm".
HGK2098-E
HGK2099-E
B690A01GK

1
FEATURES OF YOUR HYUNDAI
83

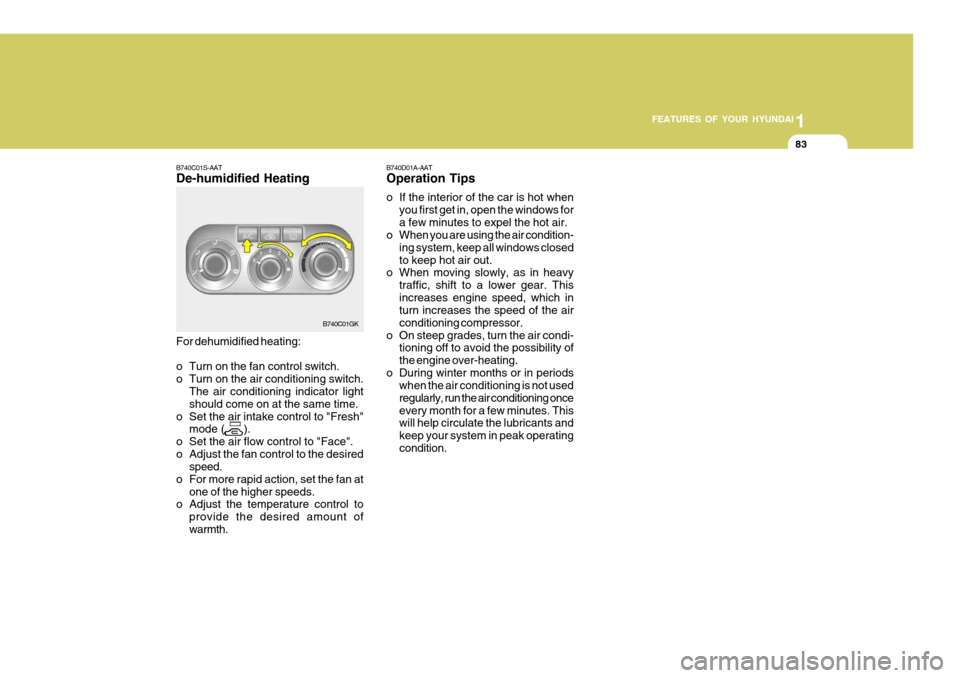

B740C01S-AAT De-humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.
The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to "Fresh" mode ( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to
provide the desired amount ofwarmth. B740D01A-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.
B740C01GK

1FEATURES OF YOUR HYUNDAI
84AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-EAT (Not all models) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. TYPE A (Without Air Quality System)
B970B02GK-EAT Heating and Cooling Controls
1. Temperature Control Button
2. Air Conditioning Switch
3. Display Window
4. Fan Speed Control Switch
5. Air Flow Control Switch
6. AUTO (Automatic Control)Switch
7. Defroster Switch
8. OFF Switch
9. Air lntake Control Switch
10. Ambient Temperature Switch
11. Rear Window Defroster Switch
12. Air Quality System Switch (Not all models) TYPE B (With Air Quality System)
HGK2101
HGK2102

1
FEATURES OF YOUR HYUNDAI
87
B980B01Y-AAT Fan Speed Control Switch The fan speed can be set to the desired speed by pressing the appropriate fan speed control button. The higher the fanspeed is, the more air is delivered. Pressing the "OFF" button turns off the fan. B670C01GK-EAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE ( ) : The indicator light on the button goes on when the air intake control is fresh mode. RECIRCULATION MODE ( ) : The indicator light on the button is illumi- nated when the air intake control isrecirculation mode.With the "Fresh" mode selected, airenters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, and air from within the passenger com- partment will be drawn through the heat-ing system and heated or cooled ac- cording to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating system in "recirculation" mode will give rise to fogging of the windscreen andside windows and the air within the passenger compartment will become stale. In addition, pro-longed use of the air conditioning with the "Recirculation" mode se- lected may result in the air withinthe passenger compartment be- coming excessively dry.
HGK2104
HGK2110-1

1FEATURES OF YOUR HYUNDAI
88
o When the ignition switch is turned
"ON" the air intake control will change to " " mode (regardless of switch position). It is normal operation. The air intake control isoperated in "AUTO" mode when turning the ignition to the ON po- sition if the "AUTO" mode wasused before shutting off the en- gine. B980C01GK-EAT Air Intake Control Switch (With A.Q.S) (Not all models) This is used to select fresh outside air or recirculate inside air automatically.
: OFF
:ON
Fresh mode :
Air enters the vehicle from the outsideand is heated or cooled according to thefunction selected. Recirculation mode :
Air from within the passenger compart-ment will be drawn through the heatingsystem and heated or cooled according to the function selected.
Exhaust gas cutoff mode :
Air enters the vehicle from the outside. But if exhaust gas enters the vehiclefrom the outside, the exhaust gas cut- off mode ( ) is automatically converted to the mode, toprevent exhaust gas from entering the vehicle. NOTE:
o It should be noted that prolonged operation of the heating system in recirculation mode ( ) will give rise to misting of thewindscreen and side windows and the air within the passenger com- partment will become stale. Inaddition, prolonged use of the air conditioning with the recircula- tion mode ( ) selected mayresult in the air within the passen- ger compartment becoming ex- cessively dry.
HGK2110

1
FEATURES OF YOUR HYUNDAI
89
!
o When the ignition switch is turned
"ON" the air intake control will change to "Fresh" mode (regard- less of switch position). It is nor- mal operation. The air intake con-trol is operated in "AUTO" mode when turning the ignition to the ON position if the "AUTO" modewas used before shutting off the engine.
CAUTION:
If the windows fog up with the Recir- culation or A.Q.S mode selected, setthe air intake control to the Fresh air position or A.Q.S control to "OFF". B980D01Y-AAT Heating and Cooling System Off Press the "OFF" button to stop the operation of the heating and coolingsystem. B980E01GK-EAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Four symbols are used to represent Face, Bi-Level,Floor and Floor-Defrost air position.
Face-Level
When selecting the "Face" mode, the indicator light will come on, causing air to be discharged through the face levelvents.
HGK2105 HGK2095-E
