2004 HONDA ELEMENT check engine

Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using the proper starting
procedure? Ref er to on page . Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working.
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page .
66
124 196
195
T he Starter Operates Normally
Starting the
Engine Emergency
Towing
If theEngineWon’tStart
T aking Care of t he Unexpect ed187
—
—y

y
(+
y
y

µ
´
´ Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine. If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your vehicle. If the starter
motor still operates slowly, check
the jumper cable connections to
make sure they have good metal-
to-metal contact.
Once your vehicle is running,
disconnect the negative cable f rom
your vehicle, then f rom the
booster battery. Disconnect the
positive cable f rom your vehicle,
then from the booster battery.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until all are
disconnected. Otherwise, you may
cause an electrical short.
3.
4. 5. 6. 7.
Jump Starting
T aking Care of t he Unexpect ed189
—
—y
y
(+
y
y

Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (seeon page ).
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page ). Using gloves or large heavy cloth,
turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off. Start the engine, and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge or lower
bef ore checking the radiator. 9.
8.
7.
6.
5.
11.
10.
195
113
195
Emergency
Towing
Emergency
Towing
If theEngineOverheats
T aking Care of t he Unexpect ed191
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
—
—y
y
(+
y
y

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
This light should never
come on when the engine is
running. If it starts f lashing or stays
on, the oil pressure has dropped very
low. Serious engine damage is
possible and you should take
immediate action. Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning lights.
Start the engine, and watch the oil
pressure light. If it does not go out
within ten seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving.
(See on page
).
1. 2. 4.
3. 113
157
195
L ow Oil Pressure Indicator
Emergency T owingCharging System Indicator
L ow Oil Pressure Indicator, Charging System Indicator
T aking Care of t he Unexpect ed192
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
—
—y

y
(+
y
y

To check if they are set, turn the
ignition to ON (II), without starting
the engine. The Malf unction
Indicator Lamp will come on f or 20
seconds. If it then goes of f , the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle f or a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more inf ormation, on page .
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. Tighten the cap until it
clicks at least three times.
Tightening the cap will not turn the
indicator of f immediately; it takes at
least three days of normal driving. If the indicator comes on repeatedly,
even though it may turn of f as you
continue driving, have the vehicle
checked by the dealer as soon as
possible.
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed. 212
Malf unct ion Indicat or L amp
T aking Care of t he Unexpect ed
Readiness Codes
193
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties.
—
—y

y
(+
y
y

Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box.
If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses and check if the device
works.

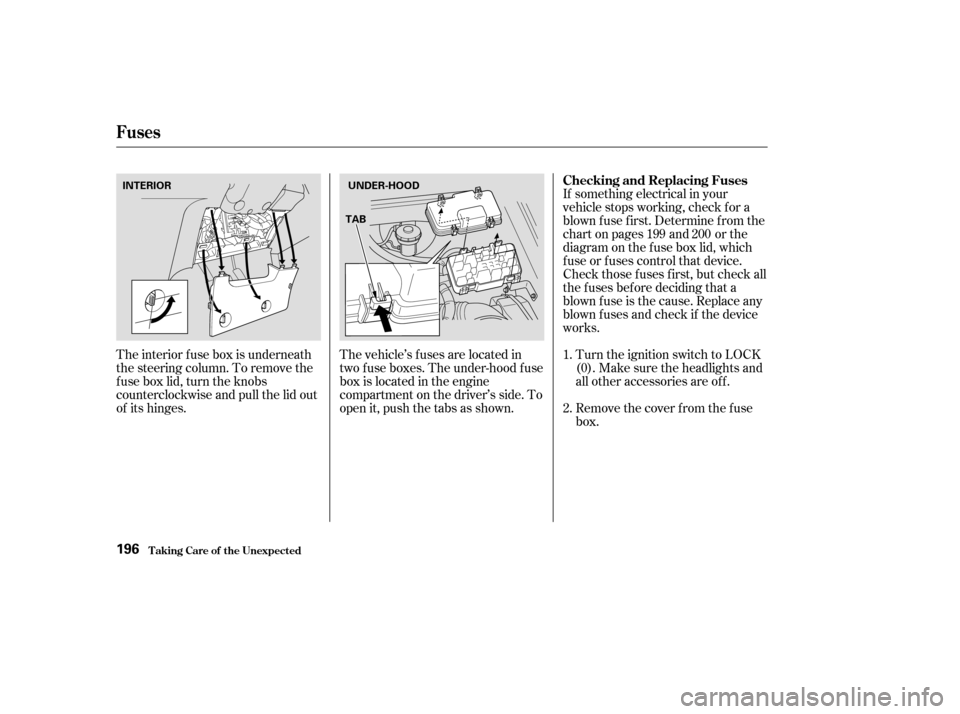

The vehicle’s f uses are located in
two f use boxes. The under-hood f use
box is located in the engine
compartment on the driver’s side. To
open it, push the tabs as shown.
The interior f use box is underneath
the steering column. To remove the
f use box lid, turn the knobs
counterclockwise and pull the lid out
of its hinges. 1. 2.199 200
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed196
TAB
INTERIOR
UNDER-HOOD
—
—y
y
(+
y
y

µµ
µ
( % ) $
%."#)
This manual covers maintenance and recommended
procedures f or repair to engine and chassis components.
It is written f or the journeyman mechanic, but is simple
enough f or most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damaged body parts.
This manual complements the Service Manual by
providing in-depth troubleshooting inf ormation f or each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
218 NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card VISA Check here if your billing address is different
from the shipping address shown above.
Account Number Expiration: Mo. Yr.
CUSTOMER SIGNATURE DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
—
—y

y
(+
yy

CONT INUED
BatteryCharging System ...........................
Indicator . 54, 192
............................
Jump Starting . 188
..............................
Maintenance . 177
............................
Specif ications . 205
..............................
Bef ore Driving . 109
....................................
Belts,Seat .8,19
...........................
Beverage Holders . 87
...................................
Body Panels . 165
..................................
Booster Seats . 45
Brakes
...........
Anti-lock System (ABS) . 133
.............
Break-in, New Linings . 110
....................
Bulb Replacement . 166 ...........................................
Fluid . 164
.........................................
Parking . 83
.................
System Indicator . 54, 194
........................
Wear Indicators . 133
.............................
Braking System . 132
.................
Break-in, New Vehicle . 110
..
Brightness Control, Instruments . 63
........................
Brights, Headlights . 62
Bulb Replacement
..........................
Back-up Lights . 169
..............................
Brake Lights . 169
................
Front Parking Lights . 167
........
Front Side Marker Lights . 168
.................................
Headlights . 166
............................
Specif ications . 205
....................
Turn Signal Lights . 167
..............................
Bulbs, Halogen . 166
............................
Capacities Chart . 204
.............
Carbon Monoxide Hazard . 48
..............................................
Cargo . 117
........................
Cargo, . 117
...
Accessories and Modif ications . 115
................................
Accessories . 115
............................
Modif ications . 116
ACCESSORY (Ignition Key .......................................
Position) . 69
..............
Accessory Power Sockets . 87
....................
Additives, Engine Oil . 157
.............................
Airbag (SRS) . 10, 22
................
Air Conditioning System . 91
............................................
Usage . 91
.........................
Air Outlets (Vents) . 92
.......................
Air Pressure, Tires . 172
.........................
Normal Driving . 173
......................................
Antif reeze . 160
Anti-lock Brakes (ABS)
...............................
Indicator . 55, 134
...................................
Operation . 133
..............
Anti-thef t, Audio System . 104
.
Anti-thef t Steering Column Lock . 69
......................
Armrests, Front Seat . 74
..................................
Audio System . 94
...
Automatic Seat Belt Tensioners . 20
.............
Automatic Speed Control . 107 ..............
Automatic Transmission . 127
..........................
Capacity, Fluid . 204
...............
Checking Fluid Level . 162
.......................................
Shif ting . 127
.
Shif t Lever Position Indicator . 127
................
Shif t Lever Positions . 127
....................
Shif t Lock Release . 130
......................
Auxiliary Input Jack . 106
how to carry
Index
A
B C
I
—
—y
y
(+
yy
