2004 HONDA CR-V dashboard

Turn this dial clockwise to increase
fan speed and increase the airflow.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode).The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Air f low is divided between
the vents in the dashboard and the
f loor vents.
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes. 66
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button
Rear Window Def ogger Button
Mode Control Dial
Comf ort and Convenience Feat ures
Air Flow Buttons
99

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator does not come
on.
Select .
Set the f an and temperature
controls to maximum level.
Select to help clear the
rear window.
1.
2.
3.
4. 1.
2.
3.
4.
Vents, Heating, and A/C
Dehumidif y the Interior
T o Remove Exterior Frost or Ice
From the Windows
Comf ort and Convenience Feat ures101

Park with the driver’s side closest
to the gas pump.
Open the f uel f ill door by pulling
on the handle located under the
lower lef t corner of the dashboard.Screw the f uel f ill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the f uel f ill door closed until
it latches. even though the tank is not f ull,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
f uel vapors f rom going into the
atmosphere. Consult your dealer.
Stop f illing the tank af ter the f uel
nozzle automatically clicks of f . Do
not try to ‘‘top off’’ the tank. Leave
some room f or the f uel to expand
with temperature changes. Remove the f uel f ill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
1.
2.
3.
4.5.
6.
214
If the f uel nozzle keeps clicking of f
Service Station Procedure
Bef ore Driving
Fueling
125
Pull
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.

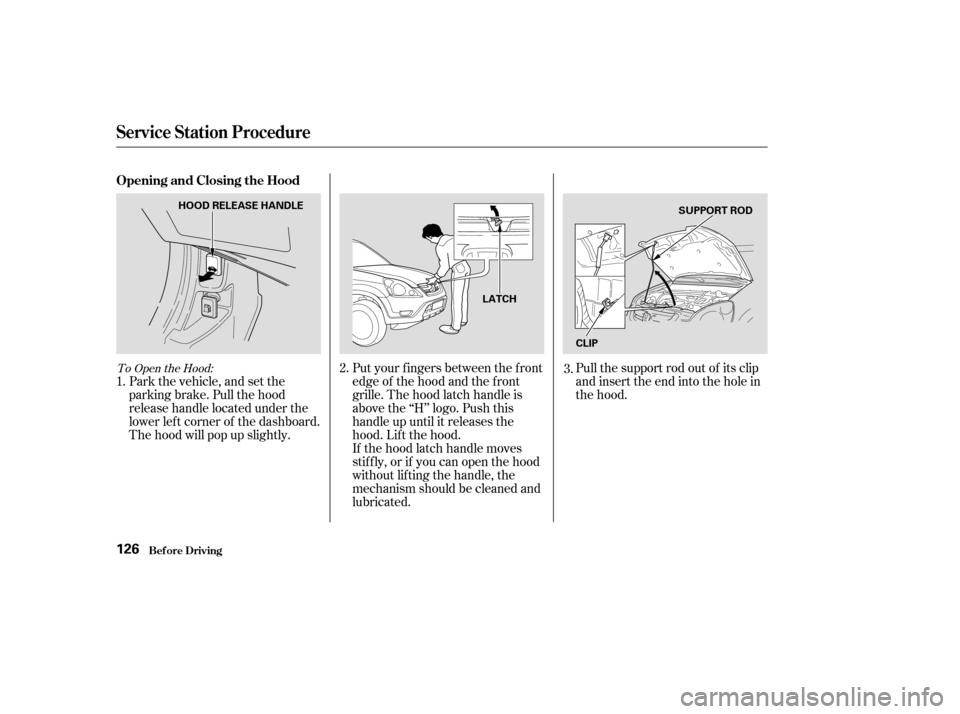

To Open the Hood:
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.Put your f ingers between the f ront
edge of the hood and the f ront
grille. The hood latch handle is
above the ‘‘H’’ logo. Push this
handle up until it releases the
hood. Lif t the hood.
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.Pull the support rod out of its clip
and insert the end into the hole in
the hood.
1. 2.
3.
Service Station Procedure
Bef ore Driving
Opening and Closing the Hood
126
HOOD RELEASE HANDLE
LATCHSUPPORT ROD
CLIP

ÎÎ
Your vehicle has several convenient
storage areas:
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages.Roof -rack (if installed) Cargo area Seat-back pockets
Door pockets Tailgate pockets
Glove box
Dashboard pocket
Storage box
Center pocket
Carrying Cargo
Bef ore Driving132
DOOR POCKETS
SEAT-BACK
POCKETS GLOVE BOX
A/T model only TAILGATE POCKETS
STORAGE BOX
DASHBOARD POCKET
CARGO AREA CENTER POCKET

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation224
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

Î
................
DANGER, Explanation of . ii
...................................
Dashboard .2, 54
Daytime Running Lights .......................................
Indicator .58
.................................
Dead Battery .209
............
Def ects, Reporting Saf ety . 240
..........................
Def og and Def rost .99
................
Def ogger, Rear Window . 66
..............
Def rosting the Windows . 101
.........................
Detachable Anchor .84
....................................
Dimensions .226
...............
Dimming the Headlights . 65
Dipstick ..........
Automatic Transmission . 179
..................................
Engine Oil .127
..........................
Directional Signals .65
........
Disc Brake Wear Indicators . 148
.....................
Disposal of Used Oil .175
Doors ..............
Locking and Unlocking . 72
......................
Power Door Locks .72
..........
DOT Tire Quality Grading . 229
Downshif ting, 5-speed Manual
.............................
Transmission .139
..............................................
Cargo .132
........................
Cargo, .132
Cassette Player ............................................
Care .116
...................................
Operation .114
..............
CAUTION, Explanation of . ii
.........................................
CD Care .111
...................................
CD Changer .110
.......................
CD Error Message .112
.......
CD Changer Error Message . 113
.......................................
CD Player .109
.................................
Center Pocket .93
....................................
Center Table .94
........................
Certif ication Label .224
...................................
Chains, .194
....................
Changing a Flat Tire .200
.................................
Changing Oil .174
........................................
How to .174
......................................
When to .165
...
Charging System Indicator . 56,213
............
Checklist, Bef ore Driving . 137
.....................................
Child Saf ety .30
...................................
Child Seats .39
.......
Important Saf ety Reminder . 30
..........................................
Inf ants .36
............................
Large Children .46 .........................................
LATCH .40
...........................
Lower Anchors .41
......................
Risks with Airbags .31
.............................
Small Children .38
.........................................
Tethers .41
............
Tether Anchorage Point . 46
............
Where Should Child Sit? . 31
..................
Childproof Door Locks . 72
..............................................
Clock .118
.........................
Clock, Setting the .118
...................................
Clutch Fluid .181
........................
CO in the Exhaust .233
............
Cold Weather, Starting in . 138
...............
Consumer Inf ormation . 238
.............
Controls, Instruments and . 53
Coolant ........................................
Adding .176
....................................
Checking .128
.........................
Proper Solution .176
...................
Temperature Gauge . 62
Crankcase Emissions Control ........................................
System .231
................
Cruise Control Indicator . 58
............
Cruise Control Operation . 120
.....................................
Cup Holders .92
.............
Customer Service Of f ice . 238
how to carry
tires
Index
D
II
