2004 FORD MUSTANG trunk

MACH460 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
MACH1000 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
Your vehicle may be equipped with theMACH
1000audio system. This system is equipped with a
rack of amplifiers and subwoofers in the trunk of the
vehicle. Do not store or rest items on the amplifier
rack, as this could cause damage to the amplifiers
and void your warranty.
TheMACH 1000audio system is capable of
producing very high sound pressure levels. For your
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
25

4.MACH(MACH 1000
only): Press to engage
MACH 1000 mode.
MACH 1000 mode enhances acoustic sound for all
seating locations and increases the signal to the
trunk mounted speakers and amplifiers for enhanced
bass performance. Press again to return to
previously set occupancy mode.
Mute:(MACH 460
only): Press to mute
the playing media.
5.Eject:Press EJ and
choose the
corresponding preset
(1–6) to eject the desired CD. Press and hold to
eject all loaded discs.
6.Bass:Press BASS;
then press
SEL
/to
decrease/increase the bass output.
Treble:Press TREB;
then press
SEL
/to
decrease/increase the treble output.
7.Select:Use with
Bass, Treble, Balance
and Fade controls to
adjust levels.
8.Balance:Press BAL;
then press
SEL
/to shift
sound to the left/right speakers.
Fade:Press FADE;
then press
SEL
/to shift
sound to the front/rear speakers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
27

Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the OFF
position and open the hood.
2. At the back of the
headlamp, pull two
retainer pins up to
release the headlamp
assembly.
3. Pull headlamp
assembly forward and
rotate the bulb socket
counterclockwise and remove from lamp assembly.
4. Pull the bulb straight
out from the socket
and push in the new
bulb.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open the trunk.
2. Inside trunk, locate
access hole under the
rear decklid.
3. Rotate the bulb
socket
counterclockwise and
pull it out of the lamp assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
41

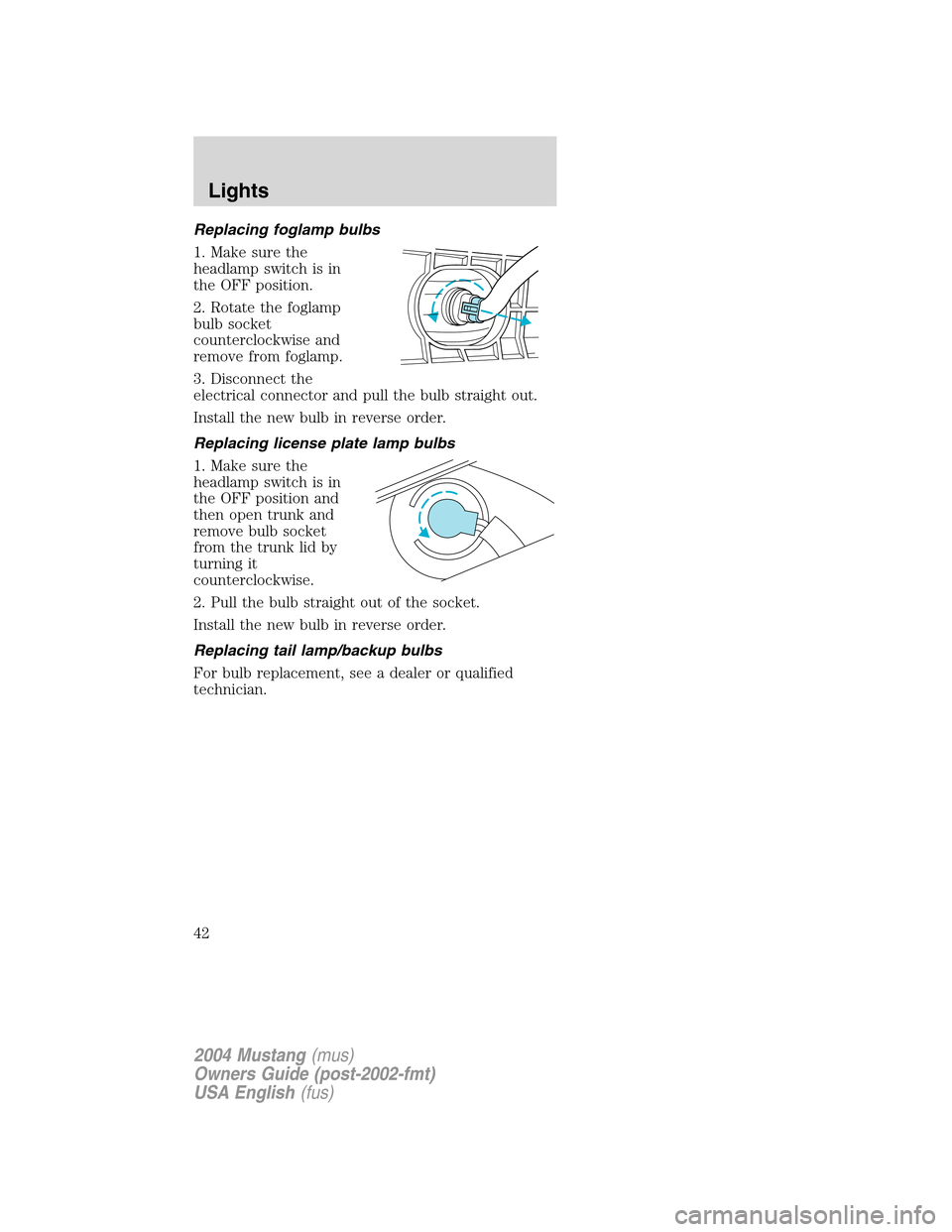

Replacing foglamp bulbs
1. Make sure the
headlamp switch is in
the OFF position.
2. Rotate the foglamp
bulb socket
counterclockwise and
remove from foglamp.
3. Disconnect the
electrical connector and pull the bulb straight out.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open trunk and
remove bulb socket
from the trunk lid by
turning it
counterclockwise.
2. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing tail lamp/backup bulbs
For bulb replacement, see a dealer or qualified
technician.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
42

A driver’s first responsibility is the safe
operation of the vehicle. The most important
thing you can do to prevent a crash is to avoid
distractions and pay attention to the road. Wait
until it is safe to operate Mobile Communications
Equipment.
POSITIVE RETENTION FLOOR MAT
(IF EQUIPPED)
Position the floor mat so
that the eyelet is over the
pointed end of the
retention post and rotate
forward to lock in. Make
sure that the mat does not
interfere with the operation
of the accelerator or the
brake pedal. To remove the
floor mat, reverse the installation procedure.
INTERIOR TRUNK CONTROL
The remote trunk release control is located in the
glove compartment. Press to open trunk.
CONVERTIBLE (IF EQUIPPED)
Do not store articles behind rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered.
Lowering the convertible top
The convertible top can be lowered with the side
windows either up or down.
The convertible topwill not operateunless the
parking brake is engaged. Do not lower the top while
the vehicle is moving because the top may be
severely damaged. Also, do not lower the top when
the top material is wet.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
50

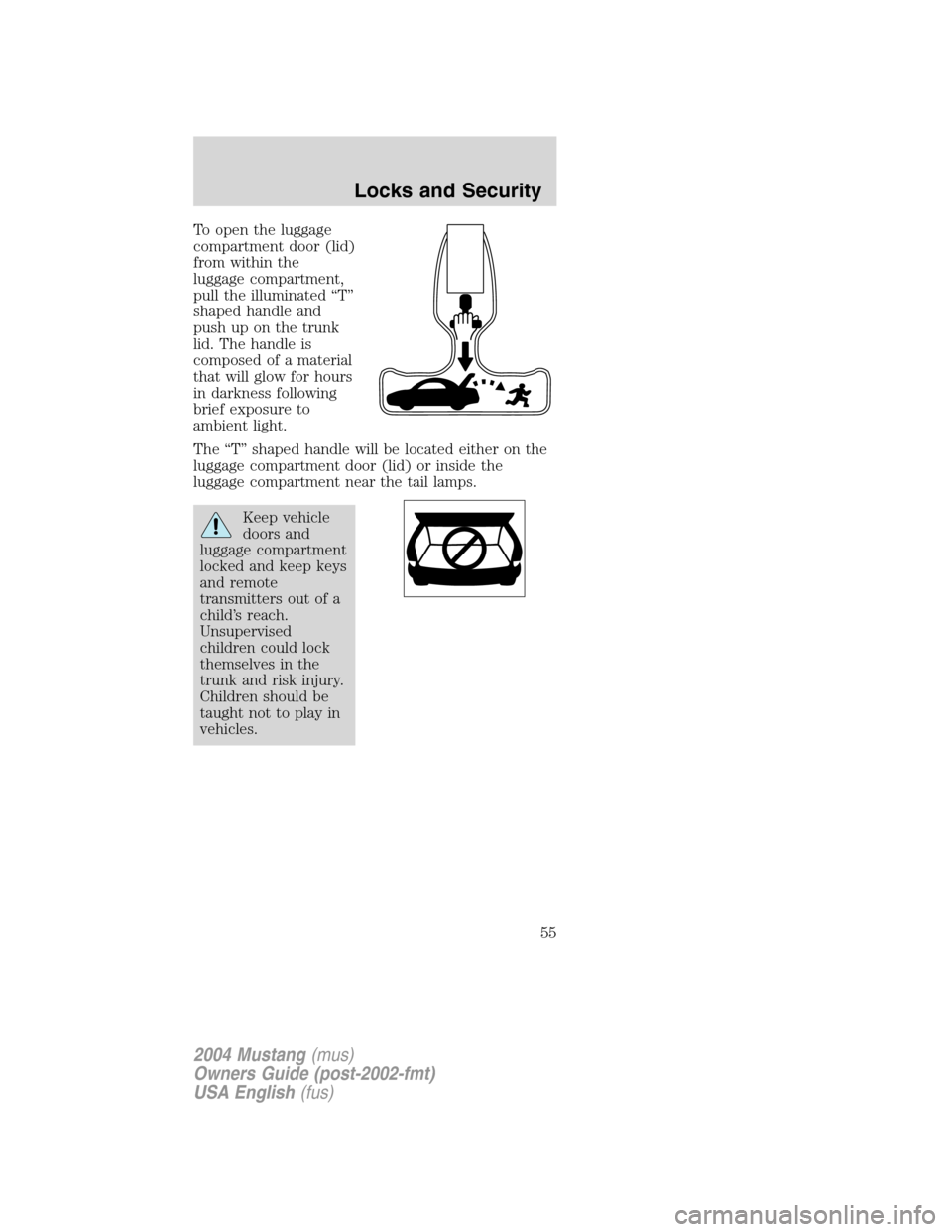

To open the luggage
compartment door (lid)
from within the
luggage compartment,
pull the illuminated“T”
shaped handle and
push up on the trunk
lid. The handle is
composed of a material
that will glow for hours
in darkness following
brief exposure to
ambient light.
The“T”shaped handle will be located either on the
luggage compartment door (lid) or inside the
luggage compartment near the tail lamps.
Keep vehicle
doors and
luggage compartment
locked and keep keys
and remote
transmitters out of a
child’s reach.
Unsupervised
children could lock
themselves in the
trunk and risk injury.
Children should be
taught not to play in
vehicles.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
55

On hot days, the temperature in the trunk
or vehicle interior can rise very quickly.
Exposure of people or animals to these high
temperatures for even a short time can cause
death or serious heat-related injuries, including
brain damage. Small children are particularly at
risk.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules
and with RS-210 of Industry Canada. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
Your vehicle is equipped with a remote entry system
which allows you to:
•unlock the vehicle
doors without a key.
•lock all the vehicle
doors without a key.
•activate the personal
alarm.
•release the decklid.
These features will not operate when the ignition is
in the RUN or START position.
If there is any potential remote keyless entry
problem with your vehicle, ensureALL remote
entry transmittersare taken to the dealership, to
aid in troubleshooting.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
56

Unlocking the doors
1. Pressand release to unlock the driver’s door.
Note:The interior lamps will illuminate.
2. Press
and release again within three seconds
to unlock the passenger door.
Locking the doors
1. Pressand release to lock all the doors.Note:
The interior lamps will turn off (unless the dome
lamp control is in the full-up position), and the
headlamps and parking lamps will flash.
2. Press
and release again within three seconds
to confirm that all the doors are closed and locked.
Note:The doors will lock again, the horn will chirp
once and the headlamps and parking lamps will
flash.
If any of the doors are not properly closed the horn
will make two quick chirps.
Sounding a panic alarm
Press
to activate the alarm. The horn will
sound for a maximum of 30 seconds and the
parklamps will flash for a maximum of 3 minutes.
Press again or turn the ignition to ON to deactivate,
or wait for the alarm to timeout in 3 minutes.
Note:The panic alarm will only operate when the
ignition is in the OFF or ACC position.
Opening the trunk
Pressonce to open the trunk.
•Ensure that the trunk is closed and latched before
driving your vehicle. Failure to properly latch the
trunk may cause objects to fall out or block the
driver’s rear view.
Replacing the battery
The remote entry transmitter uses one coin type
three-volt lithium battery CR2032 or equivalent. The
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
57
