2004 FORD E-150 engine

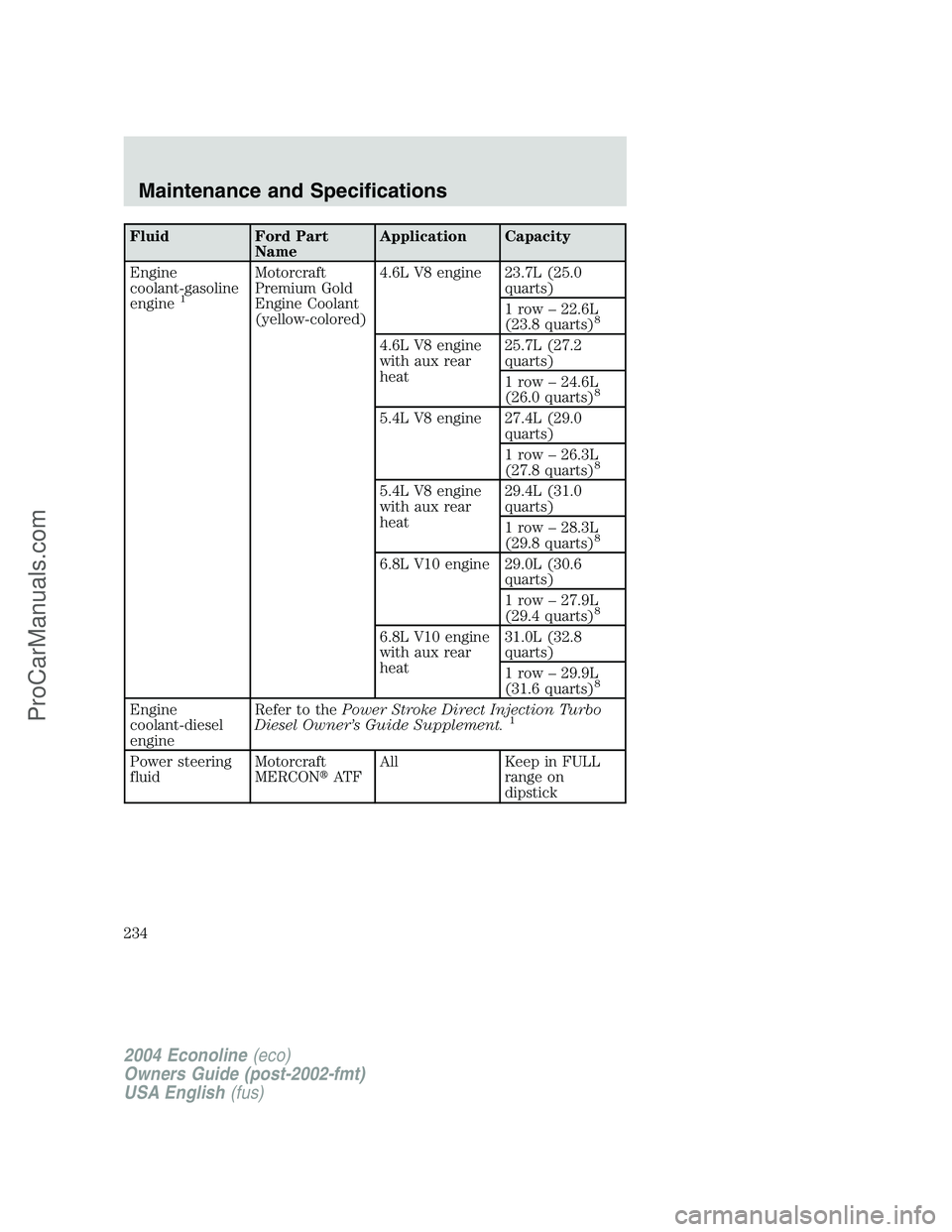

Fluid Ford Part
NameApplication Capacity
Engine
coolant-gasoline
engine
1
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.6L V8 engine 23.7L (25.0
quarts)
1 row–22.6L
(23.8 quarts)
8
4.6L V8 engine
with aux rear
heat25.7L (27.2
quarts)
1 row–24.6L
(26.0 quarts)
8
5.4L V8 engine 27.4L (29.0
quarts)
1 row–26.3L
(27.8 quarts)
8
5.4L V8 engine
with aux rear
heat29.4L (31.0
quarts)
1 row–28.3L
(29.8 quarts)
8
6.8L V10 engine 29.0L (30.6
quarts)
1 row–27.9L
(29.4 quarts)
8
6.8L V10 engine
with aux rear
heat31.0L (32.8
quarts)
1 row–29.9L
(31.6 quarts)
8
Engine
coolant-diesel
engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.1
Power steering
fluidMotorcraft
MERCONAT FAll Keep in FULL
range on
dipstick
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
234
ProCarManuals.com

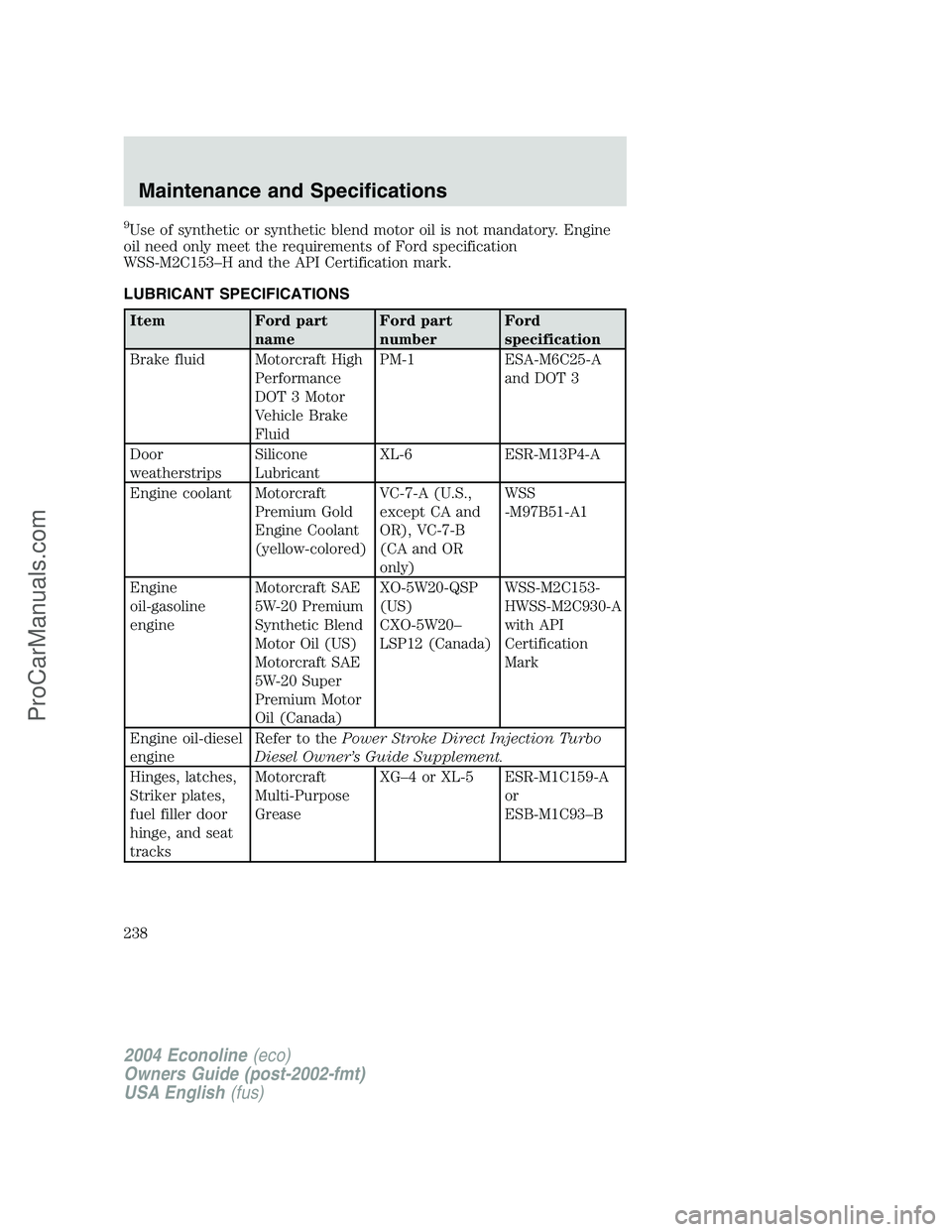

9Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B
(CA and OR
only)WSS
-M97B51-A1
Engine
oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–
LSP12 (Canada)WSS-M2C153-
HWSS-M2C930-A
with API
Certification
Mark
Engine oil-diesel
engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates,
fuel filler door
hinge, and seat
tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
238
ProCarManuals.com

1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourScheduled Maintenance Guideto determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Visteon
Traction-Lok rear axles.
3Add 237 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Dana Limited Slip rear axles.
ENGINE DATA
Engine*4.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition
systemCoil on plug Coil on plug Coil on plug
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor diesel engine information.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
241
ProCarManuals.com

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 36,000 miles (60,000 km)(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Sliding rear windows - manual and power
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
248
ProCarManuals.com

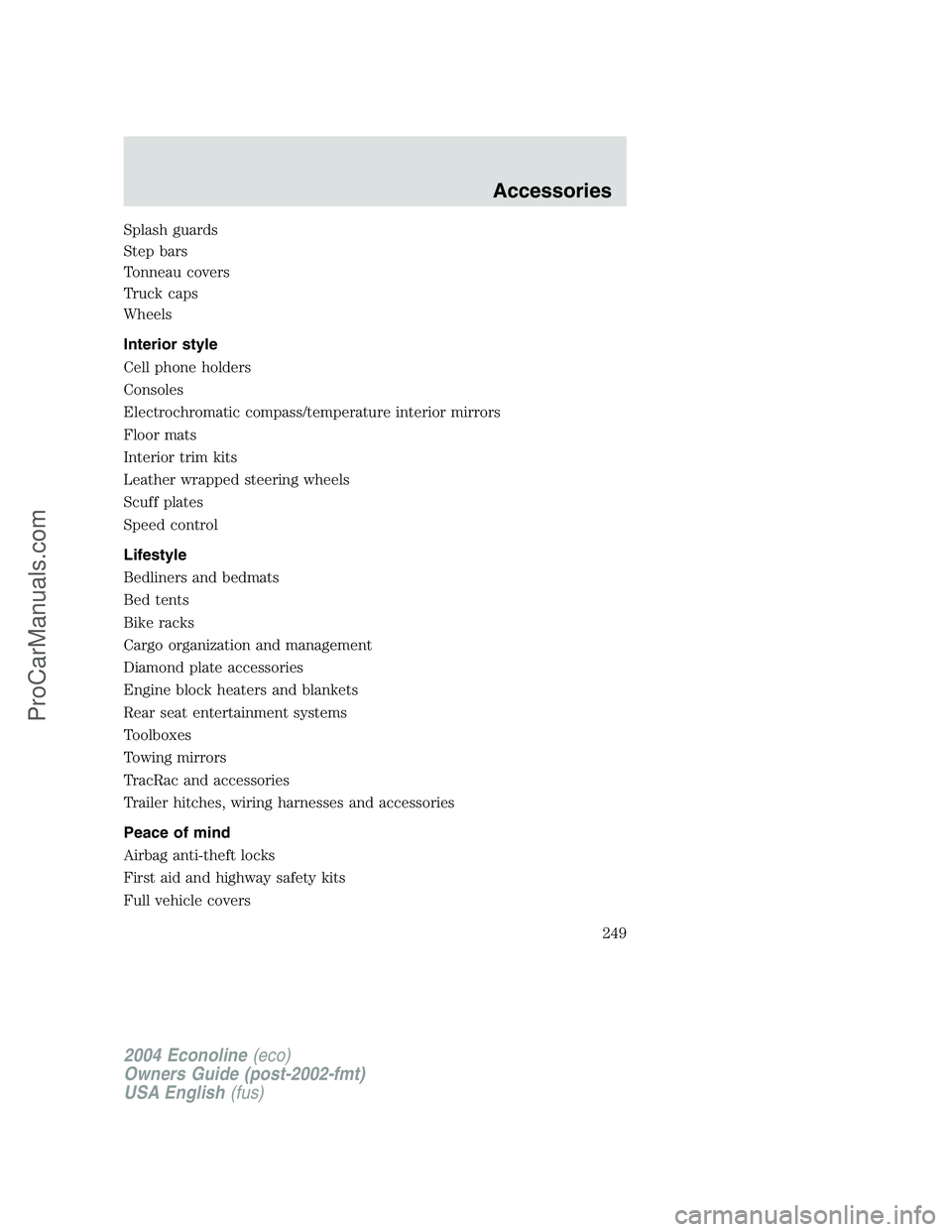

Splash guards
Step bars
Tonneau covers
Truck caps
Wheels
Interior style
Cell phone holders
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Cargo organization and management
Diamond plate accessories
Engine block heaters and blankets
Rear seat entertainment systems
Toolboxes
Towing mirrors
TracRac and accessories
Trailer hitches, wiring harnesses and accessories
Peace of mind
Airbag anti-theft locks
First aid and highway safety kits
Full vehicle covers
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
249
ProCarManuals.com

A
Accessory delay ..........................70
Air bag supplemental
restraint system ..................96, 101
and child safety seats ..............98
description ........................96, 101
disposal ....................................100
driver air bag ............................98
indicator light .........................100
operation ...................................98
passenger air bag .....................98
Air cleaner filter .......216–217, 232
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................196
Anti-lock brake system
(see Brakes) ..............................120
Audio system
(see Radio) ................18, 20, 22, 25
Automatic transmission
driving an automatic
overdrive .........................124, 127
fluid, adding ............................213
fluid, checking ........................213
fluid, refill capacities ..............233
fluid, specification ..................241
Auxiliary power point .................69
Axle
lubricant specifications ..238, 241
refill capacities ........................233
traction lok ..............................122
B
Battery .......................................194
acid, treating emergencies .....194
jumping a disabled battery ....166
maintenance-free ....................194replacement, specifications ...232
servicing ..................................194
BeltMinder ...................................91
Brakes ........................................120
anti-lock ...................................120
anti-lock brake system
(ABS) warning light ...............120
fluid, checking and adding ....213
fluid, refill capacities ..............233
fluid, specifications .........238, 241
lubricant specifications ..238, 241
parking ....................................121
shift interlock ..........................123
Break-in period .............................5
Bulbs ............................................60
C
Calculating load ........................133
Capacities for refilling fluids ....233
Cell phone use ............................69
Child safety restraints ..............102
child safety belts ....................102
Child safety seats ......................104
in front seat ............................106
in rear seat ..............................106
tether anchorage hardware ...108
Cleaning your vehicle
engine compartment ..............183
exterior ....................................186
instrument panel ....................185
interior .....................................185
interior trim ............................185
plastic parts ............................184
safety belts ..............................185
washing ....................................182
waxing .....................................182
wheels ......................................183
wiper blades ............................184
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
251
ProCarManuals.com

Climate control (see Air
conditioning or Heating) ......52, 54
Clock adjust
6-CD in dash .............................27
AM/FM .......................................19
AM/FM/CD .................................23
AM/FM/Tape
..............................20
Compass, electronic
....................67
calibration
.................................68
set zone adjustment
.................68
Console
overhead
....................................66
Controls
power seat
.................................81
Coolant
checking and adding
..............196
refill capacities
................200, 233
specifications
..................238, 241
Cruise control
(see Speed control)
....................72
Customer Assistance
................146
Ford accessories for your
vehicle
.....................................186
Ford Extended Service
Plan
..........................................175
Getting assistance outside
the U.S. and Canada
..............179
Getting roadside assistance
...146
Getting the service
you need
.................................173
Ordering additional owner’s
literature
.................................180
The Dispute Settlement
Board
.......................................175
Utilizing the Mediation/
Arbitration Program
...............178D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..........................................213
engine oil .................................191
Doors
lubricant specifications ..........238
Driveline universal joint and
slip yoke ....................................213
Driving under special
conditions ..................................127
through water .........................129
E
Emergencies, roadside
jump-starting ..........................166
Emergency Flashers .................147
Emission control system ..........209
Engine ................................241–242
cleaning ...................................183
coolant .....................................196
diesel ...........................................7
fail-safe coolant ......................201
idle speed control ...................194
lubrication
specifications ..................238, 241
refill capacities ........................233
service points ..........................190
starting after a collision .........147
Engine block heater .................119
Engine oil ..................................191
checking and adding ..............191
dipstick ....................................191
filter, specifications ........193, 232
recommendations ...................193
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
252
ProCarManuals.com

K
Keys
positions of the ignition .........116
L
Lamps
bulb replacement
specifications chart ..................60
daytime running light ...............55
headlamps .................................55
headlamps, flash to pass ..........56
instrument panel, dimming .....56
interior lamps ...........................59
replacing bulbs ...................60–64
Lane change indicator
(see Turn signal) ........................59
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........120
Load limits .................................130
Loading instructions .................133
Lubricant specifications ...238, 241
Lug nuts ....................................165
Lumbar support, seats ...............81
M
Mirrors
fold away ...................................71
side view mirrors (power) .......70
Motorcraft parts ................206, 232
O
Octane rating ............................205
Oil (see Engine oil) ..................191
P
Parking brake ............................121Parts (see Motorcraft parts) ....232
Power distribution box
(see Fuses) ...............................153
Power door locks ........................75
Power mirrors .............................70
Power point .................................69
Power steering ..........................121
fluid, checking and adding ....212
fluid, refill capacity ................233
fluid, specifications .........238, 241
Power Windows ...........................70
Preparing to drive
your vehicle ...............................122
R
Radio ..........................18, 20, 22, 25
Rear seat entertainment
system ..........................................30
Relays ................................149, 156
Remote entry system
illuminated entry ................55, 79
locking/unlocking doors ...........75
Roadside assistance ..................146
S
Safety Belt Maintenance ............95
Safety belts (see
Safety restraints) ............86–88, 90
Safety defects, reporting ..........181
Safety restraints ....................86–90
belt minder ...............................91
extension assembly ..................95
for adults .............................87–88
for children .....................100, 102
lap belt ......................................90
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
254
ProCarManuals.com
