2004 CHRYSLER VOYAGER relay

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY
CAV CIRCUIT FUNCTION
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL FUSED IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 - -
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/DG SCI TRANSMIT (ECM)
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W-80-69

EVAP/PURGE SOLENOID (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K52 18DB/WT EVAP PURGE CONTROL
2 K70 18DB/BR EVAP PURGE RETURN
EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
FLOOR CONSOLE LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M27 18OR (FRONT POSITION) READING LAMPS DRIVER
1 F307 18OR (REAR POSITION/ACCES-
SORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 18OR (REAR POSITION/BATTERY
POSITION)FUSED B(+)
2 Z746 16BK (FRONT POSITION) GROUND
2 Z747 16BK (REAR POSITION) GROUND
FLOOR CONSOLE POWER OUTLET- RED 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16RD (FRONT POSITION) FUSED B(+)
1 F307 16RD (REAR POSITION/ACCES-
SORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 16RD (REAR POSITION/BATTERY
POSITION)FUSED B(+)
2- -
3 Z746 16BK (FRONT POSITION) GROUND
3 Z747 16BK (REAR POSITION) GROUND
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSRS

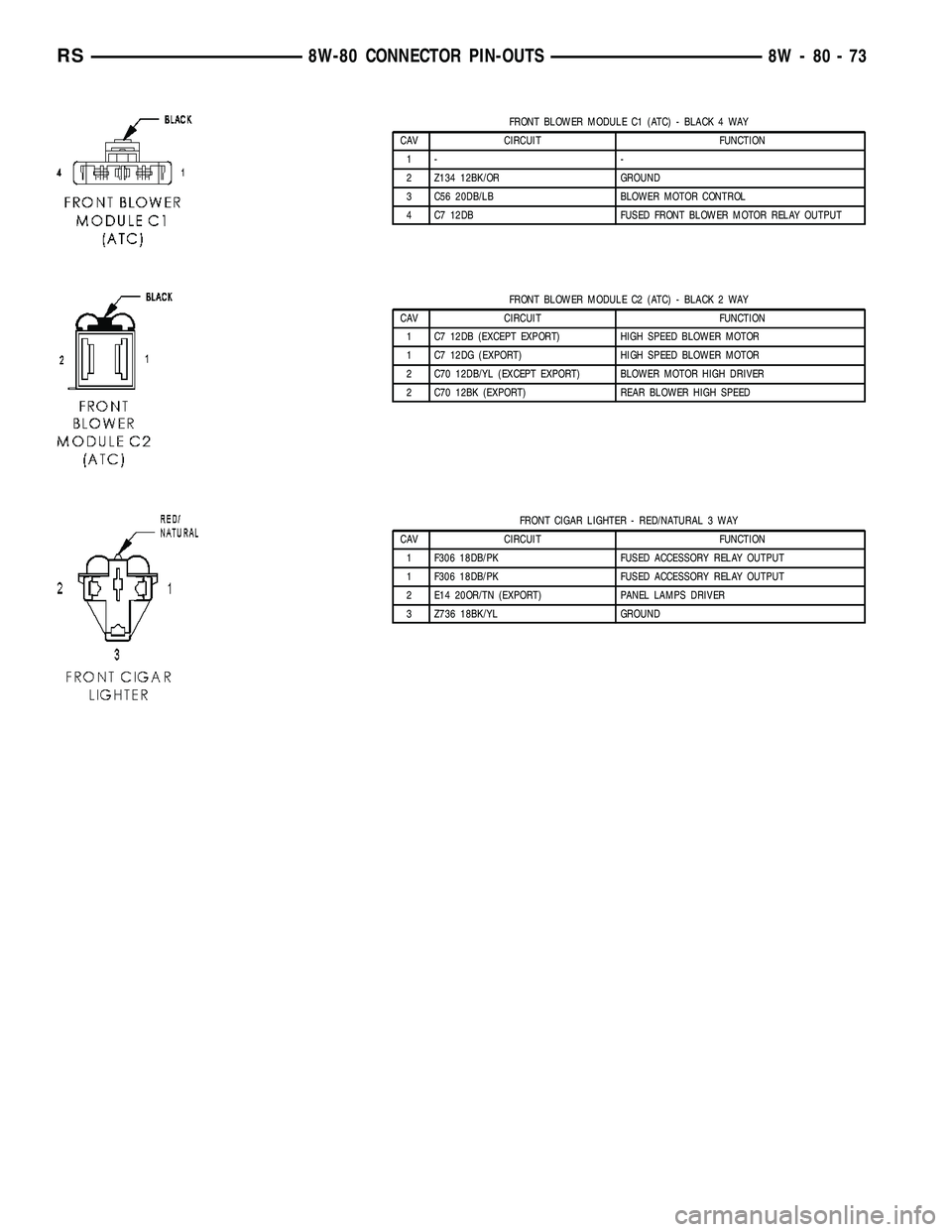

FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z134 12BK/OR GROUND
3 C56 20DB/LB BLOWER MOTOR CONTROL
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
FRONT BLOWER MODULE C2 (ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C7 12DB (EXCEPT EXPORT) HIGH SPEED BLOWER MOTOR
1 C7 12DG (EXPORT) HIGH SPEED BLOWER MOTOR
2 C70 12DB/YL (EXCEPT EXPORT) BLOWER MOTOR HIGH DRIVER
2 C70 12BK (EXPORT) REAR BLOWER HIGH SPEED
FRONT CIGAR LIGHTER - RED/NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
1 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
2 E14 20OR/TN (EXPORT) PANEL LAMPS DRIVER
3 Z736 18BK/YL GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-73

FRONT CONTROL MODULE - BLACK 49 WAY
CAV CIRCUIT FUNCTION
1 A1 B(+)
2 A1 B(+)
3 L43 LEFT LOW BEAM DRIVER
4 L34 RIGHT HIGH BEAM DRIVER
5 L33 LEFT HIGH BEAM DRIVER
6 L44 RIGHT LOW BEAM DRIVER
7- -
8 Z117, Z118, Z343, Z344 GROUND
9 A1 B(+)
10 FCM 10 HORN RELAY CONTROL
11 FCM 11 NAME BRAND SPEAKER RELAY CONTROL
12 P201 (EXCEPT EXPORT) ADJUSTABLE PEDALS RELAY CONTROL
13 FCM 13 PARK LAMP RELAY CONTROL
14 FCM 14 FRONT WIPER ON/OFF RELAY CONTROL
15 C41 (DIESEL) CABIN HEATER ASSIST CONTROL
16 W7 FRONT WIPER PARK SWITCH SENSE
17 X3 HORN SWITCH SENSE
18 W1 WASHER FLUID LEVEL SWITCH SENSE
19 FCM 19 FUSED IGNITION SWITCH OUTPUT (START)
20 A114 FUSED B(+) (I.O.D.)
21 L78 FUSED PARK LAMP RELAY OUTPUT (RIGHT)
22 D25 PCI BUS
23 G931 (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
24 - NOT USED
25 G31 (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
26 L13 (EXPORT) HEADLAMP ADJUST SIGNAL
27 F1, F2 FCM OUTPUT (UNLOCK-RUN-START)
28 - NOT USED
29 F100 ORC RUN ONLY DRIVER
30 FCM 30 FRONT/REAR BLOWER MOTOR RELAY CONTROL
31 FCM 31 DEFOGGER RELAY CONTROL
32 FCM 32 (EXPORT) HEADLAMP WASHER RELAY CONTROL
33 FCM 33 FRONT FOG LAMP RELAY CONTROL
34 FCM 34 FRONT WIPER HIGH/LOW RELAY CONTROL
35 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
36 B20 BRAKE FLUID LEVEL SWITCH SENSE
37 F20 FUSED IGNITION SWITCH OUTPUT (RUN-START)
38 A1 B(+) (WHEN IPM C5 CPA IS NOT ENGAGED)
39 T2 (MTX) TRS REVERSE SENSE
40 - NOT USED
41 L77 FUSED PARK LAMP RELAY OUTPUT (LEFT)
42 D123 FLASH PROGRAM ENABLE
43 Z116 GROUND
44 L50 (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
44 L50 (GAS) BRAKE LAMP SWITCH OUTPUT
45 W10 FRONT WASHER PUMP MOTOR CONTROL
46 W20 REAR WASHER PUMP MOTOR CONTROL
47 K32 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
48 F201 ORC RUN-START DRIVER
49 - -
8W - 80 - 74 8W-80 CONNECTOR PIN-OUTSRS

FRONT INTRUSION SENSOR (UNITED KINGDOM)-3WAY
CAV CIRCUIT FUNCTION
1 G460 20DG/VT FRONT INTRUSION SENSOR SIGNAL
2- -
3 G946 20LG/VT SENSOR GROUND
FRONT READING LAMPS/SWITCH - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 E15 20OR/DB (EXCEPT BASE) ASH/RECEIVER LAMP FEED
2 Z137 20BK/LB GROUND
3- -
4 M27 20YL/LB READING LAMPS DRIVER
5 M24 20YL/WT COURTESY LAMPS DRIVER
6- -
FUEL HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N1 16RD FUEL HEATER RELAY OUTPUT
2 Z201 18RD GROUND
FUEL INJECTOR NO. 1 (2.4L/3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K11 16BR/YL INJECTOR CONTROL NO. 1
FUEL INJECTOR NO. 1 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K111 14DB/LB COMMON INJECTOR DRIVER
2 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W-80-75

FUEL INJECTOR NO. 2 (2.4L/3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K12 16BR/DB INJECTOR CONTROL NO. 2
FUEL INJECTOR NO. 2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K111 14DB/LB COMMON INJECTOR DRIVER
2 K12 14TN FUEL INJECTOR NO. 2 CONTROL
FUEL INJECTOR NO. 3 (2.4L/3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K13 16BR/LB INJECTOR CONTROL NO. 3
FUEL INJECTOR NO. 3 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K111 14DB/LB COMMON INJECTOR DRIVER
2 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSRS

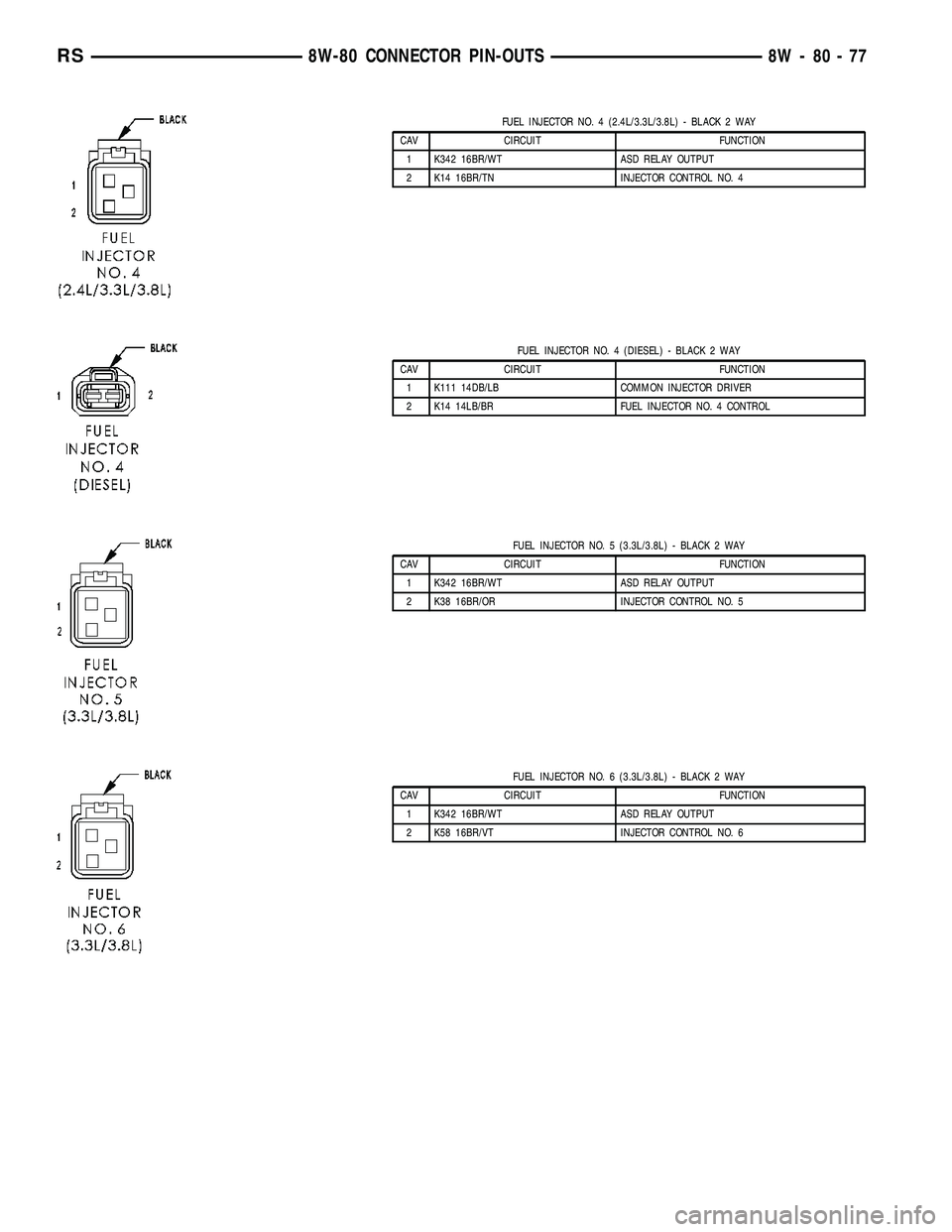

FUEL INJECTOR NO. 4 (2.4L/3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K14 16BR/TN INJECTOR CONTROL NO. 4
FUEL INJECTOR NO. 4 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K111 14DB/LB COMMON INJECTOR DRIVER
2 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
FUEL INJECTOR NO. 5 (3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K38 16BR/OR INJECTOR CONTROL NO. 5
FUEL INJECTOR NO. 6 (3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ASD RELAY OUTPUT
2 K58 16BR/VT INJECTOR CONTROL NO. 6
RS8W-80 CONNECTOR PIN-OUTS8W-80-77

FUEL PRESSURE SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
2 K78 20GY FUEL PRESSURE SENSOR SIGNAL
3 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
FUEL PRESSURE SOLENOID (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ECM/PCM RELAY OUTPUT
2 K87 16BR FUEL PRESSURE SOLENOID CONTROL
FUEL PUMP MODULE - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z201 18BK/OR (GAS) GROUND
2 Z201 20BK/DB (LHD DIESEL/GAS) GROUND
2 Z201 18BK/OR (RHD DIESEL) GROUND
3 N4 20DB/WT FUEL LEVEL SENSOR SIGNAL
4 N1 18DB/OR (GAS) FUEL PUMP RELAY OUTPUT
GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
1 Z20 18BK (GAS) GROUND
2 K20 14BR/GY (DIESEL) GENERATOR FIELD CONTROL
2 K20 18BR/GY (GAS) GEN FIELD CONTROL
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSRS
