2004 CHEVROLET SUBURBAN radio controls

Setting the Tone (Bass/Treble)
AUDIO:Push and release the AUDIO knob until BASS
or TREB appears on the display. Turn the knob to
increase or to decrease. The display will show the bass
or treble level. If a station is weak or noisy, decrease
the treble.
To adjust the bass and treble to the middle position,
push and hold the AUDIO knob. The radio will produce
one beep and adjust the display level to the middle
position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. ALL will appear on
the display, you will hear a beep, and the display level
will be adjusted to the middle position.
AUTO EQ (Automatic Equalization):Press this button
to select customized equalization settings designed
for country/western, jazz, talk, pop, rock, and classical.
Selecting CUSTOM or changing bass or treble,
returns the EQ to the manual bass and treble settings.
The radio will save separate AUTO EQ settings for
each preset and source.
If the radio is equipped with the Bose audio system, the
equalization settings are either CUSTOM or TALK.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the right
and the left speakers, push and release the AUDIO
knob until BAL appears on the display. Turn the knob to
move the sound toward the right or the left speakers.
To adjust the fade between the front and the rear
speakers, push and release the AUDIO knob until FADE
appears on the display. Turn the knob to move the
sound toward the front or the rear speakers.
To adjust the balance and fade to the middle position,
push the AUDIO knob, then push it again and hold
it until the radio produces one beep. The balance and
fade will be adjusted to the middle position and the
display will show the speaker balance.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. ALL will appear on
the display, you will hear a beep, and the display level
will be adjusted to the middle position.
3-96

Playing a Cassette Tape
The tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes
longer than that are so thin they may not work well in
this player. The longer side with the tape visible should
face to the right. If the ignition is on, but the radio is
off, the tape can be inserted and will begin playing. A
tape symbol will appear on the display whenever a tape
is inserted. If you hear nothing, or hear a garbled
sound, the tape may not be in squarely. Press the eject
button to remove the tape and start over.
While the tape is playing, use the VOL, AUDIO, and
SEEK controls just as you do for the radio. TAPE
will appear on the display and an arrow showing which
side of the tape is playing. The tape player automatically
begins playing the other side when it reaches the
end of the tape.
If you want to insert a tape while the ignition is off, rst
press the eject button or the DISPL knob. Cassette
tape adapter kits for portable CD players will work in
your cassette tape player.
The tape bias is set automatically when a metal or
chrome tape is inserted.
If an error appears on the display, see “Cassette Tape
Messages” later in this section.1 PREV (Previous):The tape must have at least three
seconds of silence between each selection for
previous to work. Press this pushbutton to go to the
previous selection on the tape if the current selection
has been playing for less than three seconds. If pressed
when the current selection has been playing from 3 to
13 seconds, it will go to the beginning of the previous
selection or the beginning of the current selection,
depending upon the position on the tape. If pressed
when the current selection has been playing for
more than 13 seconds, it will go to the beginning of the
current selection.
SEEK and a negative number will appear on the display
while the cassette player is in the previous mode.
Pressing this pushbutton multiple times will increase the
number of selections to be searched back, up to -9.
2 NEXT:The tape must have at least three seconds of
silence between each selection for next to work.
Press this pushbutton to go to the next selection on the
tape. If this pushbutton is pressed more than once,
the player will continue moving forward through the tape.
SEEK and a positive number will appear on the
display.
3-102

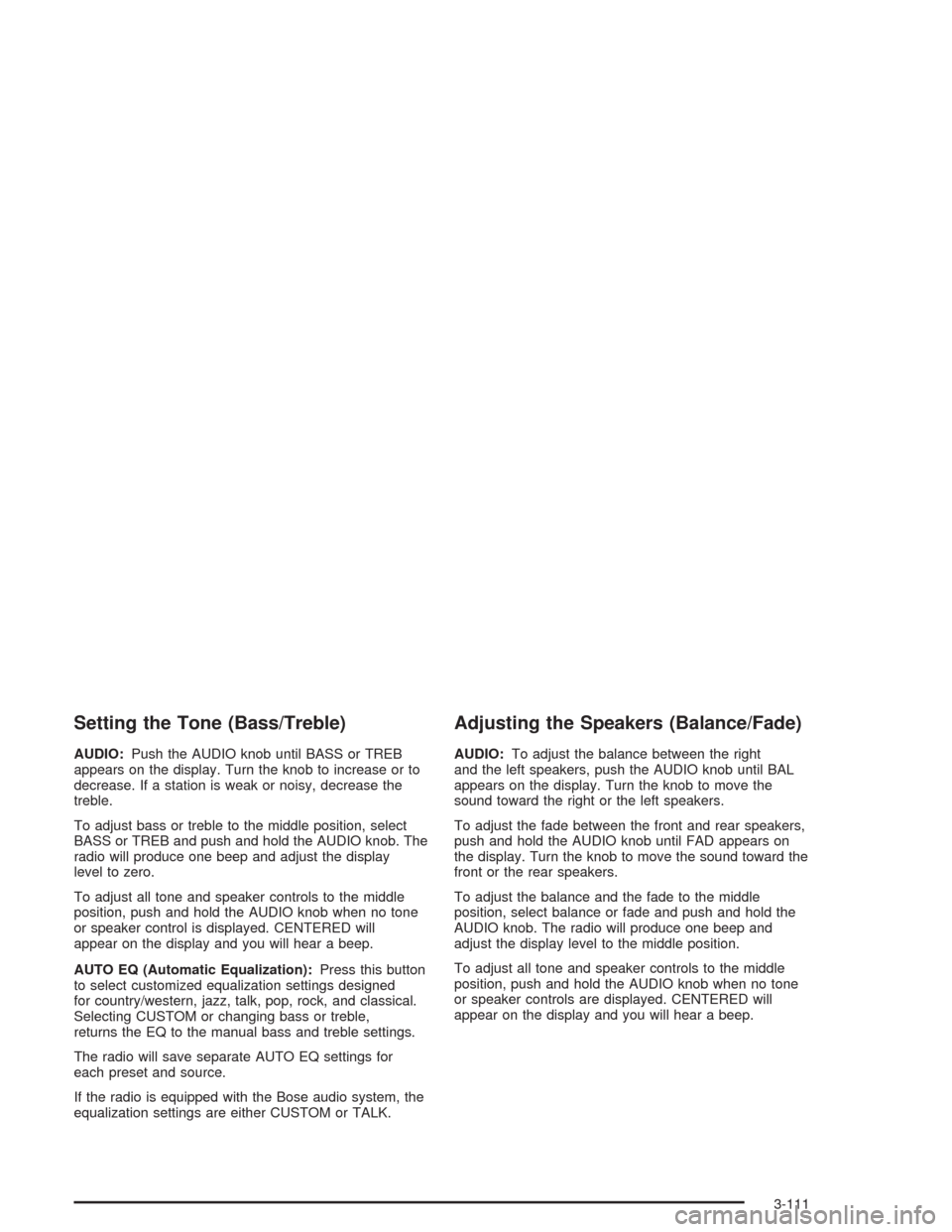

Setting the Tone (Bass/Treble)
AUDIO:Push the AUDIO knob until BASS or TREB
appears on the display. Turn the knob to increase or to
decrease. If a station is weak or noisy, decrease the
treble.
To adjust bass or treble to the middle position, select
BASS or TREB and push and hold the AUDIO knob. The
radio will produce one beep and adjust the display
level to zero.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. CENTERED will
appear on the display and you will hear a beep.
AUTO EQ (Automatic Equalization):Press this button
to select customized equalization settings designed
for country/western, jazz, talk, pop, rock, and classical.
Selecting CUSTOM or changing bass or treble,
returns the EQ to the manual bass and treble settings.
The radio will save separate AUTO EQ settings for
each preset and source.
If the radio is equipped with the Bose audio system, the
equalization settings are either CUSTOM or TALK.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the right
and the left speakers, push the AUDIO knob until BAL
appears on the display. Turn the knob to move the
sound toward the right or the left speakers.
To adjust the fade between the front and rear speakers,
push and hold the AUDIO knob until FAD appears on
the display. Turn the knob to move the sound toward the
front or the rear speakers.
To adjust the balance and the fade to the middle
position, select balance or fade and push and hold the
AUDIO knob. The radio will produce one beep and
adjust the display level to the middle position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker controls are displayed. CENTERED will
appear on the display and you will hear a beep.
3-111

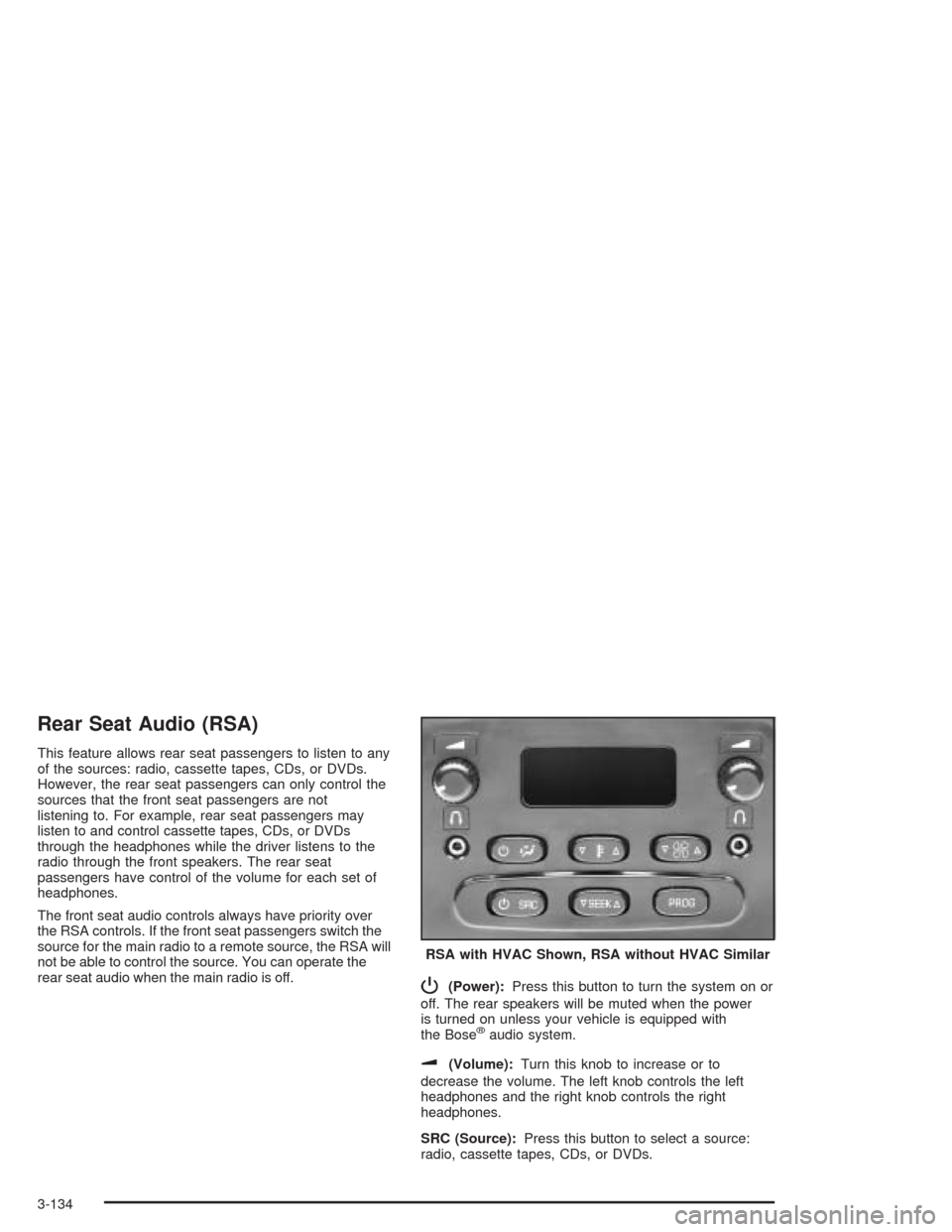

Rear Seat Audio (RSA)
This feature allows rear seat passengers to listen to any
of the sources: radio, cassette tapes, CDs, or DVDs.
However, the rear seat passengers can only control the
sources that the front seat passengers are not
listening to. For example, rear seat passengers may
listen to and control cassette tapes, CDs, or DVDs
through the headphones while the driver listens to the
radio through the front speakers. The rear seat
passengers have control of the volume for each set of
headphones.
The front seat audio controls always have priority over
the RSA controls. If the front seat passengers switch the
source for the main radio to a remote source, the RSA will
not be able to control the source. You can operate the
rear seat audio when the main radio is off.
P(Power):Press this button to turn the system on or
off. The rear speakers will be muted when the power
is turned on unless your vehicle is equipped with
the Bose
®audio system.
u(Volume):Turn this knob to increase or to
decrease the volume. The left knob controls the left
headphones and the right knob controls the right
headphones.
SRC (Source):Press this button to select a source:
radio, cassette tapes, CDs, or DVDs.RSA with HVAC Shown, RSA without HVAC Similar
3-134

Audio Steering Wheel Controls
Some audio controls can be adjusted at the steering
wheel. They include the following:
g(OnStar/Voice Recognition):If your vehicle has
OnStar®, press this button to interact with the OnStar®
system. See the OnStar®manual provided with your
vehicle for more information.
If your vehicle does not have OnStar
®, press this button
to silence the system. Press it again, or any other
radio button, to turn on the sound.PROG (Program):Press this button to play a station
you have programmed on the radio preset pushbuttons.
The radio will only seek preset stations with a strong
signal that are in the selected band.
When a cassette tape is playing, press this button to
play the other side of the tape.
When a CD is playing in the CD changer, press this
button to go to the next available CD, if multiple CDs are
loaded.
QSOURCER:Press this button to switch between
FM1, FM2, AM, or XM1 or XM2 (if equipped), or a
cassette tape or CD. The cassette or CD must be loaded
to play. Available loaded sources are shown on the
display as a tape or a CD symbol.
QSEEKR:Press the up or the down arrow to go to
the next or to the previous radio station and stay
there. The radio will only seek stations with a strong
signal that are in the selected band.
When a cassette tape or CD is playing, press the up or
the down arrow to fast forward or reverse.
QVOLR(Volume):Press the up or the down arrow
to increase or to decrease the volume.
3-136

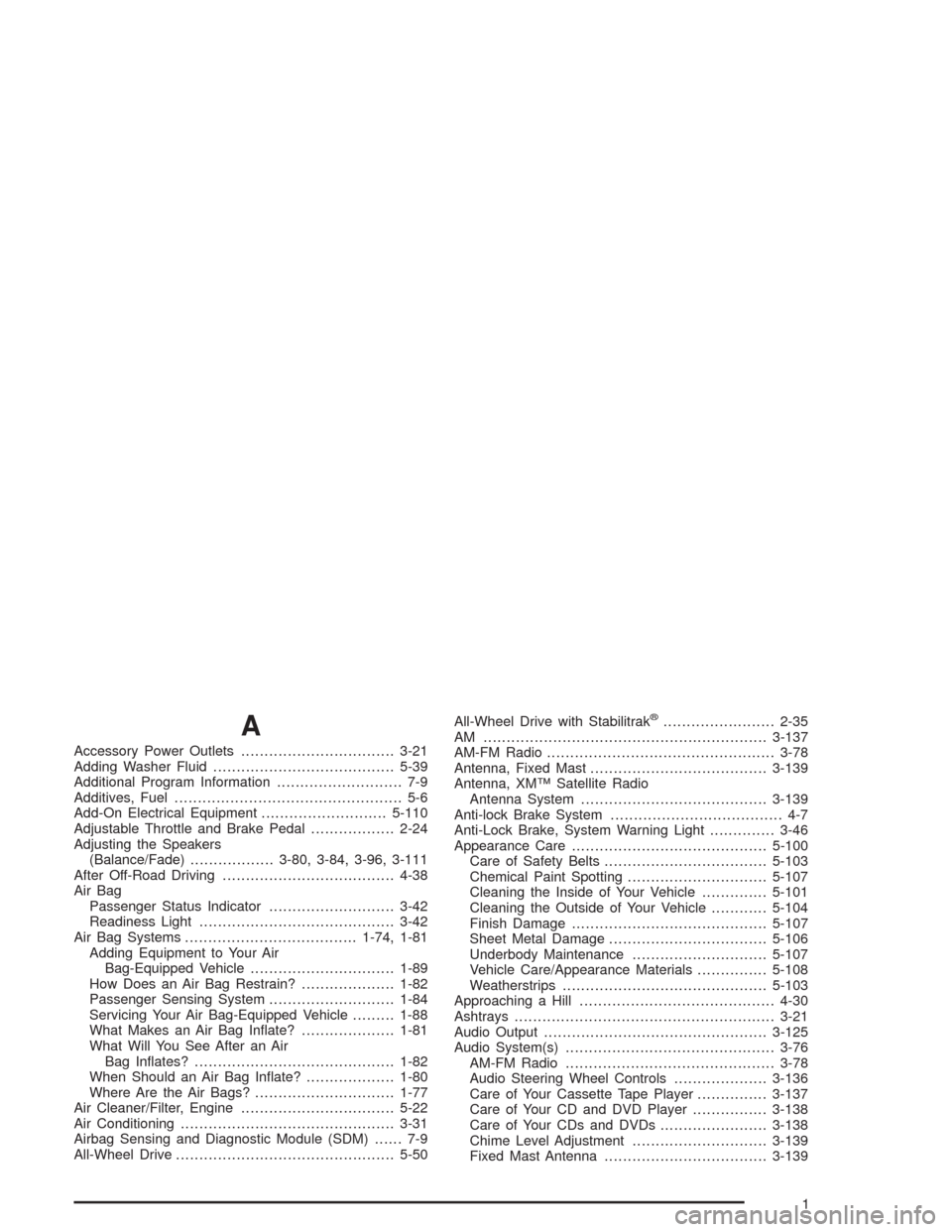

A
Accessory Power Outlets.................................3-21
Adding Washer Fluid.......................................5-39
Additional Program Information........................... 7-9
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment...........................5-110
Adjustable Throttle and Brake Pedal..................2-24
Adjusting the Speakers
(Balance/Fade)..................3-80, 3-84, 3-96, 3-111
After Off-Road Driving.....................................4-38
Air Bag
Passenger Status Indicator...........................3-42
Readiness Light..........................................3-42
Air Bag Systems.....................................1-74, 1-81
Adding Equipment to Your Air
Bag-Equipped Vehicle...............................1-89
How Does an Air Bag Restrain?....................1-82
Passenger Sensing System...........................1-84
Servicing Your Air Bag-Equipped Vehicle.........1-88
What Makes an Air Bag Inate?....................1-81
What Will You See After an Air
Bag Inates?...........................................1-82
When Should an Air Bag Inate?...................1-80
Where Are the Air Bags?..............................1-77
Air Cleaner/Filter, Engine.................................5-22
Air Conditioning..............................................3-31
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
All-Wheel Drive...............................................5-50All-Wheel Drive with Stabilitrak
®........................2-35
AM .............................................................3-137
AM-FM Radio.................................................3-78
Antenna, Fixed Mast......................................3-139
Antenna, XM™ Satellite Radio
Antenna System........................................3-139
Anti-lock Brake System..................................... 4-7
Anti-Lock Brake, System Warning Light..............3-46
Appearance Care..........................................5-100
Care of Safety Belts...................................5-103
Chemical Paint Spotting..............................5-107
Cleaning the Inside of Your Vehicle..............5-101
Cleaning the Outside of Your Vehicle............5-104
Finish Damage..........................................5-107
Sheet Metal Damage..................................5-106
Underbody Maintenance.............................5-107
Vehicle Care/Appearance Materials...............5-108
Weatherstrips............................................5-103
Approaching a Hill..........................................4-30
Ashtrays........................................................3-21
Audio Output................................................3-125
Audio System(s).............................................3-76
AM-FM Radio.............................................3-78
Audio Steering Wheel Controls....................3-136
Care of Your Cassette Tape Player...............3-137
Care of Your CD and DVD Player................3-138
Care of Your CDs and DVDs.......................3-138
Chime Level Adjustment.............................3-139
Fixed Mast Antenna...................................3-139
1

Oil
Engine.......................................................5-17
Pressure Gage............................................3-53
OIL LIFE RESET............................................3-71
Oil Life System...............................................3-60
OIL PRESSURE LOW.....................................3-71
Older Children, Restraints................................1-48
Online Owner Center........................................ 7-3
OnStar
®Personal Calling.................................2-57
OnStar®Services............................................2-56
OnStar®Steering Wheel Controls......................2-57
OnStar®System.............................................2-56
OnStar®Virtual Advisor....................................2-57
Other Warning Devices...................................... 3-6
Outlet Adjustment...................................3-26, 3-33
Outside
Automatic Dimming Mirror.............................2-54
Camper-Type Mirrors....................................2-52
Convex Mirror.............................................2-55
Curb View Assist Mirrors..............................2-54
Heated Mirrors............................................2-55
Manual Mirrors............................................2-51
Power Foldaway Mirrors...............................2-53
Power Mirrors.............................................2-52
Outside Power Camper-Type Mirror...................2-53
Overheated Engine Protection Operating
Mode (V8 Engines Only)..............................5-29
Overseas – Customer Assistance........................ 7-5Owner Checks and Services.............................6-10
Owners, Canadian............................................... ii
Owner’s Information........................................7-12
P
Panel Doors...................................................2-15
Parental Control............................................3-123
Park (P)
Shifting Into................................................2-39
Shifting Out of............................................2-41
Parking
Brake........................................................2-38
Over Things That Burn.................................2-42
Parking on Hills..............................................4-76
Passenger Air Bag Indicator.....................2-48, 2-51
Passenger Air Bag Status Indicator...................3-42
PASSENGER DOOR AJAR..............................3-72
Passenger Sensing System..............................1-84
Passing.................................................4-20, 4-75
Passlock
®......................................................2-20
Personalization Button.....................................3-61
Plan Ahead When Possible................................ 7-7
Playing a Cassette Tape................................3-102
Playing a CD..............................3-90, 3-105, 3-117
Playing a Specic Loaded CD.........................3-118
Playing the Radio.................3-78, 3-82, 3-94, 3-109
11

Power
Accessory Outlets........................................3-21
Door Locks.................................................. 2-9
Electrical System.......................................5-110
Lumbar Controls........................................... 1-5
Seat............................................................ 1-4
Steering Fluid.............................................5-38
Windows....................................................2-17
Power Steering...............................................4-15
Power Winches..............................................4-82
Programmable Automatic Door Locks.................2-11
Programming the HomeLink
®Transmitter...........2-59
Q
QUADRASTEER™..........................................4-17
Questions and Answers About Safety Belts.........1-30
R
Radio Data System (RDS)..............3-81, 3-93, 3-108
Radio Messages.............................3-80, 3-87, 3-99
Radios..........................................................3-76
AM-FM Radio.............................................3-78
Care of Your Cassette Tape Player...............3-137
Care of Your CD and DVD Player................3-138
Care of Your CDs and DVDs.......................3-138
Radio with Cassette and CD.........................3-92
Radio with CD............................................3-81Radios (cont.)
Radio with Six-Disc CD..............................3-108
Rear Seat Audio........................................3-134
Setting the Time for Radios with Radio
Data Systems (RDS)................................3-77
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-77
Theft-Deterrent..........................................3-135
Understanding Reception............................3-137
RDS Messages.............................3-86, 3-98, 3-114
REAR ACCESS OPEN....................................3-72
Rear Air Conditioning and Heating System.........3-35
Rear Air Conditioning and Heating System
and Electronic Climate Controls.....................3-37
Rear Air Conditioning System...........................3-34
Rear Axle......................................................5-51
Locking......................................................4-11
Rear Door Security Locks................................2-13
Rear Safety Belt Comfort Guides......................1-45
Rear Seat Audio (RSA)..................................3-134
Rear Seat Entertainment System.....................3-123
Rear Seat Operation.......................................1-10
Rear Seat Outside Passenger Positions.............1-42
Rear Seat Passengers, Safety Belts..................1-42
Rear Storage Area..........................................2-65
Rear Window Defogger............................3-25, 3-32
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display................2-49
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature Display . . . 2-45
12
