2004 CADILLAC CTS keyless

Before your vehicle was shipped from the factory, it was
programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed since
it left the factory. To program the vehicle to a different
mode, use one of the following procedures:
To change the mode using the Base audio system,
do the following:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DOORS UNLOCK KEY OUT/OFF.
3. Press the TUNE/SEL knob to switch between on
and off.
When the mode is turned on, a check mark will
appear next to the feature name.
To change the mode using the Navigation system,
do the following:
1. Enter the Personalization menu following the
instructions listed previously.
2. Scroll to Door Lock Options to highlight it.
3. Press the TUNE/SEL knob to view the modes.
4. Scroll to Doors Unlock Key Out/Off and press the
knob once to select it.
When a mode is turned on, an X will appear in the
box to the left.If you select Mode 1, Doors Lock in Gear (automatic
transmission) or Automatic Door Lock (manual
transmission) will be turned on automatically.
This feature cannot be selected if Doors Unlock in Park
(automatic transmission), Driver Unlock in Park
(automatic transmission) or Driver Unlock Key Out/Off is
selected. If any of these was previously selected, you
must rst de-select it in order to be able to select Doors
Unlock Key Out/Off.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Delayed Locking
This feature delays the locking of the vehicle’s doors for
up to ve seconds after a power door lock switch or
the lock button on the remote keyless entry transmitter
is pressed. The ve second delay occurs after the
last door is closed.
Programmable Modes
Mode 1:ON
Mode 2:OFF
3-103

Taillamps, Turn Signal, Stoplamps
and Sidemarker Lamps
A. Tail and Stop Lamps
B. Turn Signal Lamp
C. Side-Marker Lamp
1. Open the trunk using the trunk button on the remote
keyless entry transmitter or the trunk release button
located on the lower part of the driver’s door.
2. Remove the compact spare tire cover by turning the
wing nut counterclockwise.3. Remove the four convenience net wing nuts.
4. Pull the carpet back away from the body of the
vehicle on the side with the burned out bulb.
5. Remove the two mounting screws from the
lamp assembly.
6. Pull out the lamp assembly to expose the
bulb sockets.
7. Turn the bulb socket one-quarter turn
counterclockwise and pull the bulb and socket out
of the lamp reector.
8. Pull the old bulb from the bulb socket keeping the
bulb straight as you pull it out.
9. Install a new bulb.
10. Reverse the steps to reinstall the lamp assembly.
5-54

Back-Up and License Plate Lamps
A. Back-Up Lamps
B. License Plate Lamps
1. Open the trunk using the trunk button on the remote
keyless entry transmitter or the trunk release button
located on the lower part of the driver’s door.
2. Remove the cloth cover on the trunk lid by pulling
out the three push-pins located on the underside of
the trunk lid.3. Remove the eight mounting nuts from the underside
of the trunk lid by turning the nuts counterclockwise.
4. Pull the lamp assembly away from the vehicle
to expose the bulb sockets.
5. Turn the bulb socket one-quarter turn
counterclockwise and pull the bulb and socket out
of the lamp reector.
6. Pull the old bulb from the bulb socket keeping the
bulb straight as you pull it out.
7. Install a new bulb.
8. Reverse the steps to reinstall the lamp assembly.
5-55

K
Key Release Button (Manual Transmission)........2-23
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Lamps
Exterior......................................................3-24
Interior.......................................................3-26
Lap-Shoulder Belt...................................1-15, 1-23
LATCH System
Child Restraints...........................................1-41
Securing a Child Restraint Designed for
the LATCH System...................................1-43
Leaving Your Vehicle.......................................2-11
Leaving Your Vehicle With the Engine Running
(Automatic Transmission)..............................2-37
Left Rear Door Ajar.........................................3-78
Light
Airbag Readiness........................................3-42
Anti-Lock Brake System Warning...................3-44
Brake System Warning.................................3-43
Charging System.........................................3-43
Cruise Control.............................................3-52
Engine Coolant Temperature Warning.............3-45
Fog Lamp..................................................3-51Light (cont.)
Highbeam On.............................................3-52
Lights On Reminder.....................................3-51
Malfunction Indicator....................................3-47
Oil Pressure...............................................3-49
Safety Belt Reminder...................................3-41
Security.....................................................3-51
Sport Mode................................................3-50
TCS Warning Light......................................3-45
Tire Pressure..............................................3-46
Traction Control System (TCS) Warning..........3-45
Winter Driving Mode....................................3-50
Lighted Visor Vanity Mirror...............................2-17
Limited-Slip Rear Axle.....................................4-11
Loading Your Vehicle.......................................4-34
Lockout Protection..........................................2-11
Locks
Central Door Unlocking System....................... 2-9
Delayed Locking........................................... 2-9
Door........................................................... 2-8
Leaving Your Vehicle....................................2-11
Lockout Protection.......................................2-11
Power Door.................................................. 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Loss of Control...............................................4-17
Lumbar
Power Controls............................................. 1-3
9

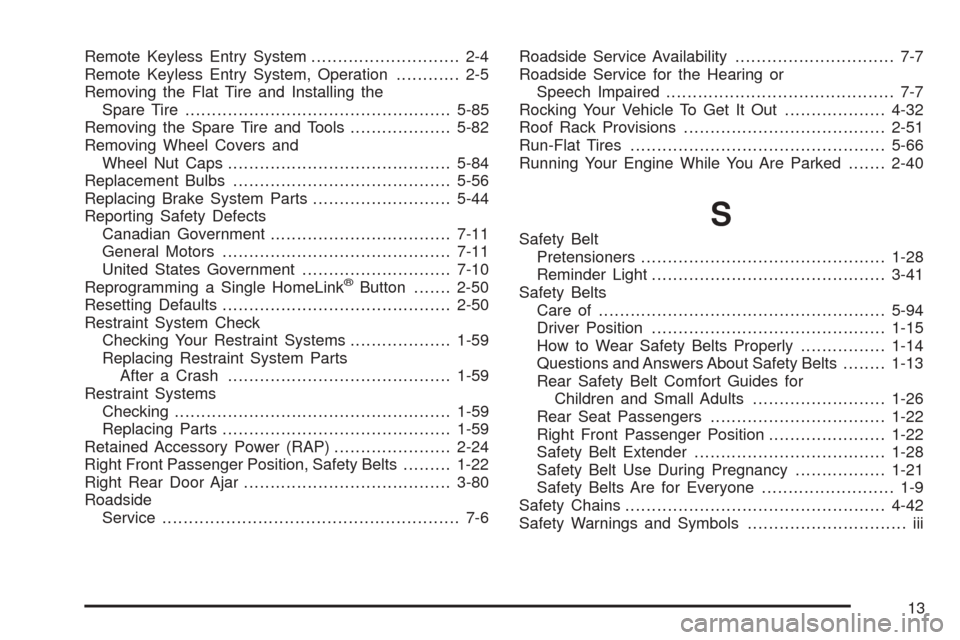

Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
Removing the Flat Tire and Installing the
Spare Tire..................................................5-85
Removing the Spare Tire and Tools...................5-82
Removing Wheel Covers and
Wheel Nut Caps..........................................5-84
Replacement Bulbs.........................................5-56
Replacing Brake System Parts..........................5-44
Reporting Safety Defects
Canadian Government..................................7-11
General Motors...........................................7-11
United States Government............................7-10
Reprogramming a Single HomeLink
®Button.......2-50
Resetting Defaults...........................................2-50
Restraint System Check
Checking Your Restraint Systems...................1-59
Replacing Restraint System Parts
After a Crash..........................................1-59
Restraint Systems
Checking....................................................1-59
Replacing Parts...........................................1-59
Retained Accessory Power (RAP)......................2-24
Right Front Passenger Position, Safety Belts.........1-22
Right Rear Door Ajar.......................................3-80
Roadside
Service........................................................ 7-6Roadside Service Availability.............................. 7-7
Roadside Service for the Hearing or
Speech Impaired........................................... 7-7
Rocking Your Vehicle To Get It Out...................4-32
Roof Rack Provisions......................................2-51
Run-Flat Tires................................................5-66
Running Your Engine While You Are Parked.......2-40
S
Safety Belt
Pretensioners..............................................1-28
Reminder Light............................................3-41
Safety Belts
Care of......................................................5-94
Driver Position............................................1-15
How to Wear Safety Belts Properly................1-14
Questions and Answers About Safety Belts........1-13
Rear Safety Belt Comfort Guides for
Children and Small Adults.........................1-26
Rear Seat Passengers.................................1-22
Right Front Passenger Position......................1-22
Safety Belt Extender....................................1-28
Safety Belt Use During Pregnancy.................1-21
Safety Belts Are for Everyone......................... 1-9
Safety Chains.................................................4-42
Safety Warnings and Symbols.............................. iii
13
