2004 BUICK RANDEZVOUS charging

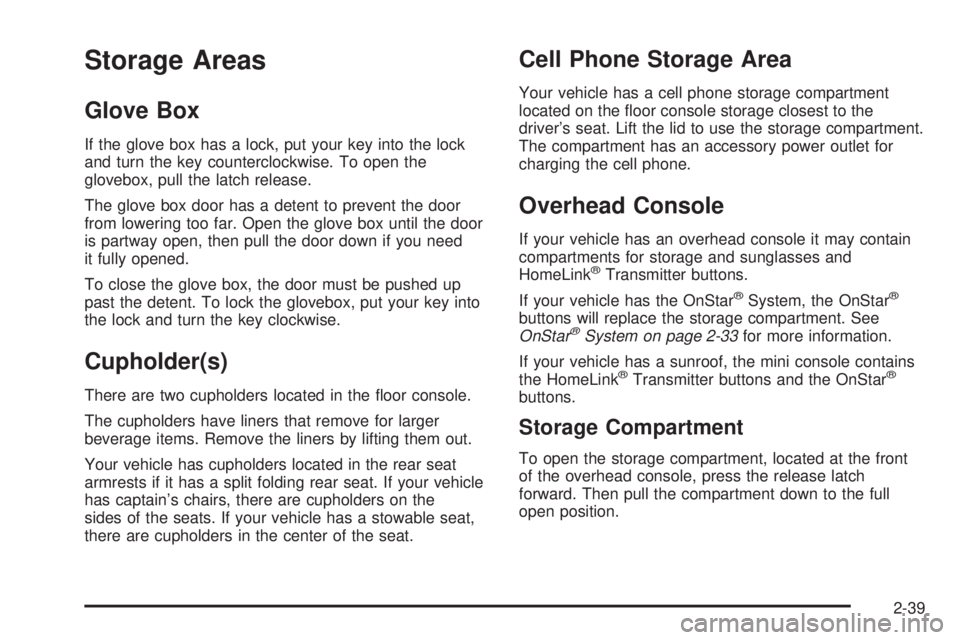

Storage Areas
Glove Box
If the glove box has a lock, put your key into the lock
and turn the key counterclockwise. To open the
glovebox, pull the latch release.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need
it fully opened.
To close the glove box, the door must be pushed up
past the detent. To lock the glovebox, put your key into
the lock and turn the key clockwise.
Cupholder(s)
There are two cupholders located in the oor console.
The cupholders have liners that remove for larger
beverage items. Remove the liners by lifting them out.
Your vehicle has cupholders located in the rear seat
armrests if it has a split folding rear seat. If your vehicle
has captain’s chairs, there are cupholders on the
sides of the seats. If your vehicle has a stowable seat,
there are cupholders in the center of the seat.
Cell Phone Storage Area
Your vehicle has a cell phone storage compartment
located on the oor console storage closest to the
driver’s seat. Lift the lid to use the storage compartment.
The compartment has an accessory power outlet for
charging the cell phone.
Overhead Console
If your vehicle has an overhead console it may contain
compartments for storage and sunglasses and
HomeLink
®Transmitter buttons.
If your vehicle has the OnStar
®System, the OnStar®
buttons will replace the storage compartment. See
OnStar®System on page 2-33for more information.
If your vehicle has a sunroof, the mini console contains
the HomeLink
®Transmitter buttons and the OnStar®
buttons.
Storage Compartment
To open the storage compartment, located at the front
of the overhead console, press the release latch
forward. Then pull the compartment down to the full
open position.
2-39

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-7
Horn.............................................................3-7
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-8
Exterior Lamps.............................................3-14
Interior Lamps..............................................3-16
Instrument Panel Switchbank..........................3-21
Head-Up Display (HUD).................................3-21
Ultrasonic Rear Parking Assist (URPA)..............3-24
Accessory Power Outlets...............................3-27
Ashtrays and Cigarette Lighter........................3-28
Climate Controls............................................3-28
Climate Control System.................................3-28
Dual Climate Control System..........................3-32
Dual Automatic Climate Control System...........3-35
Outlet Adjustment.........................................3-38
Warning Lights, Gages and Indicators.............3-39
Instrument Panel Cluster................................3-40
Speedometer and Odometer...........................3-41
Tachometer.................................................3-42
Safety Belt Reminder Light.............................3-43Air Bag Readiness Light................................3-43
Brake System Warning Light..........................3-44
Anti-Lock Brake System Warning Light.............3-45
Traction Control System (TCS) Warning Light . . .3-45
Engine Coolant Temperature Gage..................3-46
Malfunction Indicator Lamp.............................3-46
Fuel Gage...................................................3-49
Message Center.............................................3-50
Service Traction System Warning Message......3-50
Traction Active Message................................3-51
Engine Coolant Temperature Warning
Message..................................................3-51
Charging System Indicator Message................3-52
Low Oil Pressure Message............................3-52
Change Engine Oil Message..........................3-53
Low Tire Message........................................3-54
Door Ajar Warning Message...........................3-54
Rear Hatch Ajar Warning Message..................3-54
PASS-Key
®III Security Message....................3-55
All-Wheel Drive Disable Warning Message.......3-55
Low Washer Fluid Warning Message...............3-56
Low Fuel Warning Message...........................3-56
Low Brake Fluid Warning Message.................3-57
Section 3 Instrument Panel
3-1

The Head-Up Display also displays the following lights
and messages when they appear on the instrument
panel cluster:
Turn Signal Indicators. SeeTurn
Signal/Multifunction Lever on page 3-8.
High-Beam Indicator. SeeTurn Signal/Multifunction
Lever on page 3-8.
Low-Fuel Warning Message. SeeLow Fuel Warning
Message on page 3-56.
The Head-Up Display also displays a CHECK GAGES
icon. The following messages could appear on the
instrument panel cluster when CHECK GAGES appears:
Engine Coolant Temperature Warning. SeeEngine
Coolant Temperature Warning Message on
page 3-51.
Low Oil Pressure. SeeLow Oil Pressure Message
on page 3-52.
Charging System Indicator. SeeCharging System
Indicator Message on page 3-52.
Low Brake Fluid Warning. SeeLow Brake Fluid
Warning Message on page 3-57.
Under warning conditions, the CHECK GAGES icon will
illuminate in the HUD. Look at the instrument panel
cluster for more information.
3-22

Charging System Indicator Message
The charging system
battery symbol will come
on in the message
center when you turn on
the ignition as a check
to show you it is working.
It will remain on as long as the engine is not running.
It should go out once the engine is running. If it stays on,
or comes on while you are driving, you may have a
problem with the charging system. It could indicate that
you have problems with a generator drive belt, or
another electrical problem. Have it checked right away.
Driving while this indicator appears in the message
center could drain your battery.
If you must drive a short distance with the message on,
be certain to turn off all your accessories, such as
the radio and air conditioner.
Low Oil Pressure Message
Your vehicle is equipped with a low oil pressure warning
message.
Your oil pressure message lets you know when you
may have a problem with your engine oil pressure.
United StatesCanada
3-52

Care of (cont.)
Your CDs and DVDs..................................3-131
Cargo Cover..................................................2-44
Cargo Lamp...................................................3-20
Carrier Assembly-Differential
(Rear Drive Module)....................................5-49
Cassette Tape Messages.................................3-94
CD Adapter Kits.............................................3-95
CD Messages...............................3-84, 3-97, 3-111
Cell Phone Storage Area.................................2-39
Center Rear Passenger Position, Safety Belts.....1-42
Chains, Tires..................................................5-74
Change Engine Oil Message............................3-53
Charging System Indicator Message..................3-52
Check
Engine Light...............................................3-46
Tire Pressure System...................................5-65
Checking Coolant............................................5-24
Checking Engine Oil........................................5-14
Checking Things Under the Hood......................5-10
Checking Your Restraint Systems......................1-82
Chemical Paint Spotting.................................5-106
Child Restraints
Child Restraint Systems...............................1-53
Infants and Young Children...........................1-50
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-62
Older Children.............................................1-47Child Restraints (cont.)
Securing a Child Restraint Designed for the
LATCH System........................................1-64
Securing a Child Restraint in a Center Rear
Seat Position...........................................1-67
Securing a Child Restraint in a Rear Outside
Seat Position...........................................1-64
Securing a Child Restraint in the Right Front
Seat Position...........................................1-69
Top Strap...................................................1-57
Top Strap Anchor Location............................1-58
Where to Put the Restraint...........................1-56
Cigarette Lighter.............................................3-28
Cleaning
Inside of Your Vehicle..................................5-99
Outside of Your Vehicle..............................5-103
Underbody Maintenance.............................5-105
Weatherstrips............................................5-102
Your DVD Player.......................................3-131
Cleaning Aluminum or Chrome-Plated Wheels . . . 5-104
Cleaning Exterior Lamps/Lenses......................5-103
Cleaning Fabric/Carpet...................................5-100
Cleaning Glass Surfaces................................5-102
Cleaning Interior Plastic Components...............5-102
Cleaning Leather...........................................5-101
Cleaning the Top of the Instrument Panel.........5-102
Cleaning the Windshield, Backglass and Wiper
Blades.....................................................5-104
3

Maintenance Schedule (cont.)
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-14
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-13
Owner Checks and Services........................... 6-8
Recommended Fluids and Lubricants.............6-12
Scheduled Maintenance................................. 6-4
Using Your................................................... 6-2
Your Vehicle and the Environment................... 6-2
Maintenance When Trailer Towing.....................4-50
Making Turns.................................................4-48
Malfunction Indicator Light................................3-46
Manual Lumbar Controls.................................... 1-5
Manual Operation...........................................3-36
Manual Passenger Seat.................................... 1-3
Matching Transmitter(s) to Your Vehicle............... 2-6
Memory Seat.................................................2-49
Message
All-Wheel Drive Disable Warning....................3-55
Center.......................................................3-50
Change Engine Oil......................................3-53
Charging System Indicator............................3-52
Door Ajar Warning.......................................3-54
Engine Coolant Temperature Warning.............3-51
Highbeam Out Warning................................3-59Message (cont.)
Low Brake Fluid Warning..............................3-57
Low Fuel Warning.......................................3-56
Low Oil Pressure.........................................3-52
Low Tire .....................................................3-54
Low Washer Fluid Warning...........................3-56
Park Lamp Warning.....................................3-59
PASS-Key
®III Security.................................3-55
Program Mode............................................3-58
Rear Hatch Ajar Warning..............................3-54
Remote Keyless Entry Transmitter Battery
Low Warning...........................................3-58
Service Traction System Warning...................3-50
Service Vehicle Soon...................................3-57
Traction Active............................................3-51
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and U.S. Virgin
Islands) – Customer Assistance........................ 7-5
Mirrors
Manual Rearview Mirror................................2-32
Outside Convex Mirror.................................2-33
Outside Curb View Assist Mirror....................2-32
Outside Heated Mirrors................................2-33
Outside Power Mirror...................................2-32
MyGMLink.com................................................ 7-4
10
