Additives
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from forming,
allowing your emission control system to work
properly. You should not have to add anything to your
fuel. However, some gasolines contain only the
minimum amount of additive required to meet U.S.
Environmental Protection Agency regulations. General
Motors recommends that you buy gasolines that
are advertised to help keep fuel injectors and intake
valves clean. If your vehicle experiences problems due
to dirty injectors or valves, try a different brand of
gasoline.
Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available in
your area to contribute to clean air. General Motors
recommends that you use these gasolines, particularly if
they comply with the specications described earlier.
Notice:Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in your fuel
system and also damage the plastic and rubber
parts. That damage would not be covered under
your warranty.Some gasolines that are not reformulated for
low emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT. General
Motors does not recommend the use of such gasolines.
Fuels containing MMT can reduce the life of spark
plugs and the performance of the emission control
system may be affected. The malfunction indicator lamp
may turn on. If this occurs, return to your authorized
GM dealer for service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to nd. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-6

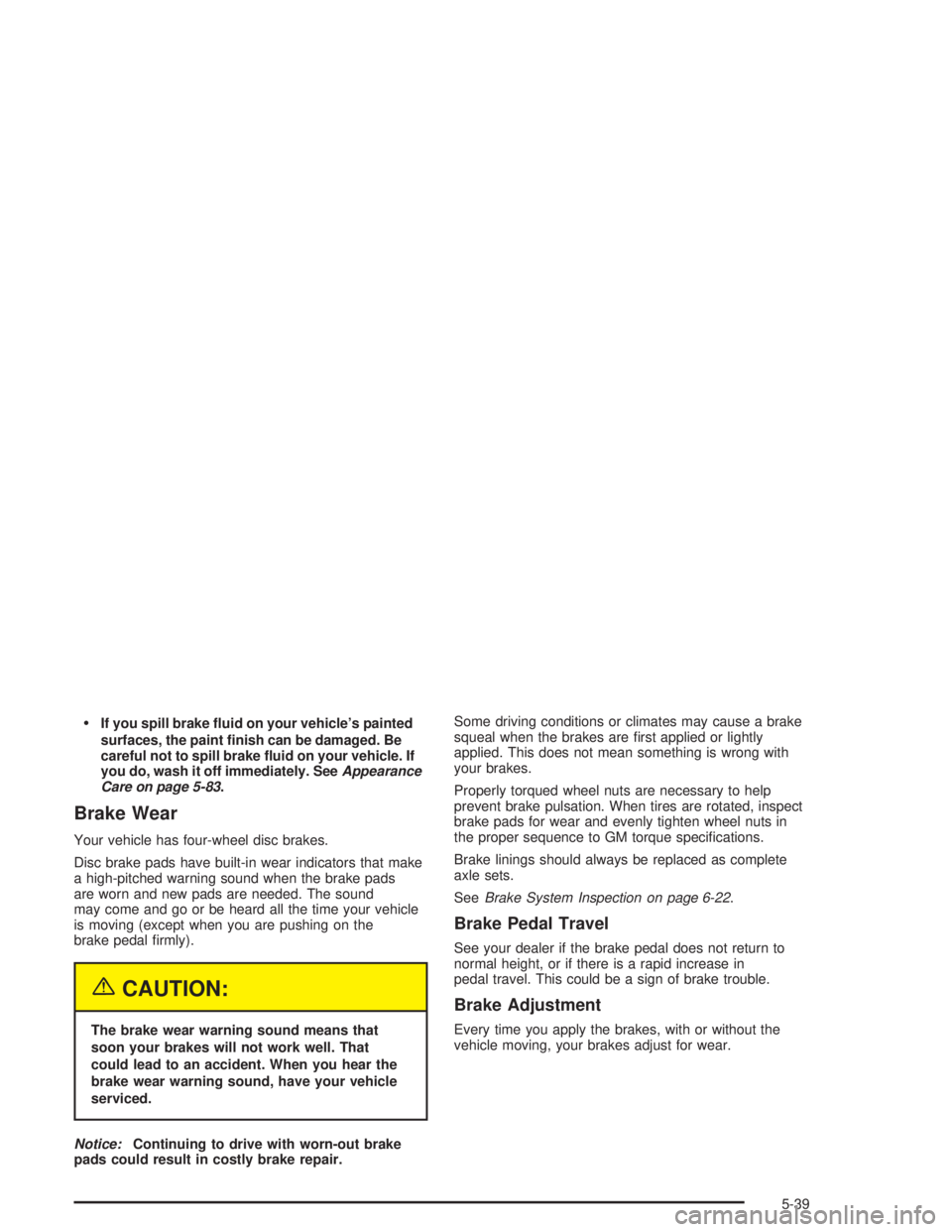

If you spill brake uid on your vehicle’s painted
surfaces, the paint nish can be damaged. Be
careful not to spill brake uid on your vehicle. If
you do, wash it off immediately. SeeAppearance
Care on page 5-83.
Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving (except when you are pushing on the
brake pedal rmly).
{CAUTION:
The brake wear warning sound means that
soon your brakes will not work well. That
could lead to an accident. When you hear the
brake wear warning sound, have your vehicle
serviced.
Notice:Continuing to drive with worn-out brake
pads could result in costly brake repair.Some driving conditions or climates may cause a brake
squeal when the brakes are rst applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to GM torque specications.
Brake linings should always be replaced as complete
axle sets.
SeeBrake System Inspection on page 6-22.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
5-39

L
Lamps
Exterior......................................................3-14
Interior.......................................................3-17
Language Selection.........................................3-54
Lap Belt........................................................1-19
Lap-Shoulder Belt...................................1-12, 1-21
LATCH System
Child Restraints...........................................1-39
Securing a Child Restraint Designed for
the LATCH System...................................1-41
Leaving Your Vehicle.......................................2-13
Leaving Your Vehicle With the
Engine Running..........................................2-29
Light
Air Bag Readiness.......................................3-36
Anti-Lock Brake System Warning...................3-38
Battery Warning..........................................3-37
Brake System Warning.................................3-37
Cruise Control.............................................3-44
Malfunction Indicator....................................3-40
Oil Pressure...............................................3-43
Safety Belt Reminder...................................3-36
Security.....................................................3-44
Service Vehicle Soon...................................3-44
TCS Warning Light......................................3-39
Traction Control System (TCS) Warning..........3-39
Lighted Visor Vanity Mirror...............................2-17
Loading Your Vehicle.......................................4-33Lockout Protection..........................................2-13
Locks
Central Door Unlocking System.....................2-10
Delayed Locking..........................................2-11
Door........................................................... 2-9
Leaving Your Vehicle....................................2-13
Lockout Protection.......................................2-13
Power Door................................................2-10
Programmable Automatic Door Locks.............2-12
Rear Door Security Locks.............................2-13
Long Trip/Highway Denition.............................. 6-6
Long Trip/Highway Intervals............................... 6-6
Long Trip/Highway Scheduled Maintenance........6-13
Loss of Control...............................................4-15
Lumbar
Manual Controls............................................ 1-3
Power Controls............................................. 1-3
M
Maintenance Schedule
At Each Fuel Fill.........................................6-17
At Least Once a Month................................6-17
At Least Once a Year..................................6-18
At Least Twice a Year..................................6-18
Brake System Inspection..............................6-22
Engine Cooling System Inspection.................6-22
Exhaust System Inspection...........................6-21
Fuel System Inspection................................6-22
8

Maintenance Schedule (cont.)
How This Section is Organized....................... 6-3
Introduction.................................................. 6-2
Long Trip/Highway Scheduled Maintenance.....6-13
Maintenance Requirements............................. 6-2
Part A - Scheduled Maintenance Services......... 6-4
Part B - Owner Checks and Services.............6-17
Part C - Periodic Maintenance Inspections.......6-21
Part D - Recommended Fluids and
Lubricants...............................................6-23
Part E - Maintenance Record........................6-24
Selecting the Right Schedule.......................... 6-5
Short Trip/City Scheduled Maintenance............. 6-6
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection..........................6-21
Throttle System Inspection............................6-22
Using Your................................................... 6-4
Your Vehicle and the Environment................... 6-2
Maintenance When Trailer Towing.....................4-46
Making Turns.................................................4-44
Malfunction Indicator Light................................3-40
Manual Lumbar Controls.................................... 1-3
Manual Operation...........................................3-27
Manual Seats................................................... 1-2
Matching Transmitter(s) to Your Vehicle............... 2-8
Memory Mirrors..............................................2-44
Memory Seat.................................................2-44
Memory Seats................................................3-54Message
DIC Warnings and Messages........................3-49
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and U.S. Virgin
Islands) – Customer Assistance....................... 7-5
Mirror Operation.....................................2-33, 2-34
Mirrors
Automatic Dimming Rearview........................2-33
Automatic Dimming Rearview with Compass....2-33
Manual Rearview Mirror................................2-33
Memory.....................................................2-44
Outside Automatic Dimming Heated Mirror......2-36
Outside Convex Mirror.................................2-36
Outside Curb View Assist Mirror....................2-36
Outside Power Mirrors..................................2-35
MyGMLink.com................................................ 7-3
N
New Vehicle Break-In......................................2-21
Normal Maintenance Replacement Parts...........5-100
O
Odometer......................................................3-35
Off-Road Recovery..........................................4-13
9

V
Vehicle
Control........................................................ 4-5
Damage Warnings........................................... iv
Loading......................................................4-33
Service Soon Light......................................3-44
Symbols......................................................... iv
Vehicle Data Collection and Event Data Records . . 7-9
Vehicle Identication
Number (VIN).............................................5-91
Service Parts Identication Label...................5-91
Vehicle Personalization
DIC ...........................................................3-50
Memory Seat and Mirrors.............................2-44
Vehicle Storage..............................................5-41
Ventilation Adjustment......................................3-30
Visors...........................................................2-17
W
Warning Lights, Gages and Indicators................3-32
Warnings
DIC Warnings and Messages........................3-49
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. ivWashing Your Vehicle......................................5-87
Weatherstrip Lubrication...................................6-18
Weight of the Trailer........................................4-41
Weight of the Trailer Tongue.............................4-41
What Kind of Engine Oil to Use........................5-14
What to Do with Used Oil................................5-17
What to Use..........................................5-24, 5-36
Wheels
Alignment and Tire Balance..........................5-71
Replacement...............................................5-71
When to Add Engine Oil..................................5-14
When to Change Engine Oil (Vehicles with
the GM Oil Life System)...............................5-17
When to Change Engine Oil (Vehicles
Without the GM Oil Life System)...................5-16
When to Check..............................................5-65
When to Check and Change............................5-21
When to Check Power Steering Fluid................5-36
When to Inspect the Engine Air Cleaner/Filter.....5-18
When You Are Ready to Leave After
Parking on a Hill.........................................4-46
Where to Put the Restraint...............................1-36
Why Safety Belts Work..................................... 1-8
Window Lock Out...................................2-17, 3-52
Windows.......................................................2-16
Power........................................................2-17
Windshield Washer.........................................3-10
Fluid..........................................................5-36
15
