Adaptive Head Light
*
High beams/roadside parking lamps
The concept Adaptive Head Light is a variable head-
lamp control system that enables better
illumination of the road surface.
Depending on the steering angle and
other assumptions, the light from the
headlamp follows the course of the
road.Activating Adaptive Head Light
In ignition key position 2, turn
the light switch to the position
Automatic headlamp control,
refer to page 102.
To avoid blinding oncoming traffic, the
Adaptive Head Light
>is not active when driving in reverse
>when stopped only active toward
passenger's side.
MalfunctionThe LED next to the symbol for auto-
matic headlamp control flashes. Adap-
tive Head Light is faulty or has failed.
Have the system checked as soon as
possible.
1High beams
2Headlamp flasher
3Roadside parking lamps Roadside parking lamps,
left and right
*
As an additional feature, you can illumi-
nate your vehicle on either side for
parking, if you wish to do so:
With the ignition key in position 0,
engage the lever in the appropriate turn
signal position. 530de265

105n
OverviewControlsMaintenanceRepairsDataIndex
Interior lampsRear reading lamps
*
Switched on and off with the button
next to each lamp, refer to arrows.Footwell and cargo area lamps The lamps are controlled in the same
manner as the front interior lamps.530us057
Front area lighting
*
This lighting system in the two exterior
mirrors illuminates the ground in the
area near the two front doors. It is also
controlled in the same manner as the
front interior lamps, but it does not
function while the vehicle is moving.
In order to prevent battery dis-
charge, all of the lamps in the
vehicle are switched off automatically
approx. 15 minutes after the ignition
key is turned to position 0.<

111n
OverviewControlsMaintenanceRepairsDataIndex

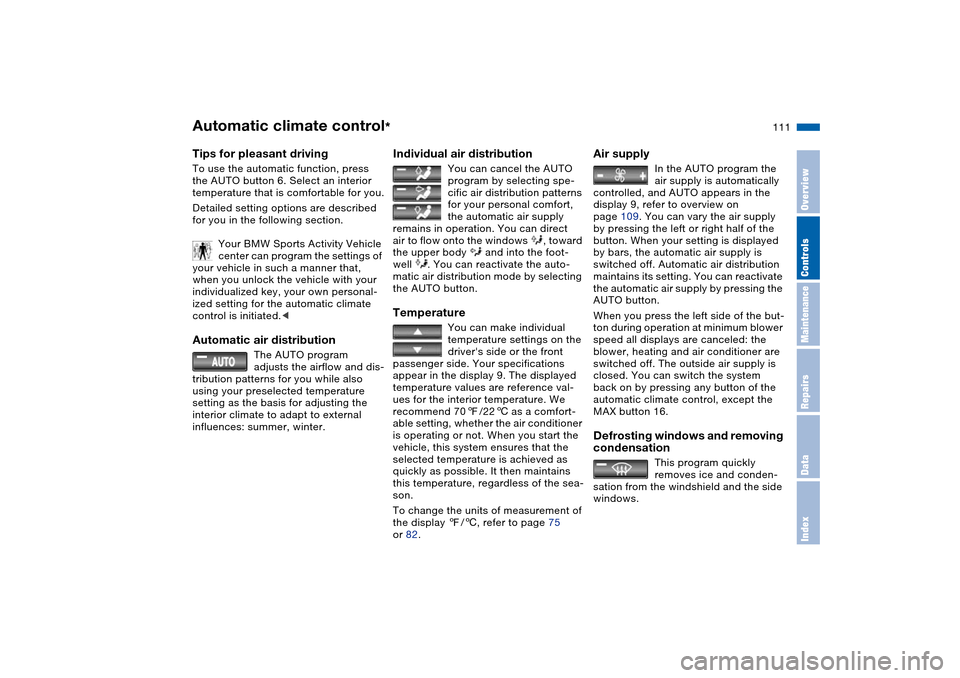

Automatic climate control
*
Tips for pleasant drivingTo use the automatic function, press
the AUTO button 6. Select an interior
temperature that is comfortable for you.
Detailed setting options are described
for you in the following section.
Your BMW Sports Activity Vehicle
center can program the settings of
your vehicle in such a manner that,
when you unlock the vehicle with your
individualized key, your own personal-
ized setting for the automatic climate
control is initiated.< Automatic air distribution
The AUTO program
adjusts the airflow and dis-
tribution patterns for you while also
using your preselected temperature
setting as the basis for adjusting the
interior climate to adapt to external
influences: summer, winter.
Individual air distribution
You can cancel the AUTO
program by selecting spe-
cific air distribution patterns
for your personal comfort,
the automatic air supply
remains in operation. You can direct
air to flow onto the windows , toward
the upper body and into the foot-
well . You can reactivate the auto-
matic air distribution mode by selecting
the AUTO button.
Temperature
You can make individual
temperature settings on the
driver's side or the front
passenger side. Your specifications
appear in the display 9. The displayed
temperature values are reference val-
ues for the interior temperature. We
recommend 707/226 as a comfort-
able setting, whether the air conditioner
is operating or not. When you start the
vehicle, this system ensures that the
selected temperature is achieved as
quickly as possible. It then maintains
this temperature, regardless of the sea-
son.
To change the units of measurement of
the display 7/6, refer to page 75
or 82.
Air supply
In the AUTO program the
air supply is automatically
controlled, and AUTO appears in the
display 9, refer to overview on
page 109. You can vary the air supply
by pressing the left or right half of the
button. When your setting is displayed
by bars, the automatic air supply is
switched off. Automatic air distribution
maintains its setting. You can reactivate
the automatic air supply by pressing the
AUTO button.
When you press the left side of the but-
ton during operation at minimum blower
speed all displays are canceled: the
blower, heating and air conditioner are
switched off. The outside air supply is
closed. You can switch the system
back on by pressing any button of the
automatic climate control, except the
MAX button 16.
Defrosting windows and removing
condensation
This program quickly
removes ice and conden-
sation from the windshield and the side
windows.

113n
OverviewControlsMaintenanceRepairsDataIndex
Automatic climate control
*
Residual heat
The heat which is stored in
the engine is utilized for
heating the interior when the engine
has been switched off – while waiting at
a railroad crossing, for instance.
You can adjust the automatic climate
control settings in ignition key position 1.
With the ignition key in position 0, the
system automatically directs heated air
to the windshield, side windows and
footwells.
This function may be activated
when the outside temperature is
below approx. 597/156, the engine
is at operating temperature, and the
battery is adequately charged. The LED
on the button will light up when all con-
ditions have been met.<
Draft-free ventilation You can adjust the vent outlets for the
upper body area to select the optimum
airflow rates and directions for your
personal comfort:
1Rotary dials for opening and closing
the vent outlets through an infinitely-
variable range
2Selector levers for airflow direction
3With the serrated dial you can adjust
the temperature of the incoming air.
>Turn toward blue: colder
>Turn toward red: warmer 530de270
Rear climate control
*
1Air supply
2Temperature
3Adjusting the direction of the airflow 530de272

119n
OverviewControlsMaintenanceRepairsDataIndex
Glove compartment Storage compartments Opening Pull the handle. The lamp inside the
glove compartment comes on.Closing Fold the cover up.
To prevent injury in the event of an
accident, close the glove com-
partment immediately after use.< 530de275
Engaging locks Use one of the master keys. A master
key is also required for unlocking.
If you turn over only your spare
key for valet parking, for example,
refer to page 30, access to the glove
compartment is not possible.< Rechargeable flashlight Located on the left-hand side of the
glove compartment.
Features integral overload-protection,
so it can be left in its holder continu-
ously.
To avoid completely discharging
and possibly damaging the lamp,
always ensure that it is switched off
before inserting it in the socket.<
You will find two storage compartments
in the armrest between the front seats.
To open the top compartment:
Press the button, refer to arrow 1.
An installed cellular phone
* is located
in this compartment.
To move the armrest or open the lower
compartment:
Pull the handle, refer to arrow 2.
This compartment contains a coin tray
and a storage compartment* for cas-
settes or CDs.
You will find additional storage com-
partments in all of the doors as well as
on the backrests of the front seats.
530de276

121n
OverviewControlsMaintenanceRepairsDataIndex
Ashtray, front Ashtray, rear Emptying Press the edge of the lid, refer to arrow:
the ashtray moves up and can be
removed.Cigarette lighter, front Press the lighter 1 in.
The lighter can be removed as soon as
it retracts.
Hold or briefly press the hot ciga-
rette lighter by the knob only.
Holding or touching it in other areas
could result in burns.
The cigarette lighter remains opera-
tional when the ignition key has been
removed. For this reason, do not leave
unsupervised children in the vehicle.< 530de338
Power socket The cigarette lighter socket can be
used in ignition key position 2 to plug in
hand flashlights, car vacuum cleaners,
etc., with power ratings of up to approx.
200 W at 12 V. Avoid damaging the
socket due to inserting plugs of differ-
ent shapes or sizes.
You will find additional power outlets in
the cargo area, refer to page 128.
Emptying Remove the insert tray. 530de282

122n
Cigarette lighter, rear Press the lighter in.
The lighter can be removed as soon as
it retracts.
Hold or briefly press the hot ciga-
rette lighter by the knob only.
Holding or touching it in other areas
could result in burns.
The cigarette lighter remains opera-
tional when the ignition key has been
removed. For this reason, do not leave
unsupervised children in the vehicle.< 530de239

158n
Under the cargo floor cover in a pocket.
530us106
Front 1. Move the wiper to a fold-out posi-
tion, refer to page 71
2. Lift the wiper arm and press the
securing spring, refer to arrow
3. Pull the wiper blade off toward the
wiper arm
4. Insert the new blade and snap it into
place.
Fold the wipers back down onto
the windshield before you turn the
ignition key to position 1 or 2 again. If
you do not, they could be damaged.< 530de300
Rear 1. Hold the wiper blade on the window
and remove/unclip the wiper arm at
the articulated joint, refer to arrow
2. Insert a new wiper blade and press it
on/clip it into the wiper arm.
Use only wiper blades approved
by BMW.< 530de301
Onboard tool kit Windshield wiper blades
