2004 BMW 330I winter tires

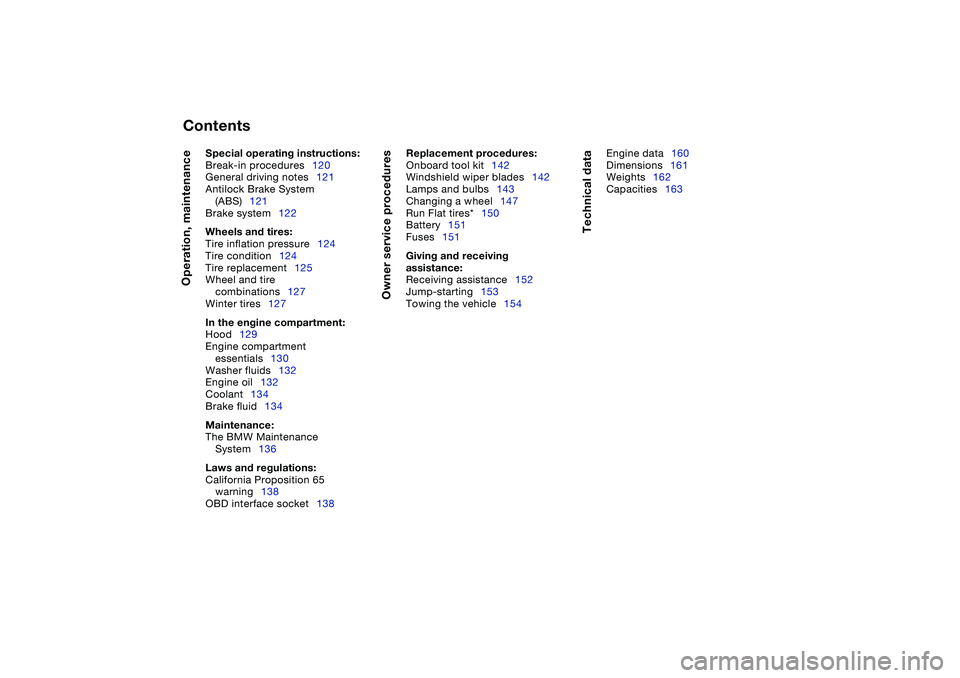

Contents

Operation, maintenance

Special operating instructions:

Break-in procedures120
General driving notes121
Antilock Brake System
(ABS)121
Brake system122

Wheels and tires:

Tire inflation pressure124
Tire condition124
Tire replacement125
Wheel and tire
combinations127
Winter tires127

In the engine compartment:

Hood129
Engine compartment
essentials130
Washer fluids132
Engine oil132
Coolant134
Brake fluid134

Maintenance:

The BMW Maintenance
System136

Laws and regulations:

California Proposition 65
warning138
OBD interface socket138
Owner service procedures
Replacement procedures:

Onboard tool kit142
Windshield wiper blades142
Lamps and bulbs143
Changing a wheel147
Run Flat tires*150
Battery151
Fuses151

Giving and receiving
assistance: Receiving assistance152
Jump-starting153
Towing the vehicle154
Technical data

Engine data160
Dimensions161
Weights162
Capacities163

127

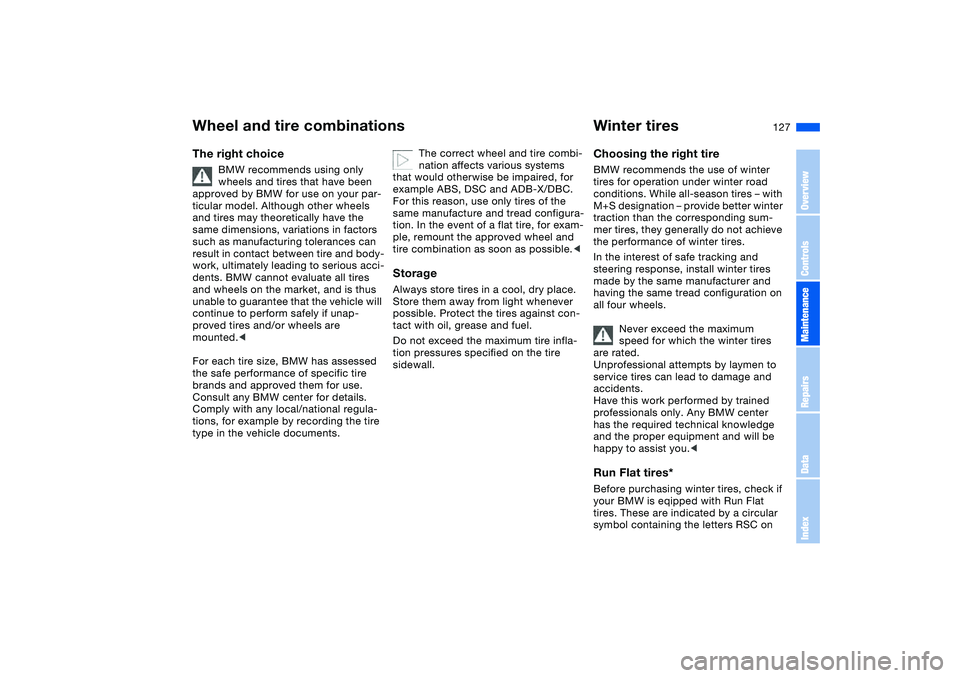

Wheel and tire combinationsThe right choice
BMW recommends using only
wheels and tires that have been
approved by BMW for use on your par-
ticular model. Although other wheels
and tires may theoretically have the
same dimensions, variations in factors
such as manufacturing tolerances can
result in contact between tire and body-
work, ultimately leading to serious acci-
dents. BMW cannot evaluate all tires
and wheels on the market, and is thus
unable to guarantee that the vehicle will
continue to perform safely if unap-
proved tires and/or wheels are
mounted.<
For each tire size, BMW has assessed
the safe performance of specific tire
brands and approved them for use.
Consult any BMW center for details.
Comply with any local/national regula-
tions, for example by recording the tire
type in the vehicle documents.
The correct wheel and tire combi-
nation affects various systems
that would otherwise be impaired, for
example ABS, DSC and ADB-X/DBC.
For this reason, use only tires of the
same manufacture and tread configura-
tion. In the event of a flat tire, for exam-
ple, remount the approved wheel and
tire combination as soon as possible.<
StorageAlways store tires in a cool, dry place.
Store them away from light whenever
possible. Protect the tires against con-
tact with oil, grease and fuel.
Do not exceed the maximum tire infla-
tion pressures specified on the tire
sidewall.
Winter tiresChoosing the right tireBMW recommends the use of winter
tires for operation under winter road
conditions. While all-season tires – with
M+S designation – provide better winter
traction than the corresponding sum-
mer tires, they generally do not achieve
the performance of winter tires.
In the interest of safe tracking and
steering response, install winter tires
made by the same manufacturer and
having the same tread configuration on
all four wheels.
Never exceed the maximum
speed for which the winter tires
are rated.
Unprofessional attempts by laymen to
service tires can lead to damage and
accidents.
Have this work performed by trained
professionals only. Any BMW center
has the required technical knowledge
and the proper equipment and will be
happy to assist you. your BMW is eqipped with Run Flat
tires. These are indicated by a circular
symbol containing the letters RSC on
OverviewControlsMaintenanceRepairsDataIndex

128

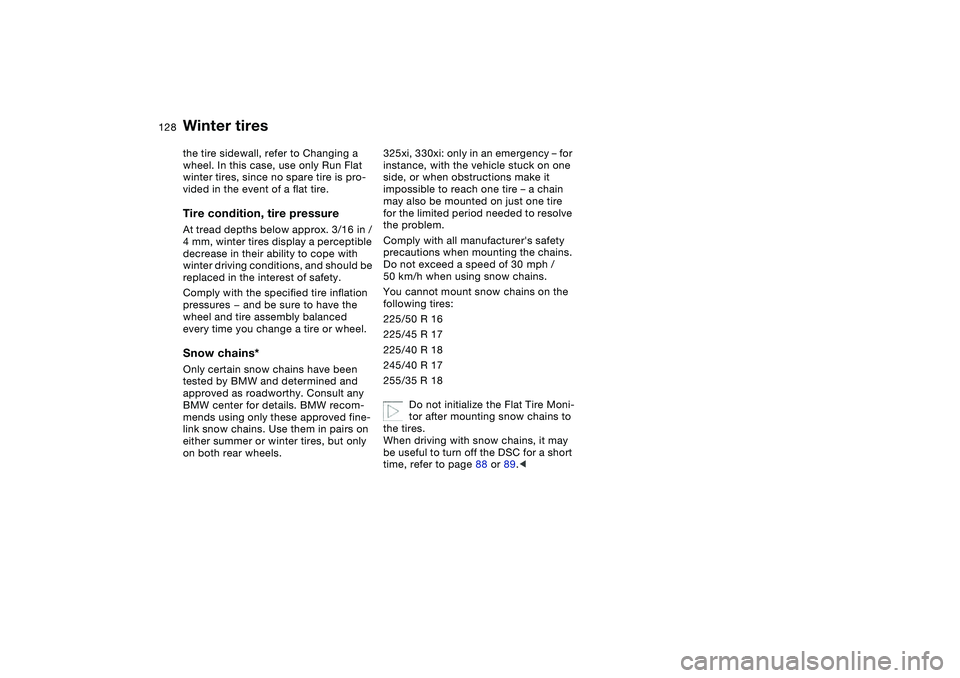

the tire sidewall, refer to Changing a
wheel. In this case, use only Run Flat
winter tires, since no spare tire is pro-
vided in the event of a flat tire.Tire condition, tire pressureAt tread depths below approx. 3/16 in /
4 mm, winter tires display a perceptible
decrease in their ability to cope with
winter driving conditions, and should be
replaced in the interest of safety.
Comply with the specified tire inflation
pressures — and be sure to have the
wheel and tire assembly balanced
every time you change a tire or wheel.Snow chains*Only certain snow chains have been
tested by BMW and determined and
approved as roadworthy. Consult any
BMW center for details. BMW recom-
mends using only these approved fine-
link snow chains. Use them in pairs on
either summer or winter tires, but only
on both rear wheels.325xi, 330xi: only in an emergency – for
instance, with the vehicle stuck on one
side, or when obstructions make it
impossible to reach one tire – a chain
may also be mounted on just one tire
for the limited period needed to resolve
the problem.
Comply with all manufacturer's safety
precautions when mounting the chains.
Do not exceed a speed of 30 mph /
50 km/h when using snow chains.
You cannot mount snow chains on the
following tires:
225/50 R 16
225/45 R 17
225/40 R 18
245/40 R 17
255/35 R 18
Do not initialize the Flat Tire Moni-
tor after mounting snow chains to
the tires.
When driving with snow chains, it may
be useful to turn off the DSC for a short
time, refer to page 88 or 89.

150

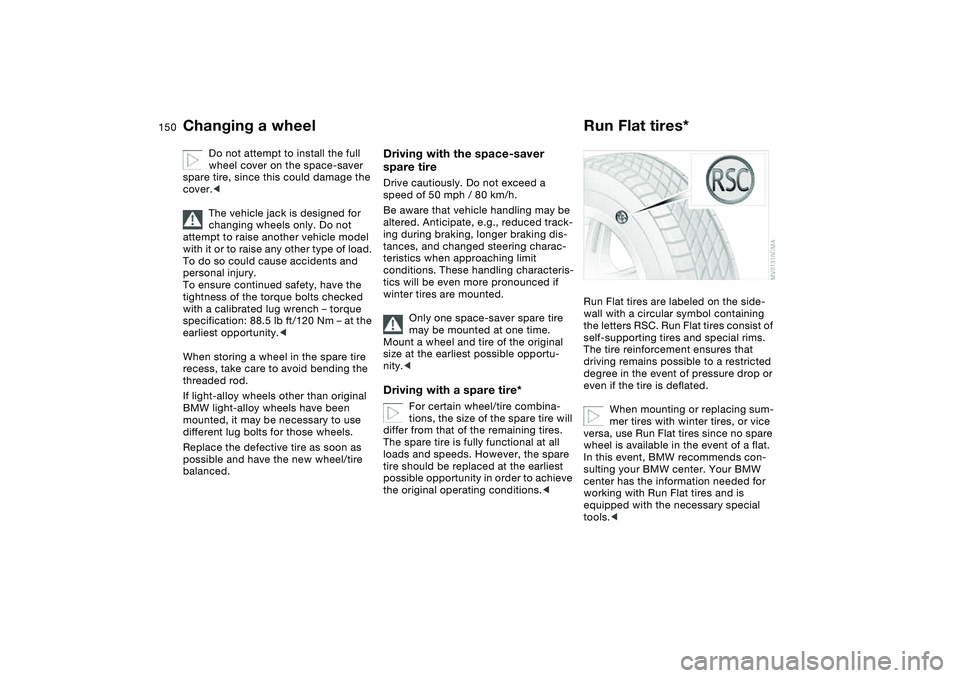

Do not attempt to install the full
wheel cover on the space-saver
spare tire, since this could damage the
cover.<
The vehicle jack is designed for
changing wheels only. Do not
attempt to raise another vehicle model
with it or to raise any other type of load.
To do so could cause accidents and
personal injury.
To ensure continued safety, have the
tightness of the torque bolts checked
with a calibrated lug wrench – torque
specification: 88.5 lb ft/120 Nm – at the
earliest opportunity.<
When storing a wheel in the spare tire
recess, take care to avoid bending the
threaded rod.
If light-alloy wheels other than original
BMW light-alloy wheels have been
mounted, it may be necessary to use
different lug bolts for those wheels.
Replace the defective tire as soon as
possible and have the new wheel/tire
balanced.
Driving with the space-saver
spare tireDrive cautiously. Do not exceed a
speed of 50 mph / 80 km/h.
Be aware that vehicle handling may be
altered. Anticipate, e.g., reduced track-
ing during braking, longer braking dis-
tances, and changed steering charac-
teristics when approaching limit
conditions. These handling characteris-
tics will be even more pronounced if
winter tires are mounted.
Only one space-saver spare tire
may be mounted at one time.
Mount a wheel and tire of the original
size at the earliest possible opportu-
nity. For certain wheel/tire combina-
tions, the size of the spare tire will
differ from that of the remaining tires.
The spare tire is fully functional at all
loads and speeds. However, the spare
tire should be replaced at the earliest
possible opportunity in order to achieve
the original operating conditions.<
Run Flat tires*Run Flat tires are labeled on the side-
wall with a circular symbol containing
the letters RSC. Run Flat tires consist of
self-supporting tires and special rims.
The tire reinforcement ensures that
driving remains possible to a restricted
degree in the event of pressure drop or
even if the tire is deflated.
When mounting or replacing sum-
mer tires with winter tires, or vice
versa, use Run Flat tires since no spare
wheel is available in the event of a flat.
In this event, BMW recommends con-
sulting your BMW center. Your BMW
center has the information needed for
working with Run Flat tires and is
equipped with the necessary special
tools.<
Changing a wheel

Everything from A to ZA
ABS Antilock Brake
System 121
indicator lamp 18
Acceleration assistant 72
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 152
Activated-charcoal filter 106
ADB-X Automatic Differen-
tial Brake, all-wheel 89
Adding brake fluid 134
Additional sources of infor-
mation 4
Air conditioning 98
Air conditioning mode 100
automatic climate
control 104
Air distribution
air conditioning 100
automatic climate
control 104
Air distribution,
individual 104
Air outlets, refer to Ventila-
tion 98, 102
Air pressure, refer to Tire
inflation pressure 25, 124
Air recirculation, refer to
Recirculated-air mode
100, 105Air supply
air conditioning 100
automatic climate
control 104
Air, drying, refer to Air con-
ditioning mode 100, 104
Airbags 57
indicator lamp 18, 59
sitting safely 47
Airing out, refer to Ventila-
tion 98, 102
Alarm system 41
avoiding unintentional
alarms 42
All-season tires, refer to
Winter tires 127
Antifreeze 134
coolant 134
washer fluid 132
Antilock Brake System
(ABS) 121
indicator lamp 18
Anti-theft system 32
Anti-theft warning system,
refer to Alarm system 41
Approved axle loads, refer
to Weights 162
Approved gross weight,
refer to Weights 162
Armrest
front 108
rear 109Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 110
rear 111
Assistant systems, refer to
Dynamic Stability Control
(DSC) 87
AUC Automatic recircu-
lated-air control 105
AUTO program, refer
to Automatic air distribu-
tion 104
Automatic
air distribution 104
air supply 104
cruise control 78
headlamp control 94
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 102
Automatic curb monitor 54
Automatic Differential Brake,
all-wheel ADB-X 89
Automatic dimming, interior
rearview mirror 56
Automatic recirculated-air
control (AUC) 105Automatic transmission with
Steptronic 73
indicator lamp 19, 75
interlock 65
selector lever lock 73
shiftlock 73
Automatic windshield
washer, refer to Rain sen-
sor 77
Average fuel
consumption 85
Average speed 85
Avoiding unintentional
alarms 42
Axle loads, refer to
Weights 162
B
Backrest, adjusting 49
Backrest, refer to Seat
adjustment 48, 50
Backup lamps 68
bulb replacement 145
Bandages, refer to First-aid
kit 23
Battery 151
charge 151
disposal 151
indicator lamp 18
jump-starting 153
remote control 32, 33
Battery charge current 18

Everything from A to ZLuggage compartment lid 38
emergency operation 38
emergency release 40
indicator lamp 82
opening from inside the
vehicle 38, 39
opening from outside 38
remote control 34
securing separately 38
unlocking manually 38
Luggage rack, refer to Roof-
mounted luggage rack 117
Lumbar support 50
M
M+S tires, refer to Winter
tires 127
Maintenance 82, 136
Maintenance system 136
Making telephone calls,
refer to the telephone
Owner's Manual
Malfunction
door lock 36
fuel filler door 24
Malfunction displays 82Manual operation
door lock 36
driver's door 36
fuel filler door 24
glass sunroof 46
luggage compartment
lid 38
Manual transmission 68
Master keys
with remote control 32
MC operation, refer to the
Owner's Manual for
Radio/Onboard Computer
MD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Mechanical seats 48
Memory, refer to Seat and
mirror memory 53
Memory, refer to Vehicle
Memory, Key Memory 64
Microfilter
air conditioning 101
automatic climate
control 106
Microphone, refer to Cellular
phone 110
Mini disc operation, refer to
the Owner's Manual for
Radio/Onboard ComputerMirrors 55
automatic curb monitor 54
heated 55
memory, refer to Seat and
mirror memory 53
Mobile Service 152
Modifications, technical,
refer to For your own
safety 5
Multifunction steering
wheel 22
Multifunction switch
turn signal indicator/head-
lamp flasher 76
washer/wiper system 77
N
Navigation system, refer to
the Owner's Manual for
Radio/Onboard Computer
Neck restraints, refer to
Head restraints 51
Nets 108
Nozzles, refer to Ventilation
98, 102
O
OBD interface socket 138
Odometer 80Oil
additives, refer to Adding
engine oil 133
capacity 163
dipstick 132
quality 133
viscosity 133
Oil change interval, refer
to Service interval
display 136
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 132
Oil dipstick 132
Oil filter change 163
Oil level
checking 132
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 82
Oil types 133
Old batteries, refer to Dis-
posal 151
Onboard computer 84
Onboard computer, refer to
the Owner's Manual for
Onboard Computer

Everything from A to Z
175
Storing seat positions,
refer to Seat and mirror
memory 53
Storing tires 127
Stroke, refer to Engine
data 160
Sun blind, refer to Roller sun
blind 106
Surface ice, refer to Ice
warning 84
Switches, refer to
Cockpit 14
Switching off
engine 67
vehicle 67
Symbols 4
Synthetic oils 133
T
Tachometer 80
Tail lamps
bulb replacement 145
Tail lamps, refer to Rear
lamps 145
Tank capacity, refer to Fuel
tank capacity 163
Tank indicator, refer to Fuel
gauge 81
Technical data 160
Technical modifications 5Technical modifications,
refer to For your own
safety 5
Telephone hookup 110
Telephone, refer to the sep-
arate Owner's Manual
Television, refer to the
Owner's Manual for
Onboard Computer
Temperature
air conditioning 100
automatic climate
control 104
Temperature adjustment
100, 104
Temperature display
engine coolant 81
ice warning 84
outside temperature 84
setting units 84
Temperature layering
101, 105
Tempomat, refer to Cruise
control 78
Thigh support area, adjust-
ing 49
Third brake lamp, refer to
Center high-mount brake
lamp 146
Three-point safety belt 51
Through-loading system 112Tilt alarm
deactivate 42
Tilt alarm sensor 34
remote control 34
Tilting passenger-side exte-
rior mirror 54
Time 83
Tire pressure monitoring,
refer to Flat Tire
Monitor 92
Tire replacement 125, 147
Tires
age 126
breaking in 120
changing 147
condition 128
damage 124
flat 147
inflation pressure 25, 124
replacing 125
size, refer to Wheel and
tire combinations 127
storing 127
tread 124
treadwear indicator,
refer to Tire tread – tire
damage 124
winter tires 127
Tools, refer to Onboard tool
kit 142Torque
engine 160
lug bolts 148
Tow sockets for towing eye-
let 155
Towing eyelet 155
Towing the vehicle 154
Track width, refer to Dimen-
sions 161
Transmission
automatic transmission
with Steptronic 73
sequential manual gear-
box SMG 69
Transmission lock, refer to P
Park 73
Transmission malfunction
automatic transmission
with Steptronic 75
sequential manual gear-
box SMG 71
Transport securing devices,
refer to Securing cargo
116
Transporting children
safely 60
Trap protection
electric power windows 43
Tread depth, refer to Tire
tread 124
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZTreadwear indicator in the
tires, refer to Tire tread –
tire damage 124
Treadwear, tires 124
Trigger alarm – Panic
mode 34
Trip distance recorder, refer
to Trip odometer 80
Trip meter, refer to Trip
odometer 80
Trip odometer 80
Trunk lid, refer to Luggage
compartment lid 38
Trunk lighting, refer to Lug-
gage compartment light-
ing 38
Turn signal indicator 76
bulb replacement 144
indicator lamp 20
Turn signal indicator, side
bulb replacement 145
Turning circle, refer to
Dimensions 161
TV function, refer to the
Owner's Manual for
Onboard Computer
U
Underbody protection, refer
to the Caring for your vehi-
cle brochureUniform Tire Quality
Grading 126
Units
average fuel
consumption 85
temperature 84
Unlocking
from inside 37
from outside 33, 36
V
Valve
screw caps 148
Vehicle
battery 151
break-in procedures 120
care, refer to the Caring
for your vehicle brochure
dimensions 161
loading 114
starting 65
switching off 67
washing, refer to the Car-
ing for your vehicle bro-
chure 77
weight 162
Vehicle Memory 64
Vehicle storage
refer to the Caring for your
vehicle brochure
Vehicle weight 162Ventilation 98, 102
draft-free 101, 105
Viscosity 133
Voice Input System 22
Voice recognition, refer to
separate Owner's Manual
Volume
luggage compartment 162
W
Warning and indicator
lamps 18
Warning lamp 'Please fas-
ten safety belts' 18
Warning messages 82
Warranty and Service Guide
Booklet 136
Warranty, refer also to sepa-
rate booklet 7
Washer fluid
adding 132, 163
Washer fluid reservoir 132
volume 132
Washer jets, refer to Wind-
shield washer jets 78
Washer/wiper system 77, 78
washer fluid 132
Waste tray, refer to
Ashtray 110
Water on roadways, deep
water 121
Weights 162Wheel and tire
combinations 127
Wheelbase, refer to Dimen-
sions 161
Wheels and tires 127
Wheelslip control DSC 87
Width, refer to
Dimensions 161
Window condensation
removing 101, 104
Windows
convenience operation
34, 36
power 43
remote control 33, 34
Windshield washer
nozzles 78
Windshield washer reservoir
volume, see
Capacities 163
Windshield washer reser-
voir, filling 163
Windshield wiper blades
replacing 142
Windshield wipers, refer to
Washer/wiper system 77
Winter tires 127
condition 128
storing 127
Work in the engine compart-
ment 129
