106

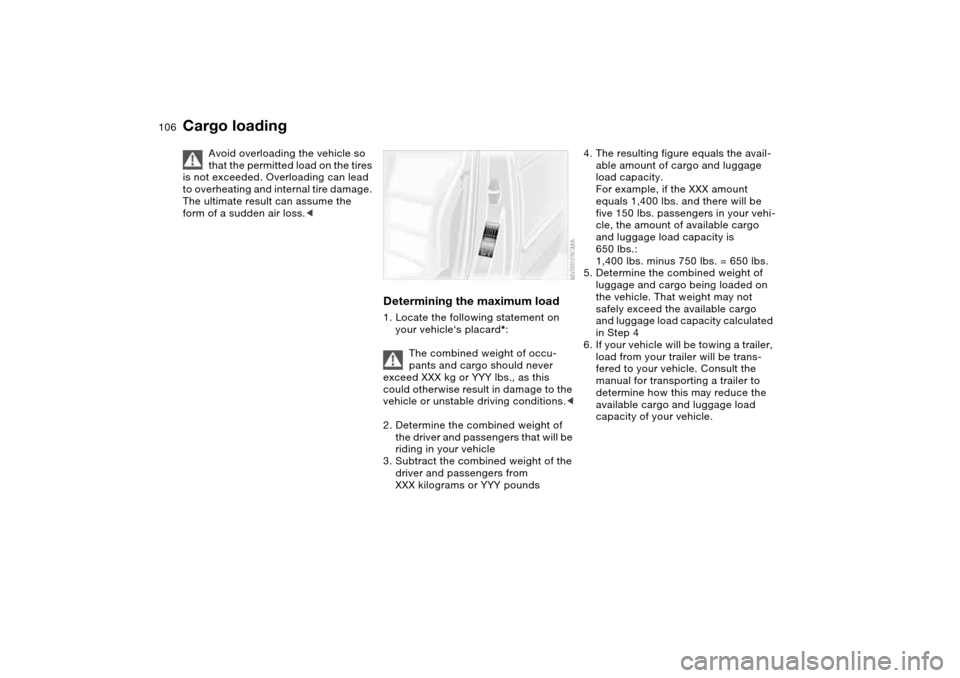

Cargo loading
Avoid overloading the vehicle so
that the permitted load on the tires
is not exceeded. Overloading can lead
to overheating and internal tire damage.
The ultimate result can assume the
form of a sudden air loss.<
Determining the maximum load1. Locate the following statement on
your vehicle‘s placard*:
The combined weight of occu-
pants and cargo should never
exceed XXX kg or YYY lbs., as this
could otherwise result in damage to the
vehicle or unstable driving conditions.<
2. Determine the combined weight of
the driver and passengers that will be
riding in your vehicle
3. Subtract the combined weight of the
driver and passengers from
XXX kilograms or YYY pounds
4. The resulting figure equals the avail-
able amount of cargo and luggage
load capacity.
For example, if the XXX amount
equals 1,400 lbs. and there will be
five 150 lbs. passengers in your vehi-
cle, the amount of available cargo
and luggage load capacity is
650 lbs.:
1,400 lbs. minus 750 lbs. = 650 lbs.
5. Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calculated
in Step 4
6. If your vehicle will be towing a trailer,
load from your trailer will be trans-
fered to your vehicle. Consult the
manual for transporting a trailer to
determine how this may reduce the
available cargo and luggage load
capacity of your vehicle.

Everything from A to Z
163
DSC Dynamic Stability Con-
trol 81
indicator lamp 19, 81
DTC Dynamic Traction Con-
trol 81
indicator lamp 19, 81
Dynamic Brake Control
(DBC) 19, 115
indicator lamp 19
Dynamic Stability Control
(DSC) 19, 81
Dynamic Traction Control
(DTC) 81
indicator lamp 19, 81
E
Easy entry, refer to Entering
the rear 45
Electric glass sunroof 39
Electric power windows 38
Electrical accessories, fail-
ure 145
Electrical malfunction
automatic transmission
with Steptronic 69
door lock 31
driver's door 31
fuel filler door 23
glass sunroof 40
luggage compartment
lid 33Electronic Stability Program
(ESP), refer to Dynamic
Stability Control (DSC) 81
Emergency call 146
Emergency operation
doors 31
driver's door 31
fuel filler door 23
glass sunroof 40
Emergency release
luggage compartment lid
33, 35
Emissions, minimum, refer
to Energy control 74
Energy control 74
Engine
breaking in 112
data 154
electronics 19
indicator lamp 19
speed 74, 154
starting 59
switching off 61
Engine compartment 124
Engine coolant 128
adding 128Engine oil
adding 127
additives, refer to Adding
engine oil 127
capacity 157
indicator/warning lamp 19
quality 127
specified oils 127
Engine oil consumption 126
Engine oil level 19
check 126
indicator/warning lamp 18
Engine oil pressure
indicator/warning lamp 18
Engine oil types 127
Engine output, refer to
Engine data 154
Engine speed 74, 154
Entering the rear 45
Environmentally-friendly
driving, refer to Energy
control 74
Equipment range, refer to
Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
ESP Electronic Stability Pro-
gram, refer to Dynamic
Stability Control (DSC) 81
Exterior mirrors 49Eyeglasses
compartment 101
Eyelets, towing and tow-
starting 149
F
False alarm, refer to Avoid-
ing unintentional
alarms 37
Fasten safety belts
indicator lamp 18
Fastening the safety belts 46
Fault displays 76
Filling the windshield washer
reservoir 157
First aid, refer to First-aid
kit 22
First-aid kit 22
Flashlight 100
Flashlight, refer to
Rechargeable
flashlight 100
Flat tire 141
Flat Tire Monitor 82
space-saver spare tire 141
Flat Tire Monitor 82
indicator lamp 18, 19, 83
Fluid reservoir for washer
systems 126
Folding rear backrest 104
Follow me home lamps 85
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZLuggage compartment lid 33
emergency operation 33
emergency release 35
indicator lamp 76
opening from inside the
vehicle 33
opening from outside 33
remote control 30
securing separately 33
unlocking manually 33
Luggage compartment light-
ing 33
Luggage rack, refer to Roof-
mounted luggage rack 109
Lumbar support 44
M
Maintenance 76, 130
Maintenance system 130
Making telephone calls,
refer to the telephone
Owner's Manual
Malfunction
door lock 31
fuel filler door 23
Malfunction displays 76Manual operation
door lock 31
driver's door 31
fuel filler door 23
glass sunroof 40
luggage compartment
lid 33
Manual transmission 62
Master keys
with remote control 28
MC operation, refer to the
Owner's Manual for
Radio/Onboard Computer
MD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Mechanical seats 42
Memory, refer to Seat and
mirror memory 47
Memory, refer to Vehicle
Memory, Key Memory 58
Microfilter
air conditioning 93
automatic climate
control 98
Microphone 101
Mini disc operation, refer to
the Owner's Manual for
Radio/Onboard Computer
Mirror
automatic curb monitor 48Mirrors 49
heated 49
memory, refer to Seat and
mirror memory 47
Mobile Service 147
Modifications, technical,
refer to For your own
safety 5
Multifunction steering
wheel 21
Multifunction switch
turn signal indicator/head-
lamp flasher 70
washer/wiper system 71
N
Navigation system, refer to
the Owner's Manual for
Radio/Onboard Computer
Neck restraints, refer to
Head restraints 45
Nets 100
Nozzles, refer to Ventilation
90, 94
Nylon rope, refer to Towing
and tow-starting the vehi-
cle 149
O
OBD interface socket 132
Odometer 74Oil
additives, refer to Adding
engine oil 127
capacity 157
dipstick 126
quality 127
Oil change interval, refer
to Service interval
display 130
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 126
Oil dipstick 126
Oil filter change 157
Oil level
checking 126
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 76
Oil types 127
Old batteries, refer to Dis-
posal 145
Onboard computer 78
Onboard computer, refer to
the Owner's Manual for
Onboard Computer
Onboard tool kit 136

Everything from A to Z
167
Opening and closing
from inside 32
from outside 29
via door lock 31
via remote control 29
Outlets, ventilation 90, 94
Outside temperature dis-
play 78
changing unit of
measure 78
P
Paintwork care, refer to the
Caring for your vehicle
brochure
Panic mode – trigger
alarm 30
Park Distance Control
(PDC) 80
Parking aid, refer to Park
Distance Control (PDC) 80
Parking brake 61
indicator lamp 18
Parking lamps 85
bulb replacement 138
Parking lamps/Low
beams 85
Parts and accessories, refer
to Your individual vehicle 5
Passenger-side exterior mir-
ror tilt function 48PDC Park Distance
Control 80
Plastic, refer to the Caring
for your vehicle brochure
Pollen, refer to Microfilter 93
Pollen, refer to Microfil-
ter/activated-charcoal fil-
ter 98
Power output, refer to
Engine data 154
Power seat 44
Power socket 102
Power socket, cigarette
lighter 102
Pressure monitoring, tires
Flat Tire Monitor 82
Pressure, tires 116
Protective function
electric power windows 38
R
Radio remote control key,
refer to Master key with
remote control 28
Radio, refer to the Owner's
Manual for Radio
Rain sensor 71
Raising the floor panel 35
Range 79
Reading lamps
front 88
rear 88Rear armrest, refer to Rear
center armrest 101
Rear backrest, folding 104
Rear center 3-point safety
belt 104
Rear center armrest 101
Rear lamps
bulb replacement 139
indicator lamp, defective
lamp 76
Rear window defroster
air conditioning 92
Rear window heating
automatic climate
control 97
Rear-entry assist 45
Rearview mirror 49
Receiving assistance 146
Recirculated-air mode
air conditioning 92
automatic climate
control 97
Recirculating the air, refer
to Recirculated-air mode
92, 97
Reclining seat, refer to Seat
adjustment 42, 44
Refueling 23
fuel filler door 23
Releasing
hood 123Remaining distance to ser-
vice 76
Remaining distance, refer to
Range 79
Remote control 29
luggage compartment
lid 30
malfunction 30
Replacement key 29
Replacing lamps, refer to
Lamps and bulbs 137
Reporting safety defects 7
Restraint systems
for children 54
Restraint systems, refer to
Safety belts 46
Reverse 62
automatic transmission
with Steptronic 67
SMG gearbox 64
Roof load capacity 156
Roof-mounted luggage
rack 109
Rope, refer to Towing
and tow-starting the vehi-
cle 149
Run Flat tires 120
S
Safe seating position 41
Safety belt height adjust-
ment 46
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
169
Tail lamps
bulb replacement 139
Tail lamps, refer to Rear
lamps 139
Tank capacity, refer to Fuel
tank capacity 157
Tank indicator, refer to Fuel
gauge 75
Technical data 154
Technical modifications 5
Technical modifications,
refer to For your own
safety 5
Telephone hookup 101
Telephone, refer to the sep-
arate Owner's Manual
Television, refer to the
Owner's Manual for
Onboard Computer
Temperature
air conditioning 92
automatic climate
control 96
Temperature adjustment
92, 96
Temperature display
engine coolant 75
ice warning 78
outside temperature 78
setting units 78
Temperature layering 93, 97Tempomat, refer to Cruise
control 72
Thigh support area, adjust-
ing 43
Third brake lamp, refer to
Center high-mount brake
lamp 140
Threaded socket for towing
eyelet 149
Three-point safety belt 46
Through-loading system 104
Tilt alarm
deactivate 37
Tilt alarm sensor 37
Tilting passenger-side exte-
rior mirror 48
Time 77
Tire change 141
Tire inflation pressure 116
Tire pressure monitoring,
refer to Flat Tire
Monitor 82
Tire replacement 141Tires
age 118
breaking in 112
changing 141
condition 119
damage 119
flat 141
inflation pressure 116
storing 122
tread 119, 120
tread wear indicators,
refer to Tire tread 120
winter tires 121, 122
Tools, refer to Onboard tool
kit 136
Torque
engine 154
lug bolts 142
Tow bar 149
Tow rope 149
Towing 149
Towing eyelet 149
Towing the vehicle 149
Tow-starting 149
Track width, refer to Dimen-
sions 155
Transmission
automatic transmission
with Steptronic 67
sequential manual gear-
box SMG 63Transmission lock, refer to P
Park 67
Transmission malfunction
automatic transmission
with Steptronic 69
sequential manual gear-
box SMG 65
Transport securing devices,
refer to Securing
cargo 108
Transporting children
safely 54
Trap protection
electric power windows 38
glass sunroof 40
Tread depth, refer to Tire
tread 120
Tread wear indicators in
the tires, refer to Tire
tread 120
Tread wear, tires 120
Trigger alarm – Panic
mode 30
Trip distance recorder, refer
to Trip odometer 74
Trip meter, refer to Trip
odometer 74
Trip odometer 74
Trunk lid, refer to Luggage
compartment lid 33
OverviewControlsMaintenanceRepairsDataIndex
