2004 BMW 330CI CONVERTIBLE Convertible top

Contents

Notes

About this Owner's Manual4
Additional sources of
information4
Symbols used4
Your individual vehicle5
Status at time of printing5
For your own safety5
Symbol on vehicle parts6
Service and warranty7
Reporting safety defects7

Overview

Cockpit14
Instrument cluster16
Indicator and warning lamps18
Buttons in steering wheel*22
Hazard warning triangle*23
First-aid kit*23
Refueling24
Fuel specifications25
Tire inflation pressure25

Controls and features

Opening and closing:

Keys30
Central locking system30
Opening and closing – via the
remote control31
Opening and closing – via the
door lock33
Opening and closing – from the
inside34
Luggage compartment lid35
Luggage compartment37
Alarm system*38
Electric power windows40
Manual convertible top41
Fully-automatic convertible
top*46
Wind deflector*50

To adjust:

Safe seating position52
Seats53
Adjusting electric power
seats53
Lumbar support*54
Head restraints54
Entering the rear55
Safety belts56
Seat and mirror memory*57
Seat heating*58
Steering wheel59
Mirrors59

32
Convenience opening mode*Press and hold button. The electric
power windows and the fully-automatic
convertible top open.To lock and securePress the button.To switch on the interior lampsWith the vehicle locked, press the but-
ton.To deactivate the tilt alarm* and
interior motion sensors*Press the button a second time imme-
diately after locking.
For additional information, refer to
page 39.To open the luggage
compartment lidPress the button.
The luggage compartment lid will open
slightly, regardless of whether it was
previously locked or unlocked.
If the luggage compartment lid
was locked, it will be locked again
after it is reclosed.
Before and after a trip, be sure that the
luggage compartment lid has not been
opened unintentionally. armed, you can respond to imminent
danger by holding down the button for
more than seconds.
To switch off the alarm:
Press the button.External systemsThe remote control system's operation
may be affected by other units or
equipment operating in the immediate
vicinity of your vehicle.
If this should occur, you can still open
and close the vehicle using the master
key in either the door or luggage com-
partment lid locks.For US owners onlyThe transmitter and receiver units com-
ply with part 15 of the FCC Federal
Communications Commission regula-
tions. Operation is governed by the fol-
lowing:
FCC ID:
>LX8EWS
>LX8FZVS
>LX8FZVE.
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference
>This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<
Opening and closing – via the remote control

37
Luggage compartmentTo fold up and secure the floor
panel1. Pull up at the handle and fold the
panel up
2. Press the button to release the
hanger from the handle
3. Hook the handle into the rubber seal
of the drip rail.
Carefully replace the hanger in its
holder when lowering the floor
panel back down.<
The fittings at the corners of the lug-
gage compartment provide you with a
convenient means of attaching luggage
compartment nets* and flexible straps
for securing luggage.
Refer also to Cargo loading on
page 118.
To enlarge the luggage
compartmentWith the convertible top closed, you
can enlarge the luggage compartment.
To do this, flip the handle outward and
press it down and toward the front of
the vehicle. The convertible top com-
partment panel is now raised and
secured.To fold down the convertible top
compartment panelThe convertible top compartment lid
must be folded down to open the con-
vertible top. Swing out the handle and
pull toward the back of the vehicle.
OverviewControlsMaintenanceRepairsDataIndex

38
Before lowering the convertible
top, refer to page 41 or 46, always
check to ensure that the luggage com-
partment panel is folded down. Other-
wise damage could occur.<
Alarm system*The conceptThe vehicle alarm system responds:
>When a door, the hood or the lug-
gage compartment lid is opened
>To movements inside the vehicle –
interior motion sensor
>To variations in the vehicle's tilt angle
such as those occurring during
attempts to steal the wheels or tow
the vehicle – tilt alarm sensor
>To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
>The acoustic alarm sounds for
30 seconds
>The hazard warning flashers are acti-
vated for approx. five minutes
>The high beams flash on and off in
rhythm with the hazard warning flash-
ers.To arm and disarm the alarm
systemWhen the vehicle is locked or unlocked
via the driver's door lock or with the
remote control, the alarm system is also
simultaneously armed or disarmed.You can have different acknowl-
edgment signals set to confirm
arming and disarming.<
You can open the luggage compart-
ment lid when the system is armed by
pressing the remote control button,
refer to page 32. The lid is once again
secured when it is closed.
Extended pressure on the button sets
off the alarm – Panic mode, refer to
page 32.
Luggage compartment

41
After the ignition has been
switched offYou can still use the electric power win-
dows for up to 15 minutes, as long as
no one opens any of the doors.Safety featureIf the closing force of a front window
exceeds a certain value as the window
is being closed, the closing procedure
is immediately interrupted and the win-
dow opens again slightly.
Despite this protective function,
you must still make sure that there
are no obstacles within the closing
range of the windows. Otherwise, it
cannot be guaranteed that the closing
procedure will be interrupted in certain
cases, e.g. when very thin objects are
in the closing range.
This protective function is deactivated
when the switch is pulled past the
resistance point and held there. nected, the protective function must be
reinitialized. Please refer the problem to
your BMW center.
Manual convertible topThe fabric top offers the perfect protec-
tion against weather and one person
can open and close it easily and simply.
To gain maximum satisfaction from your
convertible, please observe the follow-
ing: we strongly recommend that you
close the convertible top before leaving
the vehicle parked. When closed, the
top not only guards the passenger
compartment from unforeseeable dam-
age from the weather, but also affords a
degree of protection against theft.
However, even when the top is closed
valuables should always be stored in
the locked luggage compartment.
Never attempt to mount any kind of roof
rack or luggage carrier on the convert-
ible top.
Closing the electric power win-
dows: to help ensure that the win-
dows seal securely, you should either
close the rear windows first or close all
four windows at the same time.<
Electric power windows
OverviewControlsMaintenanceRepairsDataIndex

42

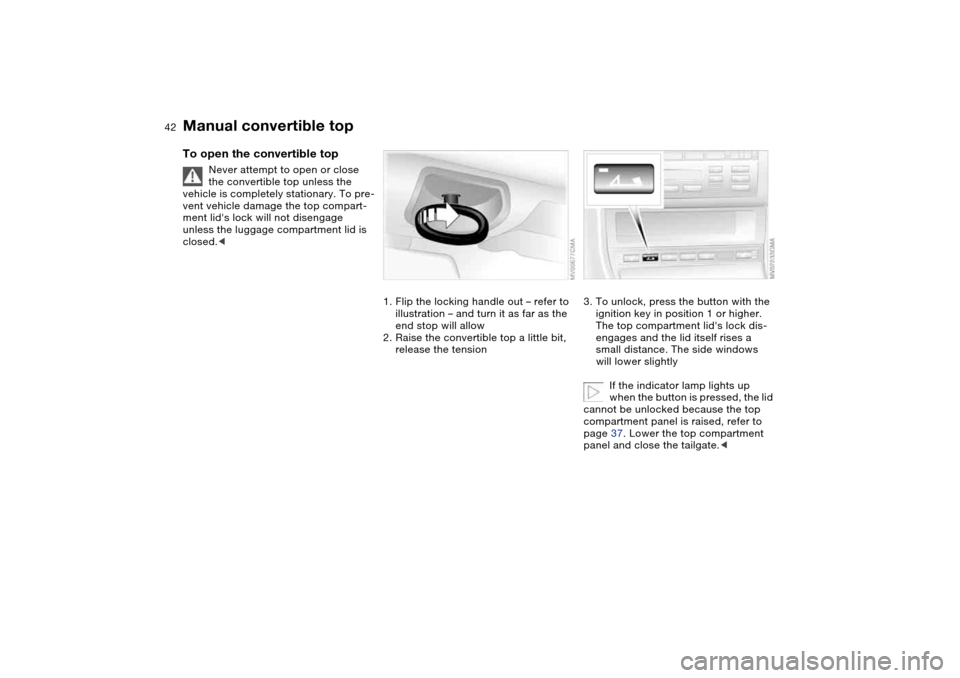

To open the convertible top
Never attempt to open or close
the convertible top unless the
vehicle is completely stationary. To pre-
vent vehicle damage the top compart-
ment lid's lock will not disengage
unless the luggage compartment lid is
closed.<
1. Flip the locking handle out – refer to
illustration – and turn it as far as the
end stop will allow
2. Raise the convertible top a little bit,
release the tension
3. To unlock, press the button with the
ignition key in position 1 or higher.
The top compartment lid's lock dis-
engages and the lid itself rises a
small distance. The side windows
will lower slightly
If the indicator lamp lights up
when the button is pressed, the lid
cannot be unlocked because the top
compartment panel is raised, refer to
page 37. Lower the top compartment
panel and close the tailgate.<
Manual convertible top

43

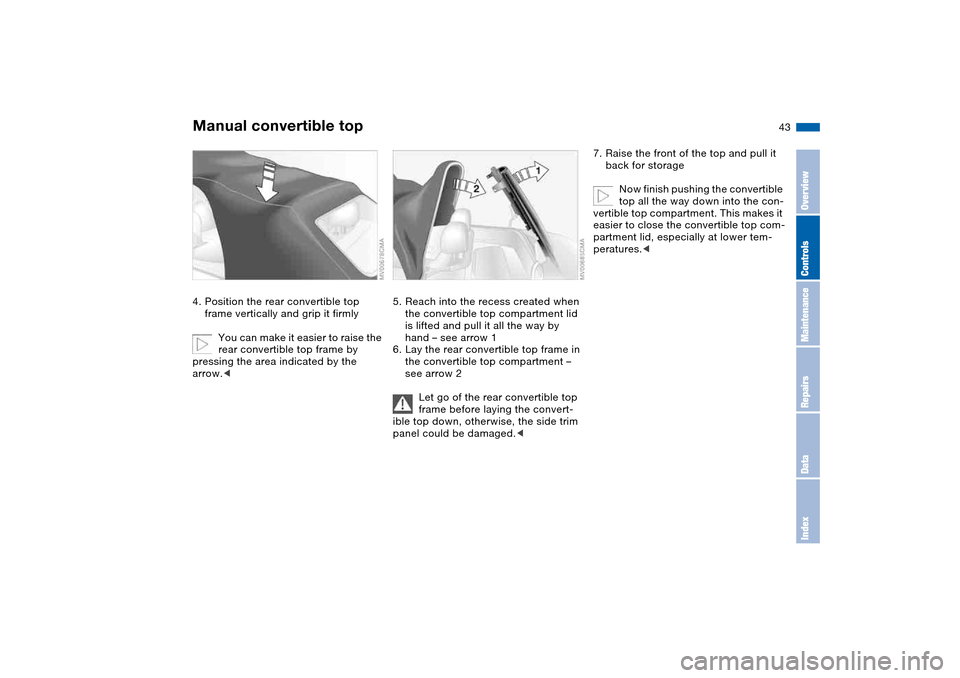

4. Position the rear convertible top
frame vertically and grip it firmly
You can make it easier to raise the
rear convertible top frame by
pressing the area indicated by the
arrow.<
5. Reach into the recess created when
the convertible top compartment lid
is lifted and pull it all the way by
hand – see arrow 1
6. Lay the rear convertible top frame in
the convertible top compartment –
see arrow 2
Let go of the rear convertible top
frame before laying the convert-
ible top down, otherwise, the side trim
panel could be damaged.<
7. Raise the front of the top and pull it
back for storage
Now finish pushing the convertible
top all the way down into the con-
vertible top compartment. This makes it
easier to close the convertible top com-
partment lid, especially at lower tem-
peratures.<
Manual convertible top
OverviewControlsMaintenanceRepairsDataIndex

44

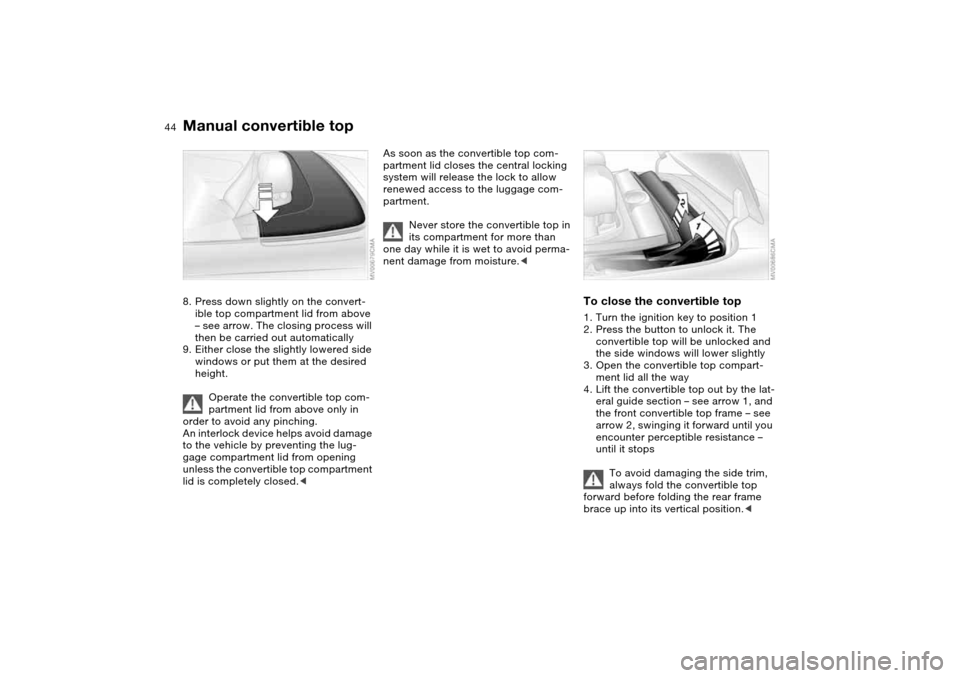

8. Press down slightly on the convert-
ible top compartment lid from above
– see arrow. The closing process will
then be carried out automatically
9. Either close the slightly lowered side
windows or put them at the desired
height.
Operate the convertible top com-
partment lid from above only in
order to avoid any pinching.
An interlock device helps avoid damage
to the vehicle by preventing the lug-
gage compartment lid from opening
unless the convertible top compartment
lid is completely closed.<
As soon as the convertible top com-
partment lid closes the central locking
system will release the lock to allow
renewed access to the luggage com-
partment.
Never store the convertible top in
its compartment for more than
one day while it is wet to avoid perma-
nent damage from moisture.<
To close the convertible top1. Turn the ignition key to position 1
2. Press the button to unlock it. The
convertible top will be unlocked and
the side windows will lower slightly
3. Open the convertible top compart-
ment lid all the way
4. Lift the convertible top out by the lat-
eral guide section – see arrow 1, and
the front convertible top frame – see
arrow 2, swinging it forward until you
encounter perceptible resistance –
until it stops
To avoid damaging the side trim,
always fold the convertible top
forward before folding the rear frame
brace up into its vertical position.<
Manual convertible top
