42
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
the system is armed
>The indicator lamp flashes during
arming: a door, the hood or luggage
compartment lid is not completely
closed. Even if you do not close the
alerted area(s), the remaining areas
are secured, and the indicator lamp
will flash continuously after
10 seconds. However, the interior
motion sensor is not activated
>If the indicator lamp goes out when
the system is disarmed: no manipula-
tion or attempted intrusions have
been detected in the period since the
system was armed
>If the indicator lamp flashes for
10 seconds when the system is dis-
armed: an attempted entry has been
detected in the period since the sys-
tem was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent a false
alarm from being triggered in garages
with elevator ramps, for instance, or
when the vehicle is transported by train:
Lock the vehicle twice, i.e. arm the sys-
tem. Press button on the remote control
twice in succession or lock the vehicle
twice with the key.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and interior motion sensor are
deactivated for as long as the system
remains armed.
You can have the tilt alarm sensor
and the interior motion sensor
permanently deactivated.<
Interior motion sensorIn order for the interior motion sensor to
function properly, the windows and the
glass sunroof must be completely
closed.
Nevertheless, you should deactivate
the interior motion sensor, refer to
Avoiding unintentional alarms, if
>persons or animals are left in the
vehicle
>the windows or the glass sunroof are
being left open.
The system deactivates the tilt-
alarm sensor and the interior
motion sensor if the convenience clos-
ing of windows is interrupted in the first
10 seconds and then restarted. The
alarm must then be disarmed and reac-
tivated before it will resume opera-
tion.<
Alarm system*

56
Interior rearview mirrorTo reduce glare from vehicles behind
you when you are driving at night, tilt
the lens by turning the button.
Vehicles without alarm system:
Tilt the small lever forward.
Interior rearview mirror with
automatic dimming feature*This mirror automatically responds to
ambient light and headlamp glare from
following vehicles by dimming through
an infinitely variable range and auto-
matically reverts to its clear, undimmed
setting whenever you shift into Reverse
or move the selector lever into
position R.
To ensure that the mirror continues to
operate efficiently, ensure that the pho-
tocells remain clear and unobstructed.
One photocell is integrated in the mir-
ror's lens – see arrow – while the other
is located at an offset position on the
rear of the mirror. Refrain from attach-
ing stickers or other objects to the
windshield in the area immediately
behind the rearview mirror.
Mirrors

77
Washer/wiper system/Rain sensor*0Wipers retracted
1Intermittent operation or rain sensor
2Normal wiper speed
3Fast wiper speed
4Brief wipe
5Rotary dial for control of the wipe
interval or the sensitivity of the rain
sensorIntermittent modeNot on vehicles with rain sensor.
You can set the wipe interval at four
stages with rotary dial 5.
In addition, the wipe interval is varied
automatically depending on road
speed.
Rain sensorThe rain sensor is positioned on the
windshield, directly behind the interior
rearview mirror.
To activate the rain sensor:
>With the ignition key in position 1 or
higher, move the lever to position 1.
The wipers will make at least one
sweep across the windshield.
You can leave the lever permanently
in position 1. With the ignition key in
position 1 or higher, all you then need
to do to activate the rain sensor is
>briefly turn the rotary dial 5, or
>clean windshield 1, refer to page 78.
To adjust the sensitivity of the rain sen-
sor: turn rotary dial 5.
To deactivate the rain sensor:
Put lever in position 0.
Turn the rain sensor off in auto-
matic car washes. Failure to do so
could result in damage caused by
undesired wiper activation. ers switch automatically to intermittent
wipe – not on vehicles with rain sensor.
Fast wiper speedWhen the vehicle is stationary, the wip-
ers operate at normal speed – not on
vehicles with rain sensor.
OverviewControlsMaintenanceRepairsDataIndex

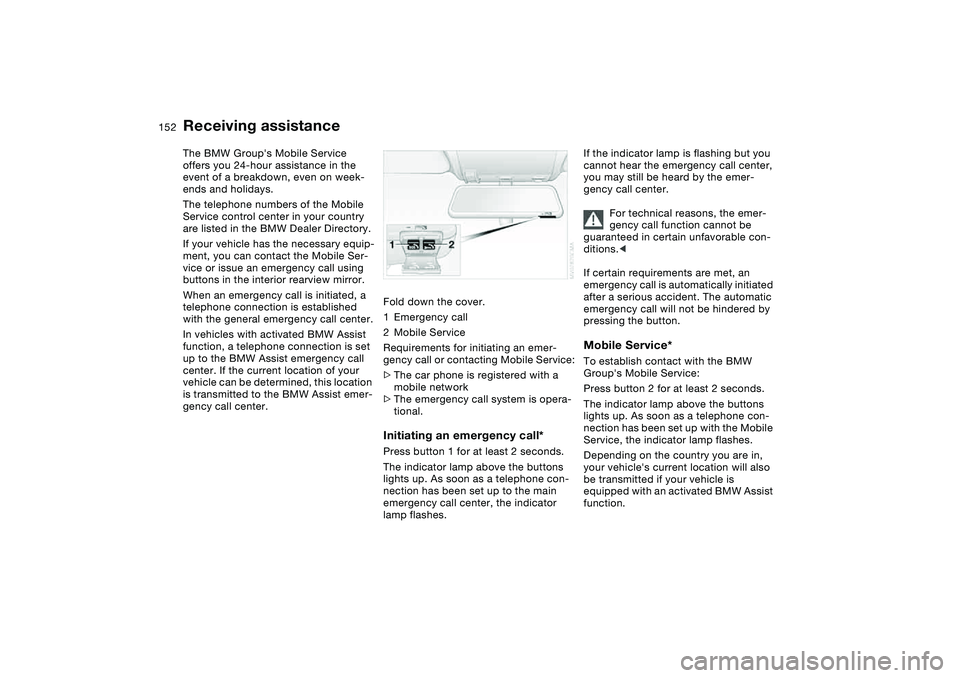

152Giving and receiving assistance
Receiving assistanceThe BMW Group's Mobile Service
offers you 24-hour assistance in the
event of a breakdown, even on week-
ends and holidays.
The telephone numbers of the Mobile
Service control center in your country
are listed in the BMW Dealer Directory.
If your vehicle has the necessary equip-
ment, you can contact the Mobile Ser-
vice or issue an emergency call using
buttons in the interior rearview mirror.
When an emergency call is initiated, a
telephone connection is established
with the general emergency call center.
In vehicles with activated BMW Assist
function, a telephone connection is set
up to the BMW Assist emergency call
center. If the current location of your
vehicle can be determined, this location
is transmitted to the BMW Assist emer-
gency call center.Fold down the cover.
1Emergency call
2Mobile Service
Requirements for initiating an emer-
gency call or contacting Mobile Service:
>The car phone is registered with a
mobile network
>The emergency call system is opera-
tional.
Initiating an emergency call*Press button 1 for at least 2 seconds.
The indicator lamp above the buttons
lights up. As soon as a telephone con-
nection has been set up to the main
emergency call center, the indicator
lamp flashes.
If the indicator lamp is flashing but you
cannot hear the emergency call center,
you may still be heard by the emer-
gency call center.
For technical reasons, the emer-
gency call function cannot be
guaranteed in certain unfavorable con-
ditions.<
If certain requirements are met, an
emergency call is automatically initiated
after a serious accident. The automatic
emergency call will not be hindered by
pressing the button.Mobile Service*To establish contact with the BMW
Group's Mobile Service:
Press button 2 for at least 2 seconds.
The indicator lamp above the buttons
lights up. As soon as a telephone con-
nection has been set up with the Mobile
Service, the indicator lamp flashes.
Depending on the country you are in,
your vehicle's current location will also
be transmitted if your vehicle is
equipped with an activated BMW Assist
function.

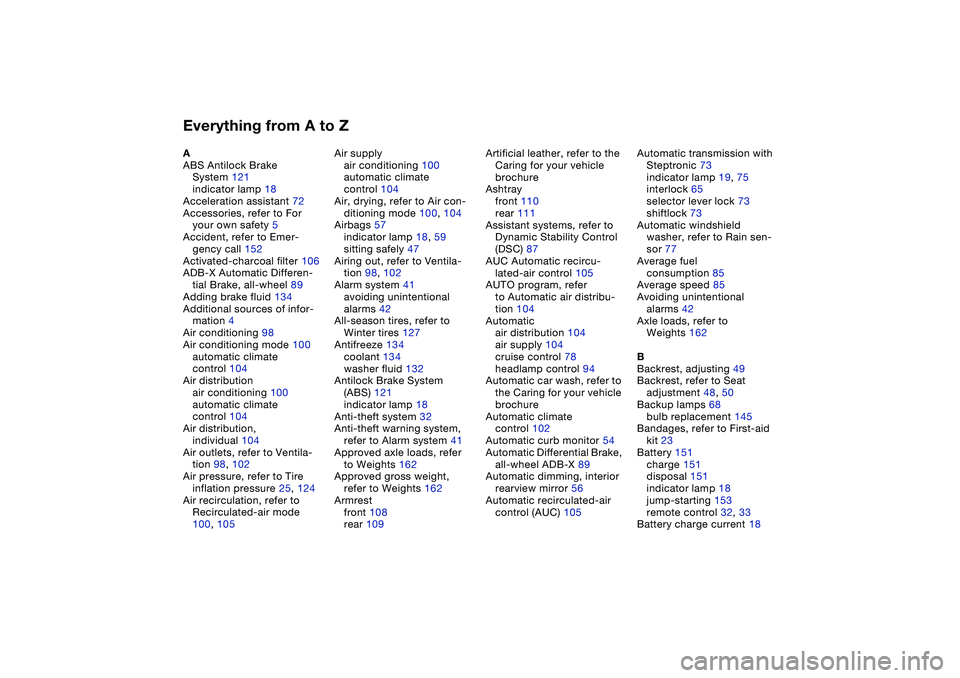

Everything from A to ZA
ABS Antilock Brake
System 121
indicator lamp 18
Acceleration assistant 72
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 152
Activated-charcoal filter 106
ADB-X Automatic Differen-
tial Brake, all-wheel 89
Adding brake fluid 134
Additional sources of infor-
mation 4
Air conditioning 98
Air conditioning mode 100
automatic climate
control 104
Air distribution
air conditioning 100
automatic climate
control 104
Air distribution,
individual 104
Air outlets, refer to Ventila-
tion 98, 102
Air pressure, refer to Tire
inflation pressure 25, 124
Air recirculation, refer to
Recirculated-air mode
100, 105Air supply
air conditioning 100
automatic climate
control 104
Air, drying, refer to Air con-
ditioning mode 100, 104
Airbags 57
indicator lamp 18, 59
sitting safely 47
Airing out, refer to Ventila-
tion 98, 102
Alarm system 41
avoiding unintentional
alarms 42
All-season tires, refer to
Winter tires 127
Antifreeze 134
coolant 134
washer fluid 132
Antilock Brake System
(ABS) 121
indicator lamp 18
Anti-theft system 32
Anti-theft warning system,
refer to Alarm system 41
Approved axle loads, refer
to Weights 162
Approved gross weight,
refer to Weights 162
Armrest
front 108
rear 109Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 110
rear 111
Assistant systems, refer to
Dynamic Stability Control
(DSC) 87
AUC Automatic recircu-
lated-air control 105
AUTO program, refer
to Automatic air distribu-
tion 104
Automatic
air distribution 104
air supply 104
cruise control 78
headlamp control 94
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 102
Automatic curb monitor 54
Automatic Differential Brake,
all-wheel ADB-X 89
Automatic dimming, interior
rearview mirror 56
Automatic recirculated-air
control (AUC) 105Automatic transmission with
Steptronic 73
indicator lamp 19, 75
interlock 65
selector lever lock 73
shiftlock 73
Automatic windshield
washer, refer to Rain sen-
sor 77
Average fuel
consumption 85
Average speed 85
Avoiding unintentional
alarms 42
Axle loads, refer to
Weights 162
B
Backrest, adjusting 49
Backrest, refer to Seat
adjustment 48, 50
Backup lamps 68
bulb replacement 145
Bandages, refer to First-aid
kit 23
Battery 151
charge 151
disposal 151
indicator lamp 18
jump-starting 153
remote control 32, 33
Battery charge current 18

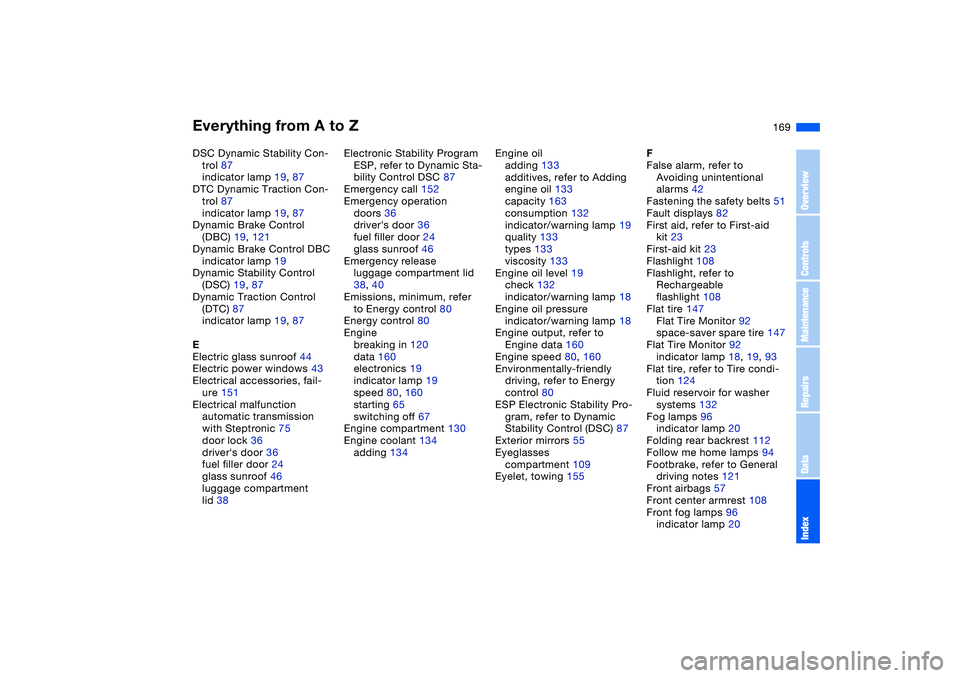

Everything from A to Z
169
DSC Dynamic Stability Con-
trol 87
indicator lamp 19, 87
DTC Dynamic Traction Con-
trol 87
indicator lamp 19, 87
Dynamic Brake Control
(DBC) 19, 121
Dynamic Brake Control DBC
indicator lamp 19
Dynamic Stability Control
(DSC) 19, 87
Dynamic Traction Control
(DTC) 87
indicator lamp 19, 87
E
Electric glass sunroof 44
Electric power windows 43
Electrical accessories, fail-
ure 151
Electrical malfunction
automatic transmission
with Steptronic 75
door lock 36
driver's door 36
fuel filler door 24
glass sunroof 46
luggage compartment
lid 38Electronic Stability Program
ESP, refer to Dynamic Sta-
bility Control DSC 87
Emergency call 152
Emergency operation
doors 36
driver's door 36
fuel filler door 24
glass sunroof 46
Emergency release
luggage compartment lid
38, 40
Emissions, minimum, refer
to Energy control 80
Energy control 80
Engine
breaking in 120
data 160
electronics 19
indicator lamp 19
speed 80, 160
starting 65
switching off 67
Engine compartment 130
Engine coolant 134
adding 134Engine oil
adding 133
additives, refer to Adding
engine oil 133
capacity 163
consumption 132
indicator/warning lamp 19
quality 133
types 133
viscosity 133
Engine oil level 19
check 132
indicator/warning lamp 18
Engine oil pressure
indicator/warning lamp 18
Engine output, refer to
Engine data 160
Engine speed 80, 160
Environmentally-friendly
driving, refer to Energy
control 80
ESP Electronic Stability Pro-
gram, refer to Dynamic
Stability Control (DSC) 87
Exterior mirrors 55
Eyeglasses
compartment 109
Eyelet, towing 155F
False alarm, refer to
Avoiding unintentional
alarms 42
Fastening the safety belts 51
Fault displays 82
First aid, refer to First-aid
kit 23
First-aid kit 23
Flashlight 108
Flashlight, refer to
Rechargeable
flashlight 108
Flat tire 147
Flat Tire Monitor 92
space-saver spare tire 147
Flat Tire Monitor 92
indicator lamp 18, 19, 93
Flat tire, refer to Tire condi-
tion 124
Fluid reservoir for washer
systems 132
Fog lamps 96
indicator lamp 20
Folding rear backrest 112
Follow me home lamps 94
Footbrake, refer to General
driving notes 121
Front airbags 57
Front center armrest 108
Front fog lamps 96
indicator lamp 20
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
171
Indicator/warning lamp
airbags 18
alarm system 42
brakes 18, 19
Check Gas Cap 19
coolant 19, 81
DSC 19
Flat Tire Monitor
18, 19, 93
fog lamps 20
Please fasten safety
belts 18
reserve 81
Service Engine Soon 19
Individual air distribution 104
Individual settings, refer to
Vehicle Memory, Key
Memory 64
Inflation pressure 124
Inflation pressure monitor-
ing, refer to Flat Tire Moni-
tor 92
Inflation pressure, tires 25
INSPECTION 82
Instrument cluster 16
Instrument lighting 95
Instrument panel, refer to
Cockpit 14
Interface socket for onboard
diagnostics (OBD) 138
Interior lamps 96
remote control 34Interior motion sensor 41
switching off 42
Interior rearview mirror 56
automatic dimming
feature 56
Interior temperature
adjusting 100, 104
Interlock, refer to Steering
wheel lock 65
Intermittent
mode, wipers 77
Interval
display, service 82
J
Jack 147
Jacking points 148
Jump-starting 153
K
Key Memory 64
Keys 32
with remote control 32
Kickdown 70, 74
L
Lamp defect 143
Lamps and bulbs 143
Lashing down loads, refer to
Cargo loading 114
Lashing eyelets, refer to
Securing cargo 116Lashing fittings, refer to
Securing cargo 116
LATCH child-restraint
mounting system 62
Leather care, refer to the
Caring for your vehicle
brochure
LEDs light-emitting
diodes 96
Length, refer to
Dimensions 161
License plate lamp
bulb replacement 147
Light switch 94
Light-emitting diodes
LEDs 96
Lighter 110
LIGHTS ON warning 94
Lights, refer to Parking
lamps/Low beams 94
Litter bag holders 109
Load, refer to Cargo
loading 114
Loading
vehicle 114
Load-securing devices 116
Lock buttons on doors, refer
to Locking 37
Lock, steering wheel 65
Locking
from inside 37
from outside 33, 36Locking and unlocking
doors
from inside 37
from outside 33, 36
Low beams 94
automatic 94
bulb replacement 143
indicator lamp, defective
lamp 82
Lug bolts 148
key 148
torque 148
Luggage compartment
capacity 162
emergency operation,
refer to Manual
operation 38
floor mat 41
floor panel 40
lid 38
lighting 38
opening from outside 38
opening, remote
control 34
opening/closing, refer to
Luggage compartment
lid 38
remote control 34
volume 162
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
173
Onboard tool kit 142
Opening and closing
from inside 37
from outside 33
via door lock 36
via remote control 33
Outlets, ventilation 98, 102
Outside temperature dis-
play 84
changing unit of
measure 84
P
Paintwork care, refer to the
Caring for your vehicle
brochure
Panel lighting 95
Panic mode – trigger
alarm 34
Park Distance Control
(PDC) 86
Parking aid, refer to Park
Distance Control PDC 86
Parking brake 67
indicator lamp 18
Parking lamps 94
bulb replacement 144
Parking lamps/Low
beams 94
Parts and accessories, refer
to Your individual vehicle 5Passenger-side exterior mir-
ror tilt function 54
PDC Park Distance
Control 86
Pinch protection
glass sunroof 45
Plastic, refer to the Caring
for your vehicle brochure
Please fasten safety belts
indicator lamp 18
Pollen, refer to
Microfilter 101
Pollen, refer to Mircrofil-
ter/Activated-charcoal fil-
ter 106
Power output, refer to
Engine data 160
Power seat 50
Power windows
safety switch 44
Pressure monitoring, tires
Flat Tire Monitor 92
Pressure, tires 25, 124
Protective function
electric power windows 43
Putting the vehicle into stor-
age
refer to the Caring for your
vehicle brochureR
Radio remote control key,
refer to Master key with
remote control 32
Radio, refer to the Owner's
Manual for Radio
Rain sensor 77
Raising the floor panel 40
Range 85
Reading lamps
front 96
rear 96
Rear armrest, refer to Rear
center armrest 109
Rear backrest, folding 112
Rear center 3-point safety
belt 112
Rear center armrest 109
Rear lamps
bulb replacement 145
indicator lamp, defective
lamp 82
Rear window defroster
air conditioning 100
Rear window heating
automatic climate
control 105
Rearview mirror 55
Receiving assistance 152Recirculated-air mode
air conditioning 100
automatic climate
control 105
Recirculating the air, refer to
Recirculated-air mode
100, 105
Reclining seat, refer to Seat
adjustment 48, 50
Refueling 24
fuel filler door 24
Releasing
hood 129
Remaining distance to ser-
vice 82
Remaining distance, refer to
Range 85
Remote control 33
luggage compartment
lid 34
malfunction 34
Replacement key 33
Replacing lamps, refer to
Lamps and bulbs 143
Replacing tires 125
Reporting safety defects 7
Restraint systems
for children 60
Restraint systems, refer to
Safety belts 51
OverviewControlsMaintenanceRepairsDataIndex
