Page 143 of 194
Navigation (NAV) 138
– Select Load route page 134, fig.140.
– Select the route that you would like to load from the list.
– Select Start route guidance.After storing several route plans
page 137, they can be loaded
with a few operating steps.
A route plan can be changed at any time. Select a destination from
the route plan by rotating and pressing the control knob. Then you
can select Change, Move, Delete or Drive to now.
Change
Here you are entering new navigation data for your destination or
stopover.
Move
Here you are reordering the sequence of your destination and stop-
overs.
Delete
The selected destination or stopover can be deleted. If you delete a
destination, the system will automatically select a stopover and
make that your new destination.
Drive to now
You can drive directly to the selected final destination or stopover.
If you do not want to ed it the saved route, the route will b e sa ved in
the memory when Start route guidance is activated and the current
vehicle location will be used as the starting point for navigation.
Tips
A function may not be selected (“greyed-out”) if it is not available
according to the restrictions you have set, or if not permitted by
local circumstances.Delete route–Press the Memory control button in the navigation menu.
– Select Delete route.
– Select the route to be deleted from the list.
–Confirm Are you sure you want to delete the route? with
Ye s. The selected route is deleted.
Page 144 of 194
Navigation (NAV)139
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP

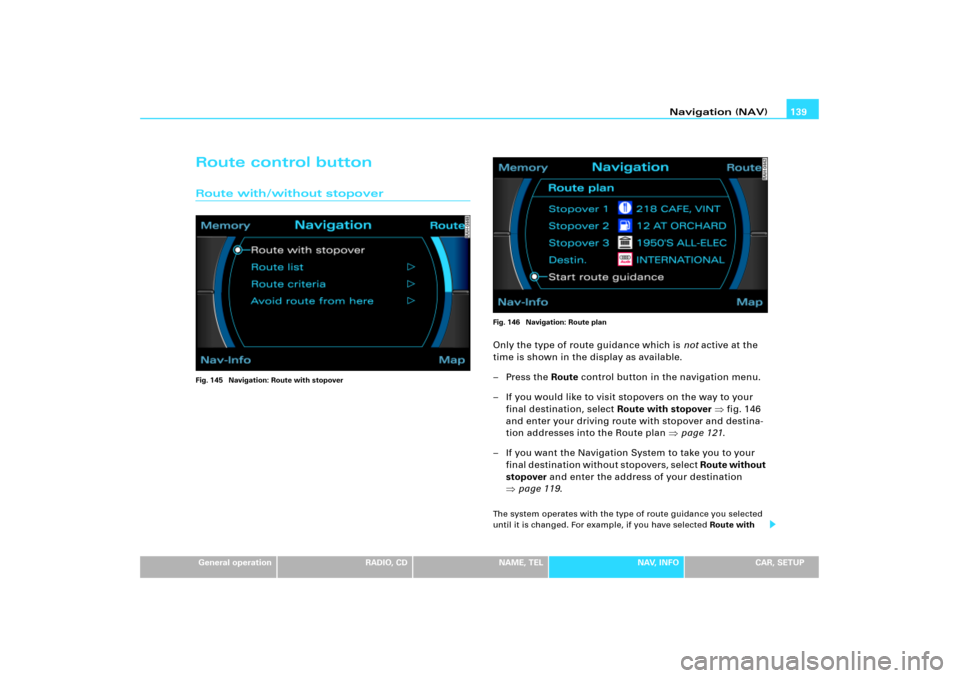

Route control buttonRoute with/without stopoverFig. 145 Navigation: Route with stopoverFig. 146 Navigation: Route plan
Only the type of route guidance which is not active at the
time is shown in the display as available.
–Press the Route control button in the navigation menu.
– If you would like to visit stopovers on the way to your
final destination, select Route with stopover fig.146
and enter your driving route with stopover and destina-
tion addresses into the Route plan page 121.
– If you want the Navigation System to take you to your
final destination without stopovers, select Route without
stopover and enter the address of your destination
page 119.The system operates with the type of route guidance you selected
until it is changed. For example, if you have selected Route with
Page 145 of 194
Navigation (NAV) 140stopover, your route guidance will proceed with stopovers until you
select and confirm Route without stopover.
Route with stopover
Select this option to be guided to your final destination with stop-
overs.
Stopovers can also be special destinations
page 126.
Stopovers already entered can be deleted, changed or moved at any
time, or you can drive to them immediately page 137.
Route without stopover
Select this option to navigate directly to your destination.
Tips
If you switch to the Navigation function and you are shown the
menu for Route planning
page 139, fig .1 4 6 , y o u a r e in r o ut e g u id -
ance with stopovers. If you would like to navigate directly to a final
destination, select and confirm Route without stopovers in the menu
for the Route function.
Route listFig. 147 Navigation: Route list–Press the Route control button in the navigation menu.
– Select Route list page 139, fig.145 . The detai led route
list appears fig.147.The route list provides you with the following information:
Notes on the route
Distance information
Street designations
City namesTips
If route guidance is not activated, Route list will be greyed-out.
Page 146 of 194
Navigation (NAV)141
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Route criteria
Route calculation depends on the route criteria
selected.Fig. 148 Navigation: Listing of the possible route criteria–Press the Route control button in the navigation menu.
–Select Route criteria.
– Select the desired route criteria fig.148.The route criteria can be changed during route guidance and the
route can be recalculated.
You have the following route criteria available to you:
Route options
Using the options fast or short, an especially fast or short route is
taken as the basis for calculating the route.Highway
Comprises the options include and minimize. With Highway
minimize, an attempt is made to avoid sections of freeway when
calculating the route. If the destination is more than 300 km away,
freeways are not avoided.
Ferry
Comprises the options include and minimize. With Ferry minimize
a n a t t e mp t i s m a d e n o t to i n c l u d e a ny s t re t ch w hi ch i n c l ud e s a fe rr y
connection when calculating the route.
To l l r o a d
Comprises the options include and minimize. With To l l r o a d
minimize an attempt is made when calculating the route not to
include any stretch which includes a road which you have to pay to
drive on.
Time restrict.
Comprises the options include and minimize. With roads closed at
certain times of day avoid a n a t t e m p t i s m a d e t o e x c l u d e t h e s e r o a d s
when planning the route. But only the roads closed at certain times
of day identified on the Navigation DVD can be avoided.
Season restrict.
Comprises the options include and minimize. With seasonally
closed roads avoid a n a t t e m p t i s ma d e to e x c l u d e t h e s e ro a d s w h e n
planning the route. But only the seasonally closed roads identified
on the Navigation DVD can be avoided.
Tips
If you would like to avoid a route criterion, but this makes route
guidance impossible, this criterion is still included when calculating
the route. In this case, a voice message will inform you of this.
Page 149 of 194
Navigation (NAV) 144Th e fi g ure s
page 143, fig.15 0 a nd
page 143, fig.151 show you
the possible types of information in the map display:
Map orientation
Scale
Estimated distance to the next destination/stopover
Estimated time of arrival to the next destination/stopover
Ve hicle s ymbol
Example of selected map contents page 155
Turn list inserted in the Setup menu page 156
The map display modes can be changed page 151.
A crosshair with selection rectangle helps you select your destina-
tion with the aid of the map
page 148.
Route guidance is additionally shown by directional arrows in the
instrument cluster display (
page 113 or
page 114).
Tips
An underpass or a tunnel is shown by broken lines on the map
display up to a scale of 0.5 mile.
Map display with active side menu
The map display can be changed through the active
side menu.Fig. 152 Navigation: Map display with active side menu–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu
fig.152.
– Select the desired submenu item by rotating and
pressing the control knob and make your changes.
– Press the button, to leave the map side menu.If you have activated the Zoom function
page 146 or the
crosshairs
page 149 in the active side menu, you have to press
the button twice in order to leave the map side menu.
A1AA AA4A9A:
RETURN
RETURN
Page 150 of 194
Navigation (NAV)145
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP After you have activated the side menu, you are shown information
(city/street names and longitude/latitude) for the position you had
reached at the time of activation.
The following functions can be carried out using the
active map side menu:
Tips
Settings made in an active side menu are not kept after deactiva-
tion. You can enter permanent settings for the map display using
Setup Navigation
page 151.
Map orientation
Inside side menu activation you can switch back and
forth between direction of travel and North.Fig. 153 Navigation: Map orientation North in the active side menu–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the first map menu item
fig.153.
– By pressing the control knob, you can switch back and
forth between orientation North fig.153 and Tr a v e l.
For the time the side menu is active, the changed setting
remains.
Legende
FunctionOrientation page 145Scale page 146Map position menu page 148Activation of map crosshairs page 149Presentation of map crosshairs page 149Vehicle symbol
A1AA AA4A9
A1
Page 151 of 194
Navigation (NAV) 146
–Press the button page 18, to leave the map
side menu.When you change the map orientation with the side menu active,
this map orientation remains only for the time the side menu is
active. After the map side menu is deactivated, the orientation
entered in Setup becomes active again
page 153.
When you make the selection North, the map is oriented to the
North
page 145, fig.153. The vehicle always remains in the center
of the display.
When you make the selection Drive, the vehicle symbol is oriented
pointing upward. The map rotates around the vehicle.
An active map side menu is deactivated again by pressing the
button
page 144.
Zoom mapFig. 154 Navigation: Adjusting zoom with inactive side menu
Fig. 155 Navigation: Adjusting zoom in active side menu
RETURN
RETURN
Page 152 of 194
Navigation (NAV)147
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Changing scale with inactive side menu:
–Press the Map control button in the navigation menu.
– Rotate the control knob counterclockwise to zoom into
the map (smaller scale, display of details), or
– Rotate the control knob clockwise, to zoom out of the
map (larger scale, more overview). You are shown the
scale page 146, fig.154 in the side menu.
Changing scale with inactive side menu:
–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the second menu item.
– Press the control knob to activate the map menu item
Zoom (white highlight) page 146, fig.155.
– Rotate the control knob counterclockwise to zoom into
the map (smaller scale, display of details), or
– Rotate the control knob clockwise, to zoom out of the
map (larger scale, more overview). You are shown the
scale page 146, fig.155 in the side menu.
–Press the button page 18, to leave the map
side menu.The scale can be set from 50 m to 600 km.
When you change the scale with the side menu active, this change
in scale remains only for the time the side menu is active.By pressing the button once, you leave Zoom mode and
you can use other map menu items. Pressing the button
again deactivates the active side menu.
The scales recommended for driving are:
on freeways 3.5 km
on secondary roads 750 m
in cities 200 mTips
If you have activated automatic intersection zoom
page 159, the
map display automatically changes the scale to intersections or
turn points.
