Navigation (NAV) 130
– Select Start route guidance
page 129, fig.135, the
route is calculated and the map display is shown auto-
matically.
– Select one of the routes suggested in the single destina-
tion mode
page 130 on the map display by rotating
and pressing the control knob.
– In the route plan map display, confirm the route
suggested
page 132 by rotating and pressing the
control knob.After calculating route guidance, the Navigation System switches
a ut o ma t i c a l ly to ma p d i s p l a y m o d e . The ro u t e g u id a n c e i s s h o w n in
simplified form in the instrument cluster display
page 113. You
are additionally receive navigation voice prompts page 112.
When you have entered a final destination
page 119 and started
route guidance, you are offered up to three different routes to reach
your destination
page 119.
When you have entered a route plan and started route guidance,
you are shown the route with the different stopovers and various
information in the overview
page 132.
Entered destinations can be saved
page 135 and
page 137.
Route criteria
page 141 can be changed at anytime during guid-
ance, and the route will be recalculated.
If you do not complete route guidance you started, this route guid-
a n c e wi l l b e c o n t i n u e d t he n e x t t i m e t h e v e h i c l e i s s t a r t e d . Th is a l s o
applies to destinations entered which cannot be reached because of
local conditions (e.g. lake or tourist attraction). If you would like to
terminate this route guidance, select Cancel route guidance
page 132
Tips
Calculated destinations can also be changed in the map display by
moving the crosshairs
page 149
Single destination information before route guidanceFig. 136 Navigation: Example of map display after route has been calculatedWhen you have entered the destination data
page 117
and the road network allows, you are offered up to three
different routes to choose from.
– Select one of the optional routes by rotating the control
knob.

Navigation (NAV)143
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP the map by light grey lines
f i g .1 4 9 . Th e r e i s n o r o u t e g u i d a n c e f o r
IPD sections, instead you are guided by directional arrows
fig.149. These directional arrows point in the compass direc-
tion/a direct line to the destination.
I f y o u s h o u l d b e s t a r t i n g y o u r r o u t e g u i d a n c e i n a n I P D a r e a , y o u w i l l
initially be guided by directional arrows. As soon as you leave the
IPD area, route guidance will start . In
page 142, fig.149 an
example is shown of a directional arrow in an IPD area.
If your destination should lie in an IPD area, the Navigation System
will guid e you up to the star t of the IPD area. In the IPD area you will
be guided by directional arrows.
If your route guidance includes an IPD area, you will be advised of
this by a voice message when route guidance starts (“It is possible
that there a re un fore seen tra ffic reg ulations on the way to the des ti-
nation.”).
Tips
Route guidance is additionally shown by directional arrows in the
instrument cluster display
page 113 or
page 114. In an IPD
area, the directional arrows in the instrument cluster display point
in the compass direction/a direct line to the destination.
Map and information displayFig. 150 Navigation: Example of map display with inactive side menu
Fig. 151 Navigation: Example of map display with activated turn list
A
A1

Navigation (NAV) 144Th e fi g ure s
page 143, fig.15 0 a nd
page 143, fig.151 show you
the possible types of information in the map display:
Map orientation
Scale
Estimated distance to the next destination/stopover
Estimated time of arrival to the next destination/stopover
Ve hicle s ymbol
Example of selected map contents page 155
Turn list inserted in the Setup menu page 156
The map display modes can be changed page 151.
A crosshair with selection rectangle helps you select your destina-
tion with the aid of the map
page 148.
Route guidance is additionally shown by directional arrows in the
instrument cluster display (
page 113 or
page 114).
Tips
An underpass or a tunnel is shown by broken lines on the map
display up to a scale of 0.5 mile.
Map display with active side menu
The map display can be changed through the active
side menu.Fig. 152 Navigation: Map display with active side menu–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu

fig.152.
– Select the desired submenu item by rotating and
pressing the control knob and make your changes.
– Press the button, to leave the map side menu.If you have activated the Zoom function
page 146 or the
crosshairs
page 149 in the active side menu, you have to press
the button twice in order to leave the map side menu.
A1AA AA4A9A:
RETURN
RETURN

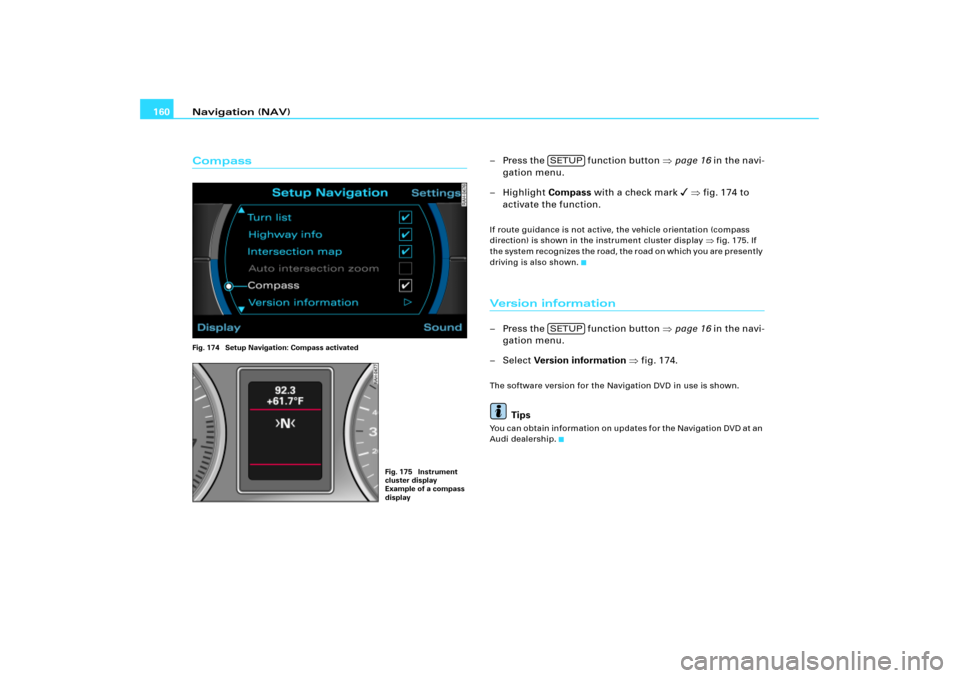

Navigation (NAV) 160CompassFig. 174 Setup Navigation: Compass activated
– Press the function button
page 16 in the navi-
gation menu.
– Highlight Compass with a check mark


fig.174 to
activate the function.
If route guidance is not active, the vehicle orientation (compass
direction) is shown in the instrument cluster display
fig.175. If
the system recognizes the road, the road on which you are presently
driving is also shown.
Version information– Press the function button
page 16 in the navi-
gation menu.
– Select Version information
fig.174.The software version for the Navigation DVD in use is shown.
Tips
You can obtain information on updates for the Navigation DVD at an
Audi dealership.
Fig. 175 Instrument
cluster display
Example of a compass
display
SETUPSETUP

SETUP 172
– Choose between the display 12h and 24h.
Setting date format
–Press the Settings control button in the Setup menu.
– Select Time/Date format
page 171, fig.182.
– Select Date format
page 171, fig.183.
– Choose between the display MM/DD for the format
“Month/Day” or DD.MM for the format “Day.Month”.The instruments cluster acts as the source for the time and date
display.
If the instrument cluster source is not available for some reason, the
time and date are received via the GPS. In this case GPS shows
under the menu item Time source GPS time can be set through the
menu item GMT +/-
Tips
If the instrument cluster source should not be available, please
contact an Audi dealership or authorized facililty.
Factory settings
Settings can be reset to prespecified default settings in
this function.Fig. 184 Setup: Settings factory settings–Press the Settings control button in the Setup menu.
– Select Factory settings
fig.184.
–Confirm Reset system to factory presets? with Ye s. The
settings (e.g. Setup Navigation and route criteria) are
reset to default settings.User data are not deleted.
