RIGHT HAND DRIVE VERSION
342
DASHBOARD1.Side air outlets - 2.Defrosting/demisting vents for side windows - 3.Upper side vents - 4.Passanger’s Air bag - 5.Sound system -
6.Engine coolant temperature gauge - 7.Clock - 8.Centre air vents - 9.Infocenter display - 10.Fuel level gauge - 11.Cruise control
lever (where fitted) - 12.Outside lights control lever - 13.Speedometer. - mileage recorder - 14.Check panel - 15.Rev counter -
16.Windscreen wiper control lever - 17.Bonnet opening lever - 18.Radio controls on the steering wheel (where applicable) -19.Igni-
tion switch - 20.Steering wheel lock/release lever - 21.Driver’s Air bag and horns - 22.Controls unit: instrument panel lighting adjust-
ment and healamp diming - 23.Controls for heating, ventilation and climate control - 24.Ashtray and cigar lighter - 25.Hazard warning
lights switch - 26.Glove box.fig. 1
A0B0611m

RIGHT HAND DRIVE VERSION
343
INSTRUMENT PANELfig. 2 - petrol engine versions
A.Speedometer - B.Mileage recorder and trip meter display - C.Check panel - D.Rev counter - E.Engine coolant temperature gauge -
F.Clock - G.Fuel level gauge - H.Services warning lights.
WARNING Depending on the version of the vehicle the instrument dials may be black or light grey and the rev counter and speedometer
may vary with regard to the red sector and the clock values.
A0B0612m

RIGHT HAND DRIVE VERSION
344

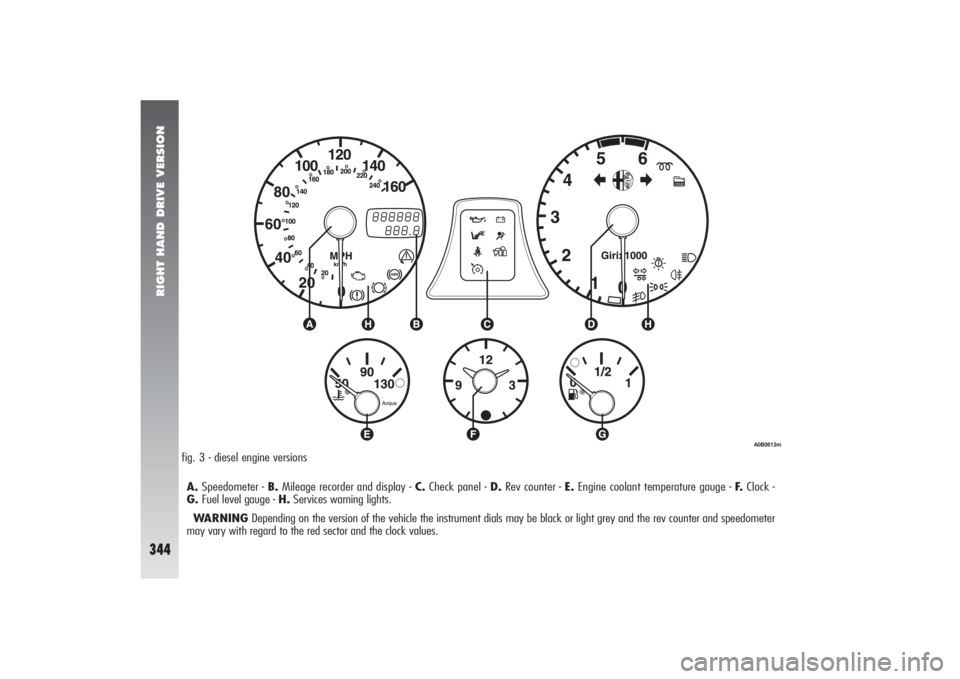

A.Speedometer - B.Mileage recorder and display - C.Check panel - D.Rev counter - E.Engine coolant temperature gauge - F.Clock -
G.Fuel level gauge - H.Services warning lights.
WARNINGDepending on the version of the vehicle the instrument dials may be black or light grey and the rev counter and speedometer
may vary with regard to the red sector and the clock values.fig. 3 - diesel engine versions
A0B0613m
