2003 YAMAHA YZF-R6 odometer

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU04985
Multi-function display The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


a self-diagnosis device


a display brightness and shift tim-
ing indicator light control mode
NOTE:_

Be sure to turn the key to “ON” be-
fore using the “SELECT” and
“RESET” buttons.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilome-
ters and miles, press the
“SELECT” button and “RESET”
button together for at least two
seconds.
_
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO
→ TRIP 1
→ TRIP 2
→ ODO
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
F-TRIP
→ TRIP 1
→ TRIP 2
→ ODO
→ F-TRIP
1. Multi-function display
2.“SELECT” button
3.“RESET” button
U5SLE0.book Page 8 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_

The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.


From 50,000 km, repeat the maintenance intervals starting from 10,000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_
CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40,000 km
4*Air filter elementClean.√√
Replace.√√
5ClutchCheck operation.
Adjust.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-4.) Every 4 years
9*WheelsCheck runout and for damage.√√√√
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10
*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
13 Drive chainCheck chain slack.
Make sure that the rear wheel is properly aligned.
Clean and lubricate.Every 800 km and after washing
the motorcycle or riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20,000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16 SidestandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
20*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
21*Electronic fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
22 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
23 Engine oil filter cartridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
U5SLE0.book Page 3 Wednesday, September 11, 2002 11:46 AM

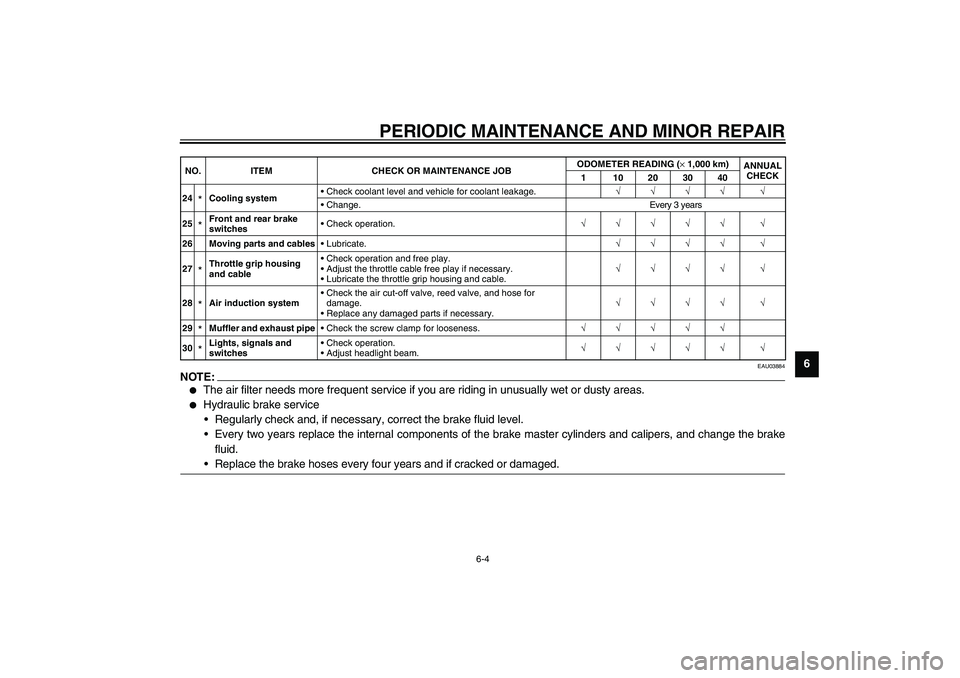

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03884
NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_24
*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
25*Front and rear brake
switchesCheck operation.√√√√√ √
26 Moving parts and cablesLubricate.√√√√ √
27*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Air induction systemCheck the air cut-off valve, reed valve, and hose for
damage.
Replace any damaged parts if necessary.√√√√ √
29*Muffler and exhaust pipeCheck the screw clamp for looseness.√√√√√
30*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
U5SLE0.book Page 4 Wednesday, September 11, 2002 11:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6
EAU04981
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the rider seat. (See page 3-19
for rider seat removal and installation
procedures.)Fuse box 2 is located under panel B.
(See page 6-7 for panel removal and
installation procedures.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Spare main fuse
2. Main fuse
3. Fuse box 1
4. Electronic fuel injection fuse
5. Turn signal light, taillight, license plate light,
auxiliary light and hazard fuse
6. Spare fuse
1. Fuse box 2
2. Headlight fuse
3. Radiator fan fuse
4. Ignition fuse
5. Signaling system fuse
6. Odometer, clock and immobilizer system fuse
(backup fuse)
7. Spare fuse (× 2)
Specified fuses:
Main fuse: 40 A
Fuse box 1:
Electronic fuel injection
fuse: 15 A
Turn signal light,
taillight, license plate
light, auxiliary light and
hazard fuse: 10 A
Fuse box 2:
Headlight fuse: 20 A
Signaling system fuse: 15 A
Radiator fan fuse: 15 A
Ignition fuse: 15 A
Odometer, clock and
immobilizer system fuse
(backup fuse): 10 A
U5SLE0.book Page 40 Wednesday, September 11, 2002 11:46 AM

SPECIFICATIONS
8-4
8
Battery
Model GT9B-4
Voltage, capacity 12 V, 8 Ah
Headlight typeHalogen bulb
Bulb voltage, wattage × quantity
Headlight 12 V, 55 W × 2
Tail/brake light LED
Turn signal light 12 V, 10 W × 4
Auxiliary light 12 V, 5 W × 2
License plate light 12 V, 5 W × 1
Meter lighting LED
Neutral indicator light LED
High beam indicator light LED
Turn signal indicator light LED
Fuel level warning light LED
Oil level warning light LED
Coolant temperature warning
light LED
Engine trouble warning light LED
Shift timing indicator light LED
Immobilizer system
indicator light LEDFuses
Main fuse 40 A
Headlight fuse 20 A
Signaling system fuse 15 A
Radiator fan fuse 15 A
Ignition fuse 15 A
Electronic fuel injection fuse 15 A
Turn signal light, taillight,
license plate light, auxiliary
light and hazard fuse 10 A
Odometer, clock and
immobilizer system fuse
(backup fuse) 10 A
