INSTRUMENT AND CONTROL FUNCTIONS
3-10
3 If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the motorcycle.
ECA00127
CAUTION:_ If the display indicates an error
code, the motorcycle should be
checked as soon as possible in or-
der to avoid engine damage. _
Display brightness and shift timing
indicator light control mode
This mode cycles through five control
functions, allowing you to make the fol-
lowing settings in the order listed be-
low.
1. Display brightness: This function
allows you to adjust the brightness
of the multi-function display to suit
the outside lighting conditions. 2. Shift timing indicator light activity:
This function allows you to choose
whether or not the indicator light
should be activated and whether it
should blink or stay on when acti-
vated.
3. Shift timing indicator light activa-
tion: This function allows you to
select the engine speed at which
the indicator light will be activated.
4. Shift timing indicator light deacti-
vation: This function allows you to
select the engine speed at which
the indicator light will be deactivat-
ed.
5. Shift timing indicator light bright-
ness: This function allows you to
adjust the brightness of the indica-
tor light to suit your preference.1. Shift timing indicator light
2.“SELECT” button
3.“RESET” button
U5SLE0.book Page 10 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
NOTE:_

To make any settings in this mode,
you have to cycle through all of its
functions. However, if the key is
turned to “OFF” or the engine is
started before completing the pro-
cedure, only the settings made be-
fore the “SELECT” button was last
pushed will be applied.


In this mode, the multi-function
display shows the current setting
for each function (except the shift
timing indicator light activity func-
tion).
_
To adjust the display brightness1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then, af-
ter five seconds, release the
“SELECT” button.
4. Push the “RESET” button to select
the desired display brightness lev-
el.
5. Push the “SELECT” button to con-
firm the selected display bright-
ness level. The control mode
changes to the shift timing indica-
tor light activity function.To set the shift timing indicator light ac-
tivity function1. Push the “RESET” button to select
one of the following indicator light
activity settings:
a. The indicator light will stay on
when activated. (This setting is se-
lected when the indicator light
stays on.)
b. The indicator light will flash when
activated. (This setting is selected
when the indicator light flashes
four times per second.)
c. The indicator light is deactivated;
in other words, it will not come on
or flash. (This setting is selected
when the indicator light flashes
once every two seconds.)
2. Push the “SELECT” button to con-
firm the selected indicator light ac-
tivity. The control mode changes
to the shift timing indicator light ac-
tivation function.
U5SLE0.book Page 11 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3 To set the shift timing indicator light ac-
tivation functionNOTE:_ The shift timing indicator light activa-
tion function can be set between
10,000 r/min and 16,000 r/min. From
10,000 r/min to 12,000 r/min, the indi-
cator light can be set in increments of
500 r/min. From 12,000 r/min to
16,000 r/min, the indicator light can be
set in increments of 200 r/min. _1. Push the “RESET” button to select
the desired engine speed for acti-
vating the indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift timing indicator light deactiva-
tion function.To set the shift timing indicator light de-
activation functionNOTE:_

The indicator light deactivation
function can be set between
10,000 r/min and 16,000 r/min.
From 10,000 r/min to 12,000 r/min,
the indicator light can be set in in-
crements of 500 r/min. From
12,000 r/min to 16,000 r/min, the
indicator light can be set in incre-
ments of 200 r/min.


Be sure to set the deactivation
function to a higher engine speed
than for the activation function,
otherwise the shift timing indicator
light will remain deactivated.
_1. Push the “RESET” button to select
the desired engine speed for de-
activating the indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift timing indicator light bright-
ness function.To adjust the shift timing indicator light
brightness1. Push the “RESET” button to select
the desired indicator light bright-
ness level.
2. Push the “SELECT” button to con-
firm the selected indicator light
brightness level. The multi-func-
tion display will return to the odom-
eter, tripmeter or clock mode.
U5SLE0.book Page 12 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU04969

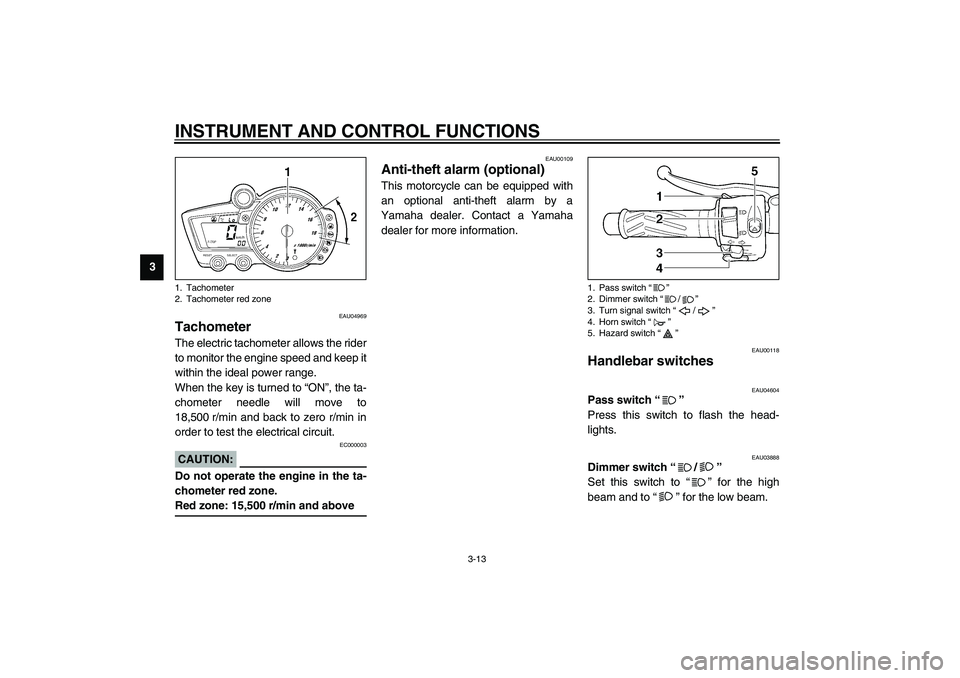

Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will move to
18,500 r/min and back to zero r/min in
order to test the electrical circuit.
EC000003
CAUTION:_ Do not operate the engine in the ta-
chometer red zone.
Red zone: 15,500 r/min and above _
EAU00109
Anti-theft alarm (optional) This motorcycle can be equipped with
an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU00118
Handlebar switches
EAU04604
Pass switch “”
Press this switch to flash the head-
lights.
EAU03888
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
1. Tachometer
2. Tachometer red zone
1. Pass switch “”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
5. Hazard switch “”
U5SLE0.book Page 13 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU03889
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU00129
Horn switch “”
Press this switch to sound the horn.
EAU03826
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard light (simultaneous flashing of all
turn signal lights).
The hazard light is used in case of an
emergency or to warn other drivers
when your motorcycle is stopped
where it might be a traffic hazard.
EC000006
CAUTION:_ Do not use the hazard light for an ex-
tended length of time, otherwise the
battery may discharge. _
EAU03890
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the motorcycle over-
turns or when the throttle cable is
stuck.1. Engine stop switch “/”
2. Start switch “”
U5SLE0.book Page 14 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU00143
Start switch “”
Push this switch to crank the engine
with the starter.
EC000005
CAUTION:@ See page 5-1 for starting instruc-
tions prior to starting the engine. @
EAU00152
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-28
for an explanation of the ignition circuit
cut-off system.)
EAU00157
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
1. Shift pedal
U5SLE0.book Page 15 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU02935
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
NOTE:@ The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked. @
EWA00025
WARNING
@ Make sure that the fuel tank cap is
properly closed before riding. @
EAU03753
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
EW000130
WARNING
_

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot
engine.
_
1. Fuel tank cap lock cover
2. Unlock.
1. Fuel tank filler tube
2. Fuel level
U5SLE0.book Page 17 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU00185
CAUTION:@ Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts. @
EAU04940
ECA00104
CAUTION:_ Use only unleaded gasoline. The
use of leaded gasoline will cause se-
vere damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem. _
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU02955
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary. Recommended fuel:
PREMIUM UNLEADED
GASOLINE ONLY
Fuel tank capacity:
Total amount:
17 L
Amount remaining when the fuel
level warning light comes on:
3.5 L
1. Fuel tank breather hoseLeft side
